Revolver is the lightest full-suspension frame Norco has ever built, with a surprising amount of capability. At the core of its efficiency is their advanced approach to a Flex-Pivot suspension design.

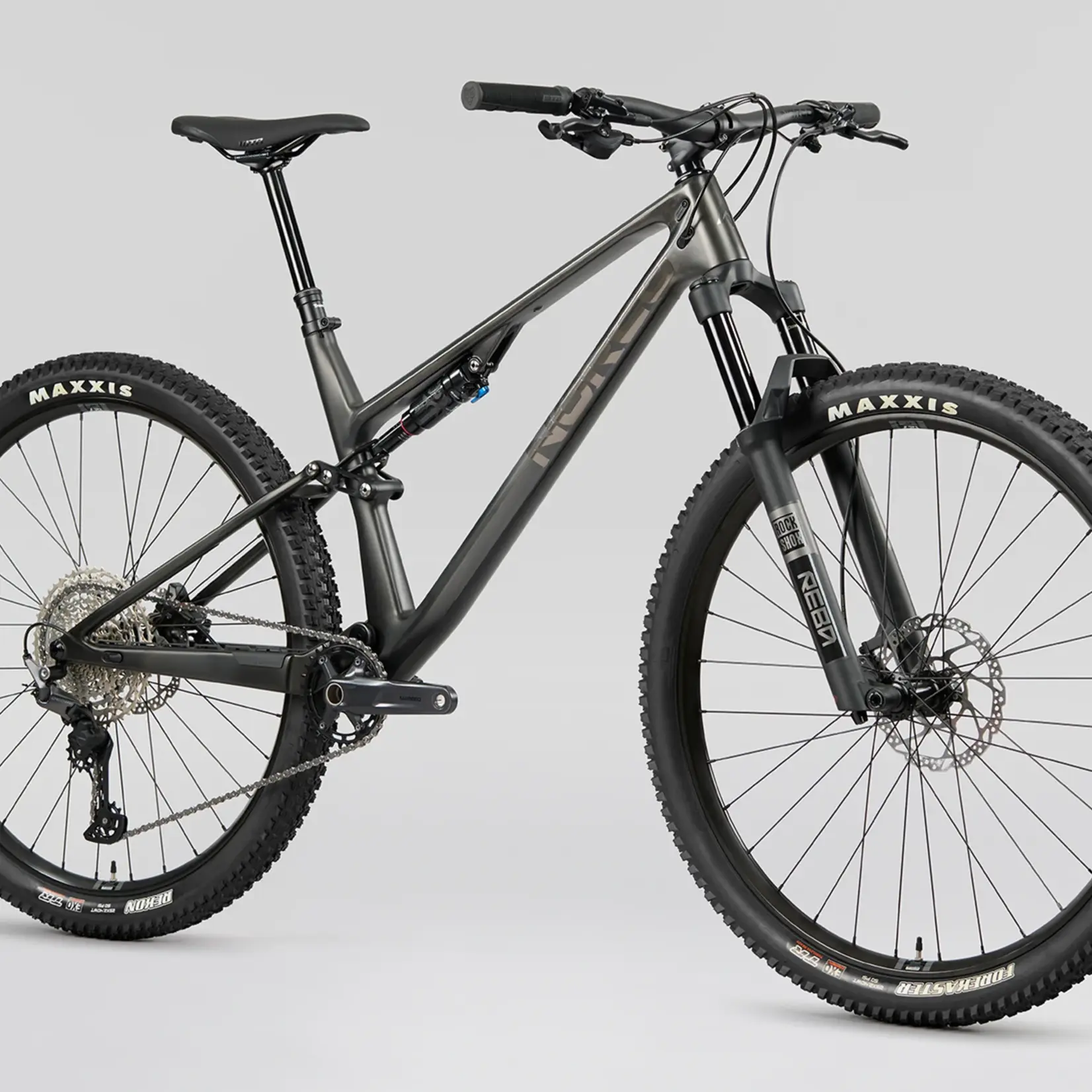

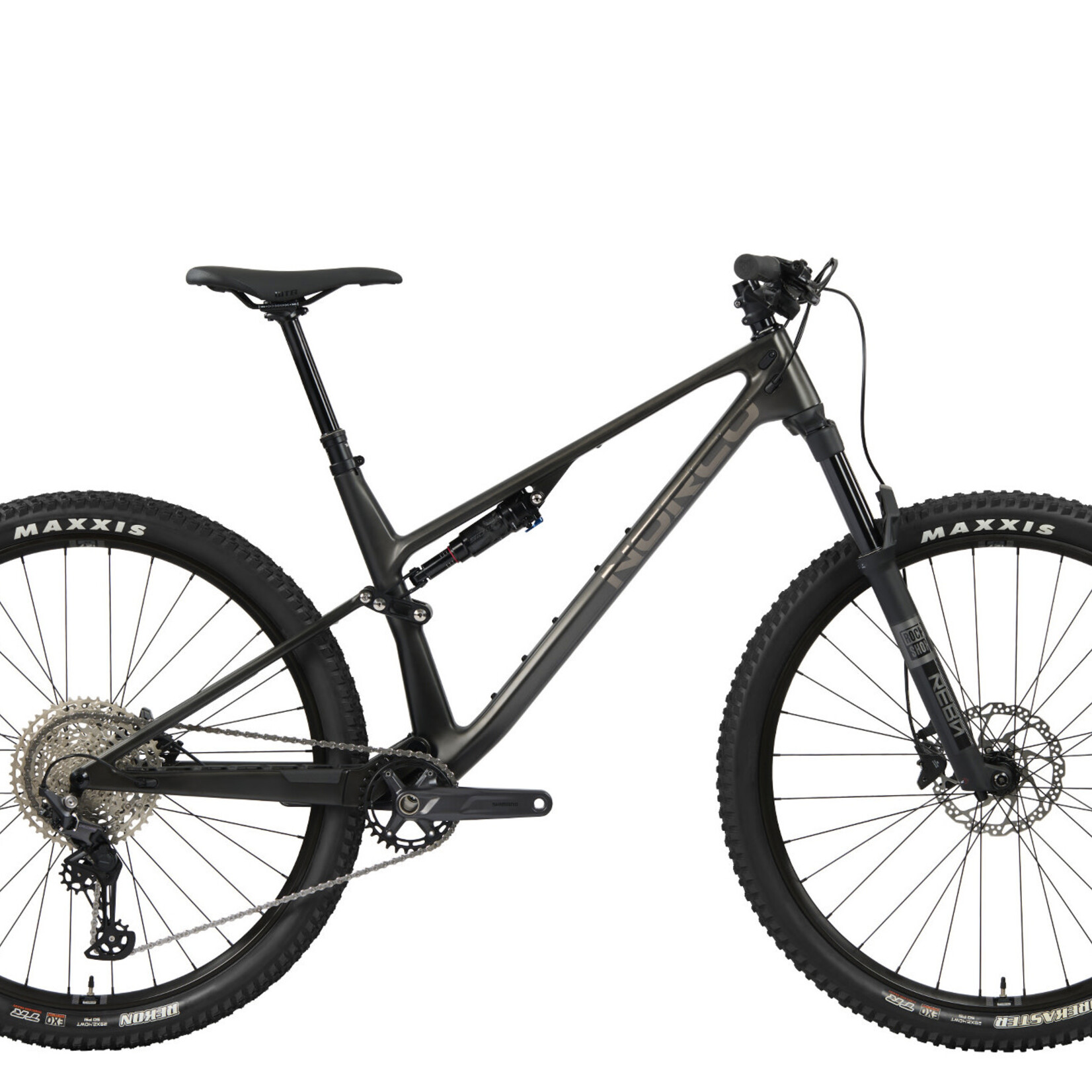

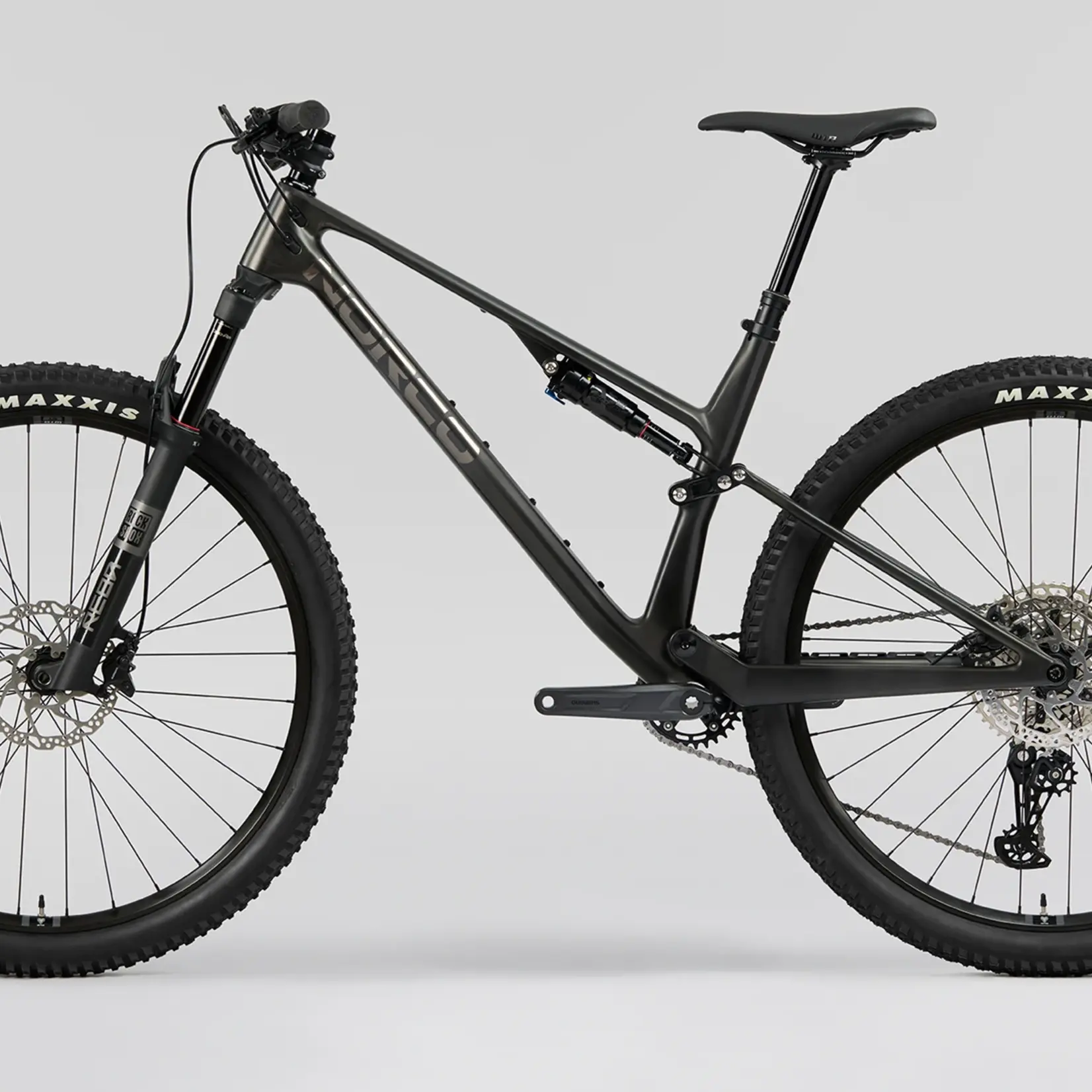

The Revolver C3 130 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistent weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.
| Weight: | Size 3: 13.64kg/30lbs |
|---|---|
| Frame: | Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |

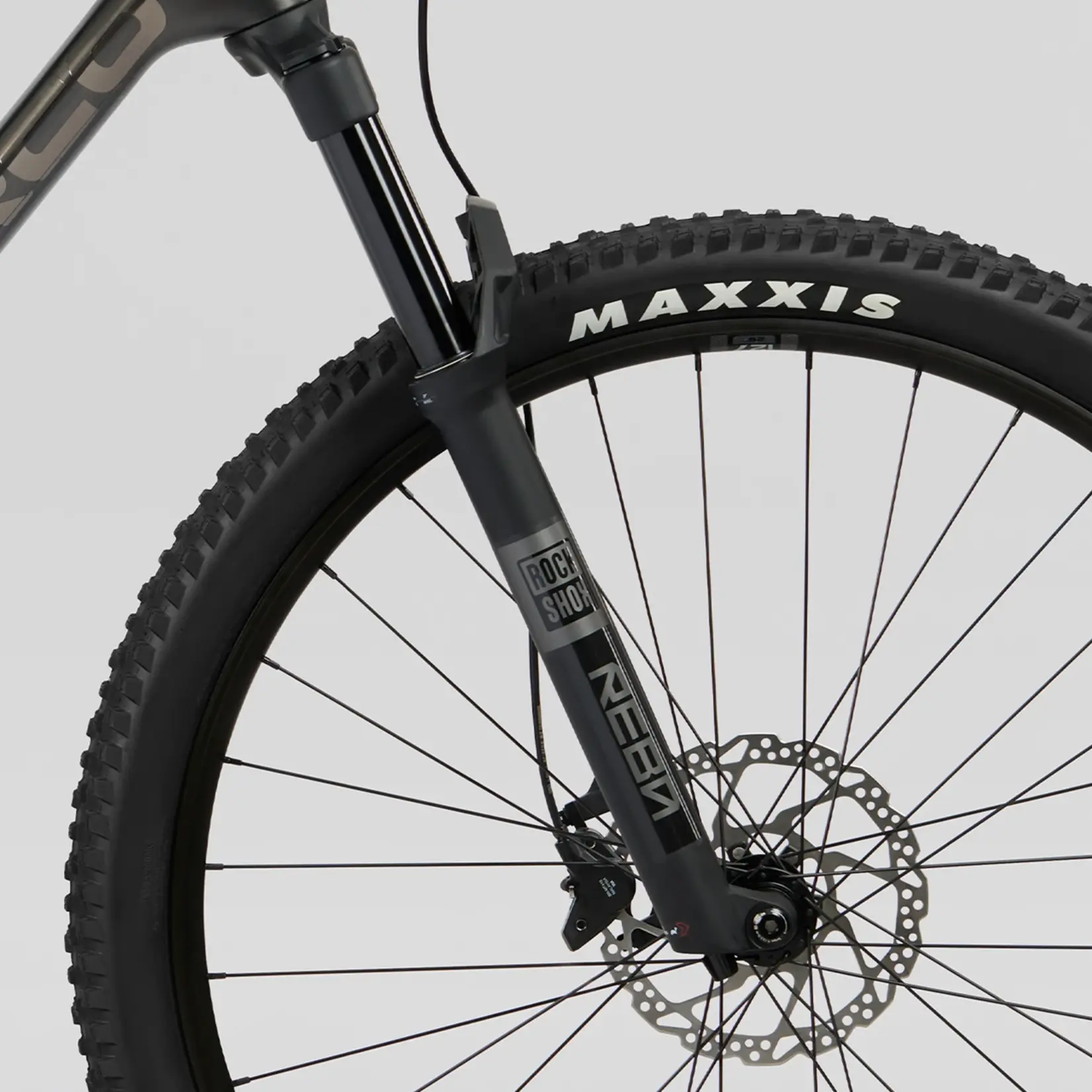

| Fork: | Rockshox Reba RL, Motion Control, 130mm, 44mm offset, |

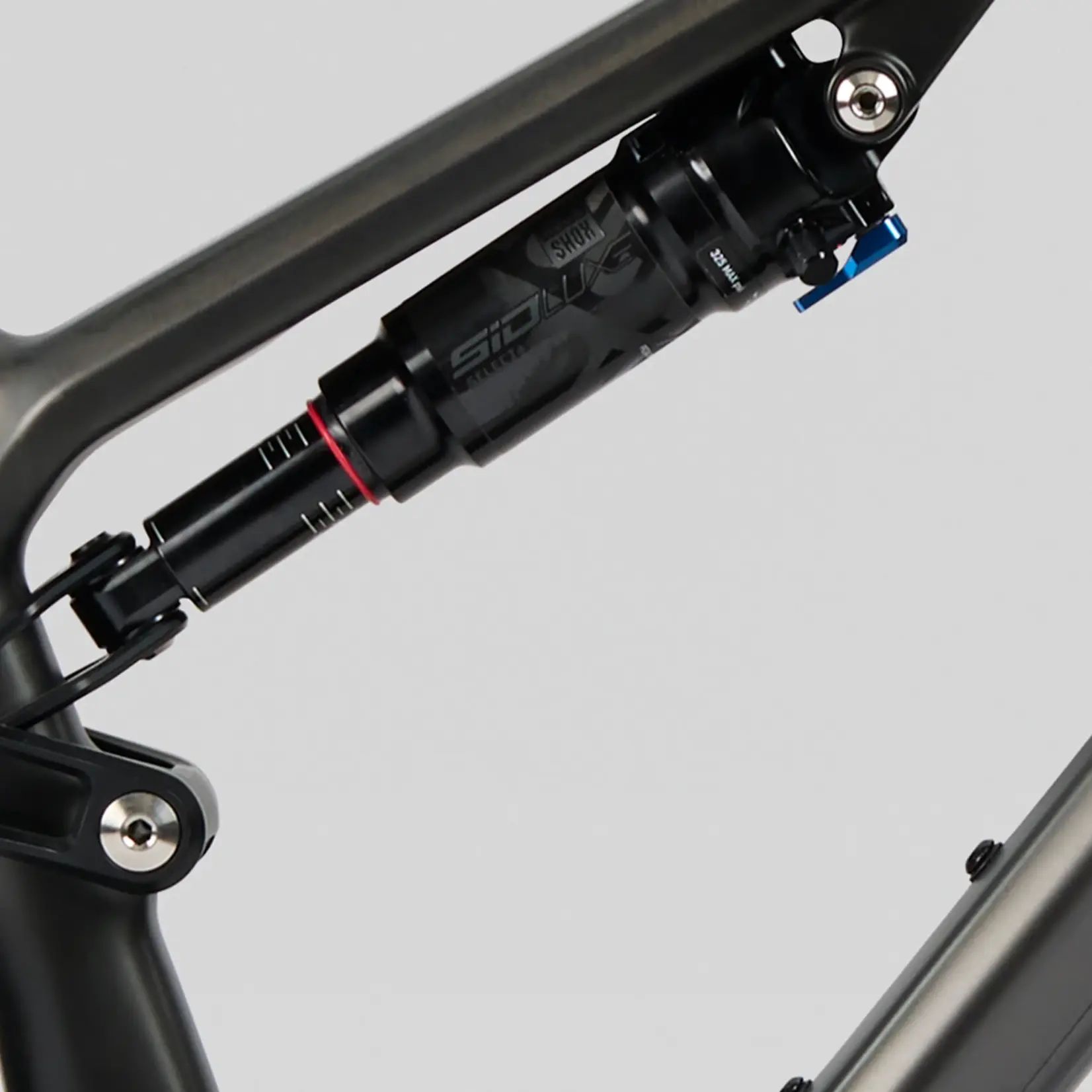

| Shock: | Rockshox SID LUX Select +, 190x45mm, standard |
| Front Shifter: | N/A |
| Front Derailleur: | N/A |
| Rear Shifter: | Shimano Deore SL-M6100, 12sp |

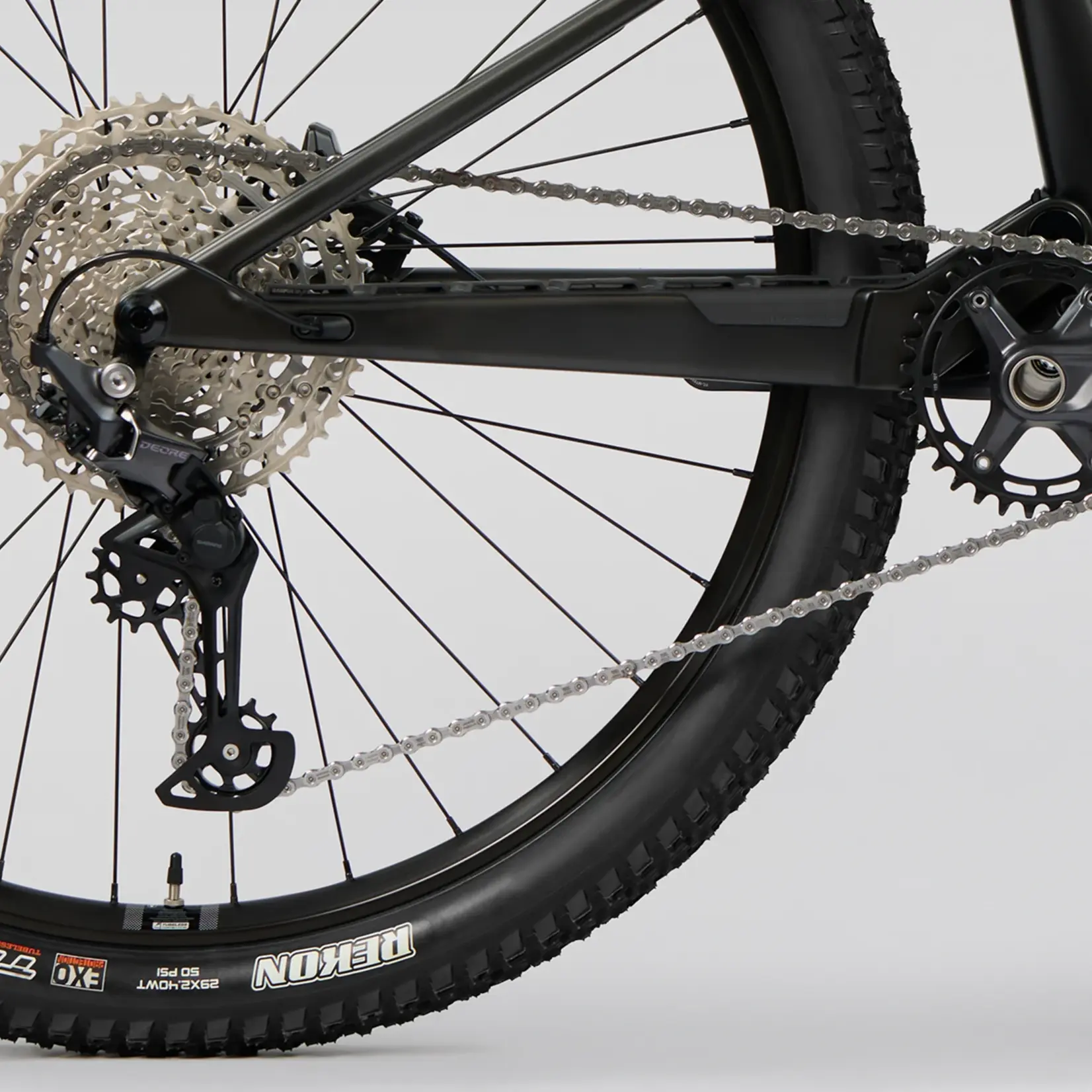

| Rear Derailleur: | Shimano Deore RD-M6100, 12sp, SGS |
| Crankset: | Shimano Deore FC-MT512, 32T, CL55, 165mm (S1), 170mm (S2,S3) 175mm (S4,S5) |
| Pedals: | N/A |
| Bottom Bracket: | Shimano BB-MT501, BSA 73mm |
| Cassette: | Shimano Deore CS-M6100-12, 10-51T, 12sp |
| Chain: | Shimano Deore CN-M6100-12, 12sp |
| Front Brake: | Shimano Deore BR-MT410, 2-Piston, Resin Pads |
| Front Brake Rotor: | Shimano SM-RT64, 180mm, C-lock |
| Rear Brake: | Shimano Deore BR-MT410, 2-Piston, Resin Pads |
| Rear Brake Rotor: | Shimano SM-RT64, 180mm, C-lock |
| Brake Levers: | Shimano Deore M4100 |
| Front Hub: | Shimano Deore HB-MT410, 15x110mm Boost, 32H, C-lock |
| Front Hub Skewer: | 15x110mm Thru-Axle |
| Rear Hub: | Shimano Deore FH-MT510, 12x148 Boost, Microspline, 32H, C-lock |
| Rear Hub Skewer: | 12x148mm Thru-Axle |
| Rims: | WTB ST i27 TCS, 27mm ID, 32H, 29" |
| Front Tire: | Maxxis New Forekaster, EXO, TR 29x2.40" |
| Rear Tire: | Maxxis Rekon, EXO, TR 29x2.40" |

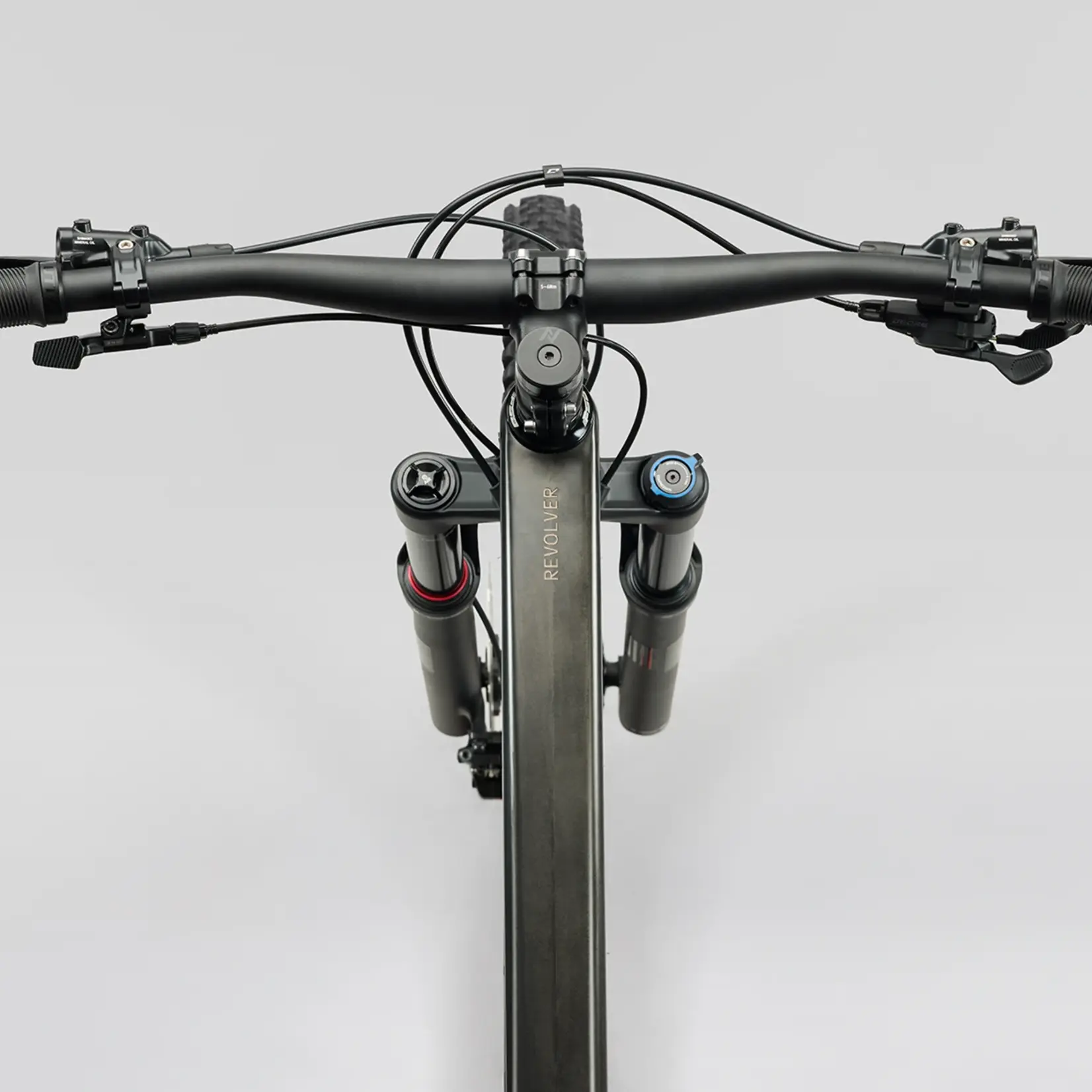

| Handlebar: | Norco 6061, 760 (S1,S2,S3) 780mm (S4,S5), 20mm rise |
| Grips/ Bar Tape: | WTB Wavelength |
| Stem: | Norco 6061, 50mm, 35mm Clamp |
| Headset: | FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5" |
| Saddle: | WTB Silverado Medium |
| Seatpost: | TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5) |
| Extras: |
