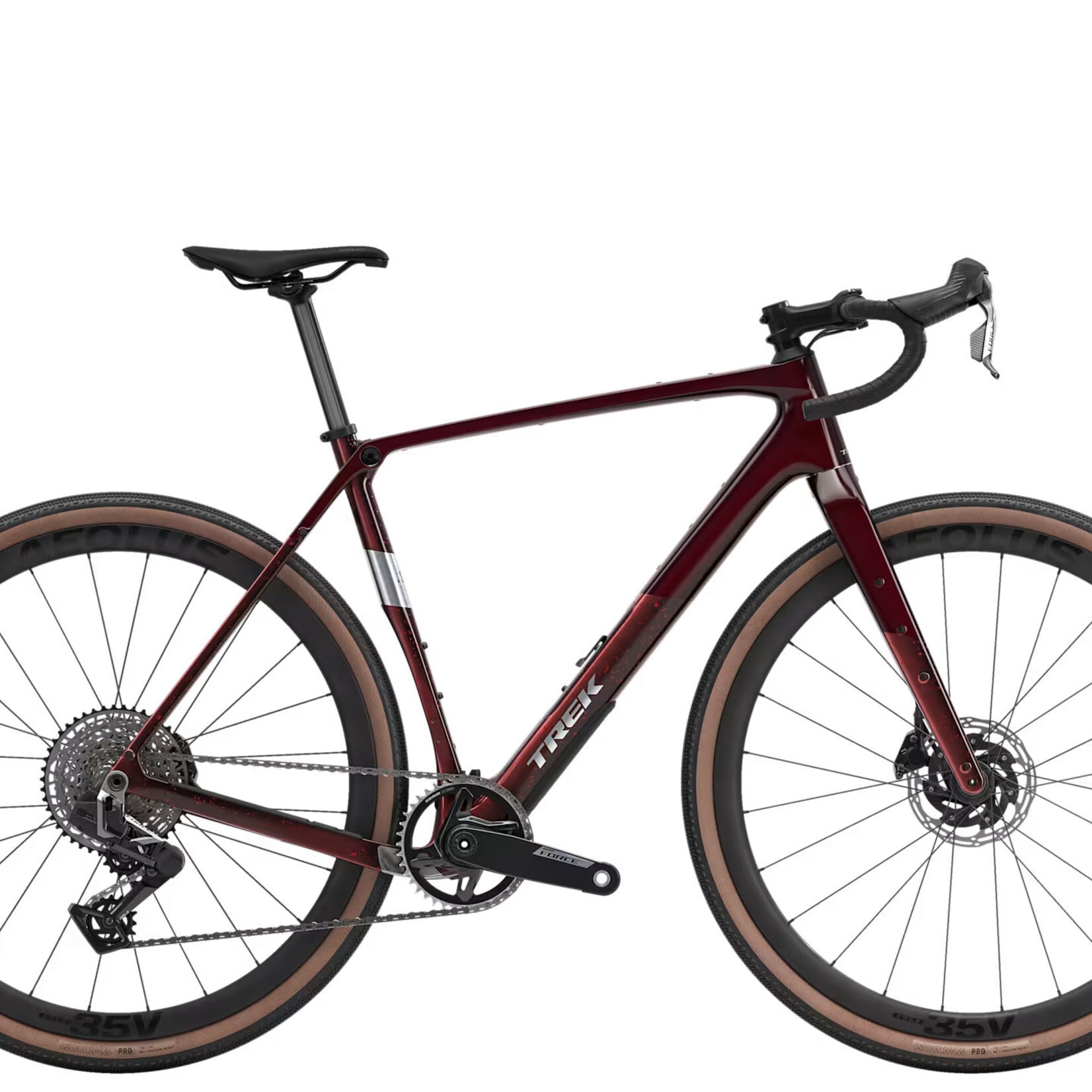

Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond.
Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts, and clearance for up to 50mm tires (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations so you can float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS XPLR E1 drivetrain.
| Weight: | Medium/Large - 9.33kg/20.57lbs (with TLR sealant, no tubes) |
|---|---|
| Frame: | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfere |
| Fork: | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Shock: | N/A |
| Front Shifter: | N/A |
| Front Derailleur: | N/A |
| Rear Shifter: | SRAM Force AXS E1 |
| Rear Derailleur: | SRAM Force XPLR AXS, 46T max cog |
| Crankset: | SRAM Force XPLR, 40T, DUB Wide, 172.5mm length |
| Pedals: | N/A |
| Bottom Bracket: | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette: | SRAM Force XPLR XG-1371, 10-46, 13 speed |
| Chain: | SRAM Force E1, 12/13 speed |
| Front Brake: | SRAM Force AXS hydraulic disc, flat mount |
| Front Brake Rotor: | SRAM Paceline X, rounded, centerlock, 160mm |
| Rear Brake: | SRAM Force AXS hydraulic disc, flat mount |
| Rear Brake Rotor: | SRAM CenterLine X, centerlock, round edge, 160mm |
| Brake Levers: | SRAM Force AXS hydraulic disc, flat mount |
| Front Hub: | Bontrager Rapid Drive 108 road hub |
| Front Hub Skewer: | Bontrager Switch Lever Pro Front Thru Axle, 119.5mm |
| Rear Hub: | Bontrager Rapid Drive 108 road hub, SRAM XDR driver |
| Rear Hub Skewer: | Bontrager Switch Lever Pro Rear Axle, 166mm |
| Rims: | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth |
| Front Tire: | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Rear Tire: | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Handlebar: | Bontrager Pro Gravel, 42cm width |
| Grips/ Bar Tape: | Bontrager Supertack Perf tape |
| Stem: | Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Headset: | RCS Headset System |
| Saddle: | Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost: | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Extras: | Bontrager BITS Internal Frame Storage Bag |
