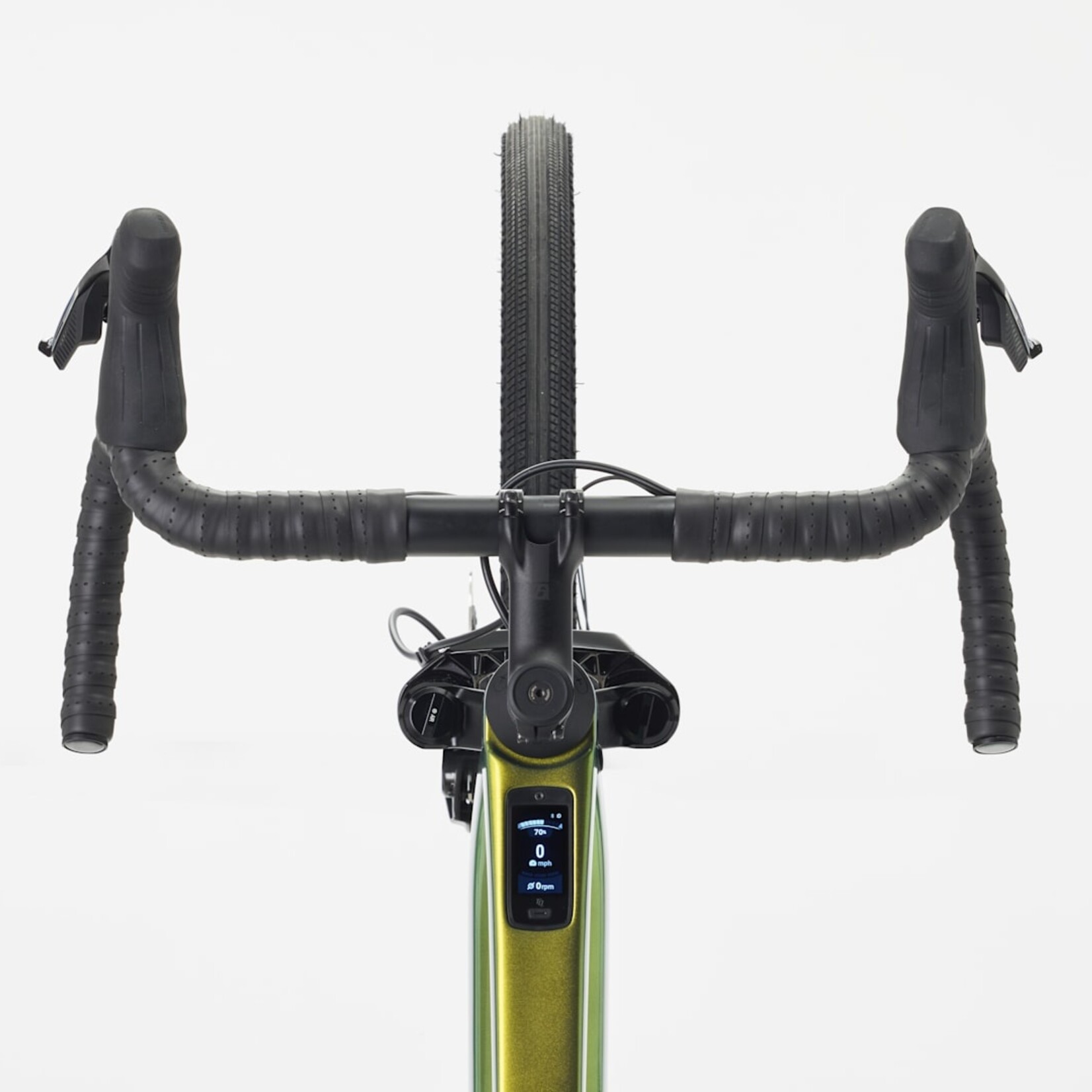

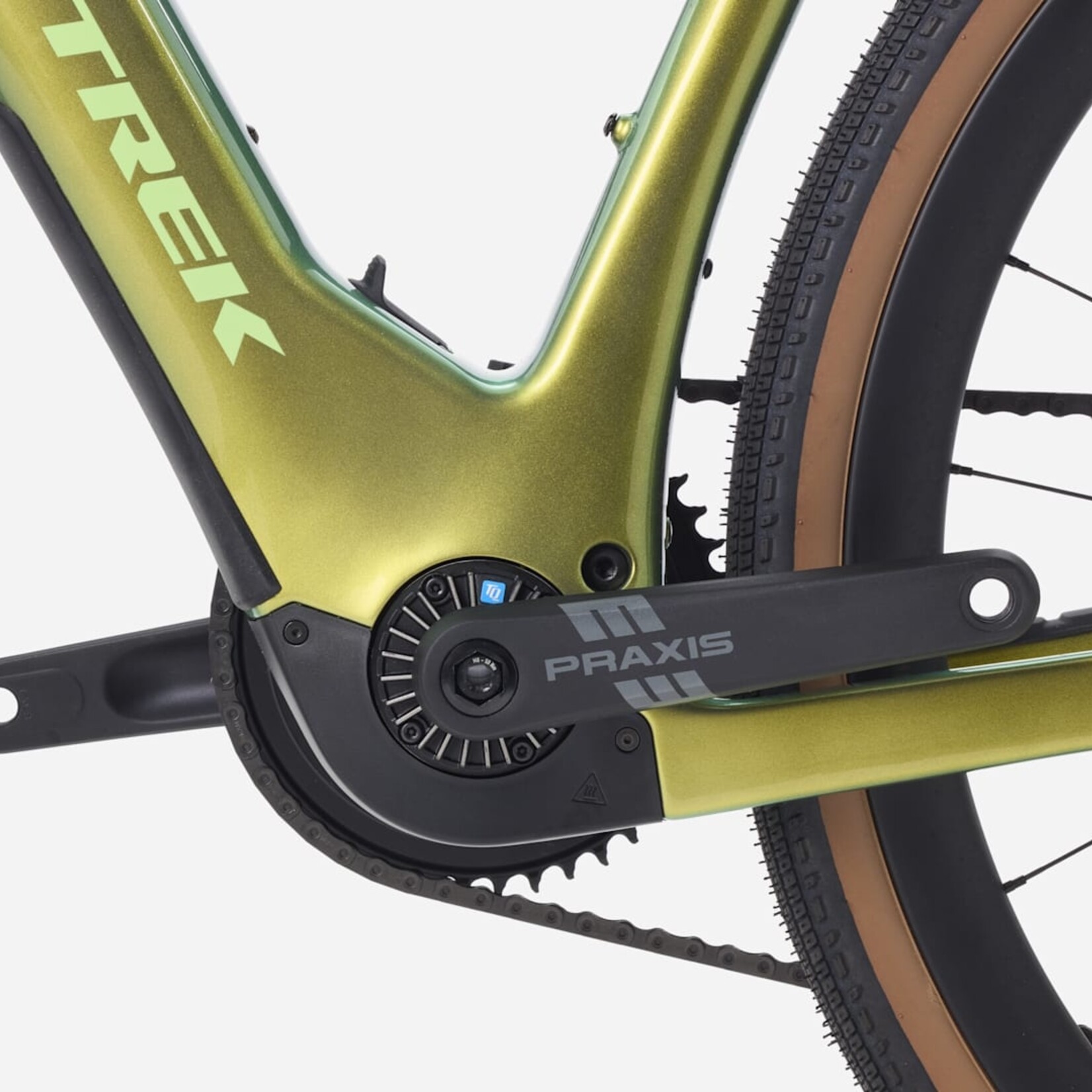

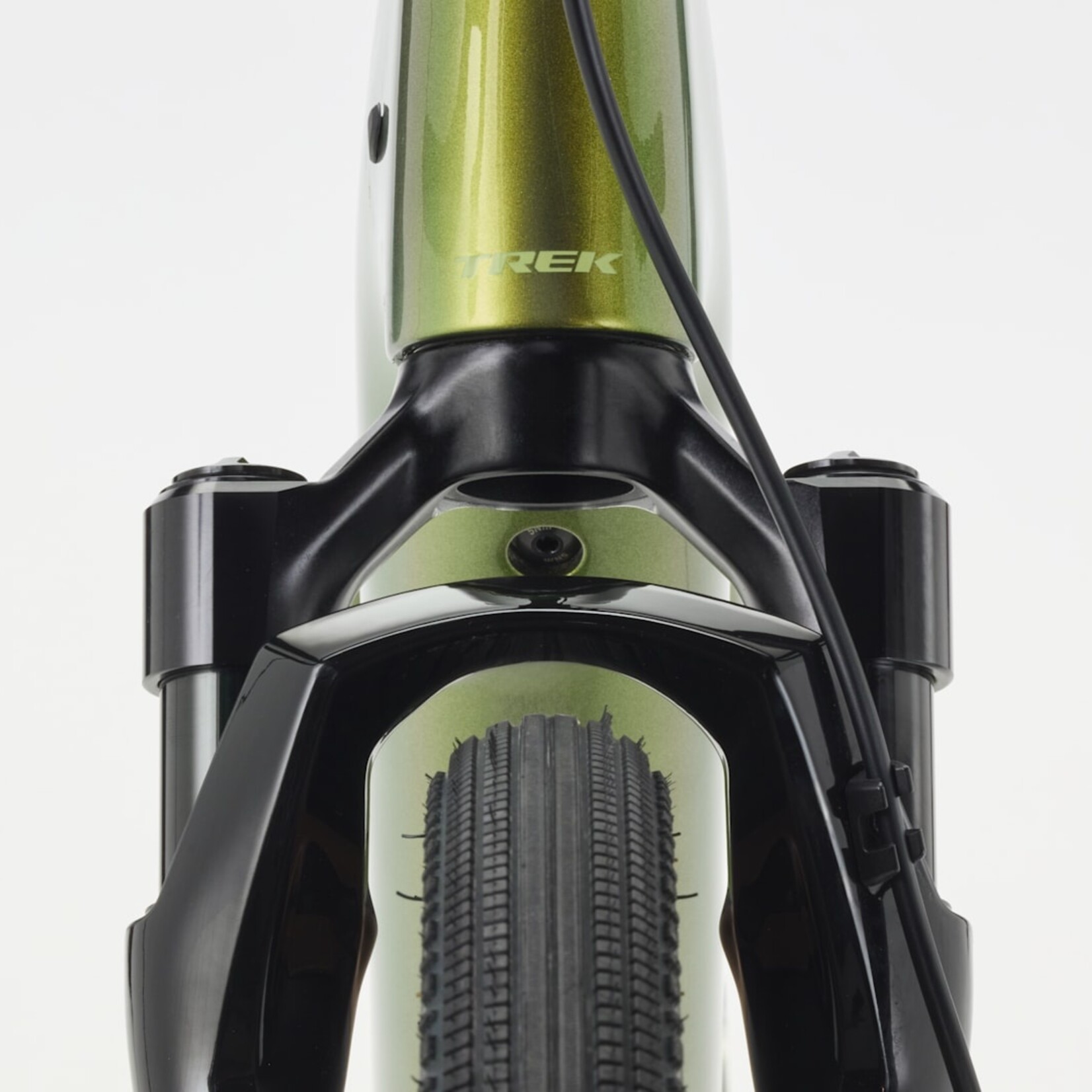

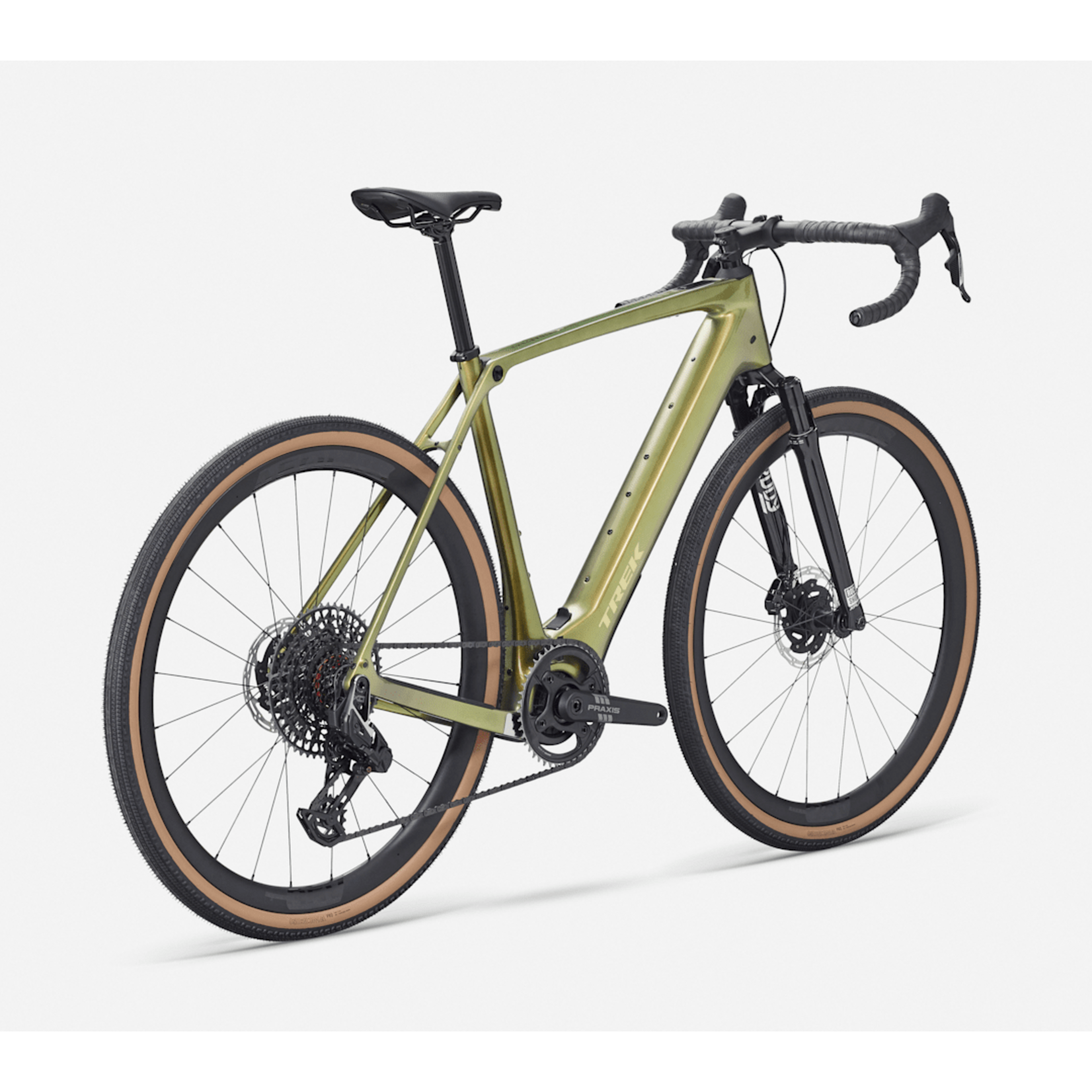

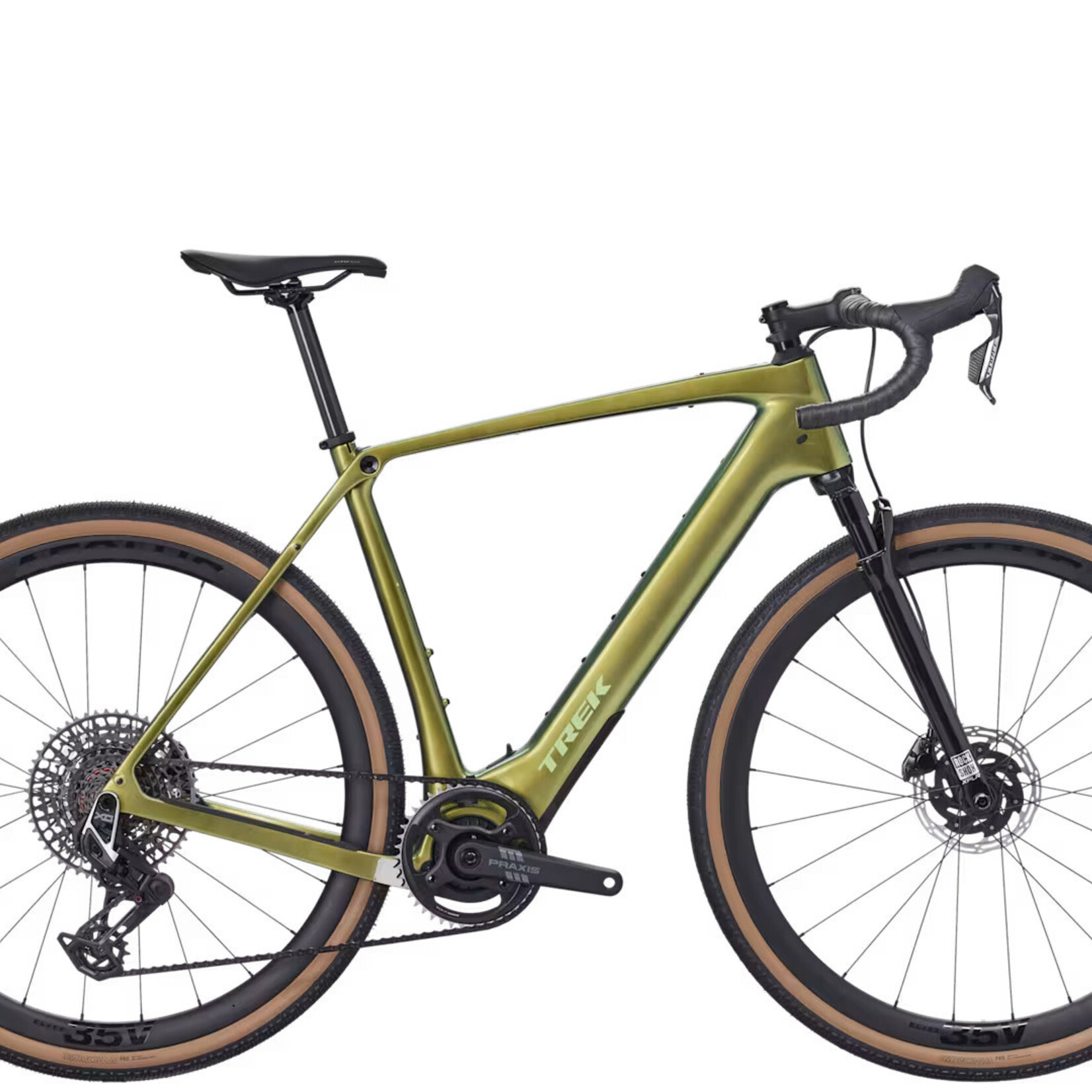

Trek Checkpoint+ SL 7 AXS

An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth boost, while a 40mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM's Force AXS 12-speed drivetrain delivers smooth, wireless shifting, and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seatpost damp vibrations while keeping the weight down.

View more details at Trekbikes.com

Weight:	ML - 14.05kg/30.98lbs (with TLR sealant, no tubes)
Frame:	500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
Fork:	RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel
Shock:	N/A
Front Shifter:	N/A
Front Derailleur:	N/A
Rear Shifter:	SRAM Force AXS E1
Rear Derailleur:	SRAM X0 Eagle AXS, T-Type
Crankset:	Praxis Alloy, 170mm length
Pedals:	N/A
Bottom Bracket:	TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Cassette:	SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Chain:	SRAM X0 Eagle, T-Type, 12 speed
Front Brake:	SRAM Force Hydraulic Disc Brake
Front Brake Rotor:	SRAM CenterLine X, centerlock, round edge, 160mm
Rear Brake:	SRAM Force Hydraulic Disc Brake
Rear Brake Rotor:	SRAM CenterLine X, centerlock, round edge, 160mm
Brake Levers:	SRAM Force
Front Hub:	Bontrager Rapid Drive 108 road hub
Front Hub Skewer:	100x12mm thru axle
Rear Hub:	Bontrager Rapid Drive 108 road hub, SRAM XDR driver
Rear Hub Skewer:	142x12mm thru axle
Rims:	Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth
Front Tire:	Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Rear Tire:	Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Handlebar:	Bontrager Pro Gravel, 42cm width
Grips/ Bar Tape:	Bontrager Supertack Perf tape
Stem:	Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset:	Tapered carbon steerer
Saddle:	Verse Short Elite, hollow magnesium rails, 145mm width
Seatpost:	Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Motor:	TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Battery:	TQ 360Wh
Controller:	TQ color LED display with Bluetooth & ANT+ connectivity
Charger:	TQ 4A charger
Lights:	N/A
Extras:
