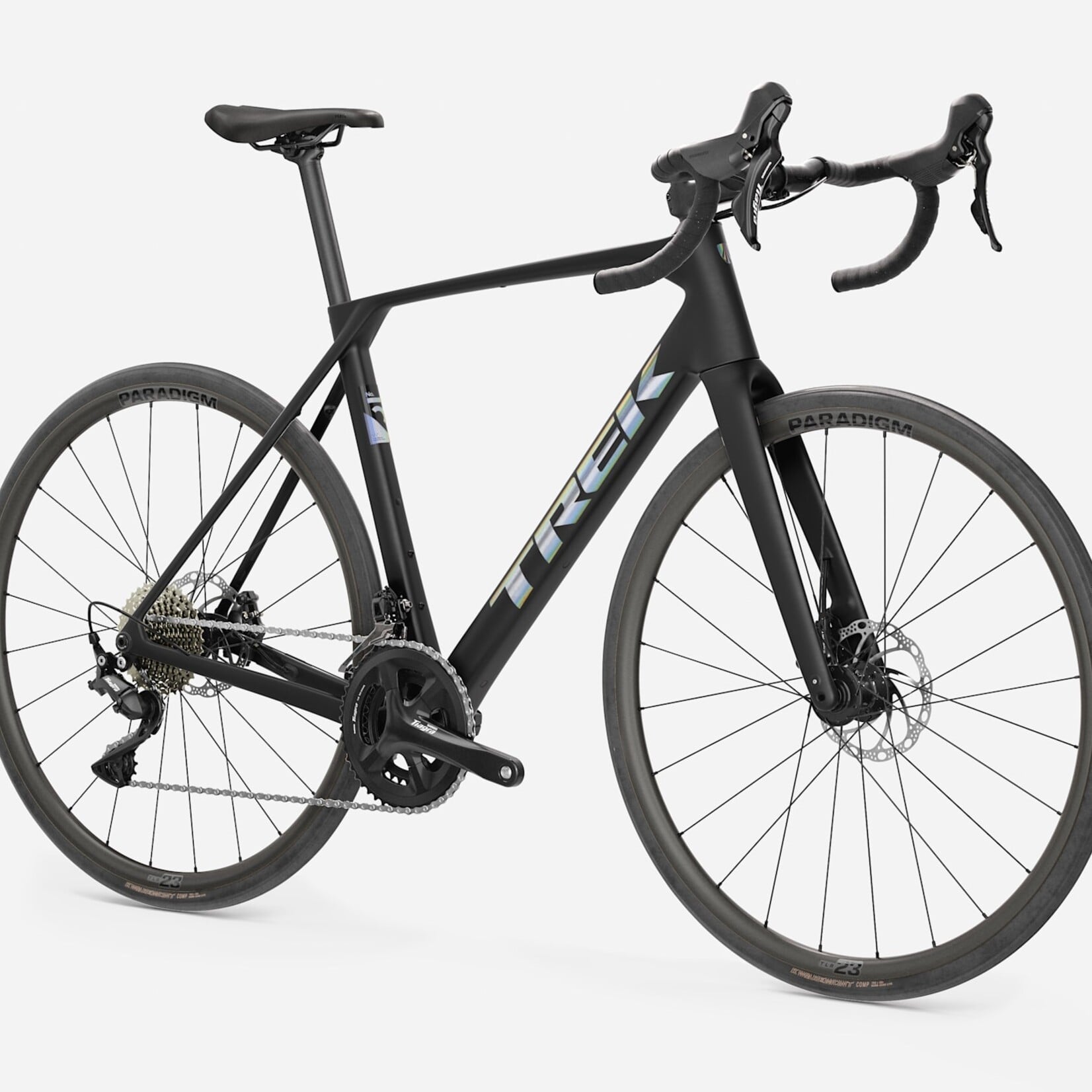

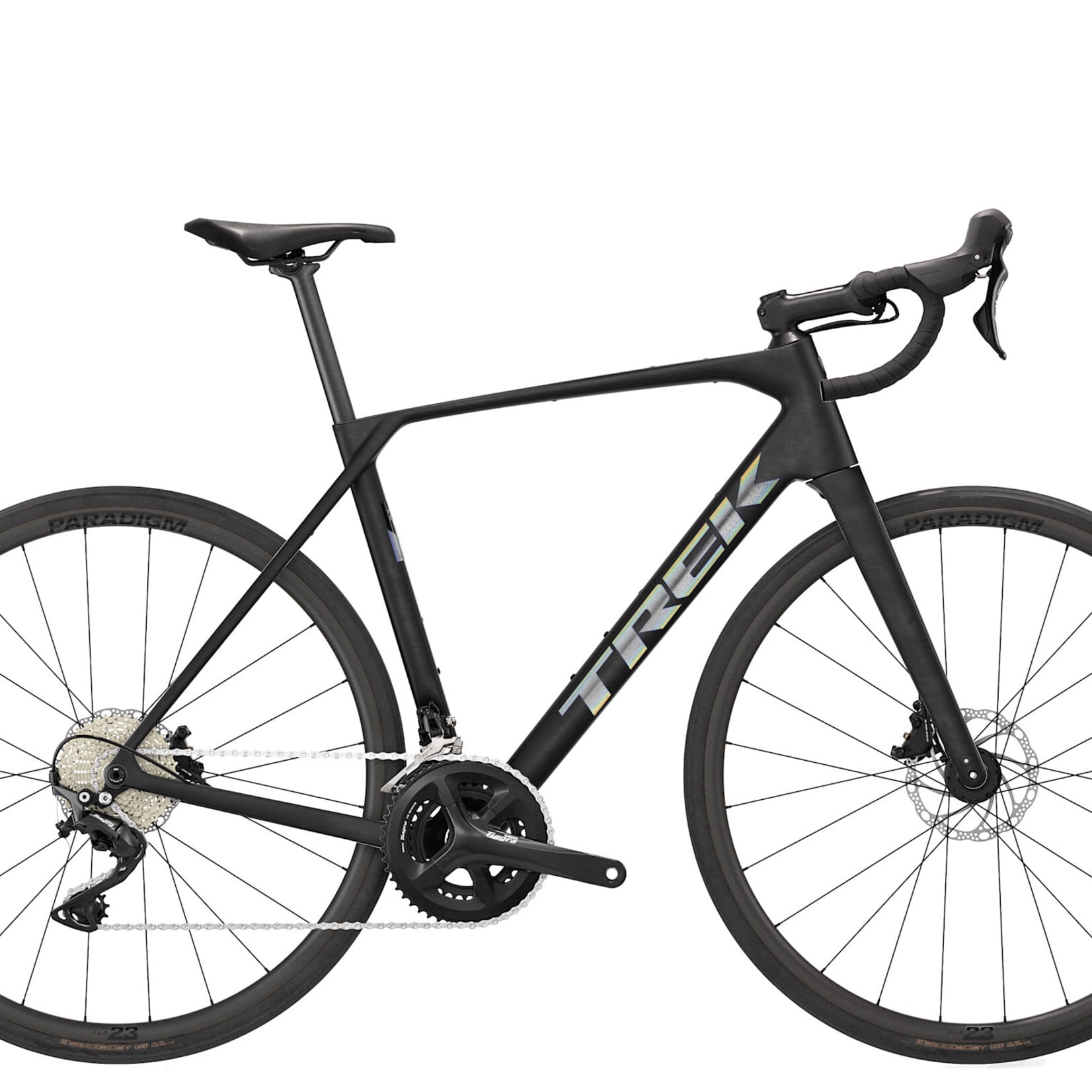

Trek Domane SL 4 Gen 5

Its 500 Series OCLV Carbon frame, comfort-focused geometry, and clearance for wider tires work together to smooth rough roads and reduce fatigue on long rides. A Shimano Tiagra 2x11 drivetrain provides dependable shifting, while integrated mounts and all-road capability make it ready for group rides, fast commutes, or light gravel detours.

Weight:	ML - 9.10 kg / 20.07 lbs (with TLR sealant, no tubes)

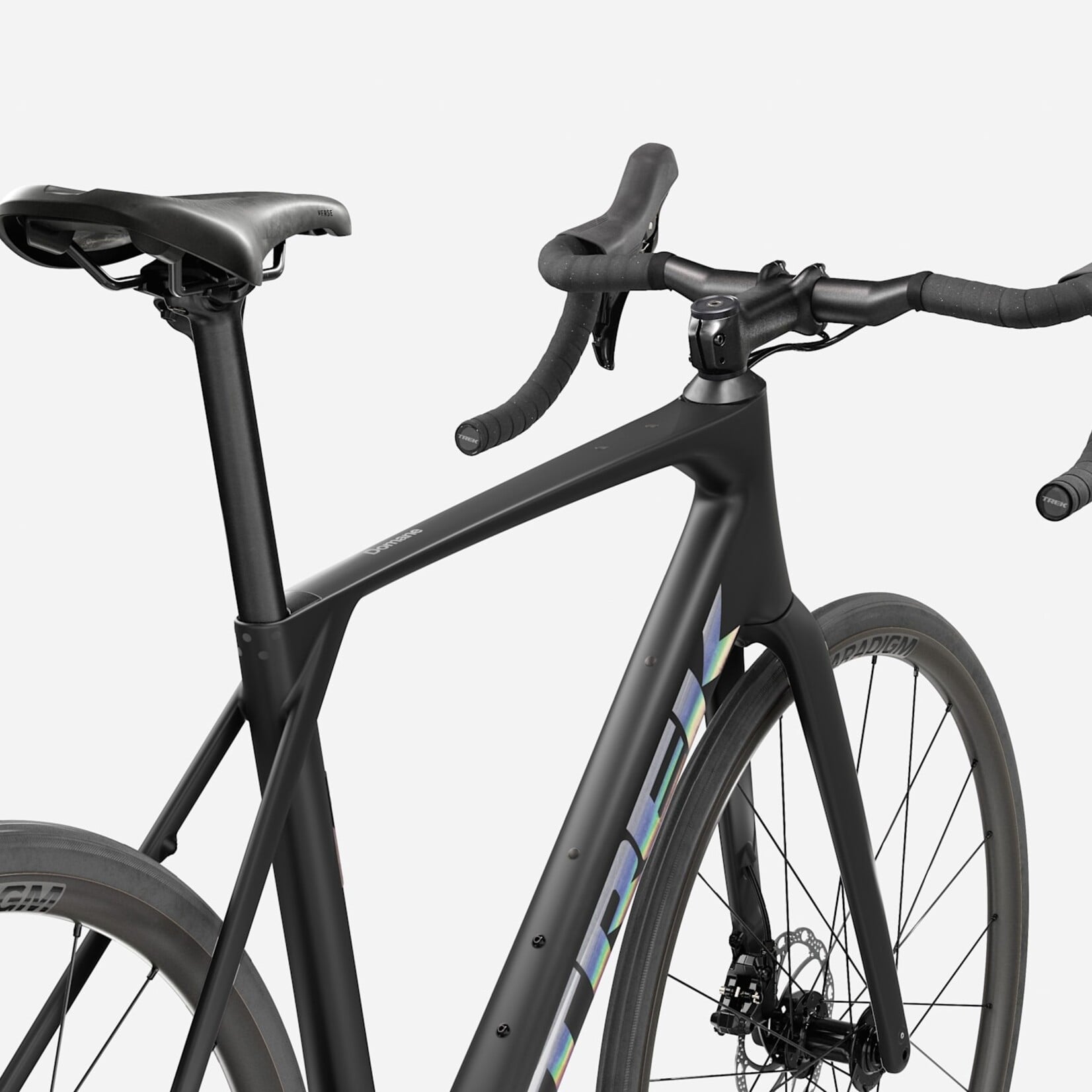

Frame:	500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Fork:	Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Shock:	N/A
Front Shifter:	Shimano Tiagra R4020
Front Derailleur:	Shimano Tiagra R4000, braze-on, down swing
Rear Shifter:	Shimano Tiagra R4020
Rear Derailleur:	Shimano Tiagra R4000

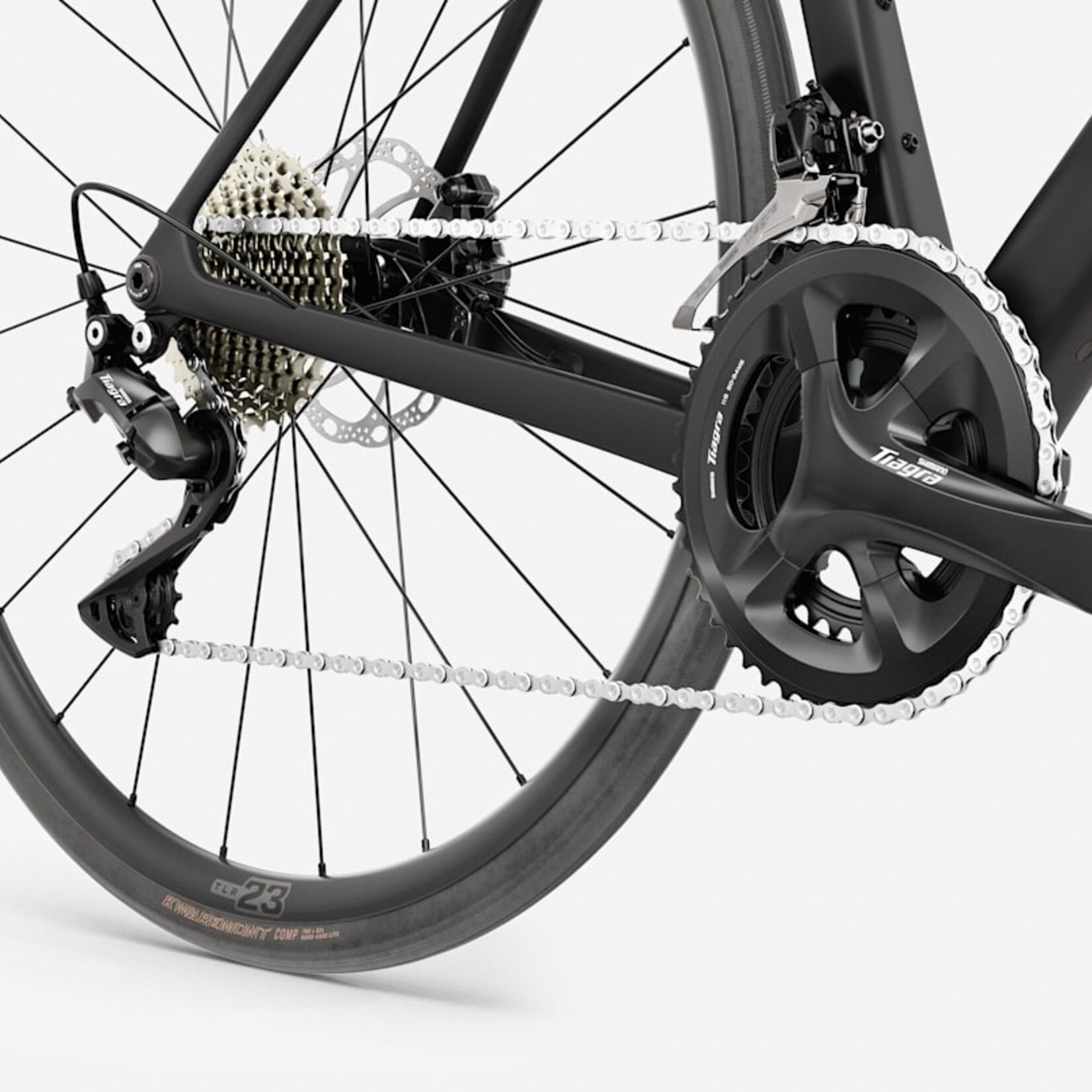

Crankset:	Shimano Tiagra R4000, 50/34, 165mm length, L & XL - 170mm
Pedals:	N/A
Bottom Bracket:	Praxis, T47 threaded, internal bearing
Cassette:	Shimano RS400, 11-36, 11 speed
Chain:	Shimano LG500
Front Brake:	Shimano Tiagra R4020 Hydraulic Disc Brakes
Front Brake Rotor:	Tektro TR160, 6-bolt, 160mm
Rear Brake:	Shimano Tiagra R4020 Hydraulic Disc Brakes
Rear Brake Rotor:	Tektro TR160, 6-bolt, 160mm
Brake Levers:	Shimano Tiagra R4020
Front Hub:	Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Front Hub Skewer:	Bontrager Switch Lever Pro Front Thru Axle, 119.5mm
Rear Hub:	Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Rear Hub Skewer:	Bontrager Switch Lever Pro Rear Axle, 166mm
Rims:	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Front Tire:	Bontrager Kwaremont Comp, Hardcase Lite, wire bead, 60 tpi, 700x32mm
Rear Tire:	Bontrager Kwaremont Comp, Hardcase Lite, wire bead, 60 tpi, 700x32mm

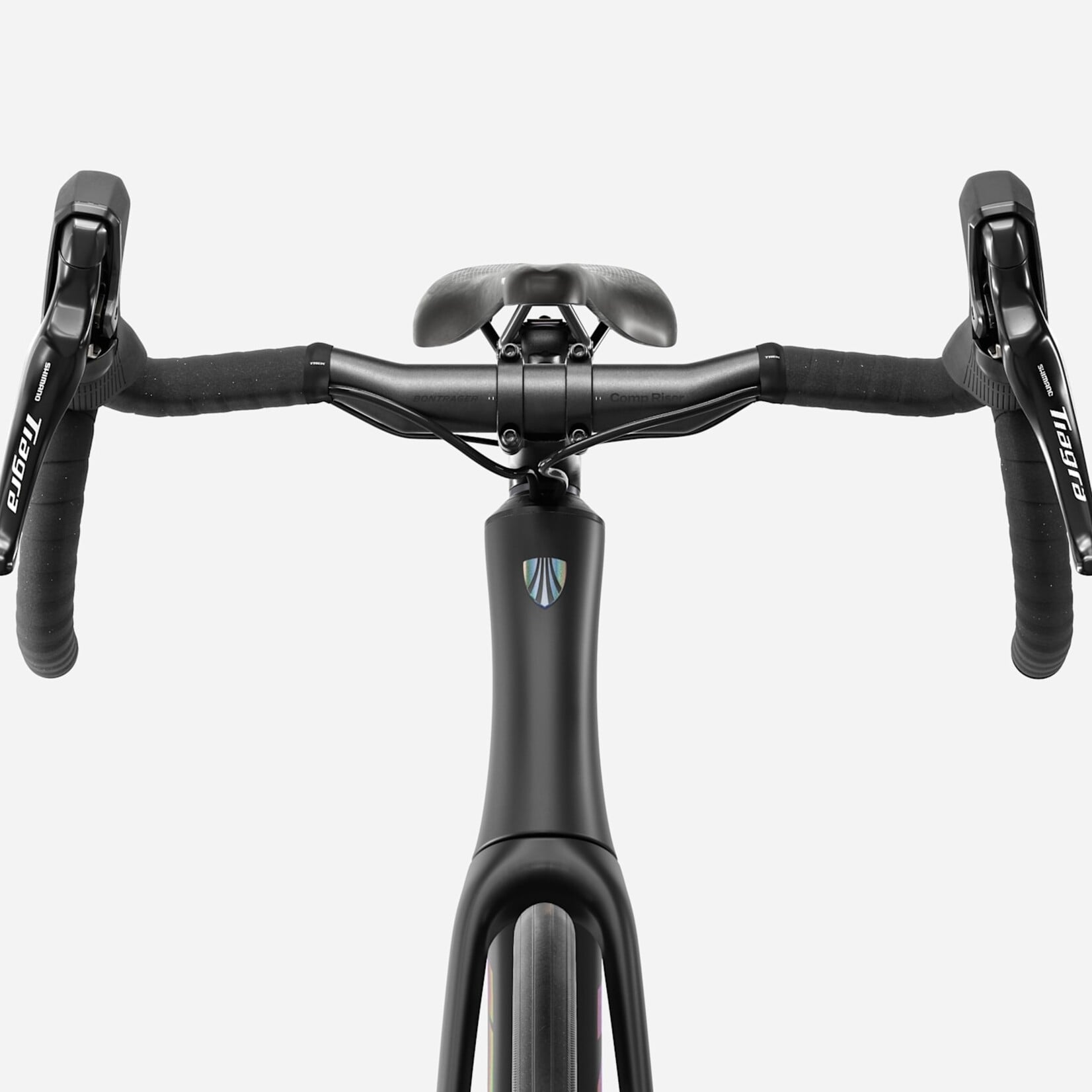

Handlebar:	Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 36cm width, Small 38cm, Medium 40cm, Large & XL 42cm,
Grips/ Bar Tape:	Trek Gel Cork Handlebar Tape Set, 2.9mm thickness
Stem:	Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length, Small 90mm, Medium 100mm, Medium/Large & Large, 110mm, XL 120mm
Headset:	Integrated Headset
Saddle:	Verse Short, steel rails, 145mm width
Seatpost:	Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Extras:
