| Weight: |
Medium - 14.53kg/32.04lbs (with TLR sealant, no tubes) |

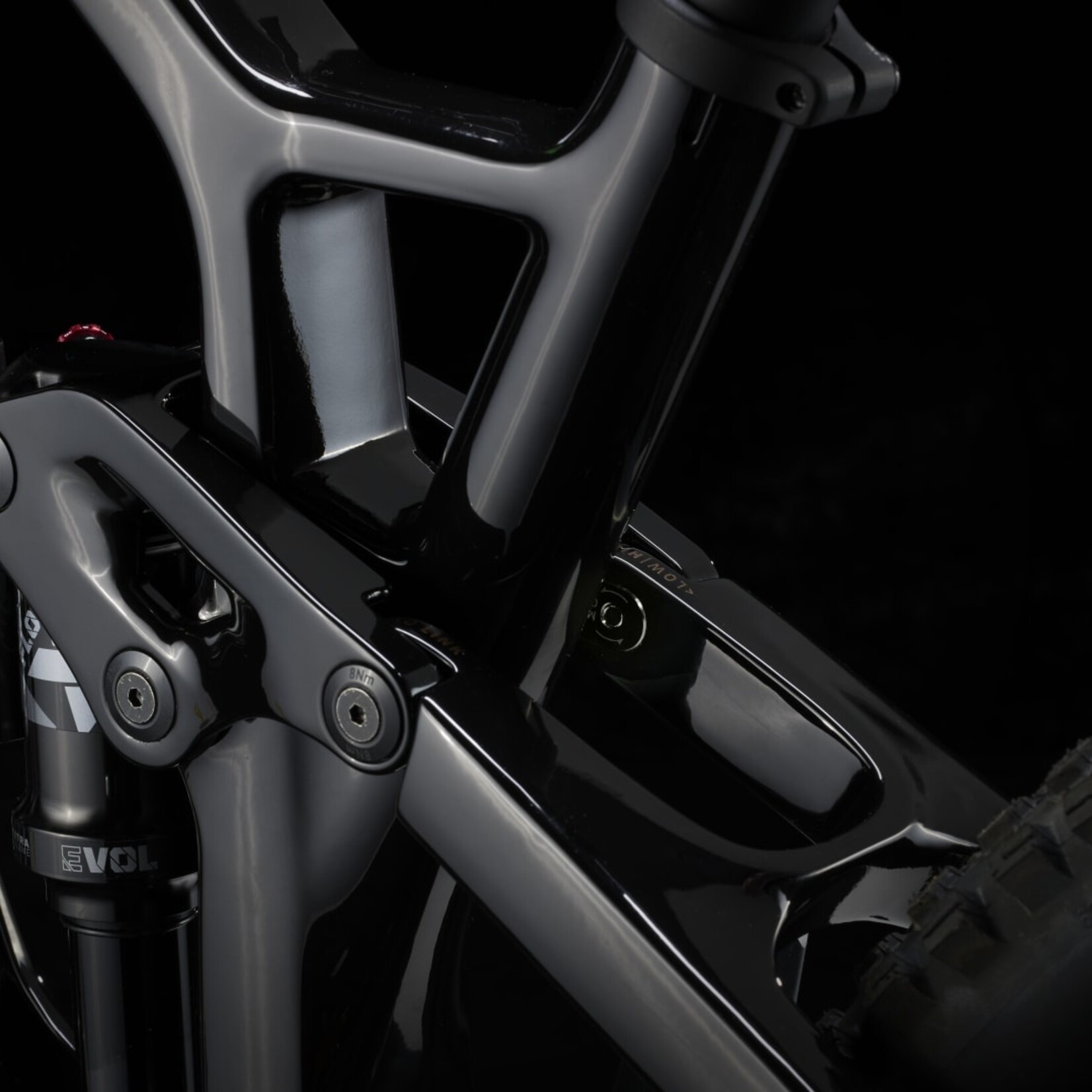

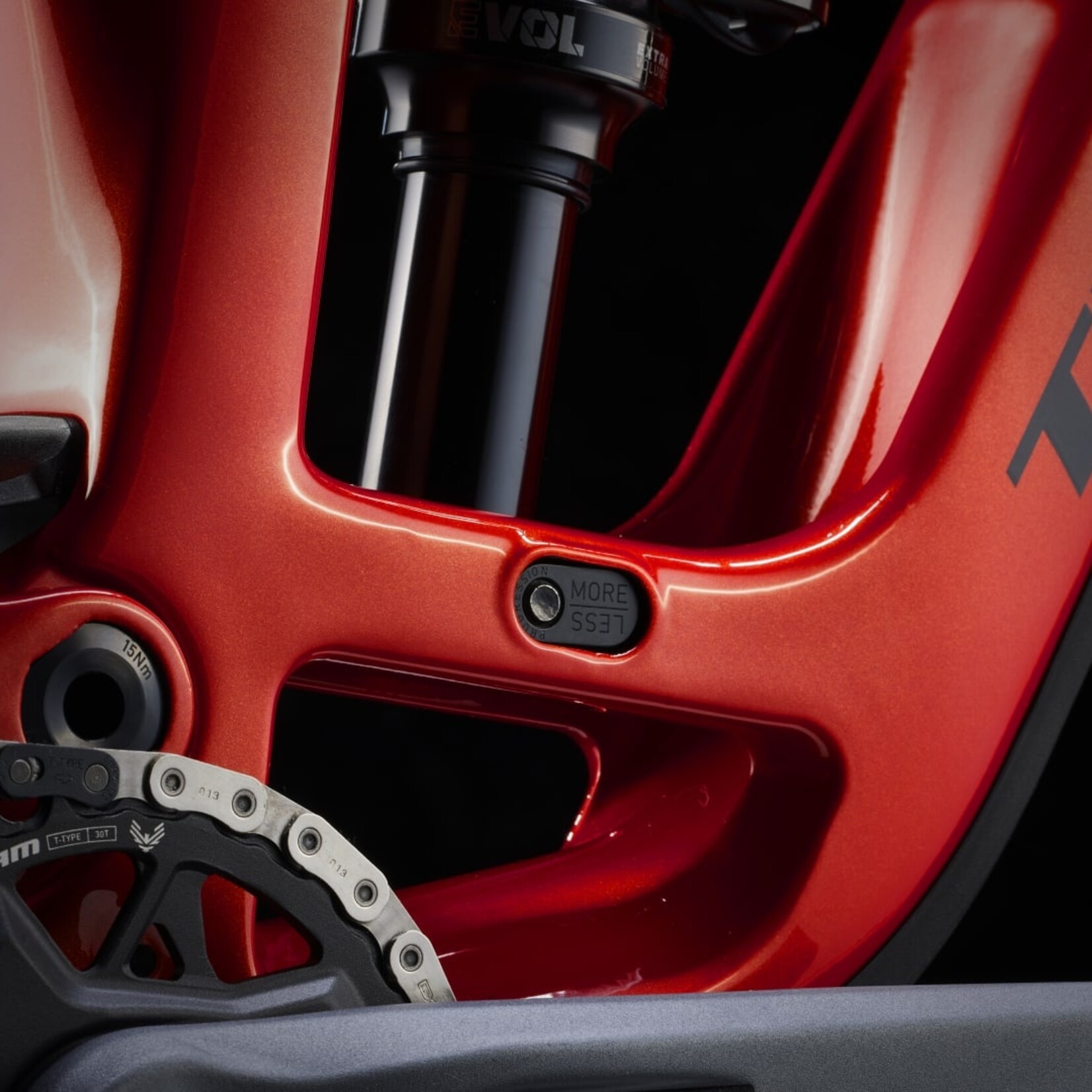

| Frame: |

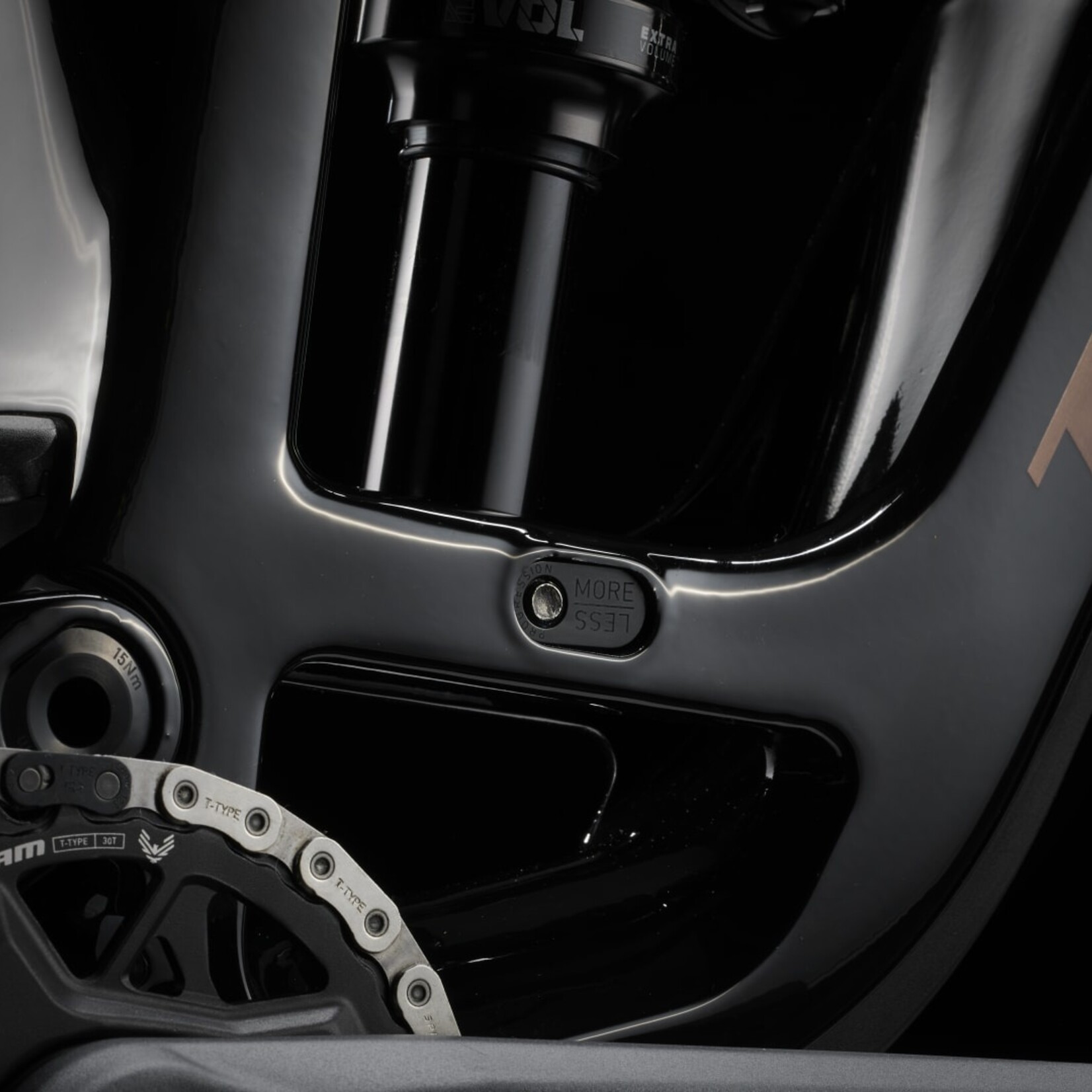

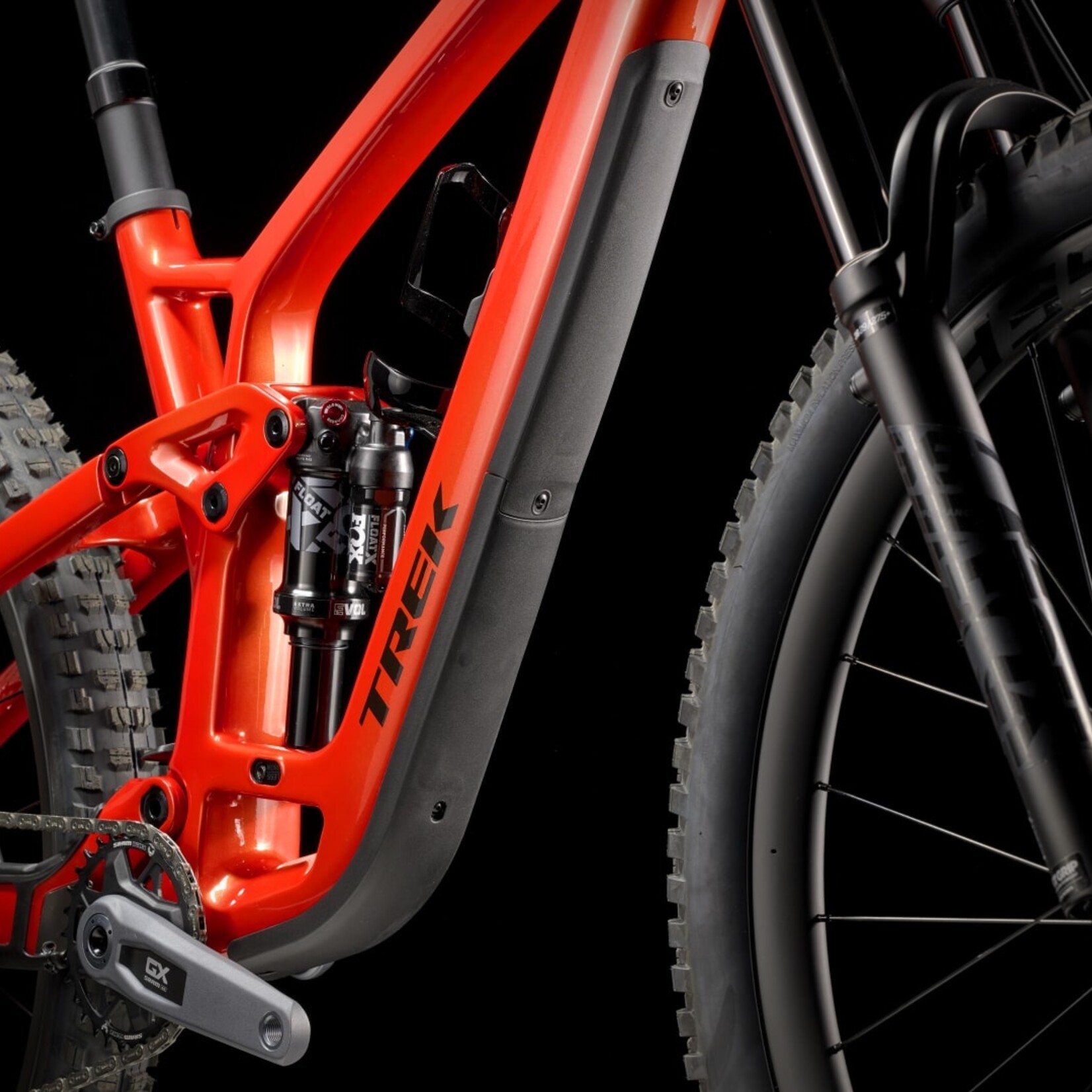

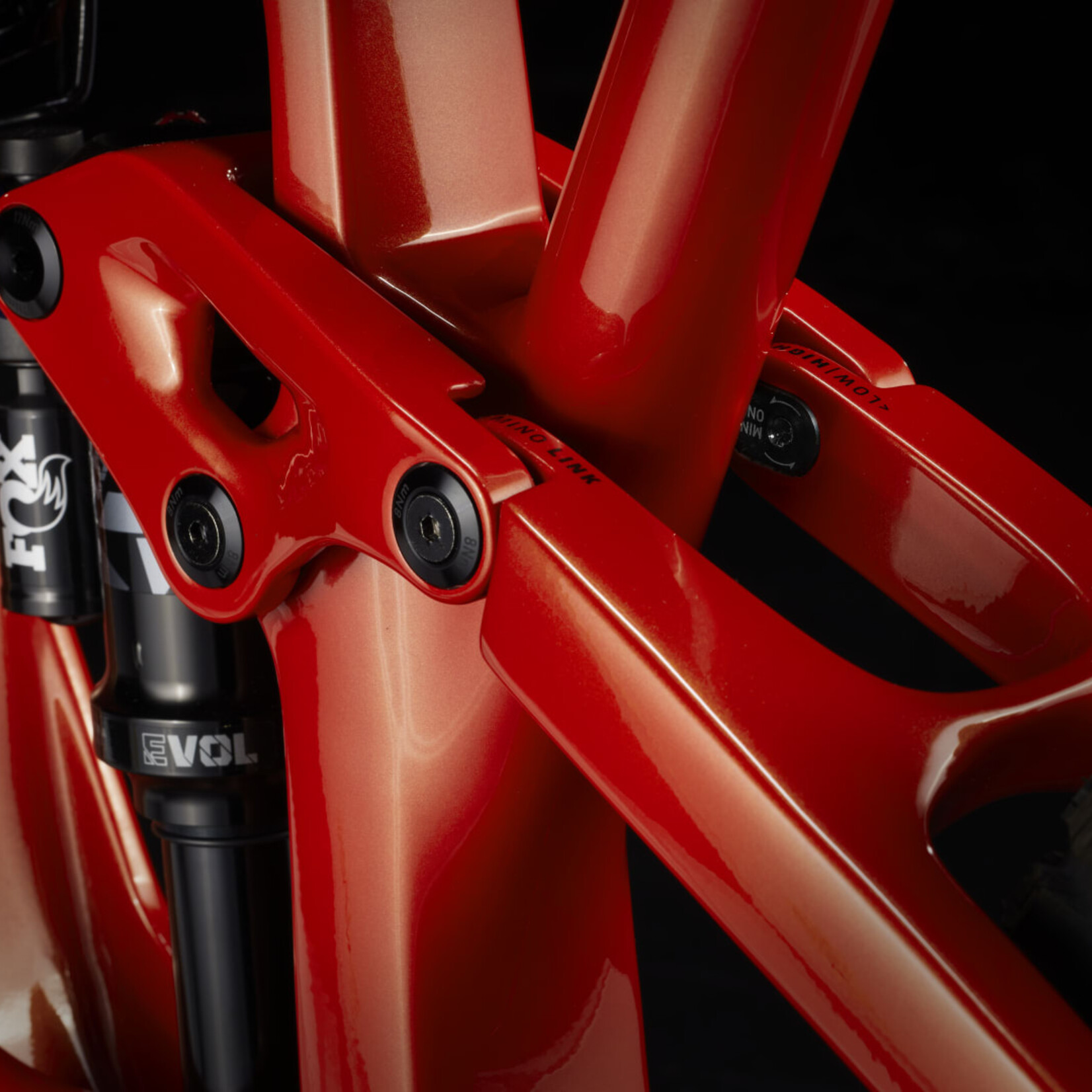

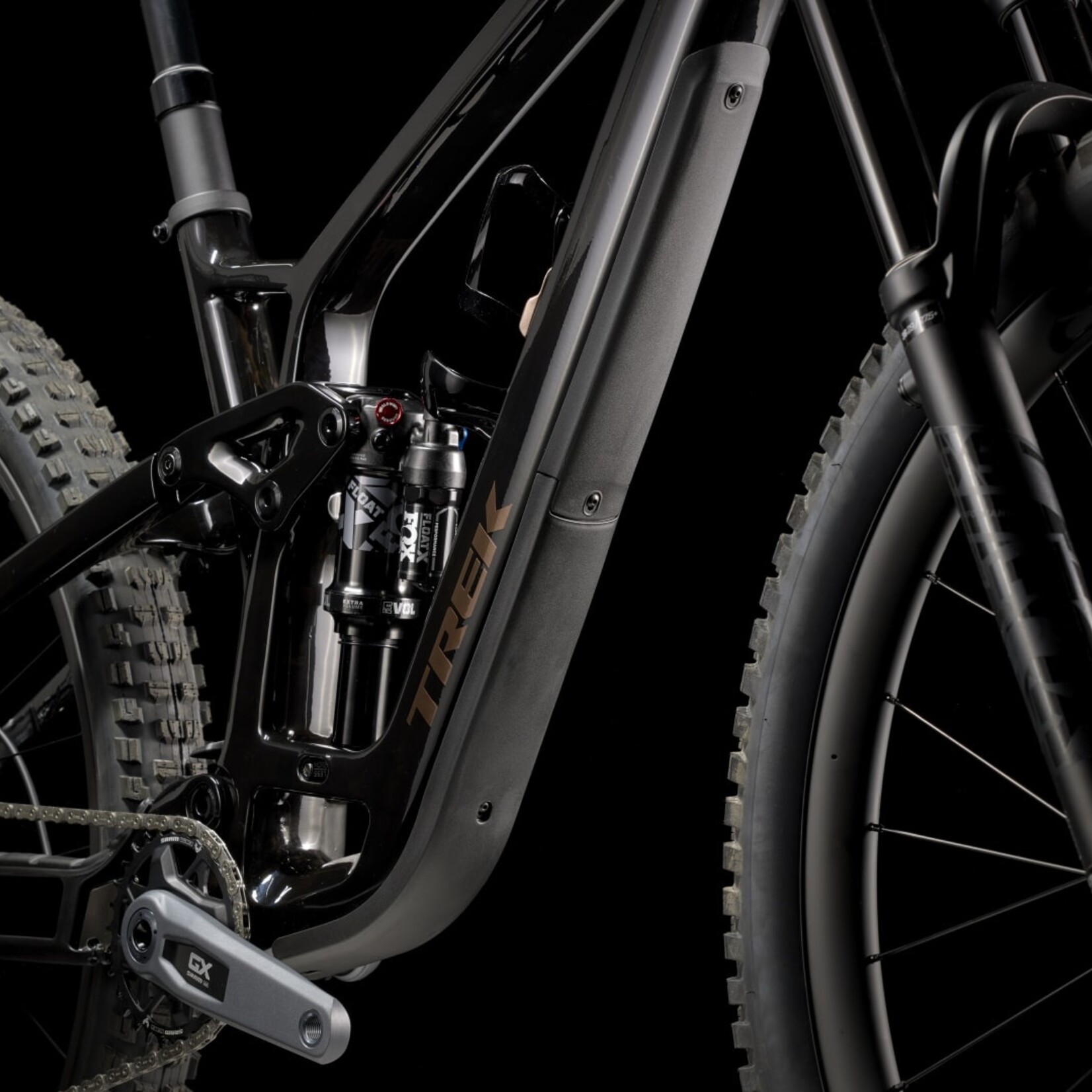

OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, U |
| Fork: |
Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel |

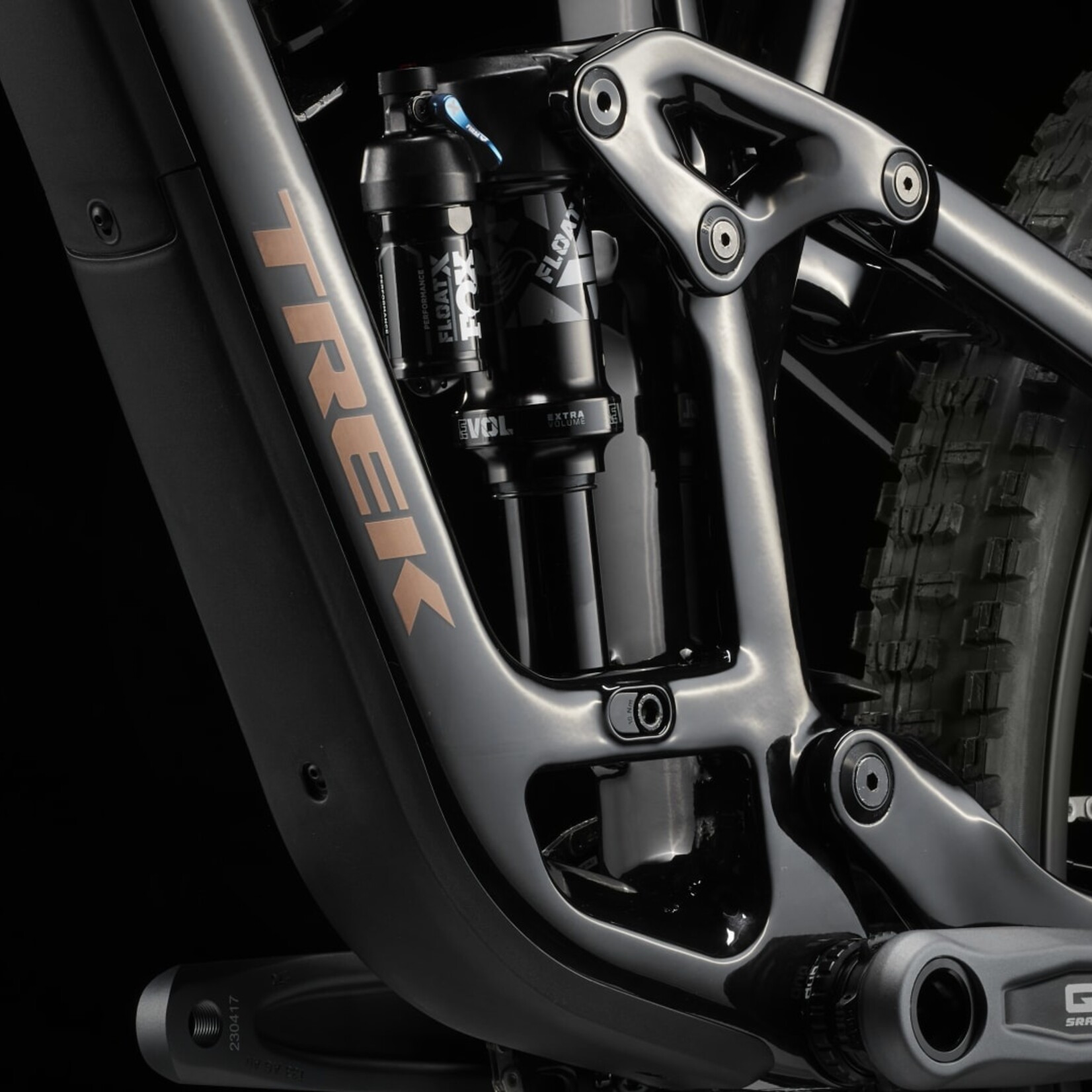

| Shock: |
Fox Performance Float X, 2-position damper, 185mm x 55mm |
| Front Shifter: |
N/A |
| Front Derailleur: |
N/A |
| Rear Shifter: |
SRAM AXS POD |

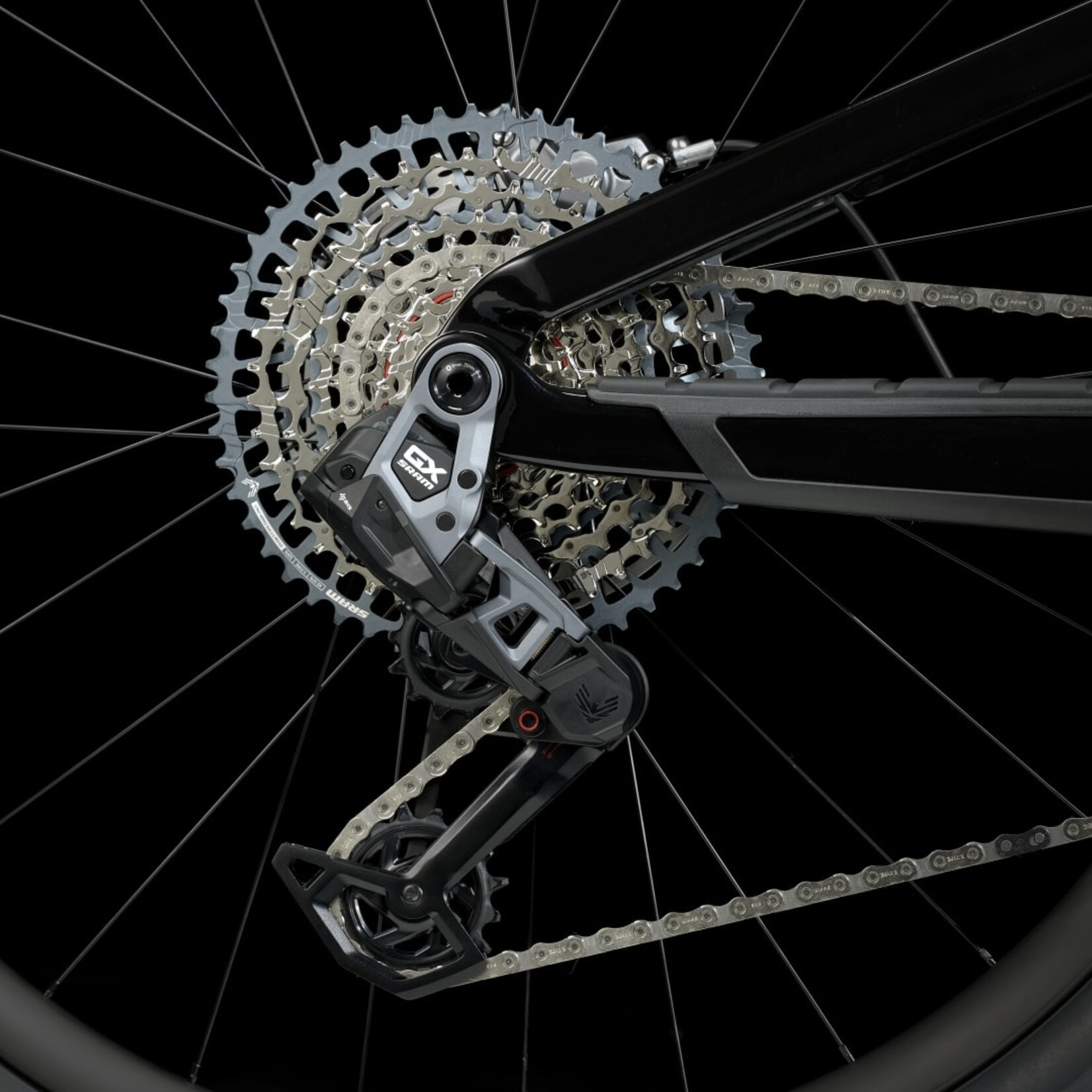

| Rear Derailleur: |
SRAM GX Eagle AXS, T-Type |
| Crankset: |
SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length |
| Pedals: |
N/A |
| Bottom Bracket: |
SRAM DUB MTB Wide, 73mm, BSA threaded |
| Cassette: |
SRAM Eagle XS-1275, T-Type,10-52, 12 speed |
| Chain: |
SRAM GX Eagle, T-Type, 12 speed |
| Front Brake: |
SRAM CODE Bronze 4-piston hydraulic disc |
| Front Brake Rotor: |
SRAM CenterLine, 6-bolt, round edge, 200mm |
| Rear Brake: |
SRAM CODE Bronze 4-piston hydraulic disc |

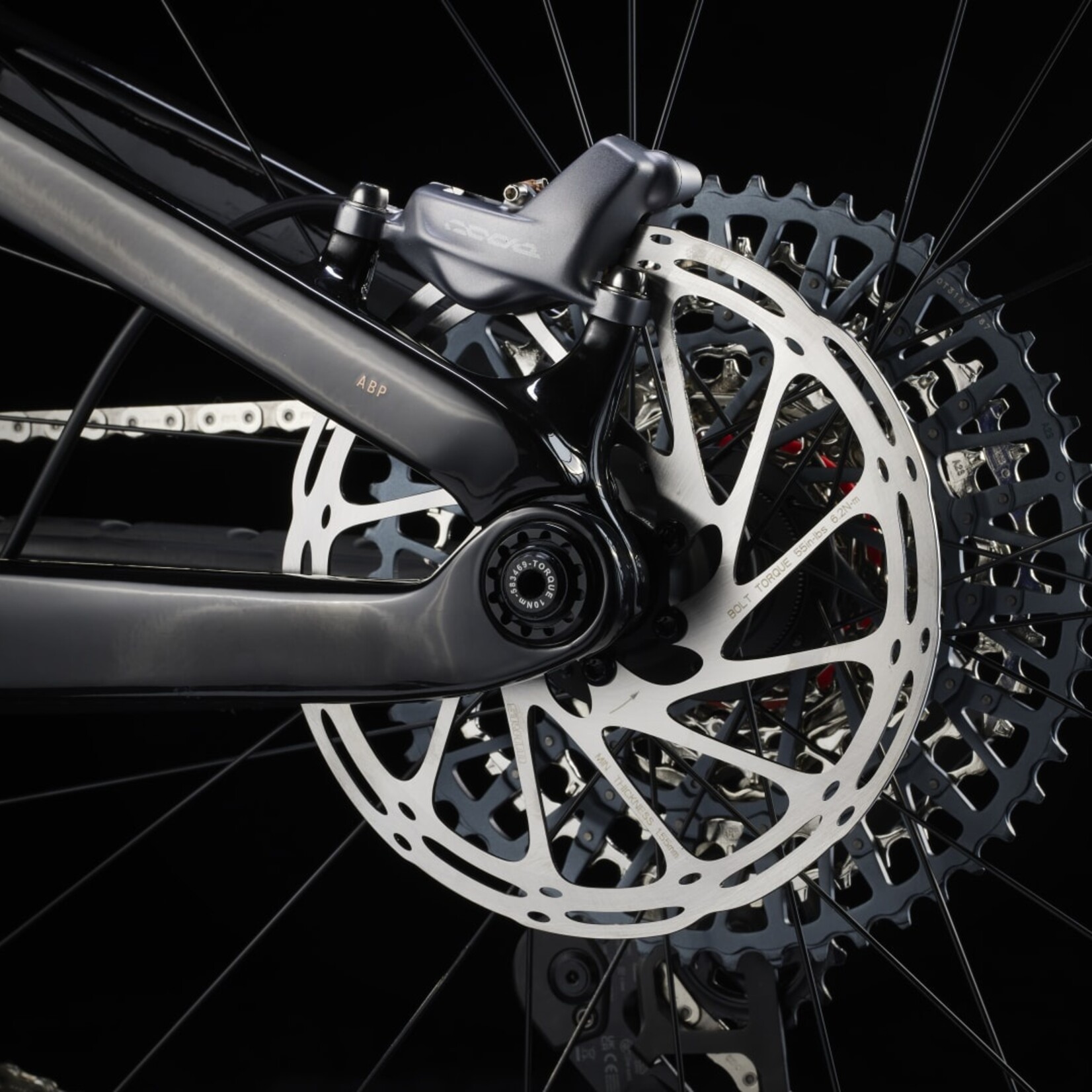

| Rear Brake Rotor: |
SRAM CenterLine, 6-bolt, round edge, 180mm |
| Brake Levers: |
SRAM CODE |
| Front Hub: |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110 |
| Front Hub Skewer: |
15 mm thru axle |
| Rear Hub: |
Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148 |
| Rear Hub Skewer: |
12mm Thru Axle |

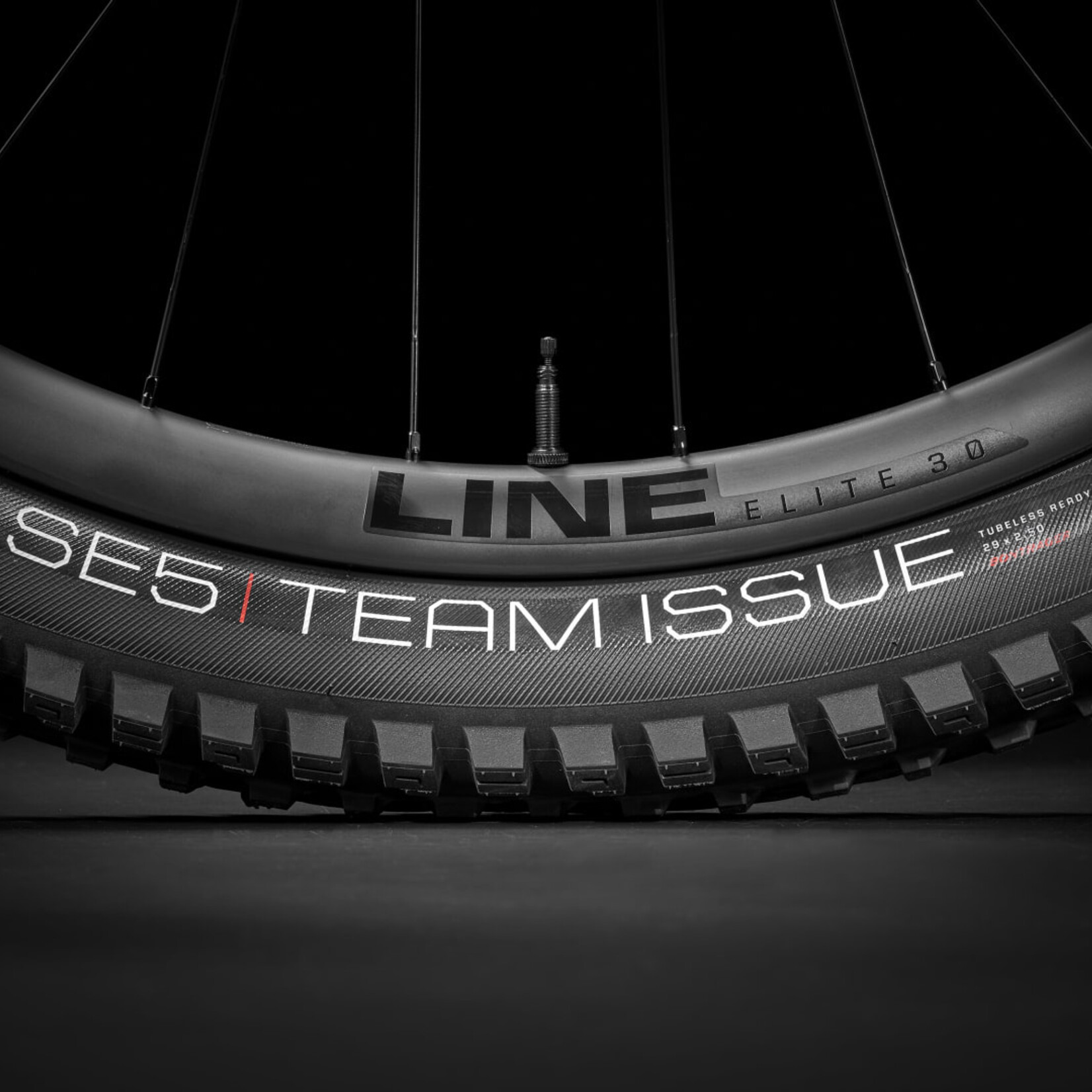

| Rims: |
Bontrager Line Elite 30, OCLV Mountain Carbon |
| Front Tire: |
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" |
| Rear Tire: |
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" |
| Handlebar: |
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length |
| Grips/ Bar Tape: |
Bontrager XR Trail Elite, nylon lock-on |
| Stem: |
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length |
| Headset: |
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Saddle: |
Bontrager Arvada, austenite rails, 138mm width |
| Seatpost: |
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length |

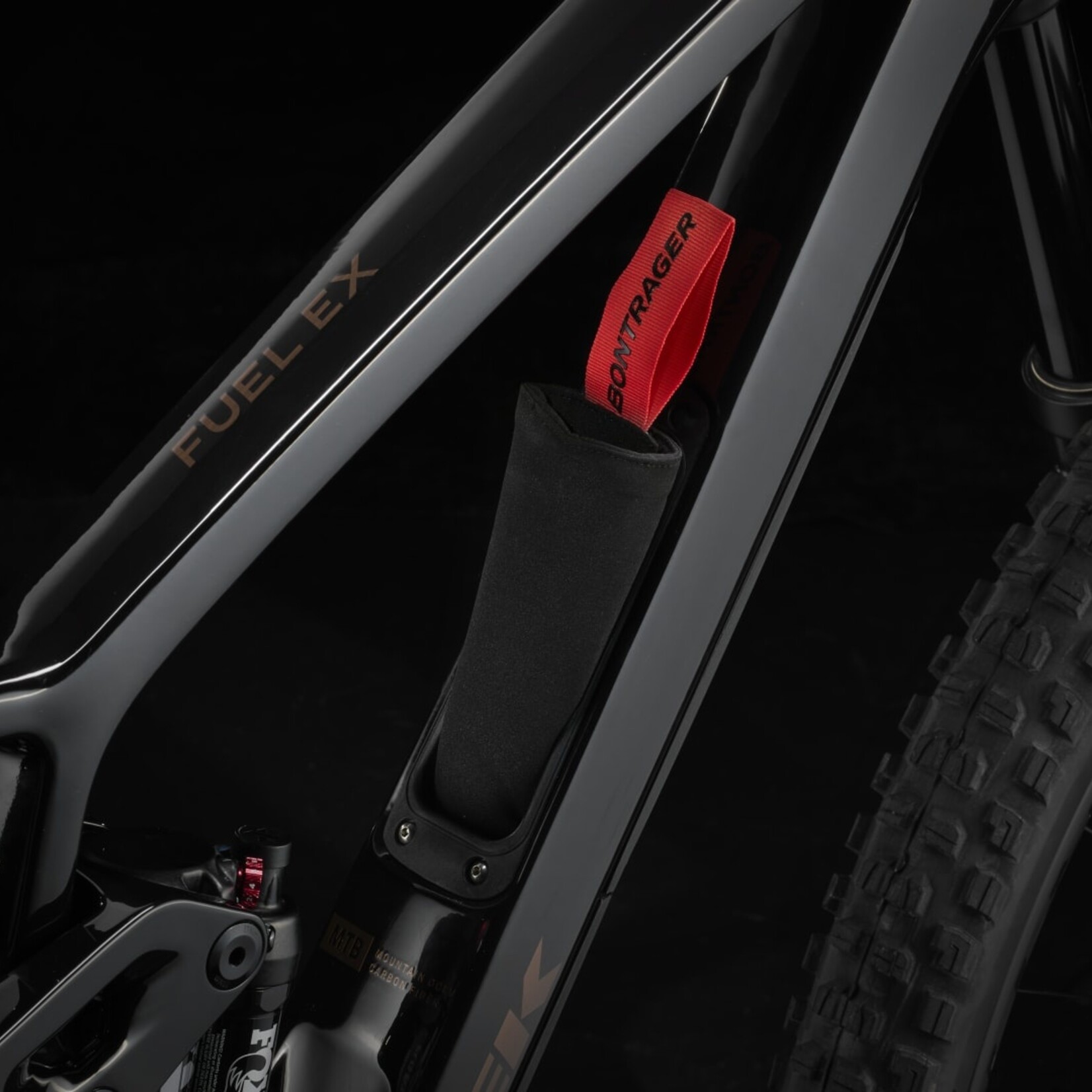

| Extras: |
Bontrager BITS Internal Frame Storage Bag |
