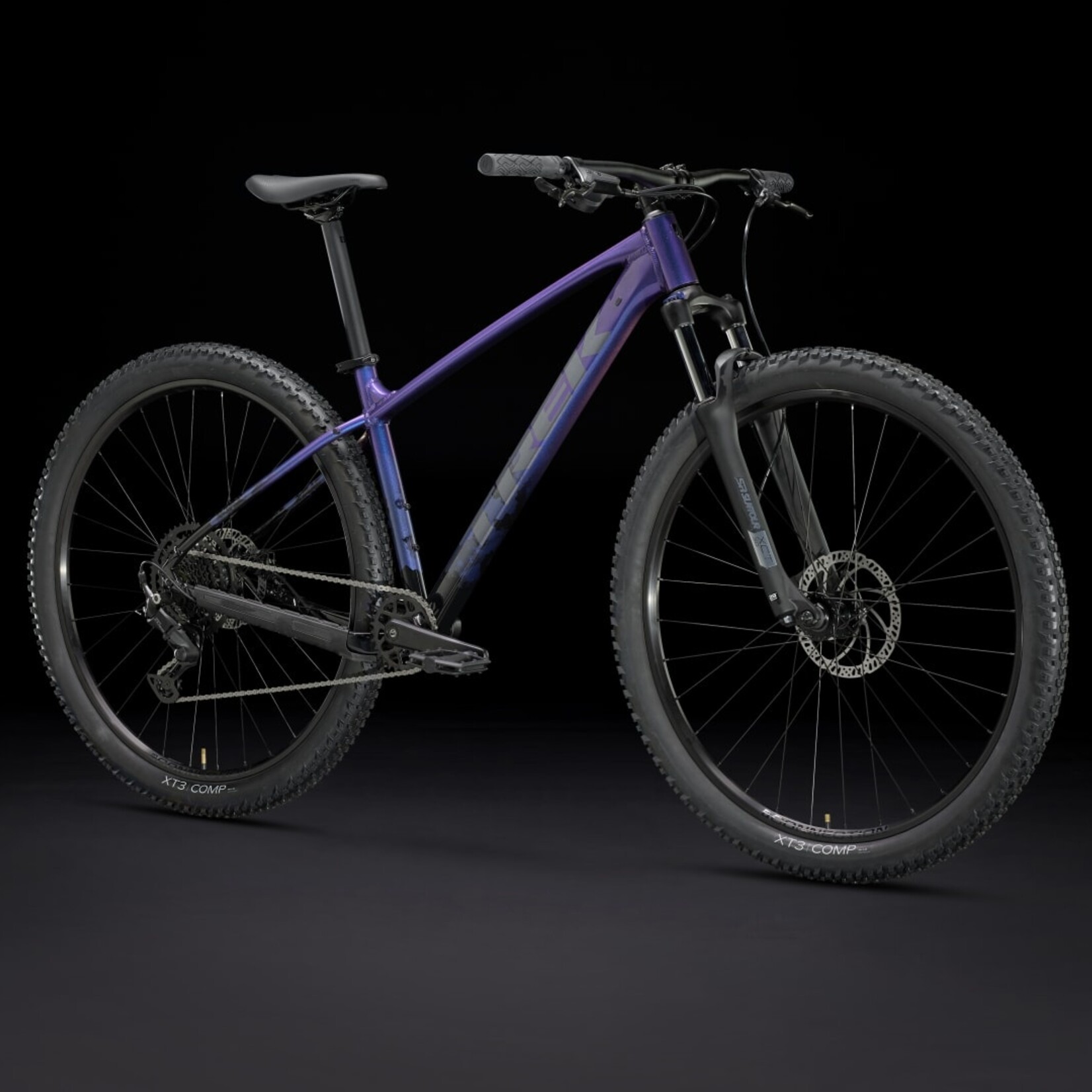

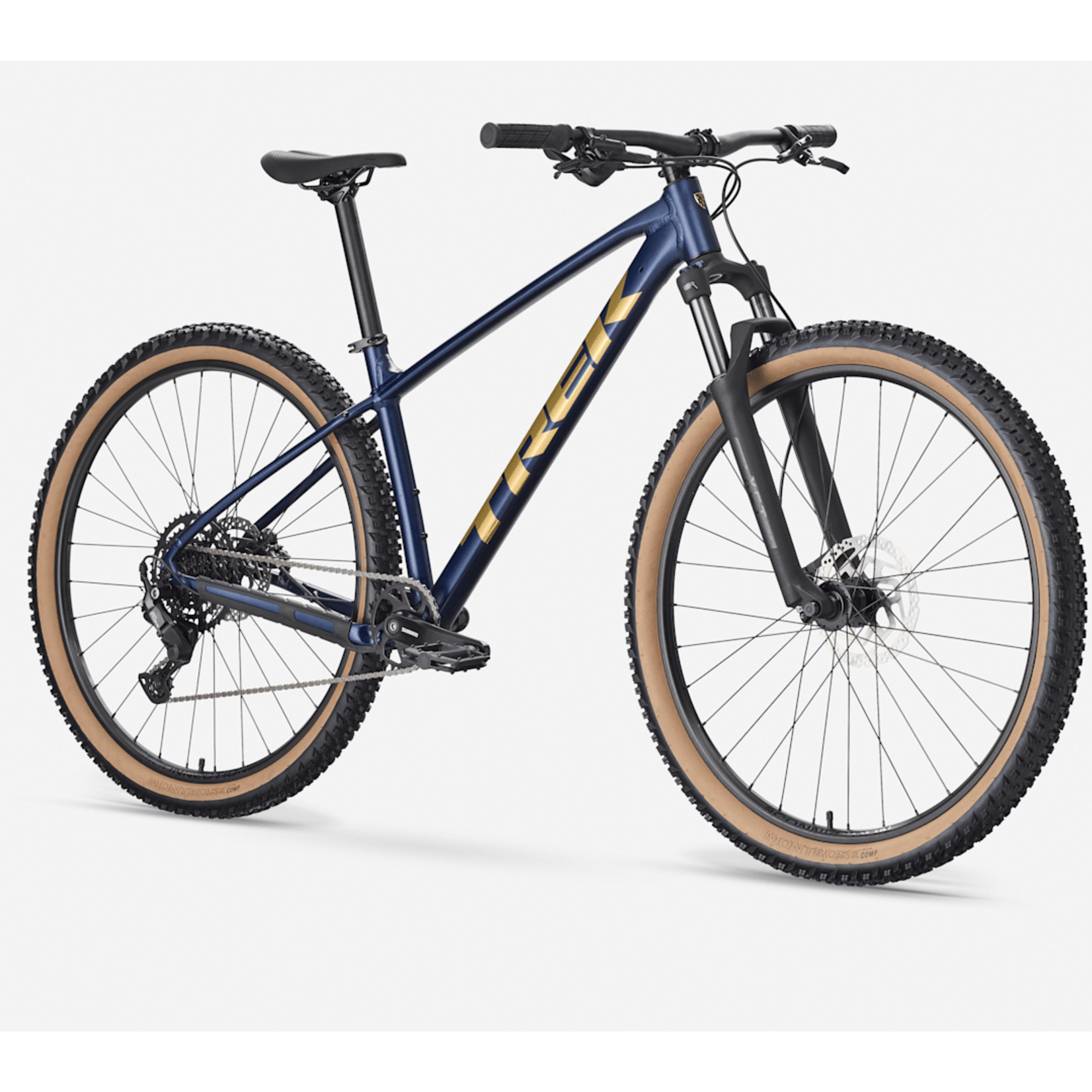

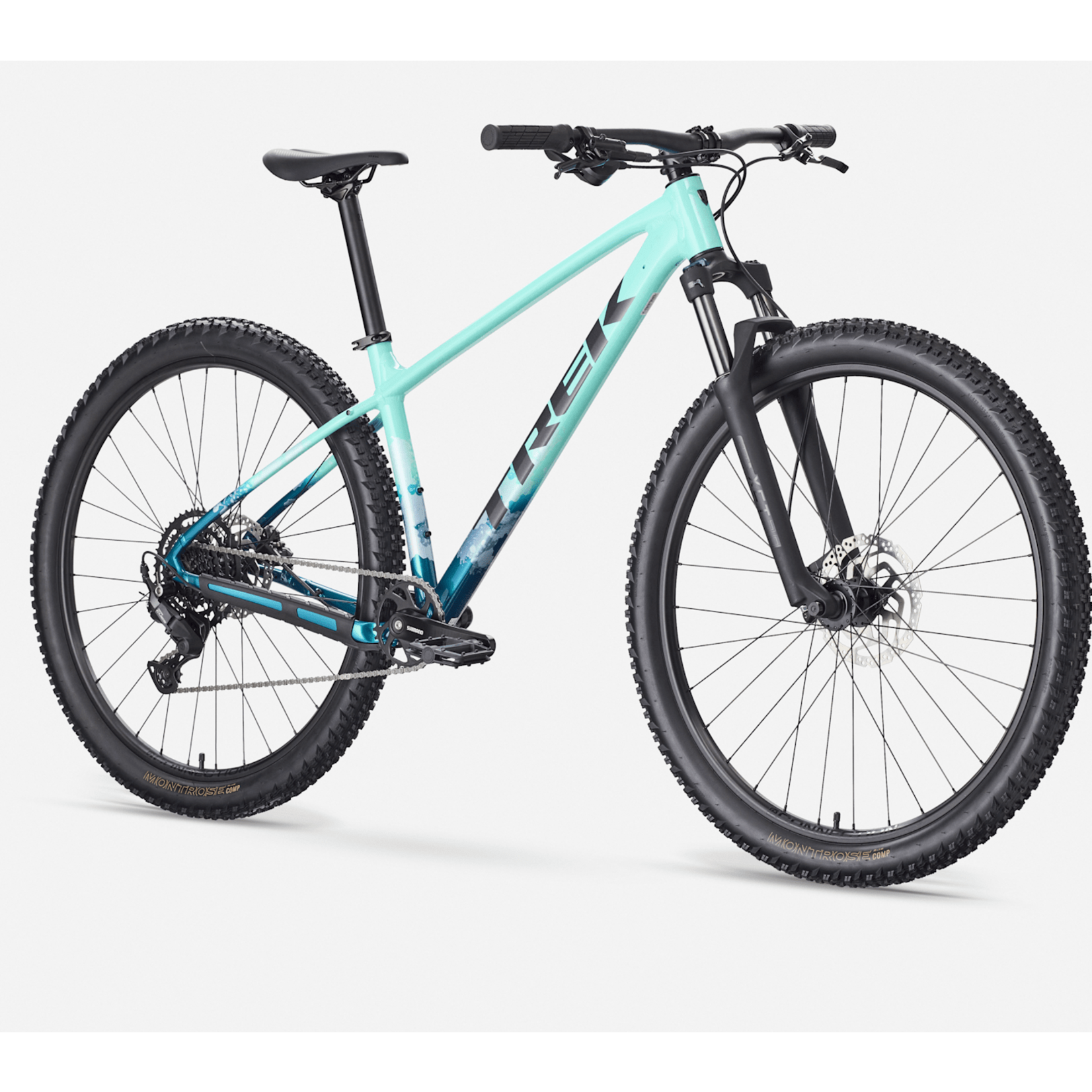

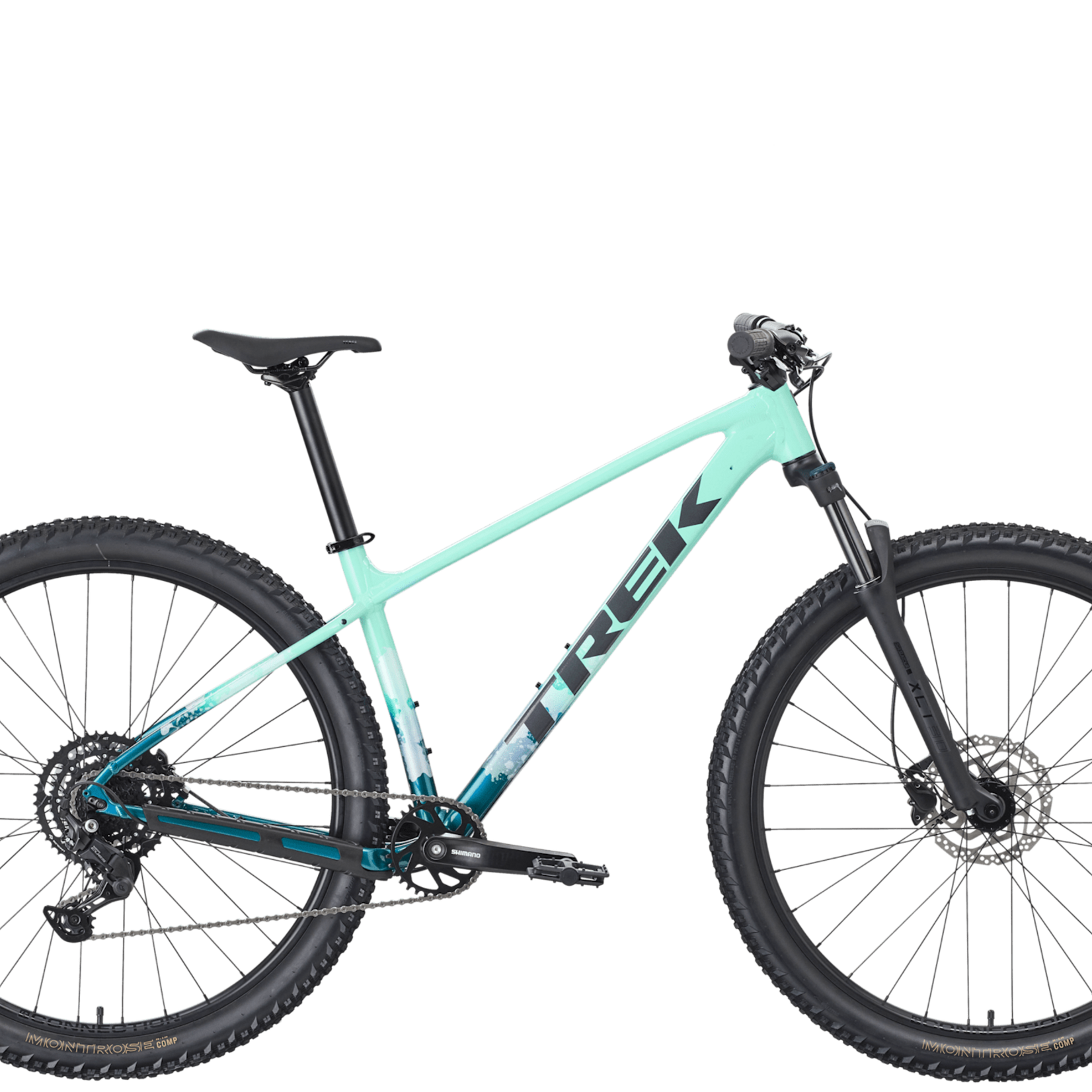

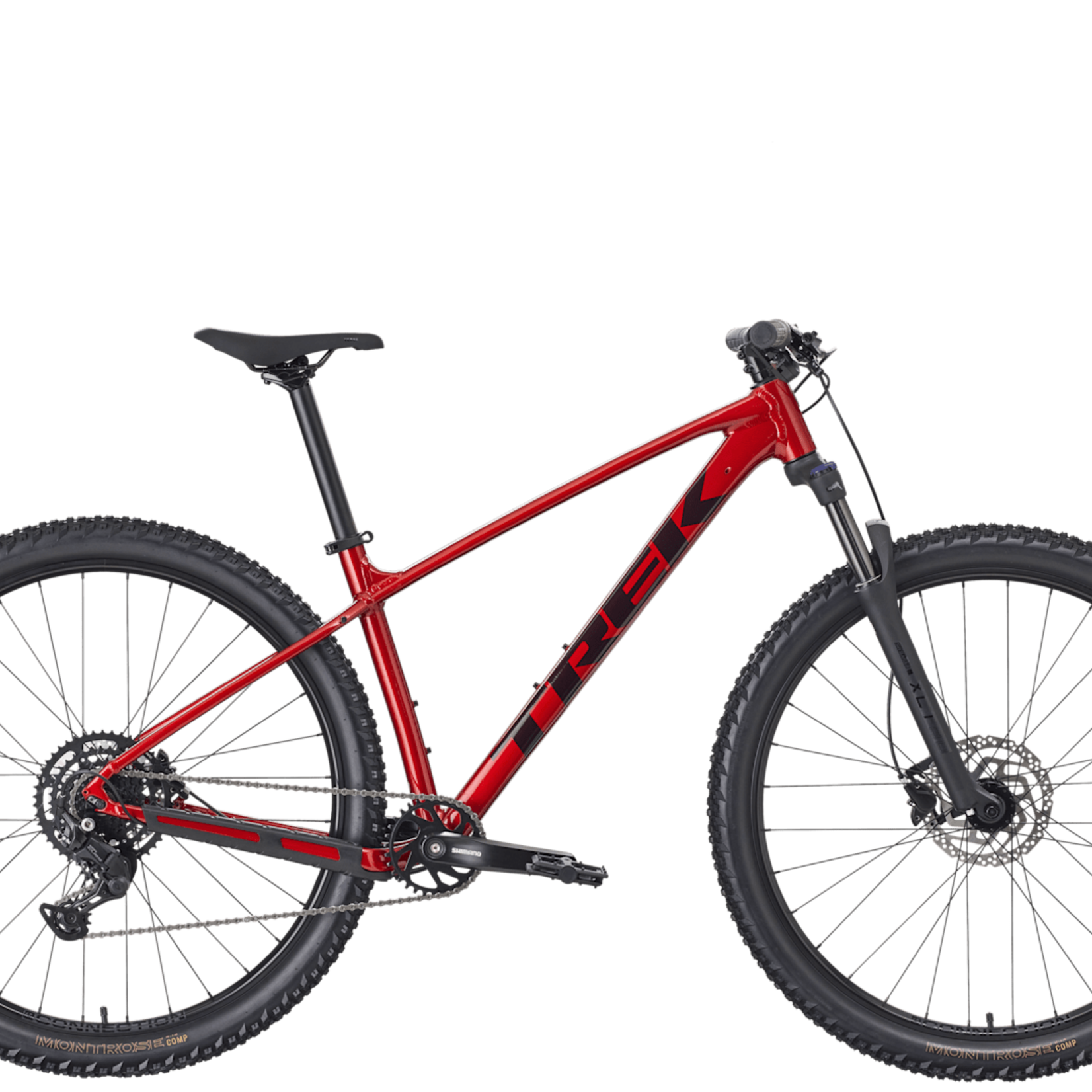

Trek Marlin 5 Gen 3

You're new to the trail and you’re looking for a real mountain bike that doubles as a commuter — and you want it all at an exceptional value.

A lightweight aluminum frame with internal routing to protect your cables and add to the bike's sleek look, an upgraded 9-speed Shimano CUES drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes, and a terrain-smoothing suspension fork with a lockout.

Marlin 5 is a great ride for all your adventures. It's also versatile and a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorize and haul a load.

Marlin Gen 3 gives you serious trail capability, with big tire clearance and slack, confidence-boosting geometry that keeps you stable from singletrack to city
Fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
Its ThruSkew system is safer, simpler, and stronger, plus it makes removing the rear wheel easy for flat fixes in a pinch
Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount

View more details at Trekbikes.com

Weight:	M - 15.10 kg / 33.29 lbs (with tubes)

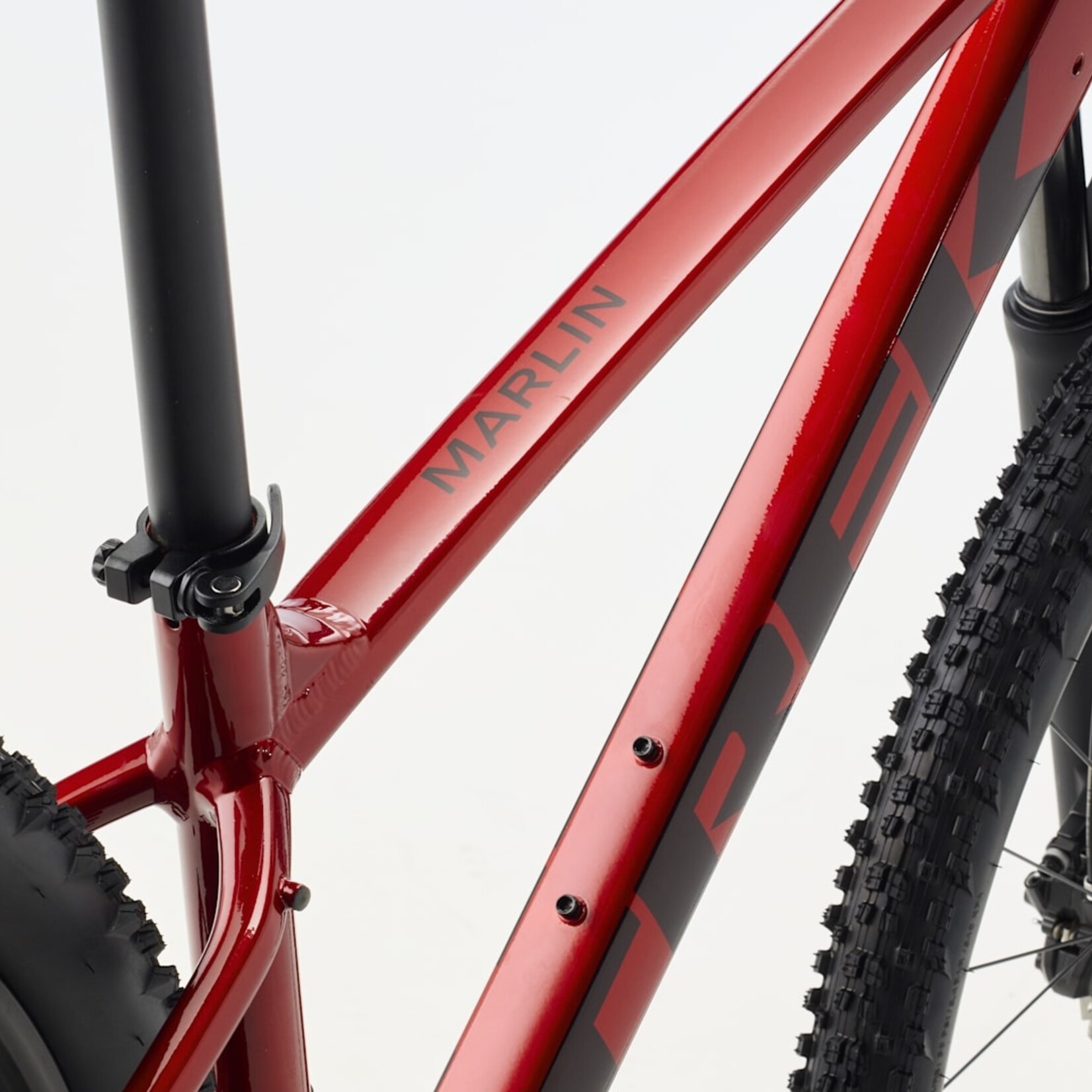

Frame:	Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

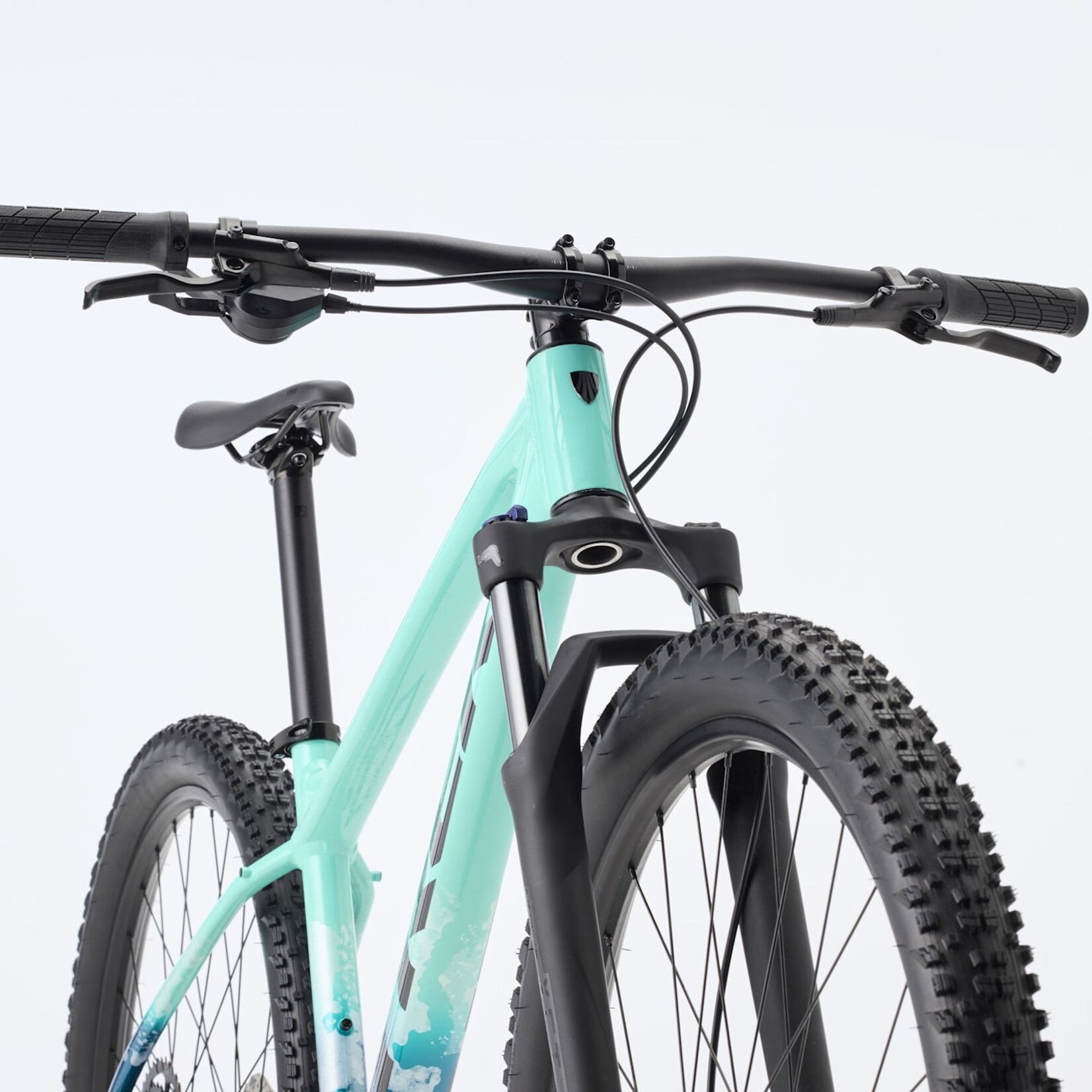

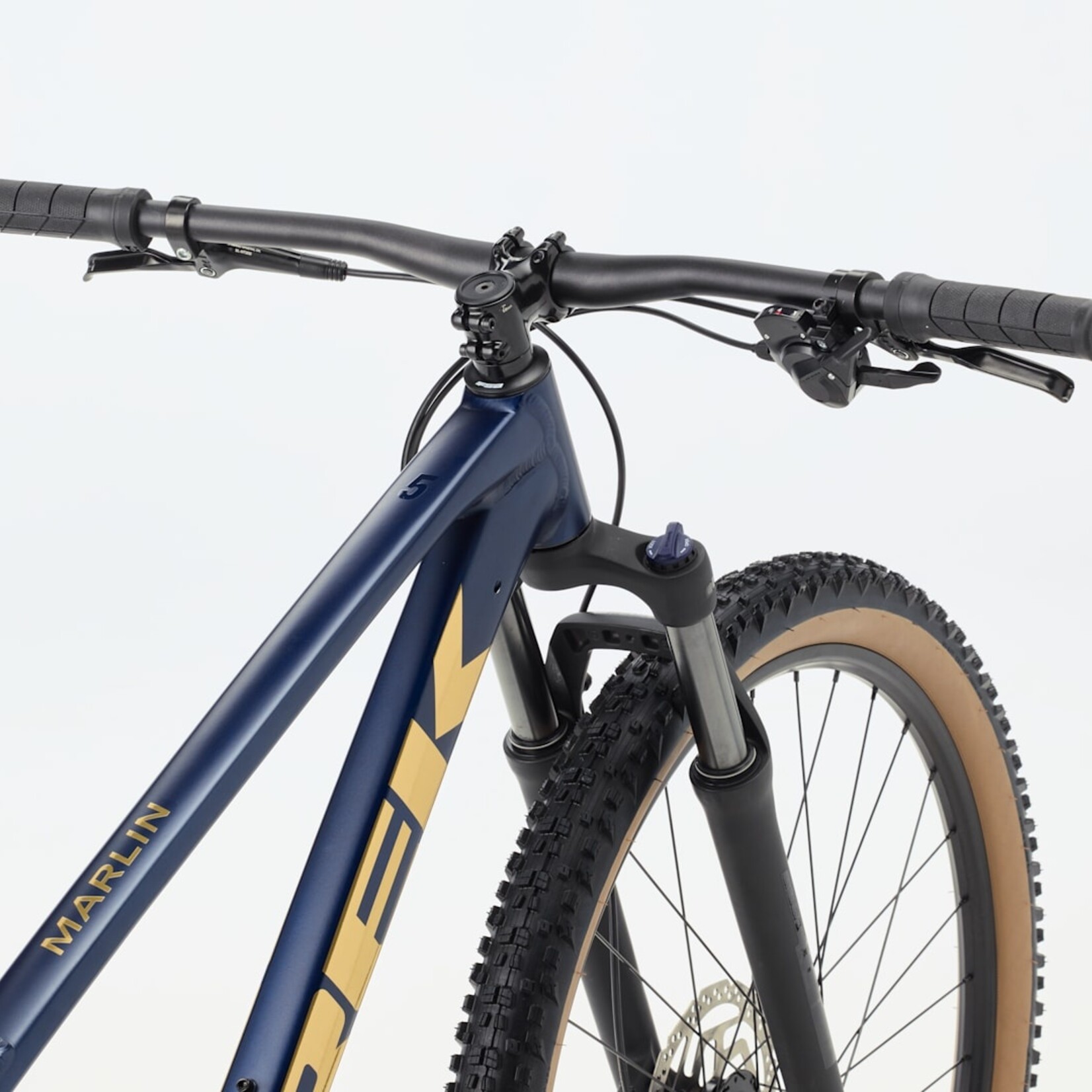

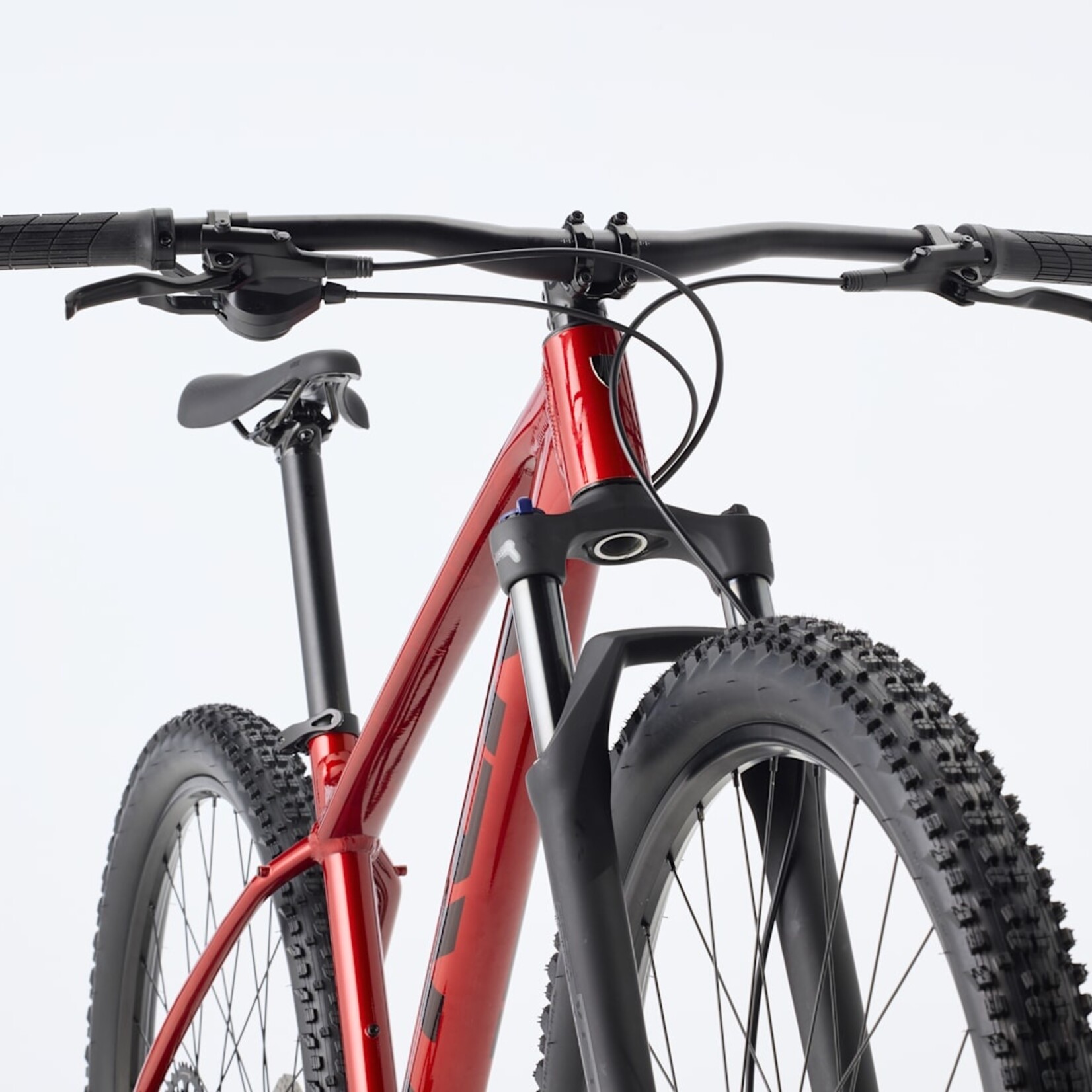

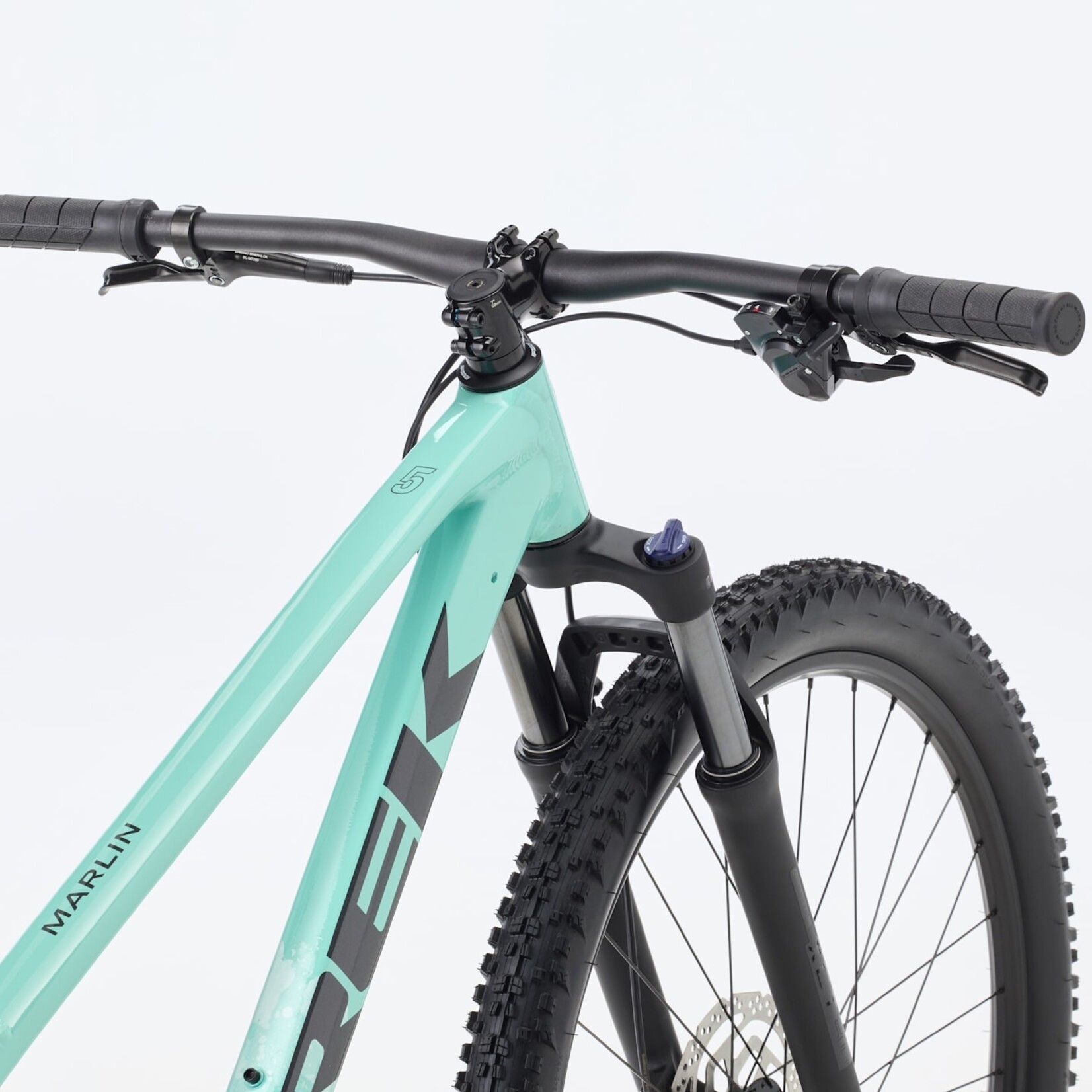

Fork:	SR Suntour XCT 30, coil spring, preload, hydraulic lockout, X-Small & Small: 42mm offset for 27.5" wheel, Medium - X-Large: 46mm offset for 29" Wheel, 100mm QR, X-Small: 80mm travel, Small-2X-Large: 100mm travel
Shock:	N/A
Front Shifter:	N/A
Front Derailleur:	N/A
Rear Shifter:	Shimano U4000, 9 speed
Rear Derailleur:	Shimano CUES U4000

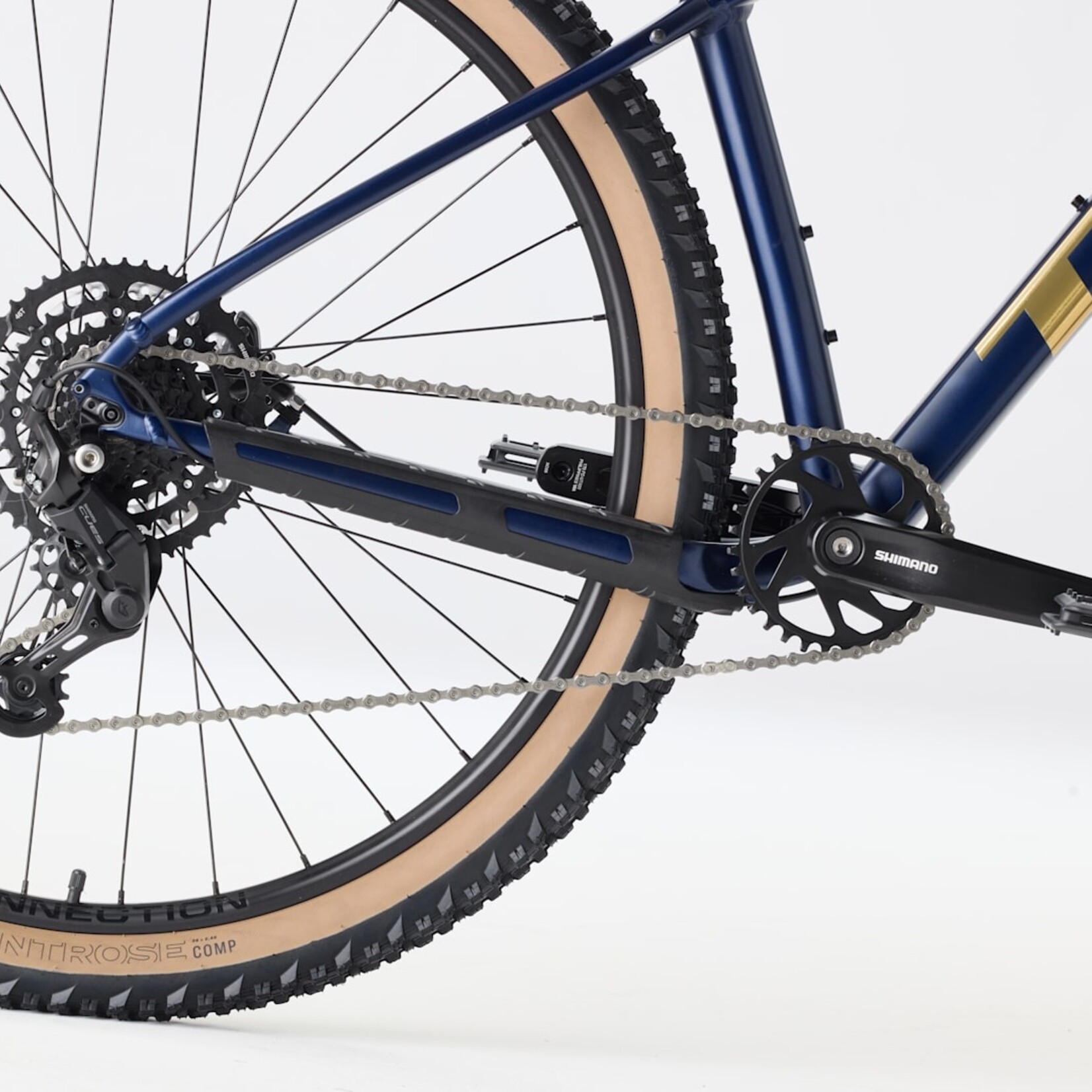

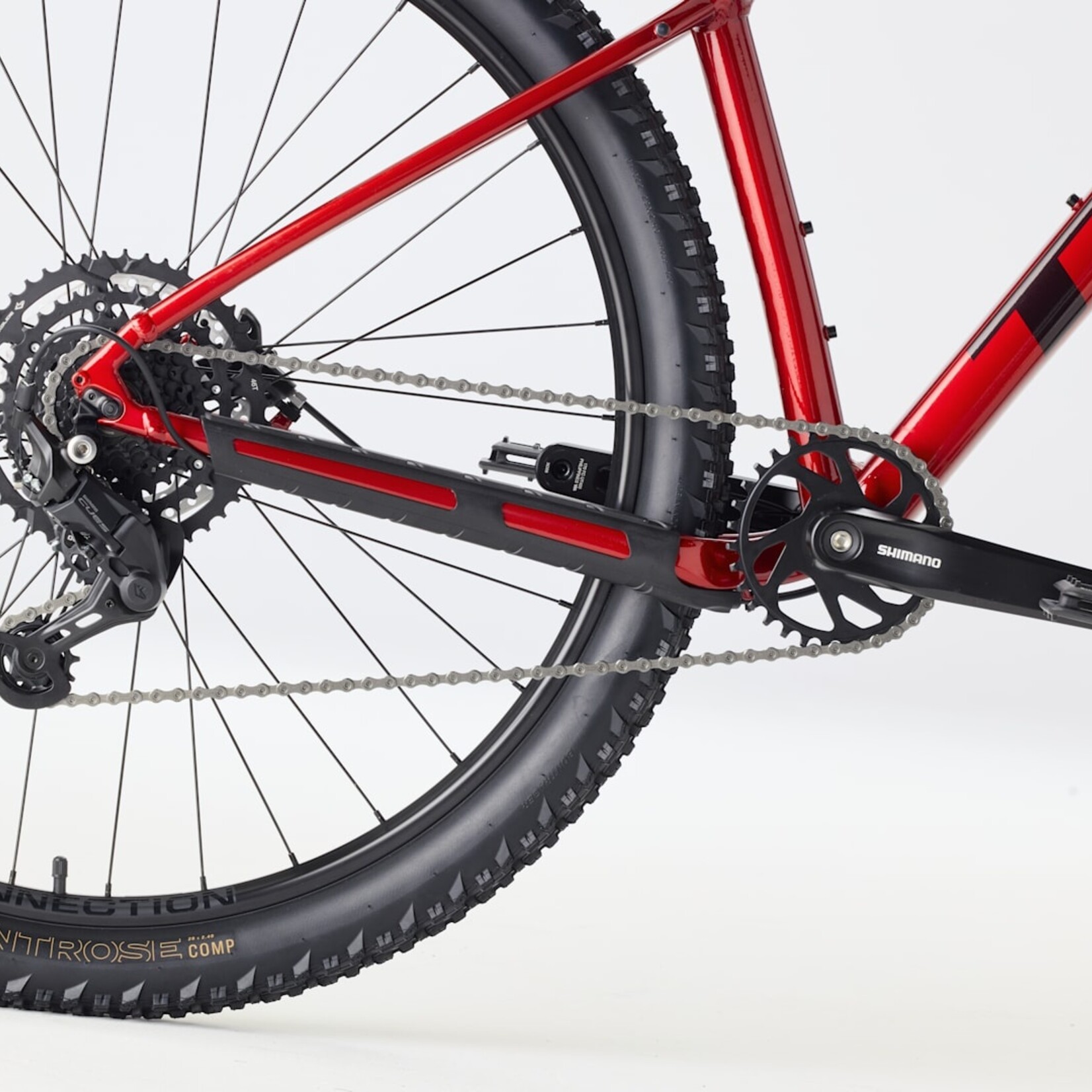

Crankset:	Prowheel C10Y-NW, 30T steel narrow-wide ring, X-Small: 160mm length, Small-Medium/Large: 170mm length, Large - 2X-Large: 175mm length
Pedals:	VP-536 nylon platform
Bottom Bracket:	VP BC73, 73mm, threaded cartridge
Cassette:	Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain:	Shimano LG500
Front Brake:	Tektro HD-M276 hydraulic disc, X-Small & Small have short reach levers
Front Brake Rotor:	Tektro, 6-bolt, 160mm
Rear Brake:	Tektro HD-M276 hydraulic disc, X-Small & Small have short reach levers
Rear Brake Rotor:	Tektro, 6-bolt, 160mm
Brake Levers:	Tektro HD-M276
Front Hub:	Formula DC-20, alloy, 6-bolt
Front Hub Skewer:	5x100 mm QR
Rear Hub:	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub
Rear Hub Skewer:	135x5 mm QR
Rims:	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Front Tire:	Bontrager XT3 Comp, wire bead, 30 tpi, X-Small & Small: 27.5x2.40", Medium - 2X-Large: 29x2.40''
Rear Tire:	Bontrager XT3 Comp, wire bead, 30 tpi, X-Small & Small: 27.5x2.40", Medium - 2X-Large: 29x2.40''
Handlebar:	Bontrager alloy, 31.8mm, X-Small: 5mm rise, Small - X-Large: 15mm rise, X-Small: 690mm width, Small: 720mm width, Medium - 2X-Large: 750mm width
Grips/ Bar Tape:	Bontrager XR Trail Comp, nylon lock-on
Stem:	X-Small & Small: Bontrager Comp, 31.8mm, 7 degree, 35mm length. Medium - X-Large: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length, X-Large: 60mm length, 2X-Large: 70mm
Headset:	Semi-integrated, 1-1/8"
Saddle:	Bontrager Arvada
Seatpost:	Bontrager alloy, 31.6mm, 12mm offset, X-Small - Medium: 330mm length, Medium/Large - 2X-Large: 400mm
Extras:
