| Weight: |
15.03 kg / 33.14 lbs (with TLR sealant, no tubes) |
| Frame: |

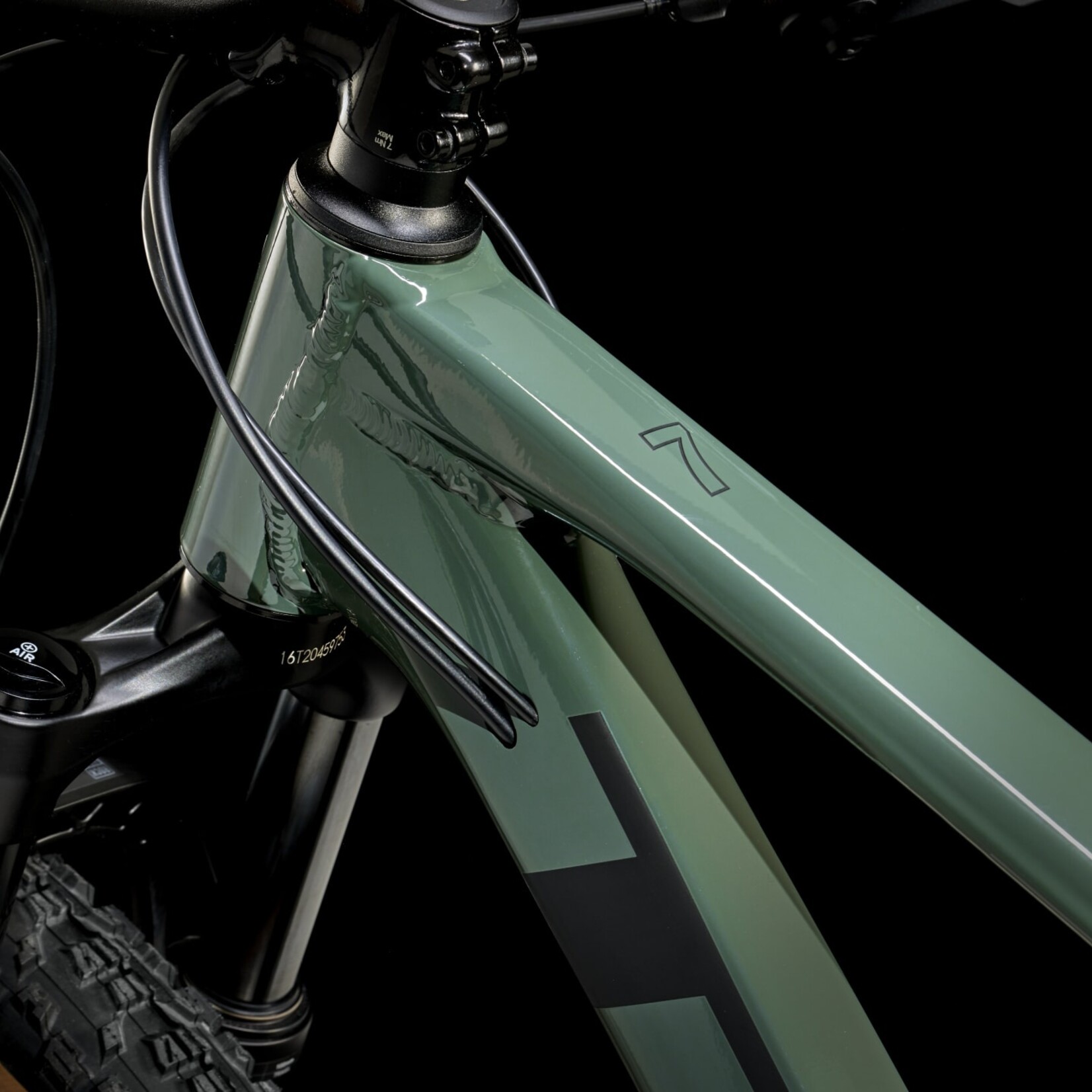

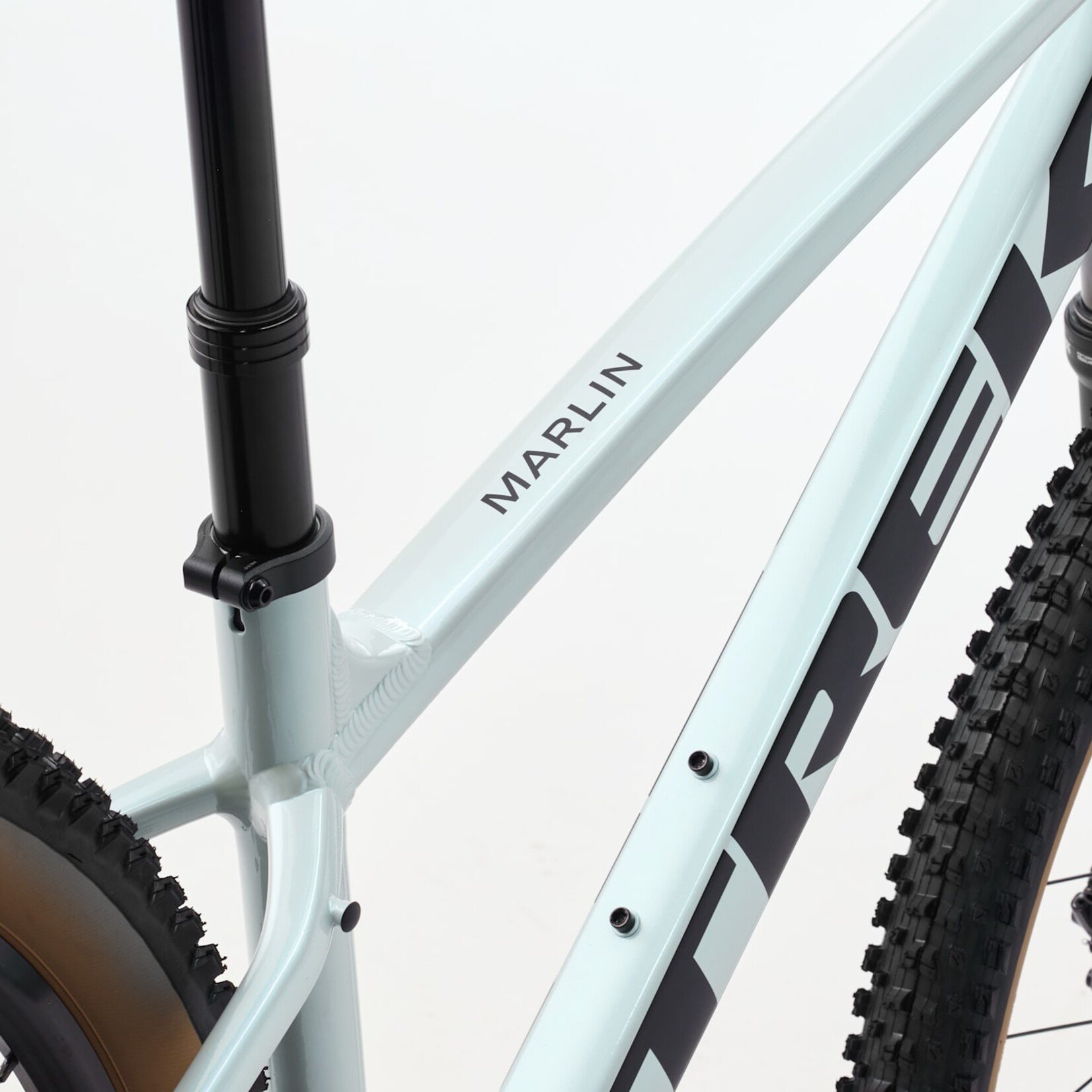

Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |

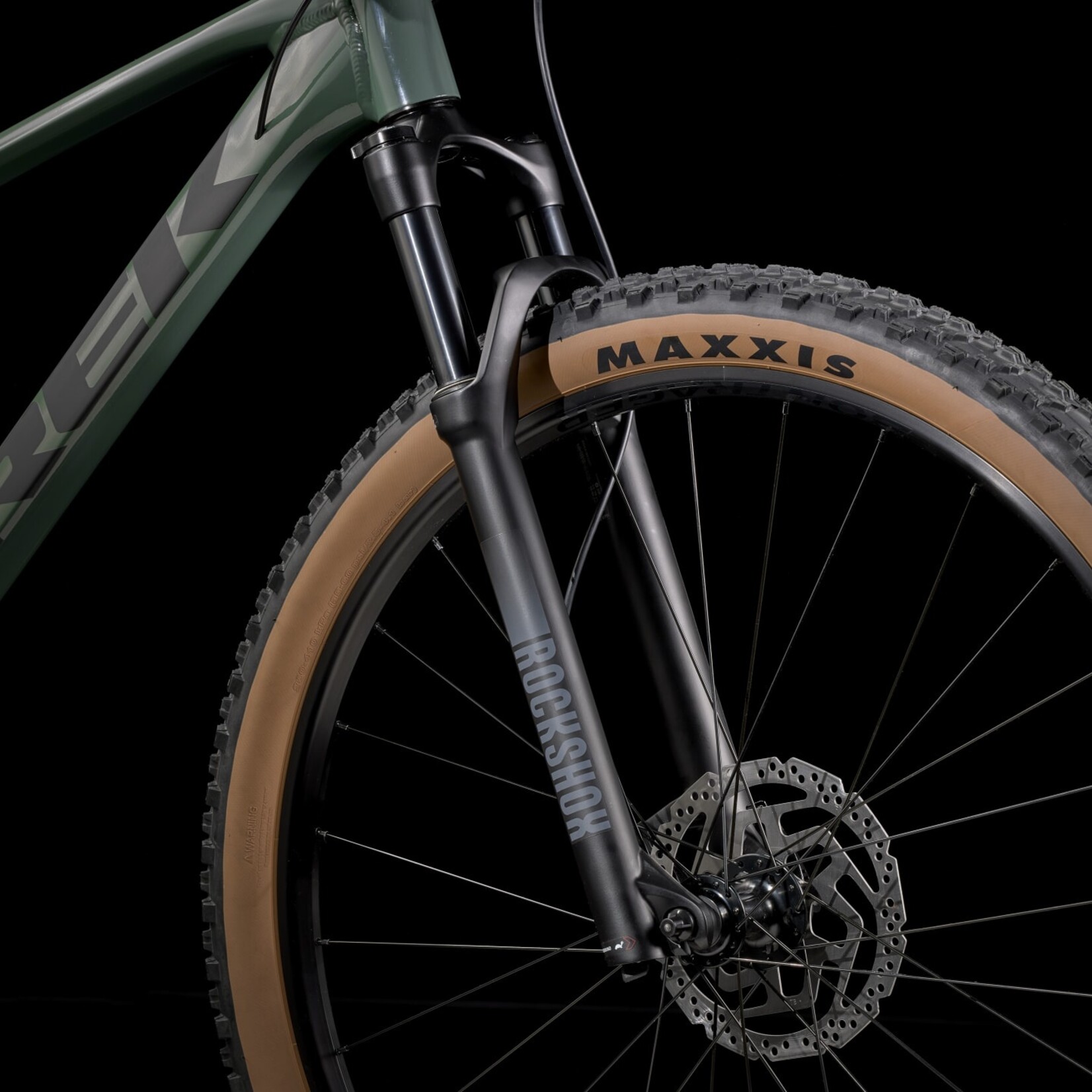

| Fork: |

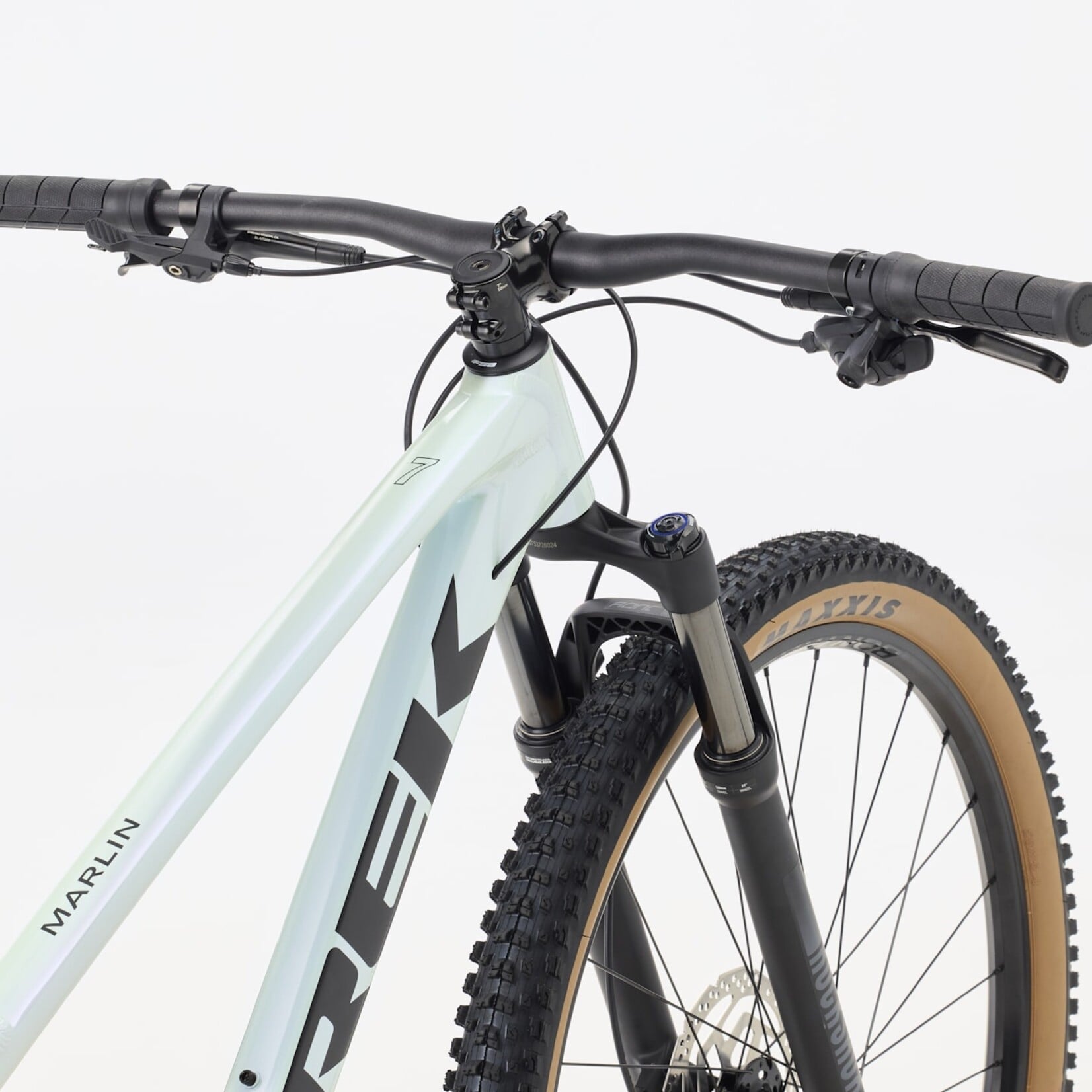

RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100 mm QR, 100 mm travel. XS / S: 42mm offset for 27.5'' wheel. M , ML , L , XL: 46mm offset for 29'' wheel. |
| Shock: |
N/A |
| Front Shifter: |
N/A |
| Front Derailleur: |
N/A |
| Rear Shifter: |
SRAM SX Eagle, 12 speed |

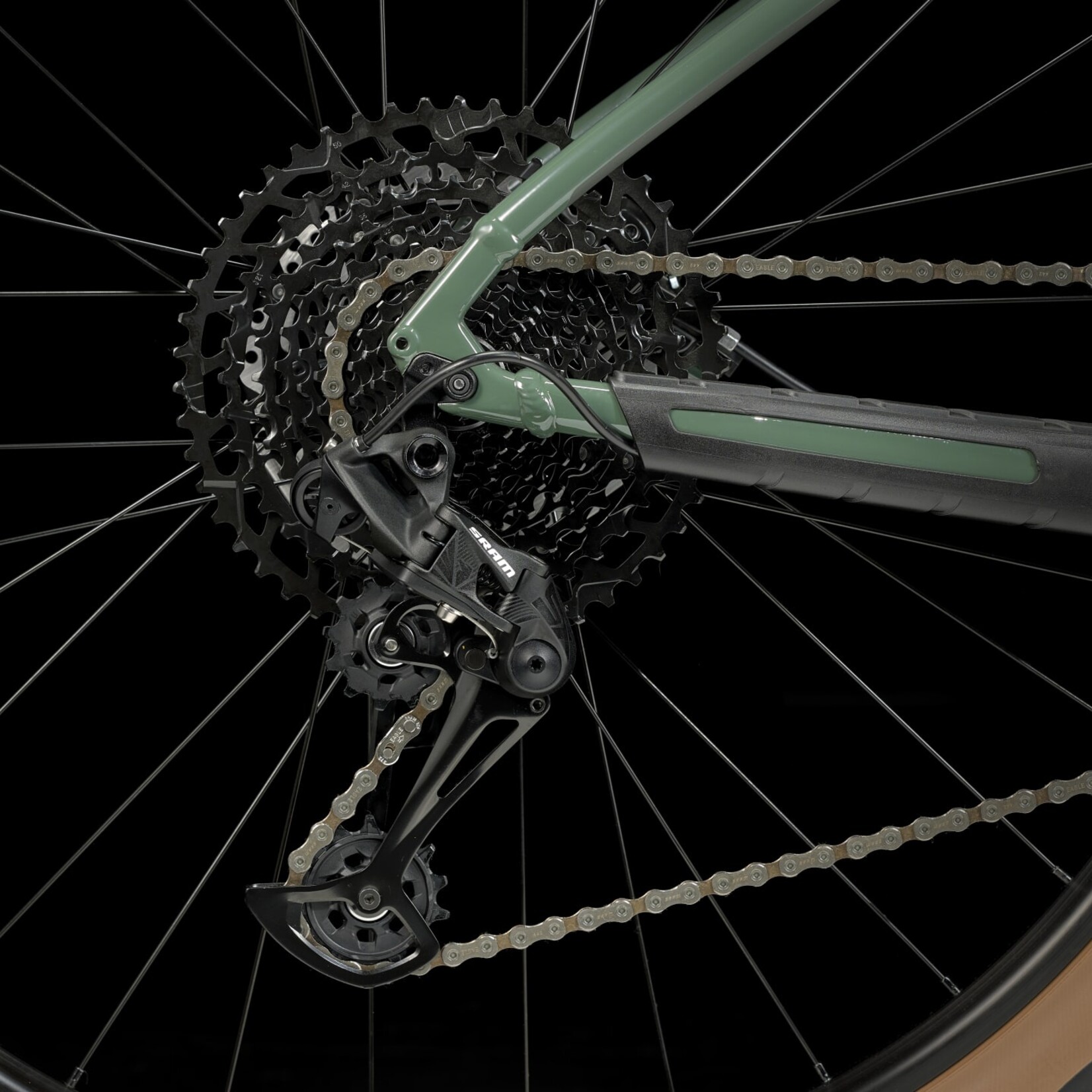

| Rear Derailleur: |
SRAM SX Eagle |

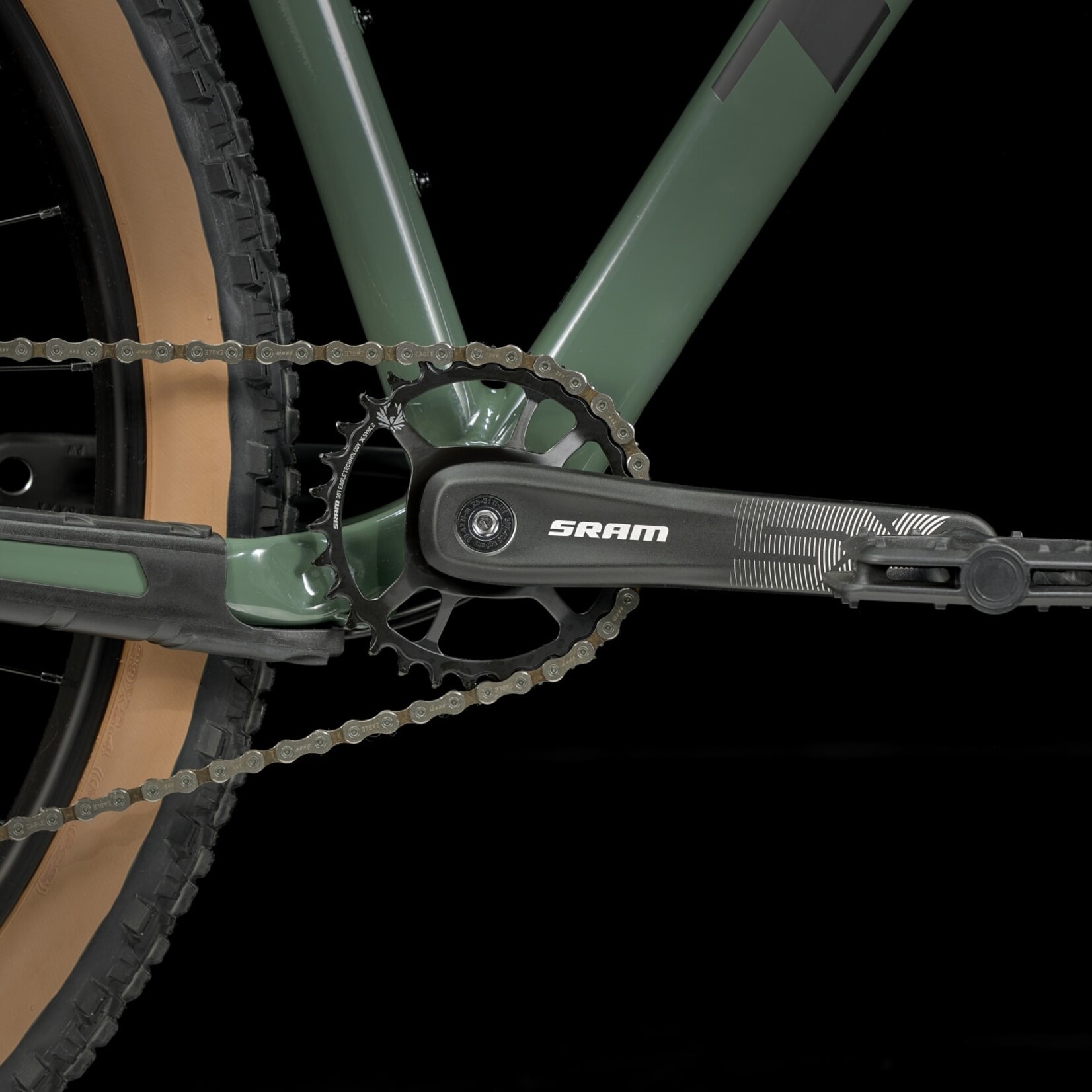

| Crankset: |

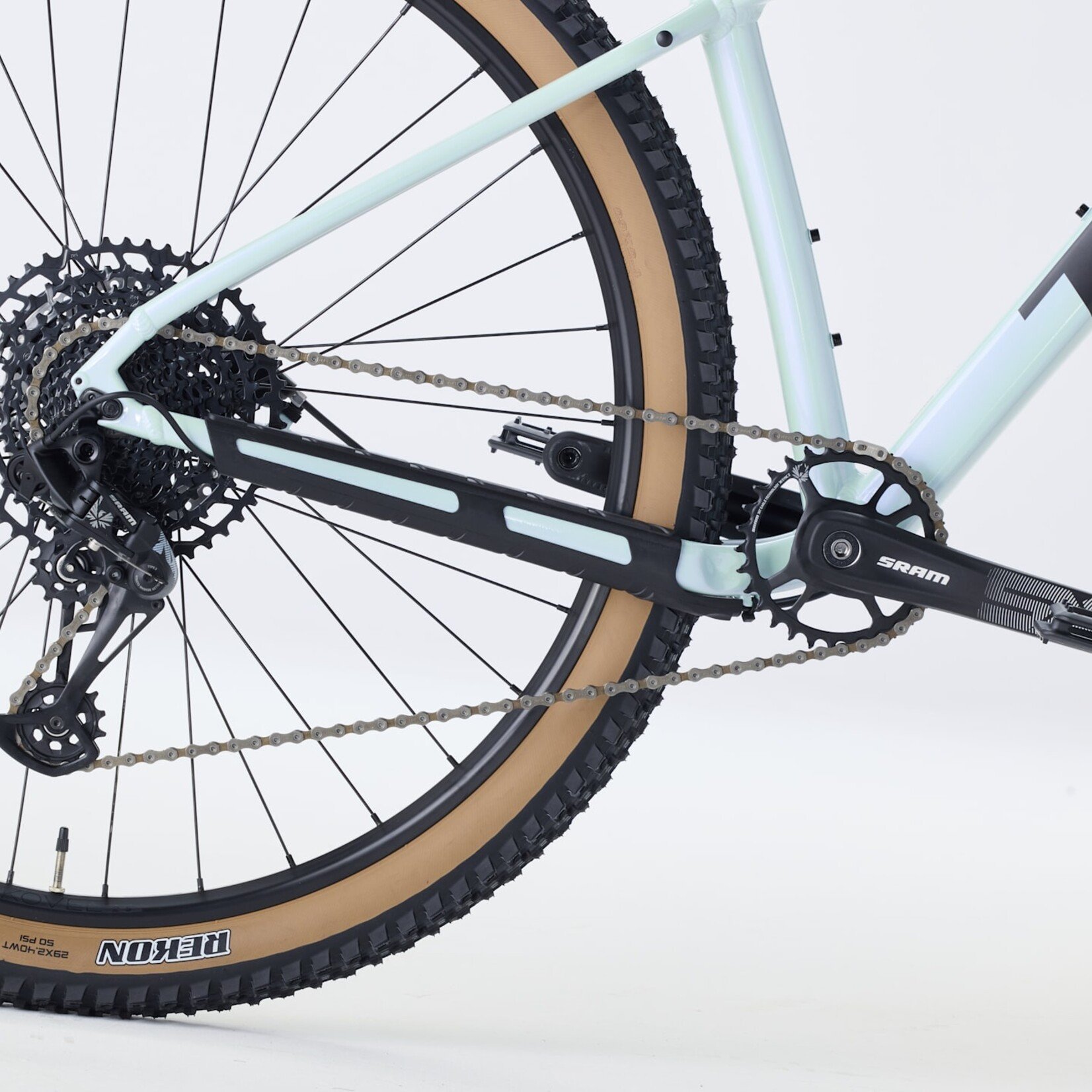

XS / S / M SRAM SX Eagle, 30T steel ring (49mm chainline), 170 mm length. ML / L / XL: 175 mm length |
| Pedals: |
VP-536 nylon platform |
| Bottom Bracket: |
Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle |
| Cassette: |
SRAM PG-1210 Eagle, 11-50, 12 speed |
| Chain: |
SRAM SX Eagle, 12 speed |
| Front Brake: |
Shimano MT200 hydraulic disc |
| Front Brake Rotor: |
XS / S / M: Shimano RT26, 6-bolt,160 mm. ML / L / XL: 180 mm |
| Rear Brake: |
Shimano MT200 hydraulic disc |
| Rear Brake Rotor: |
XS / S / M: Shimano RT26, 6-bolt,160 mm. ML / L / XL: 180 mm |
| Brake Levers: |
Shimano MT200 hydraulic disc |
| Front Hub: |
Formula DC-20 LW, alloy, 6-bolt, 5x100mm |
| Front Hub Skewer: |
QR |
| Rear Hub: |
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Rear Hub Skewer: |
QR |
| Rims: |
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
| Front Tire: |
XS / S Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40". M / ML / L / XL: 29x2.40" |
| Rear Tire: |
XS / S Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40". M / ML / L / XL: 29x2.40" |

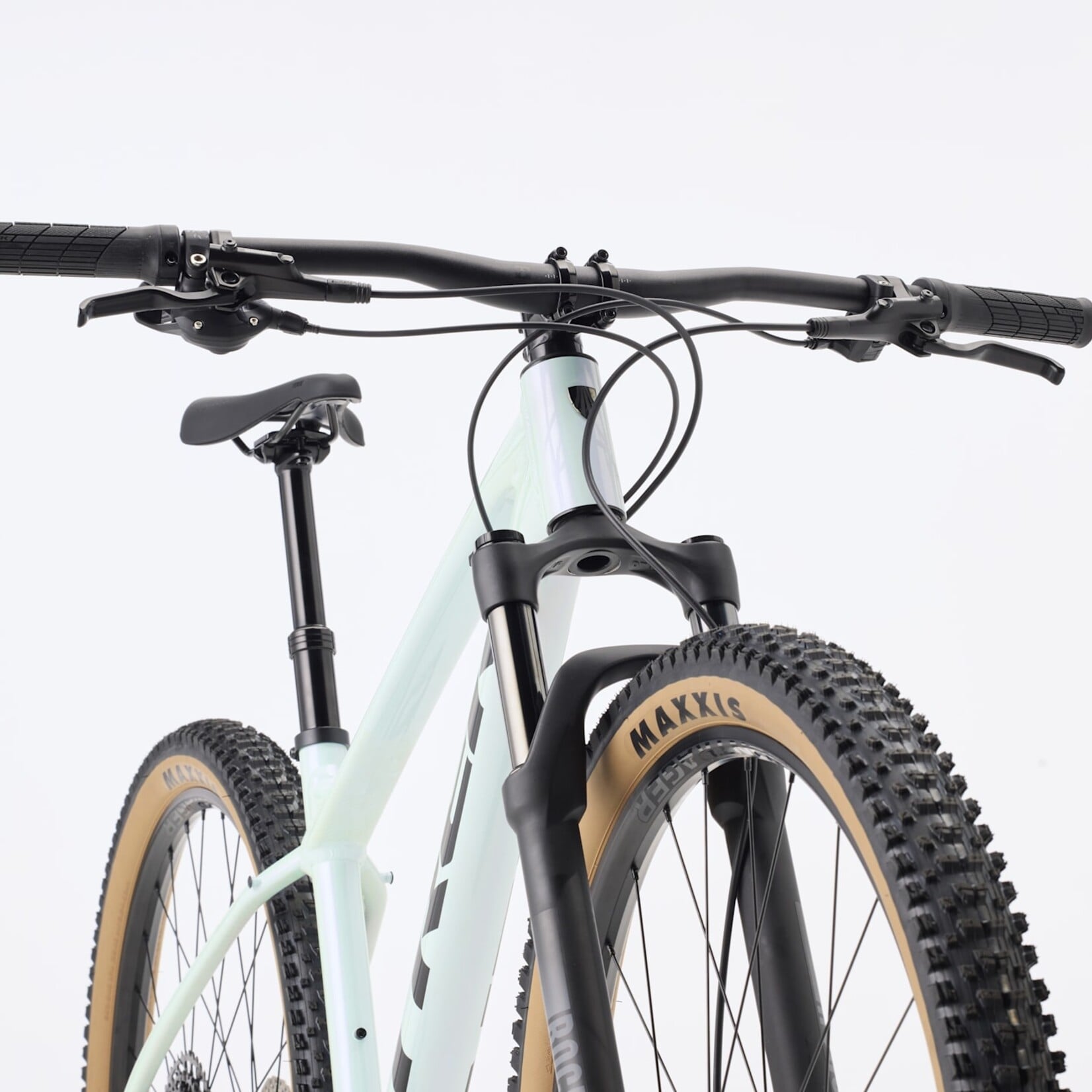

| Handlebar: |
XS: Bontrager alloy, 31.8mm, 5mm rise, 690mm width. S: 15mm rise, 720mm width. M / ML / L / XL: 15mm rise, 750mm width |
| Grips/ Bar Tape: |
Bontrager XR Trail Comp, nylon lock-on |
| Stem: |
XS / S: Bontrager Comp, 31.8mm, 7 degree, 35mm length. M / ML / L: Blendr compatible, 50mm length. XL: 60mm length |
| Headset: |
Semi-integrated, 1-1/8" |
| Saddle: |
Bontrager Verse Short, stainless steel rails |
| Seatpost: |
XS / S: TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length. M: 130mm travel, 425 mm length. ML / L / XL: 150mm travel, 470mm length |
| Extras: |
N/A |
