Cannondale Moterra 4

Model Description

Moterra 4 strips things down to the essentials—reliable, rugged, and ready for anything. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and big 600Wh battery deliver smooth, sustained power, with more than enough range to keep things interesting. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
Climb-crushing strength and natural feeling power delivery from Bosch's most powerful motor, the Performance CX
Interchangeable 600Wh battery provides an ideal balance of range and light weight
Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors

Weight:	TBD
Frame:	Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube,
Fork:	SR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset
Shock:	RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
Front Shifter:	N/A
Front Derailleur:	N/A

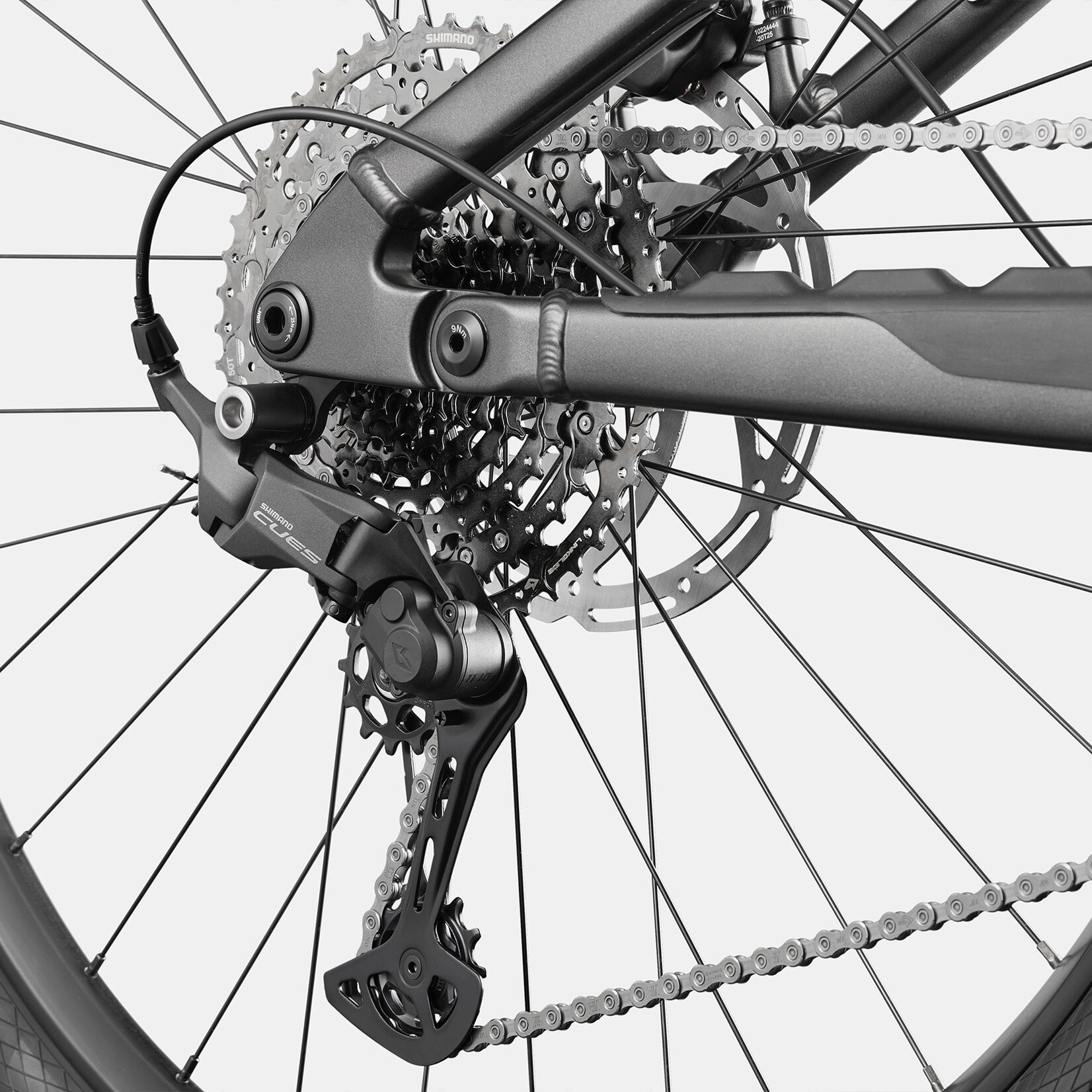

Rear Shifter:	Shimano CUES U6000, 11-speed, LinkGlide
Rear Derailleur:	Shimano CUES U6000, LinkGlide
Crankset:	FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Pedals:	N/A
Bottom Bracket:	Bosch Performance Line CX
Cassette:	Shimano CUES LG400, LinkGlide, 11-50, 11-speed
Chain:	Shimano LG500, LinkGlide, 11-speed
Front Brake:	Tektro Gemini SL 4-piston hydraulic disc
Front Brake Rotor:	203mm rotor centerlock
Rear Brake:	Tektro Gemini SL 4-piston hydraulic disc
Rear Brake Rotor:	203mm rotor centerlock
Brake Levers:	Tektro Gemini SL 4-piston hydraulic disc
Front Hub:	Shimano TC500
Front Hub Skewer:	15x110mm thru-axle
Rear Hub:	Shimano TC500
Rear Hub Skewer:	12x148mm thru-axle
Rims:	WTB ST i30 TCS, 30mm inner width, 32h, tubeless ready
Front Tire:	Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR
Rear Tire:	Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR

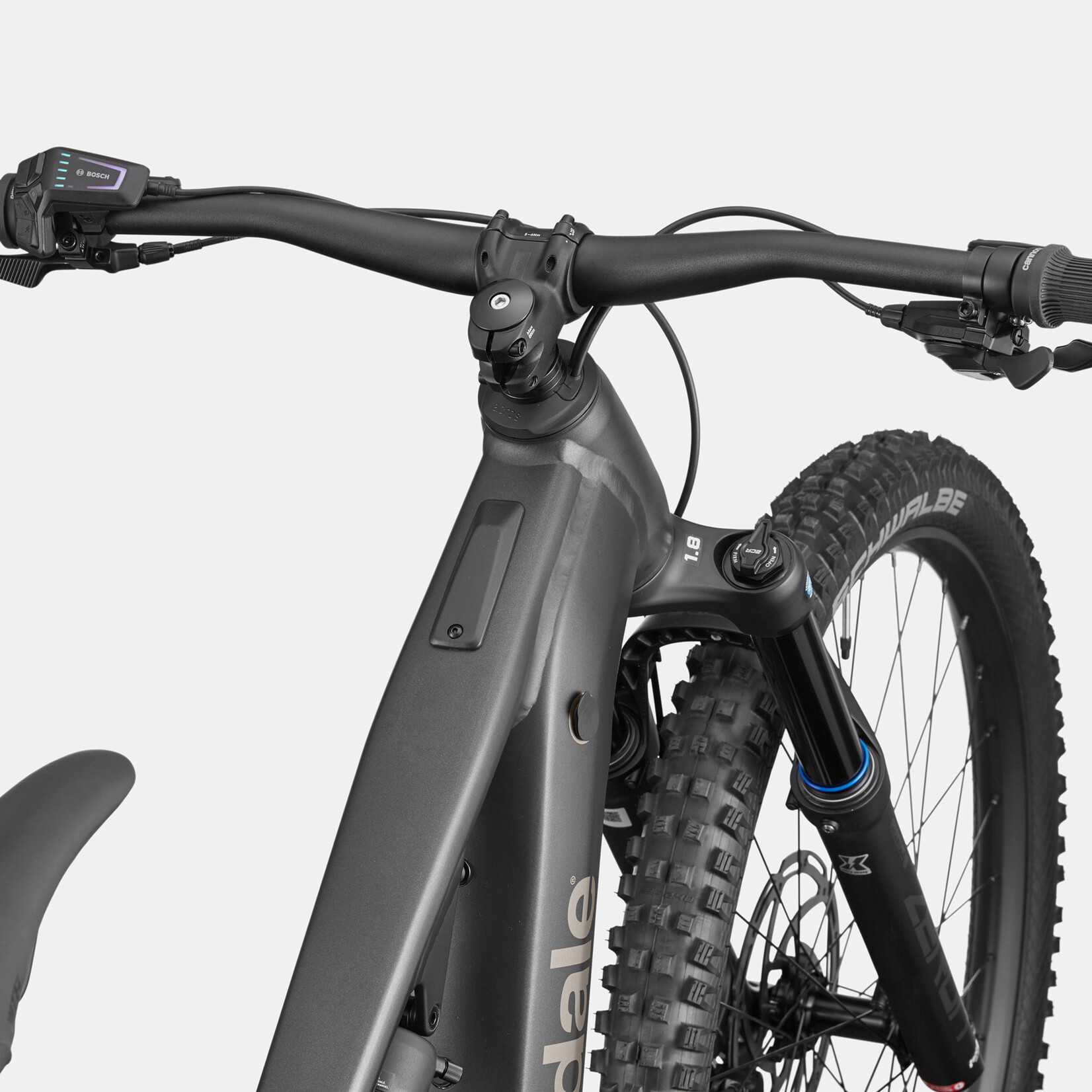

Handlebar:	Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips/ Bar Tape:	Cannondale TaperRidge
Stem:	Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Headset:	Acros ICR, 1.5" to 1.8", sealed bearings
Saddle:	WTB Silverado Medium
Seatpost:	Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

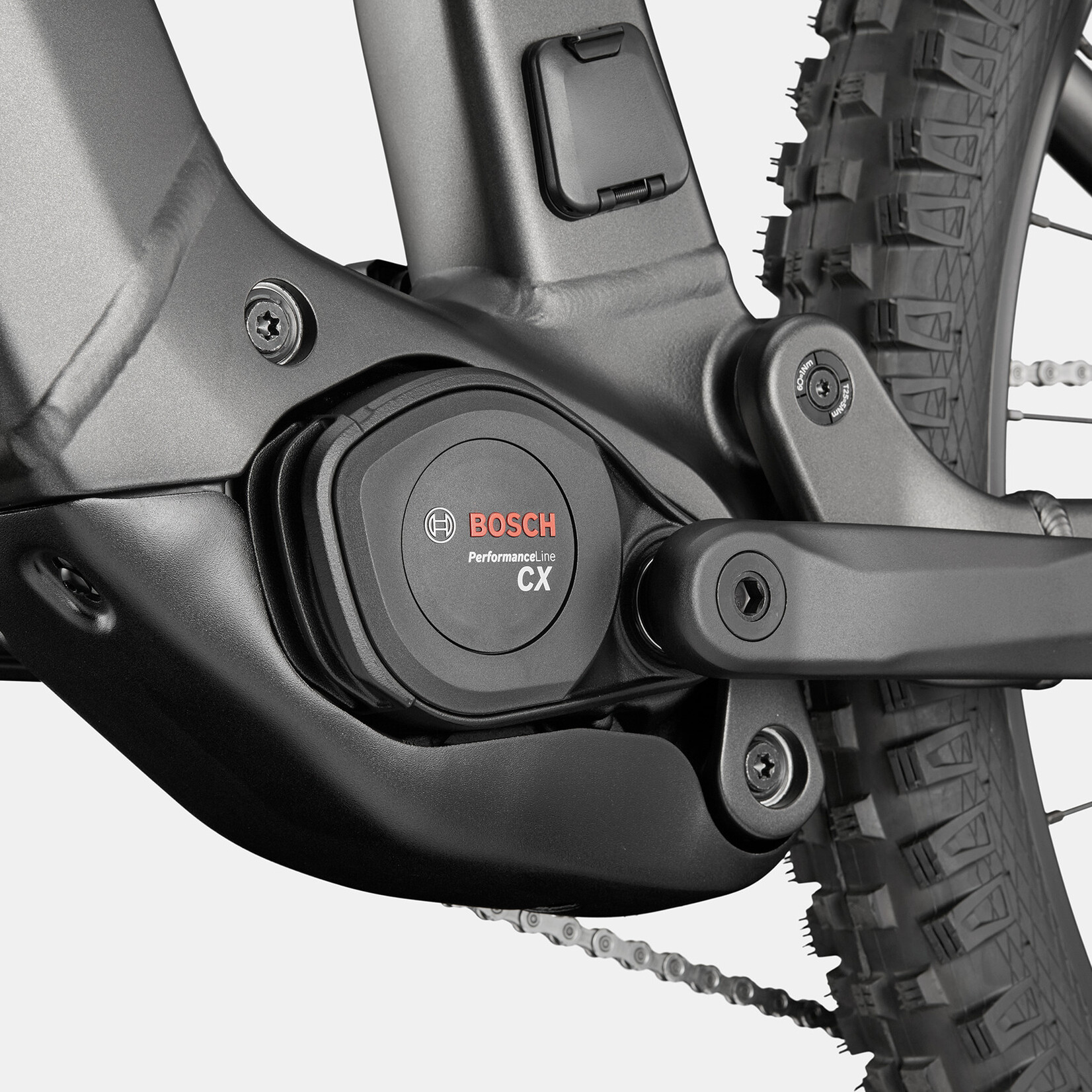

Motor:	Bosch Performance Line CX
Battery:	Bosch PowerTube, 600Wh
Controller:	Bosch LED Remote
Charger:	Bosch 4A
Lights:	N/A
Extras:	Bosch PowerMore range extender compatible
