| Weight: |
Medium - 19.73kg/43.5lbs (with TLR sealant, no tubes) |
| Frame: |
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 14 |
| Fork: |
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel |
| Shock: |

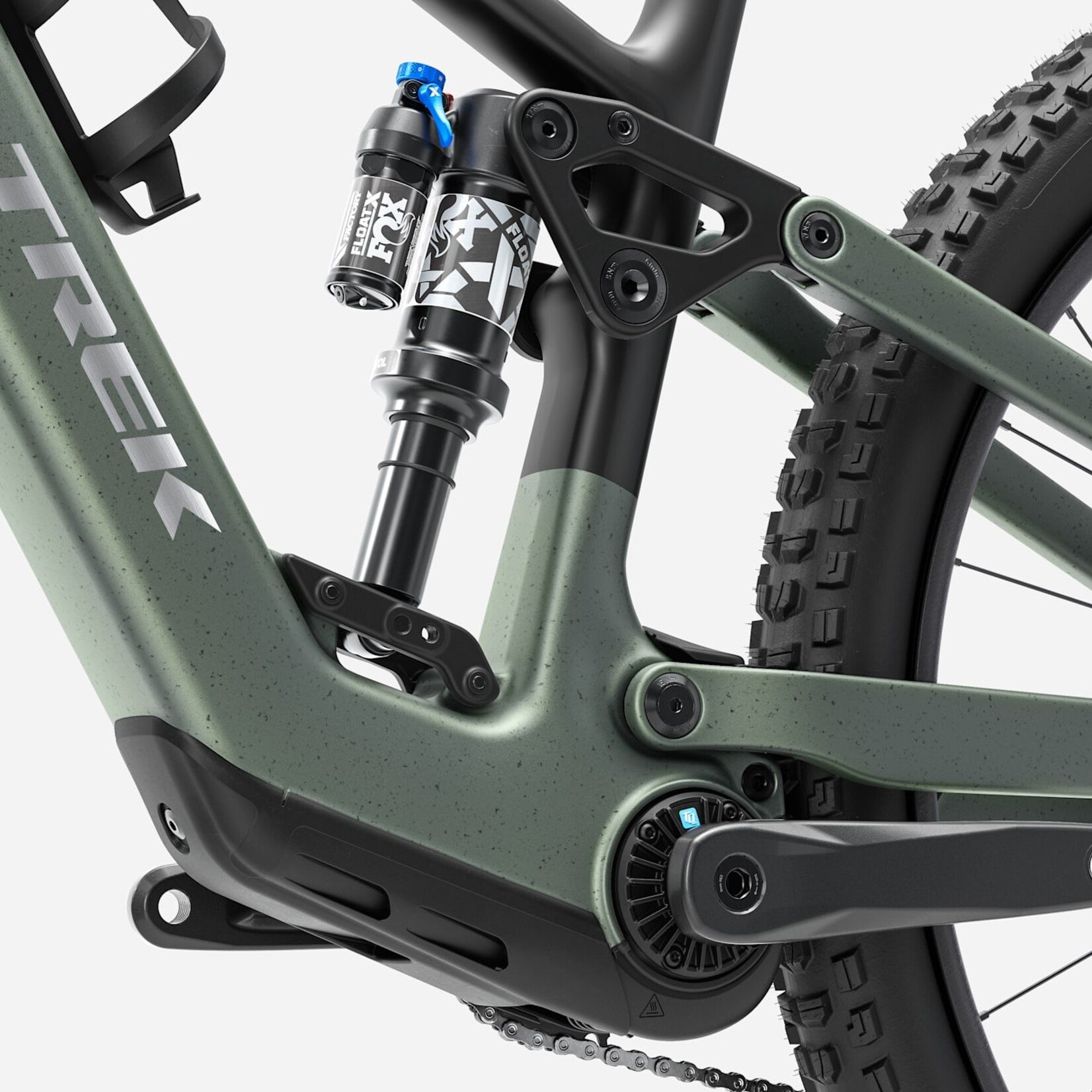

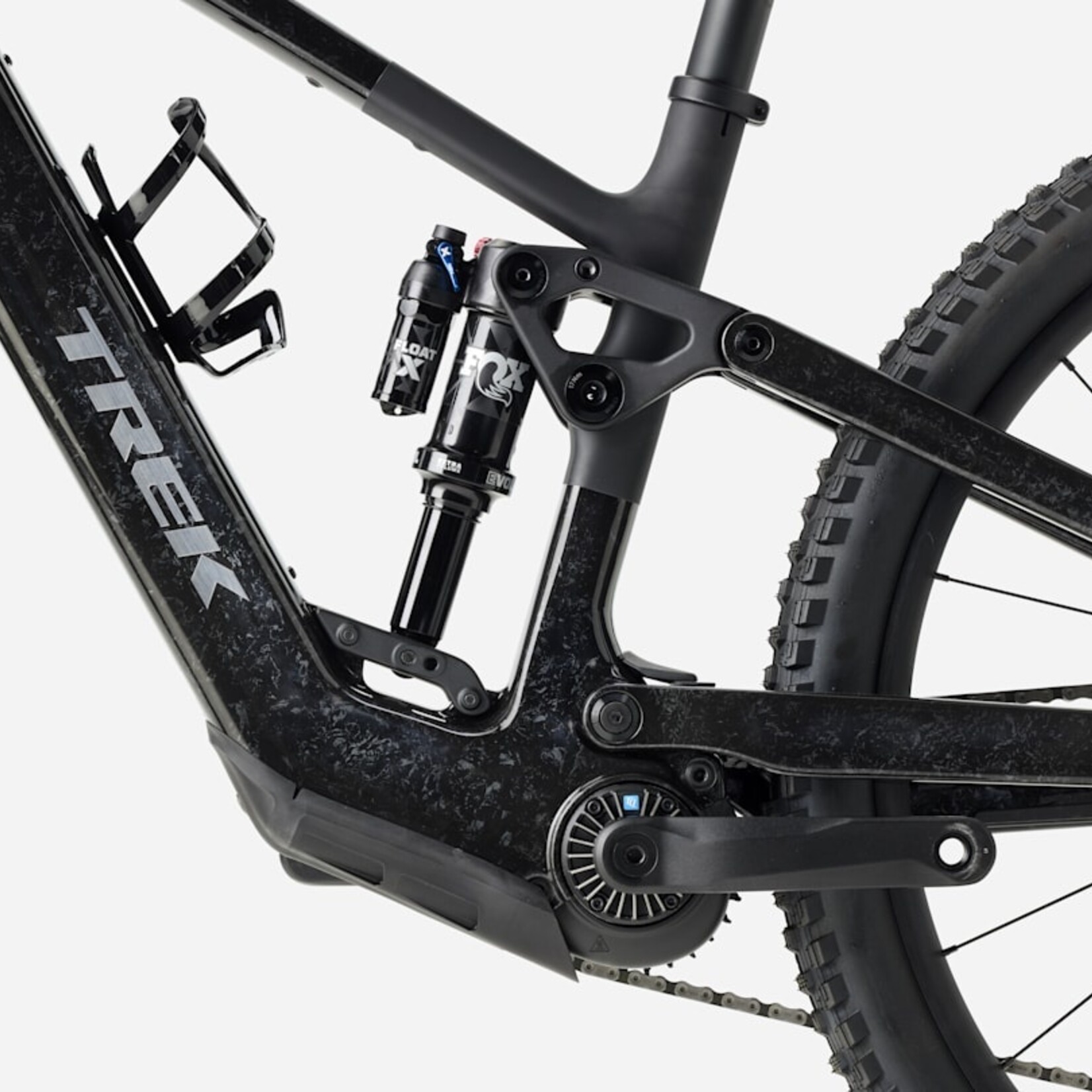

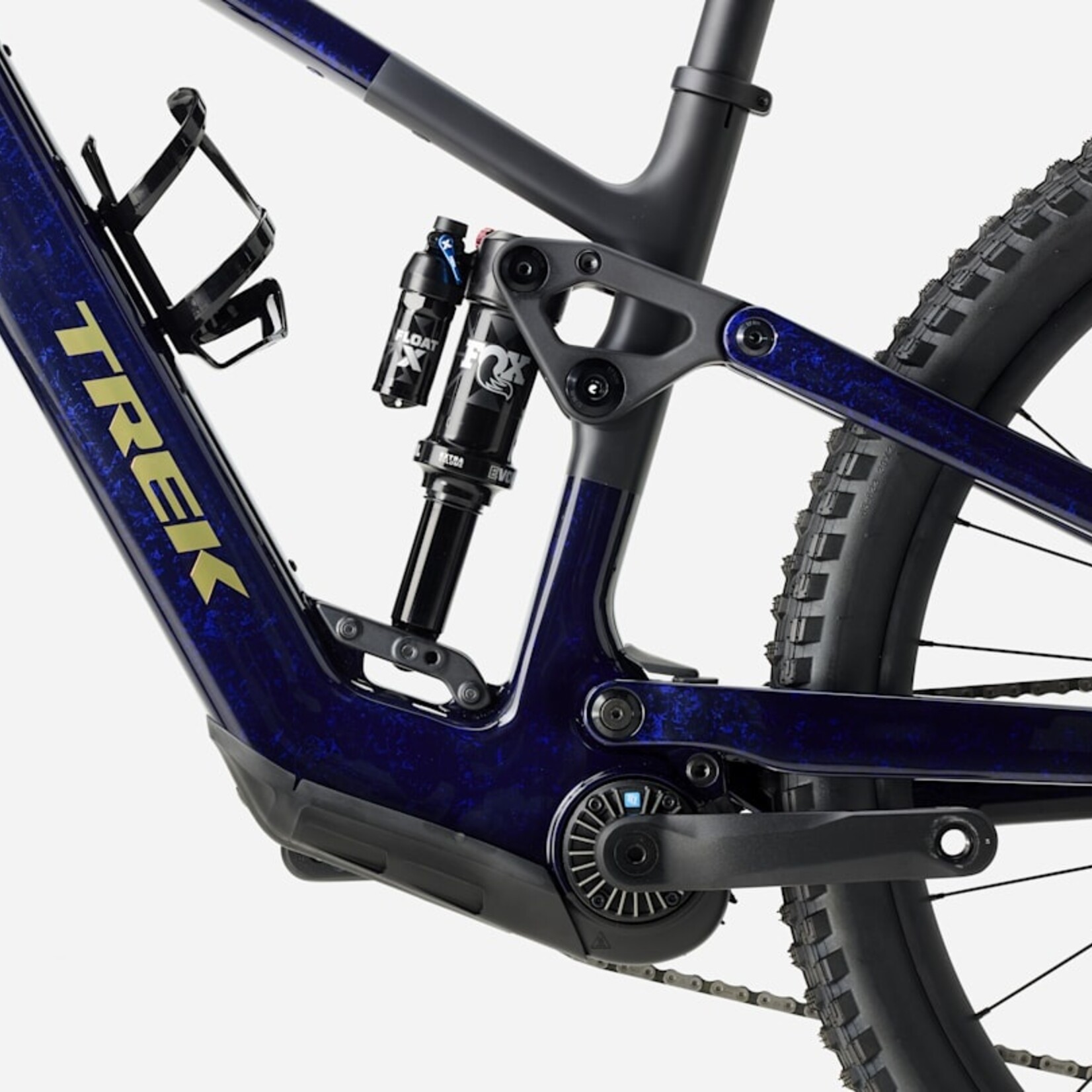

Fox Performance Float X, 2-position damper, 205mm x 60mm |
| Front Shifter: |
N/A |
| Front Derailleur: |
N/A |
| Rear Shifter: |
SRAM Eagle 70, 12 speed |
| Rear Derailleur: |

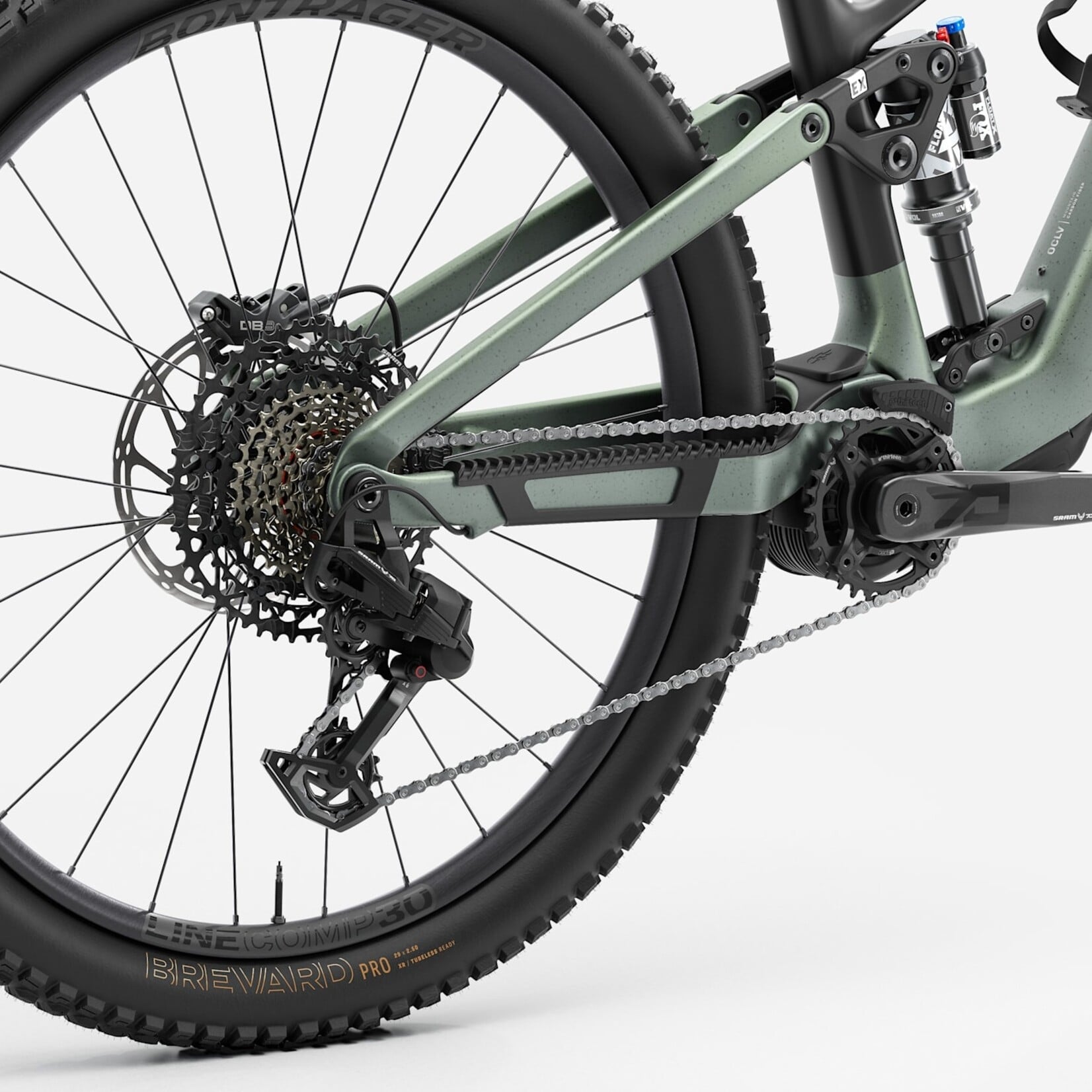

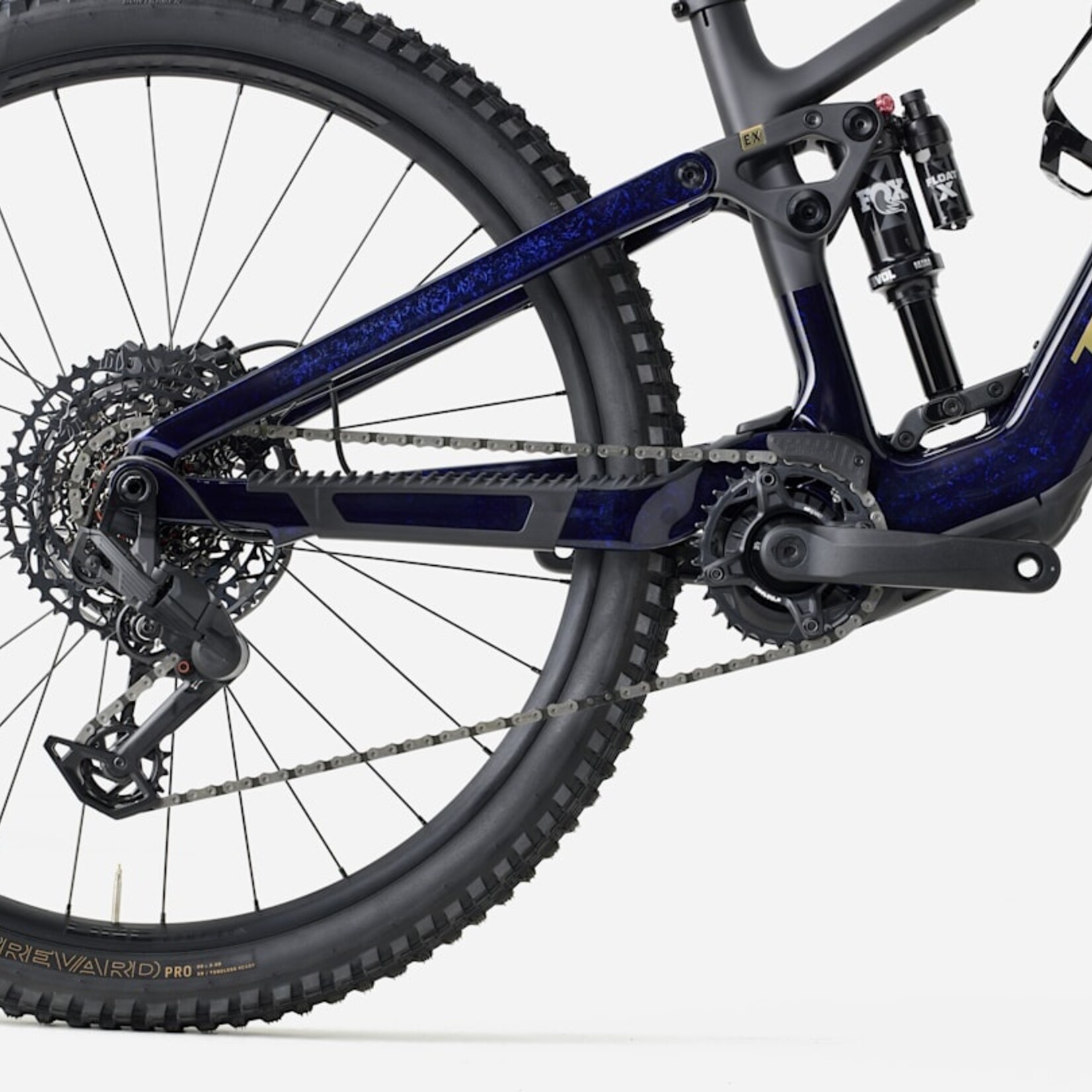

SRAM Eagle 70, T-Type |
| Crankset: |
SRAM EAGLE 70, 160mm length |
| Pedals: |
N/A |
| Bottom Bracket: |
TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power |
| Cassette: |
SRAM Eagle XS-1270, T-Type,10-52, 12 speed |
| Chain: |
SRAM Eagle 70, T-Type, 12 speed |
| Front Brake: |
SRAM DB 8 4-piston hydraulic disc |
| Front Brake Rotor: |
SRAM Centerline 2.0, 6-bolt, 200mm |
| Rear Brake: |
SRAM DB 8 4-piston hydraulic disc |
| Rear Brake Rotor: |
SRAM Centerline 2.0, 6-bolt, 200mm |
| Brake Levers: |
SRAM DB 8 4-piston hydraulic disc |
| Front Hub: |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Front Hub Skewer: |
15mm thru axle |
| Rear Hub: |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle |
| Rear Hub Skewer: |
Bontrager Switch Lever Rear Thru Axle, 184mm |
| Rims: |
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve |
| Front Tire: |
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
| Rear Tire: |
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
| Handlebar: |

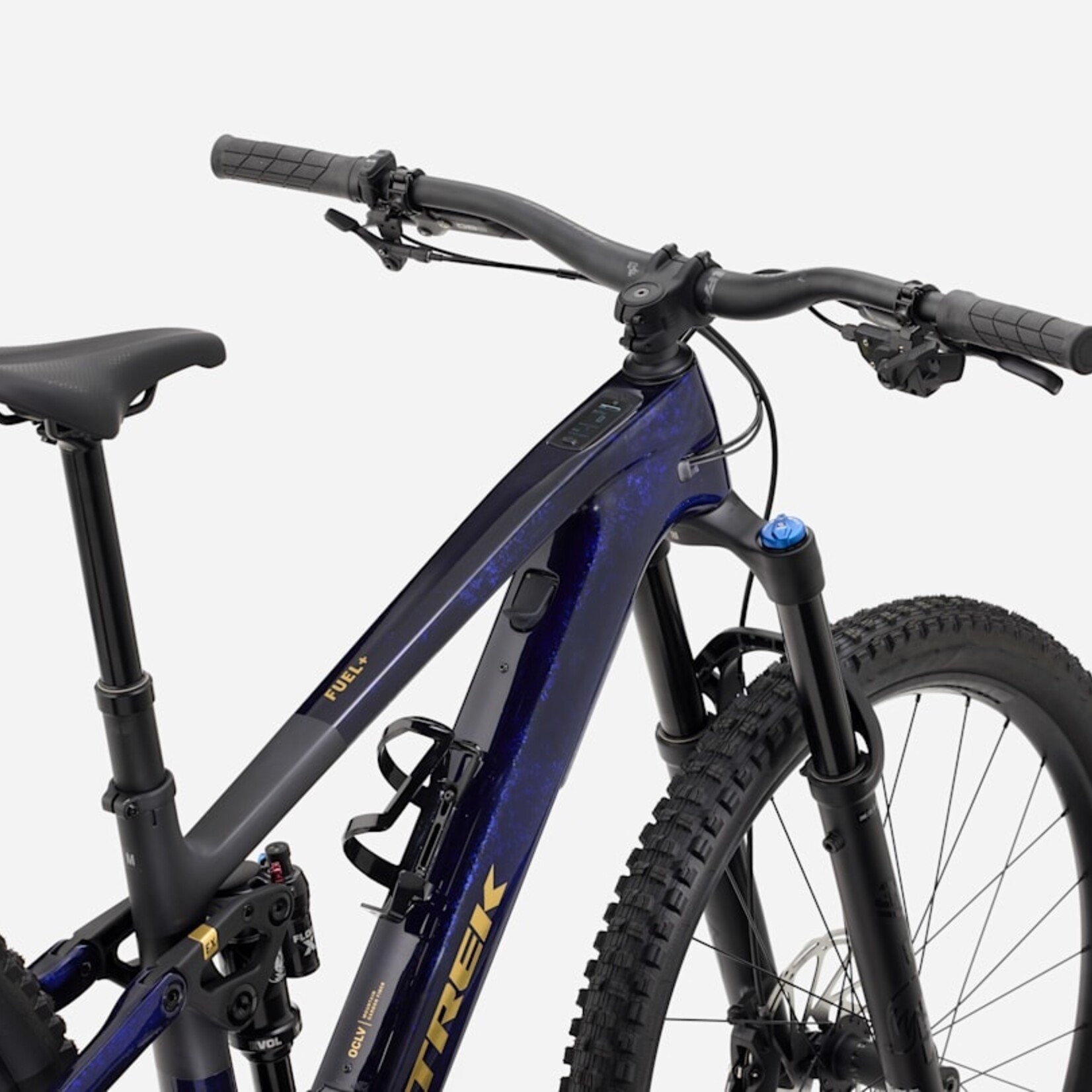

Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width |
| Grips/ Bar Tape: |
Trek Line Elite, lock-on |
| Stem: |
Bontrager Elite, 35mm, 0 degree, 45mm length |
| Headset: |
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Saddle: |
Bontrager Verse P3, chromoly rails |
| Seatpost: |
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length |
| Motor: |
TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power |
| Battery: |
TQ 580Wh |
| Controller: |
TQ LED display with Bluetooth & ANT+ connectivity |
| Charger: |
TQ 4A charger |
| Lights: |
N/A |
| Extras: |
|
