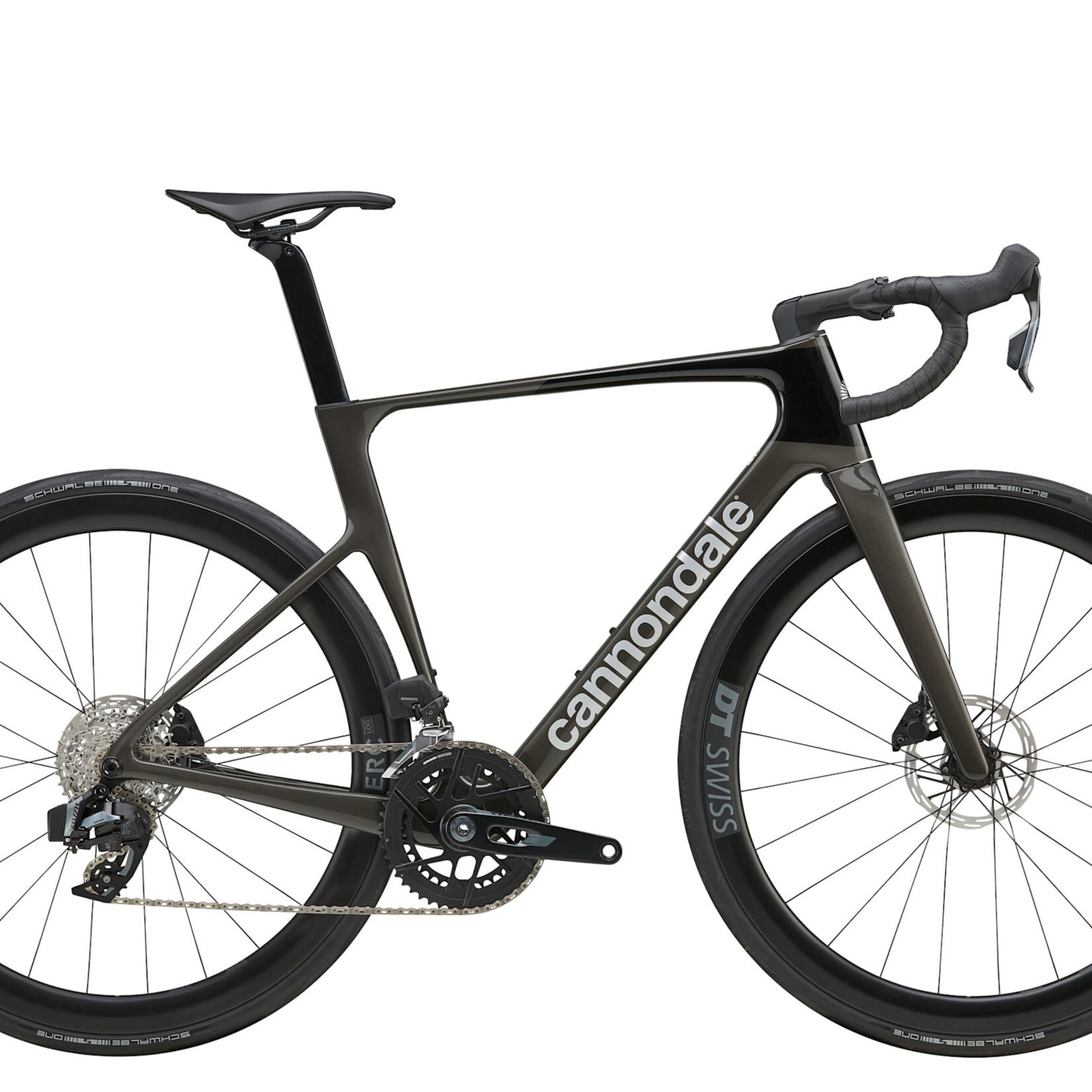

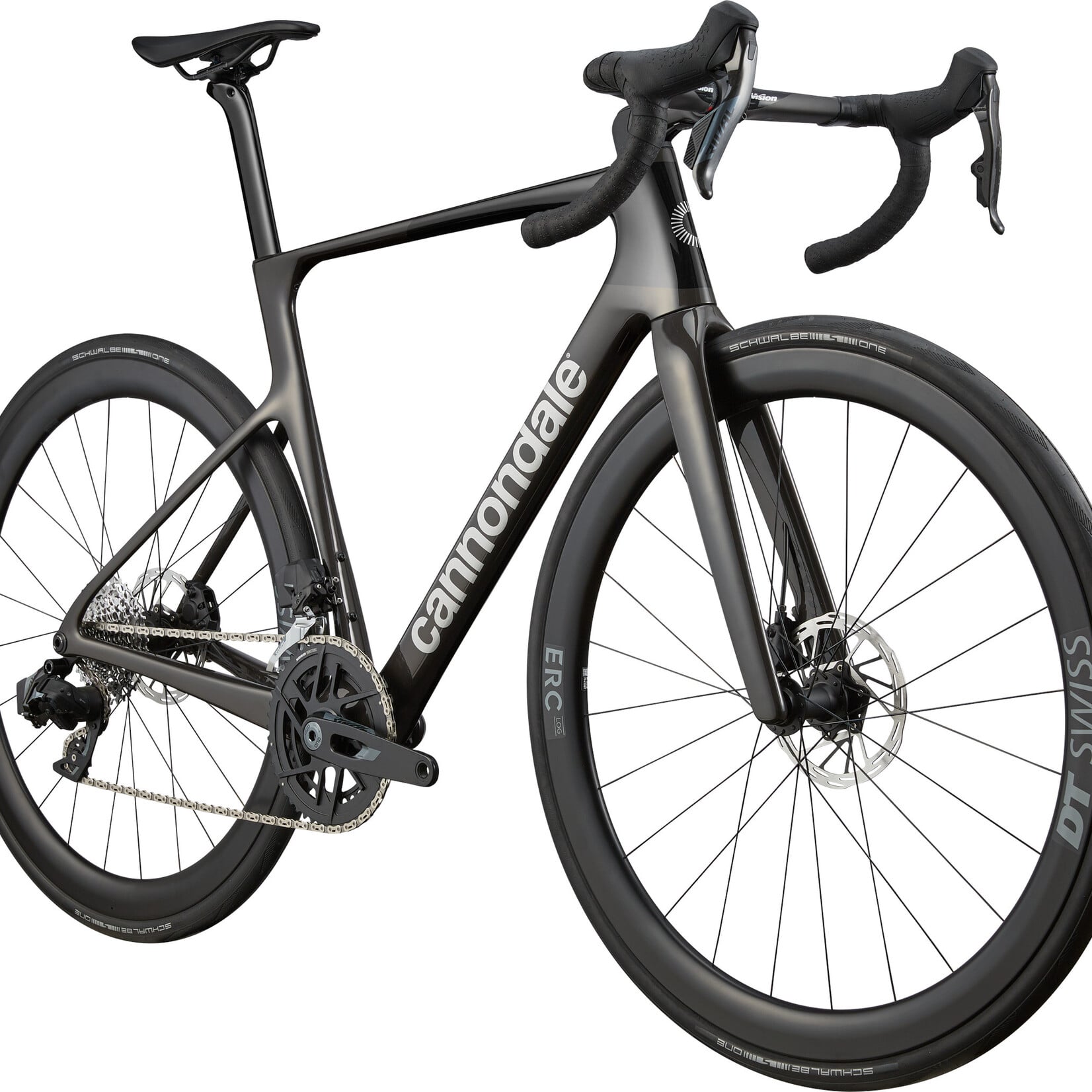

Cannondale SuperSix EVO 4 Gen 5

Model Description

Take it up a level. The lightweight Gen 5 EVO carbon frame rolls on race-ready DT Swiss ERC LOG 45 carbon wheels, balancing light weight with ruthless aero efficiency. With SRAM’s Rival AXS wireless electronic shifting, Vision Trimax Carbon Aero bars and our Conceal stem, the SuperSix EVO 4 is ready to challenge for the top step.

What it's for

Breakaways, KOMs, Podiums, and PRs

Highlights

Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
DT Swiss ERC LOG 45 carbon road wheelset - 45mm deep, light, fast, all-around race wheels
SRAM's workhorse Rival AXS group - precise, reliable wireless electronic shifting
Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
Fizik Vento Antares R7 saddle - ergonomic comfort with pressure relieving cutout

View more details at Cannondale.com

Weight:	TBD

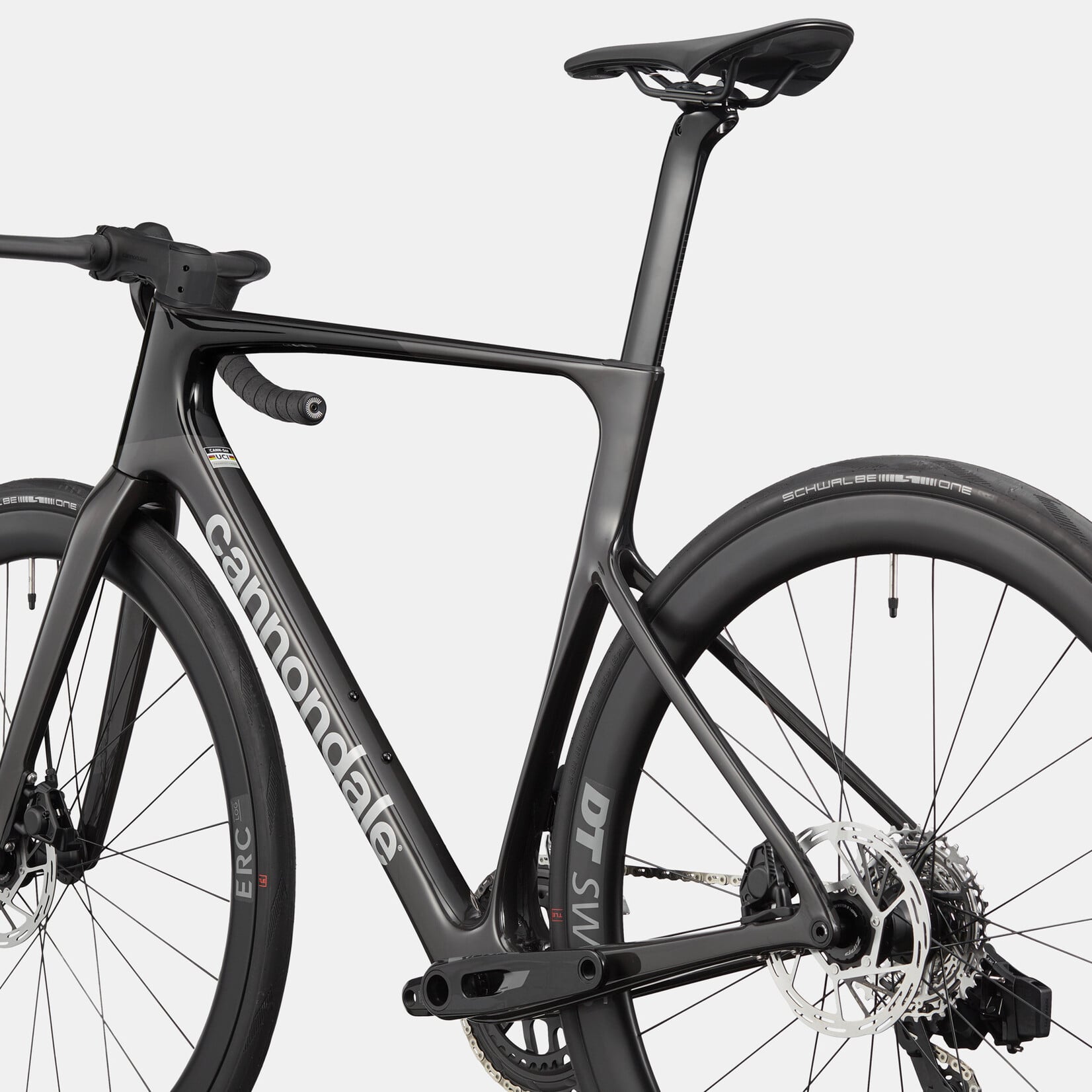

Frame:	SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
Fork:	SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Shock:	N/A
Front Shifter:	SRAM Rival AXS, 2-speed
Front Derailleur:	SRAM Rival AXS
Rear Shifter:	SRAM Rival AXS, 12-speed

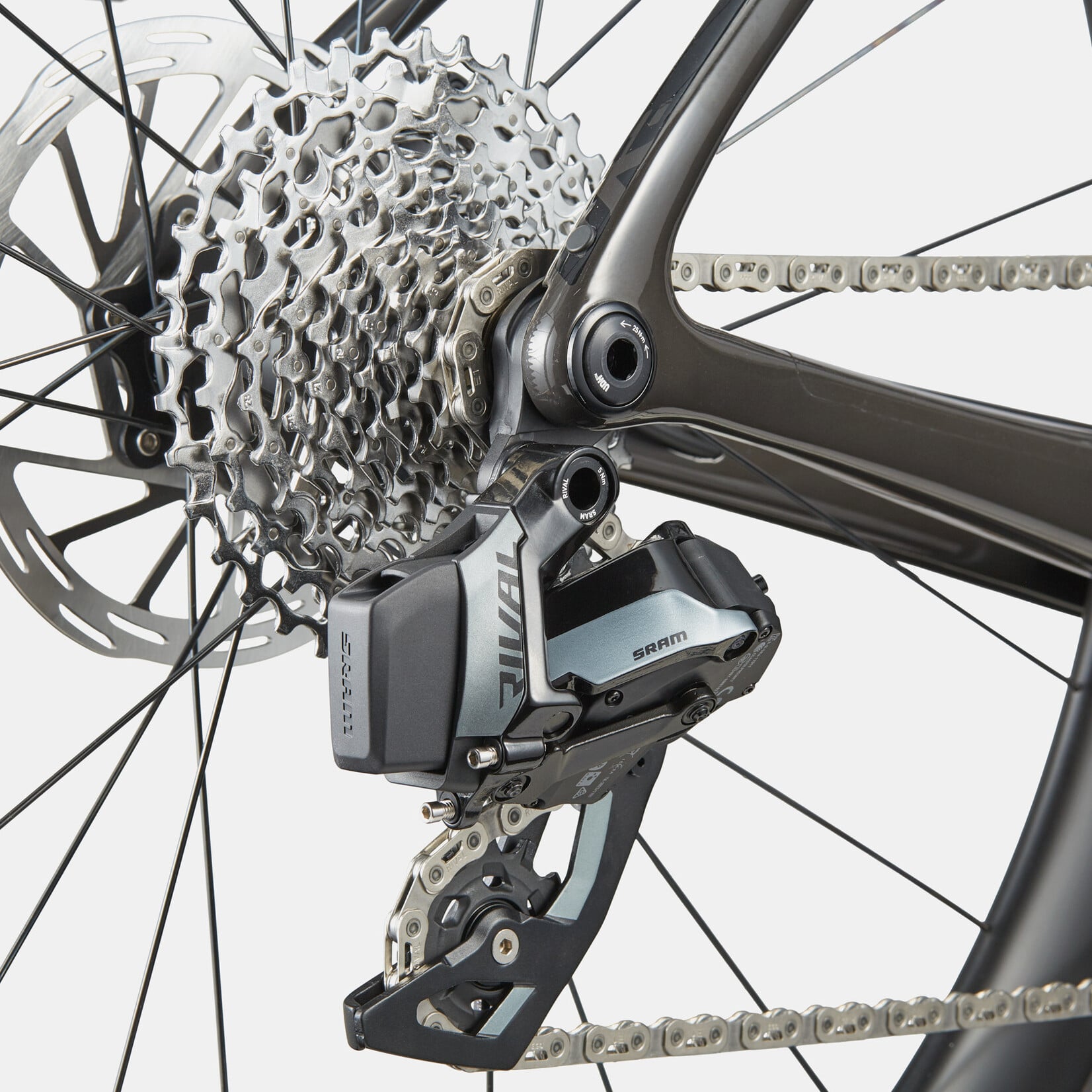

Rear Derailleur:	SRAM Rival AXS, 12-speed

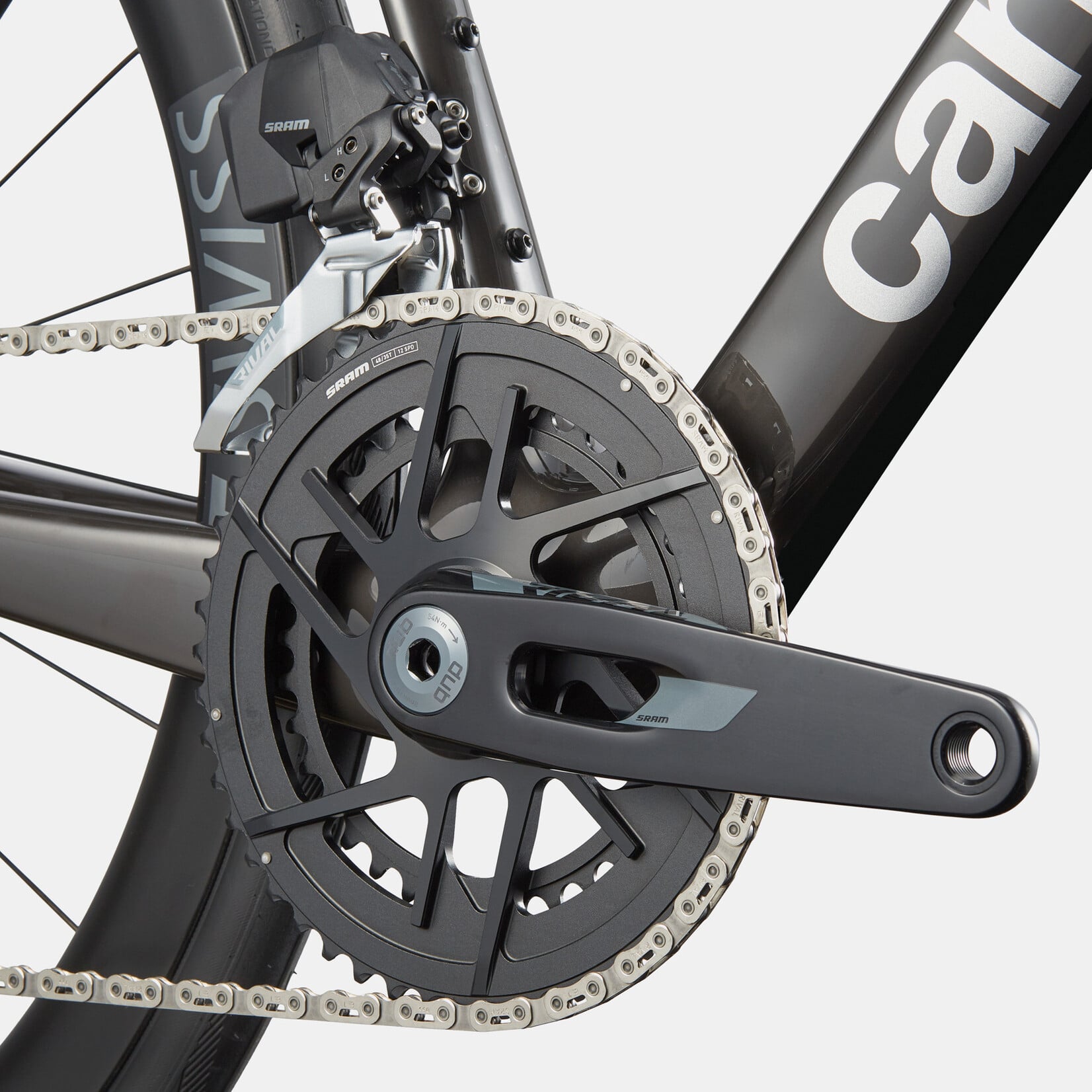

Crankset:	SRAM Rival AXS, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
Pedals:	N/A
Bottom Bracket:	SRAM DUB BSA
Cassette:	SRAM Rival XG-1250, 10-36, 12-speed
Chain:	SRAM Rival, 12-speed
Front Brake:	SRAM Rival AXS hydraulic disc
Front Brake Rotor:	160mm PaceLine centerlock rotor
Rear Brake:	SRAM Rival AXS hydraulic disc
Rear Brake Rotor:	160mm PaceLine centerlock rotor

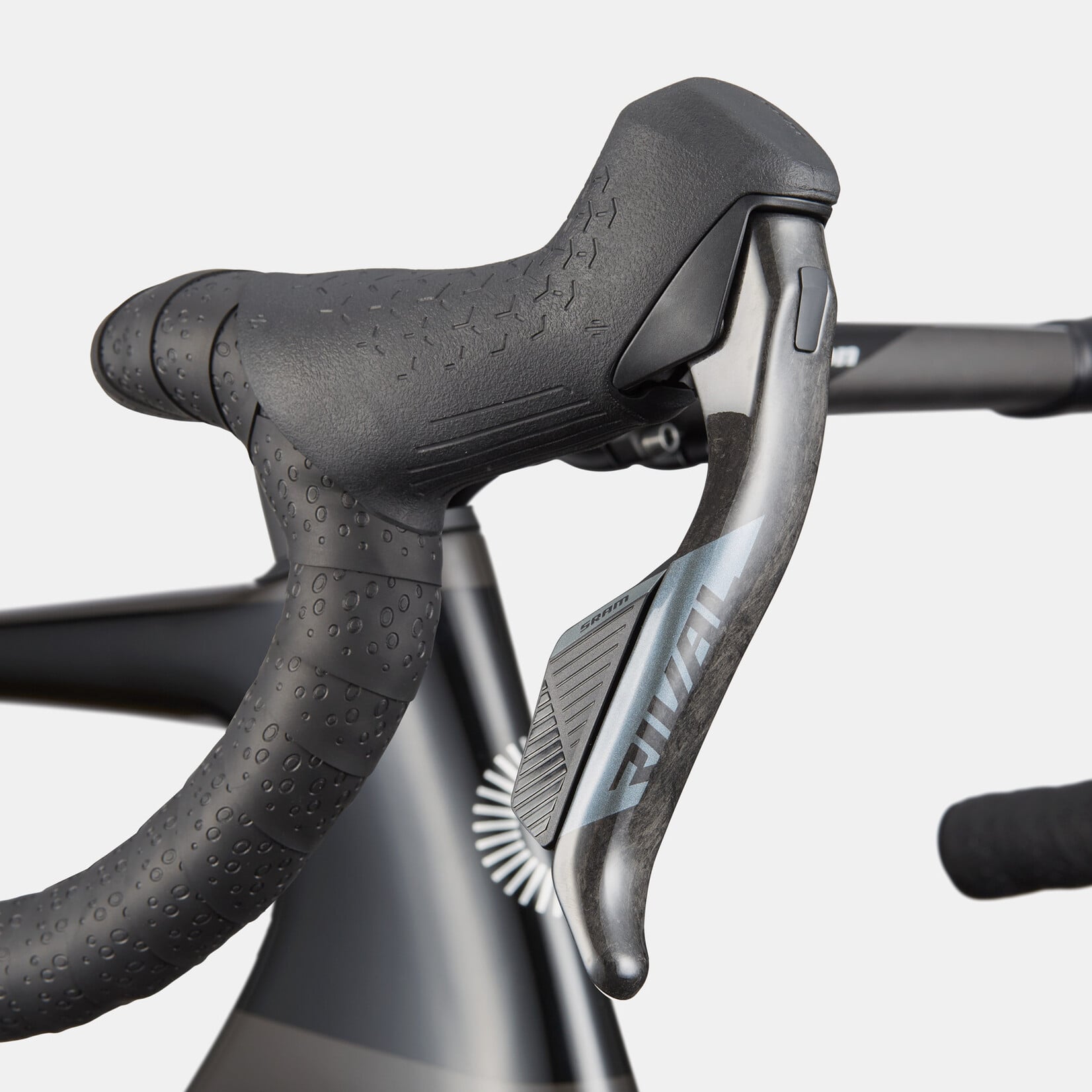

Brake Levers:	SRAM Rival AXS hydraulic disc
Front Hub:	DT Swiss 370, 12x100mm centerlock
Front Hub Skewer:	Thru-Axle
Rear Hub:	DT Swiss 370 LN Ratchet System, 12x142mm centerlock
Rear Hub Skewer:	Thru-Axle
Rims:	DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready
Front Tire:	Schwalbe One TLR, 700x28c, tubeless ready (note: some bikes may ship with 30c tires due to regional availability)
Rear Tire:	Schwalbe One TLR, 700x28c, tubeless ready (note: some bikes may ship with 30c tires due to regional availability)
Handlebar:	Vision Trimax Carbon Aero: 380mm (44-56), 400mm (58-61)
Grips/ Bar Tape:	Cannondale Bar Tape, 3.5mm
Stem:	Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
Headset:	Integrated, 1-1/8" - 1-1/4"
Saddle:	Fizik Vento Antares R7, 140mm
Seatpost:	Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
Extras:	Tubeless valves, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo)
