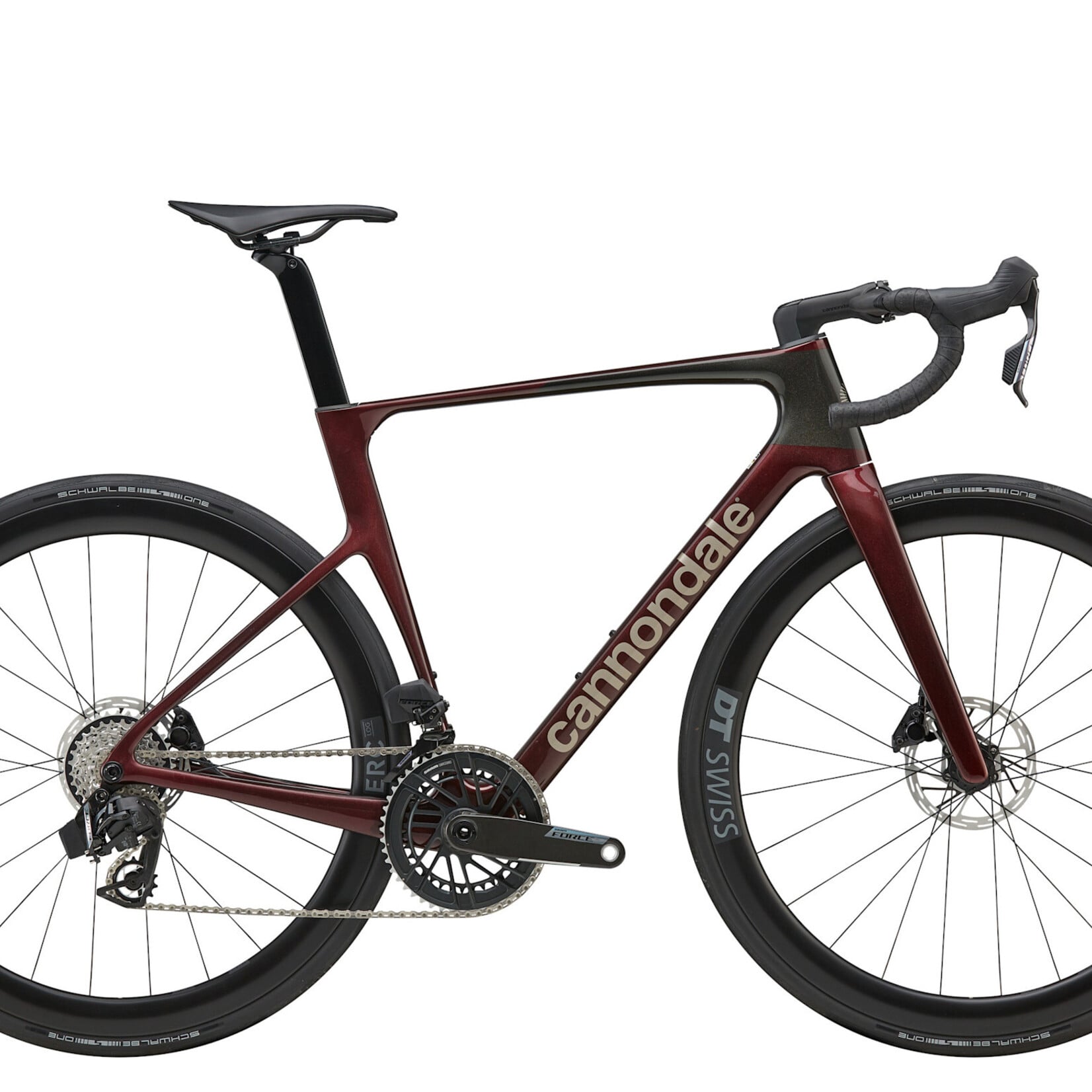

Cannondale SuperSix EVO 3 Gen 5

Model Description

Wireless simplicity. Aero-optimized speed. SuperSix EVO 3 pairs the lightweight Gen 5 carbon frame with DT Swiss ERC LOG 45 wheels and SRAM Force AXS electronic shifting. Vision Trimax Carbon Aero bars and our Conceal stem create a cleanly integrated cockpit. Built for fast circuits, aggressive group rides, and riders who like to win.

What it's for

Breakaways, KOMs, Podiums, and PRs

Highlights

Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
DT Swiss ERC LOG 45 carbon road wheelset - 45mm deep, light, fast, all-around race wheels
SRAM Force AXS 12-speed – precise, programmable shifting from SRAM’s penultimate wireless electronic group
Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
Fizik Vento Antares R5 saddle - ergonomic comfort with pressure relieving cutout

View more details at Cannondale.com

Weight:	TBD

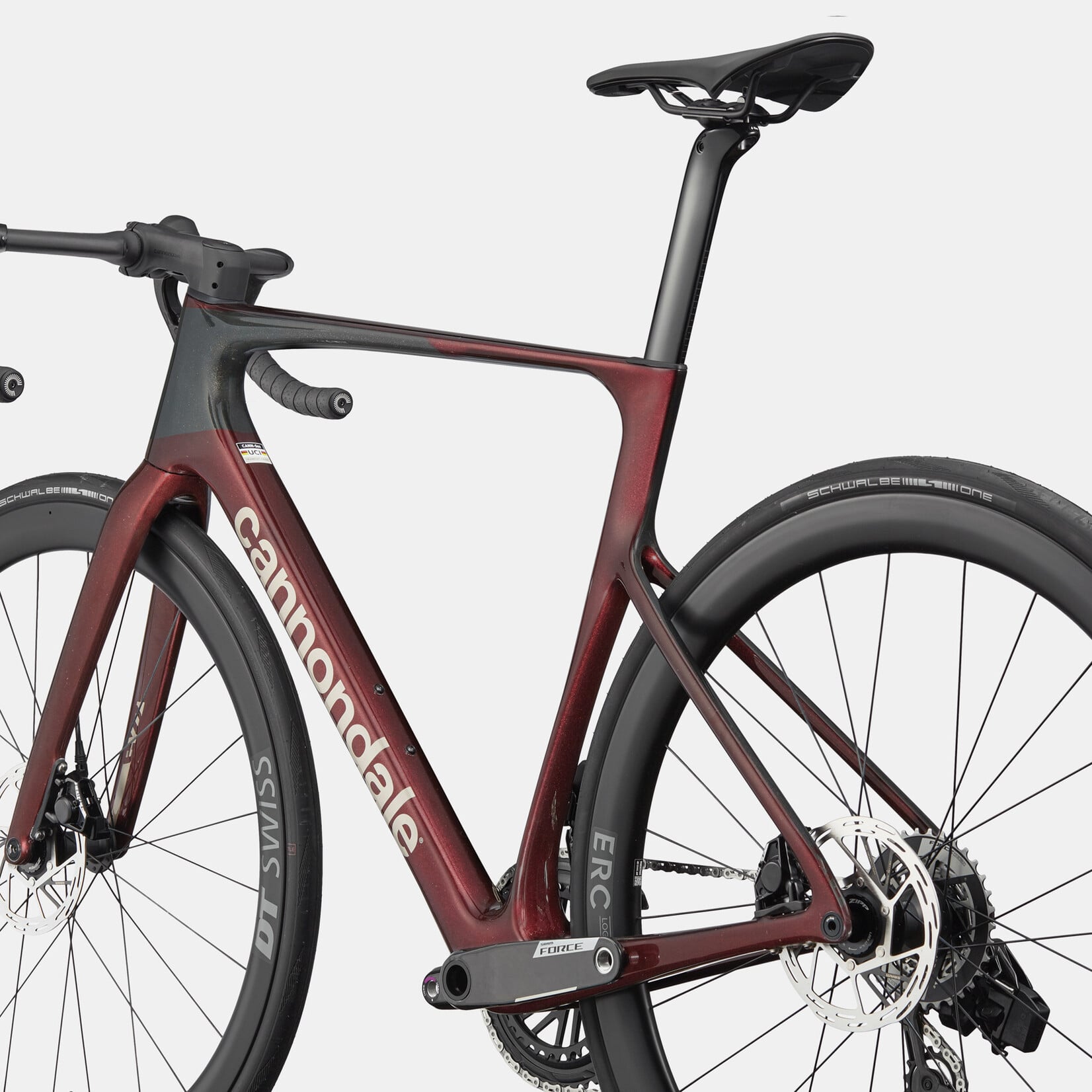

Frame:	SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
Fork:	SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Shock:	N/A
Front Shifter:	SRAM Force AXS, 2-speed
Front Derailleur:	SRAM Force AXS
Rear Shifter:	SRAM Force AXS, 12-speed

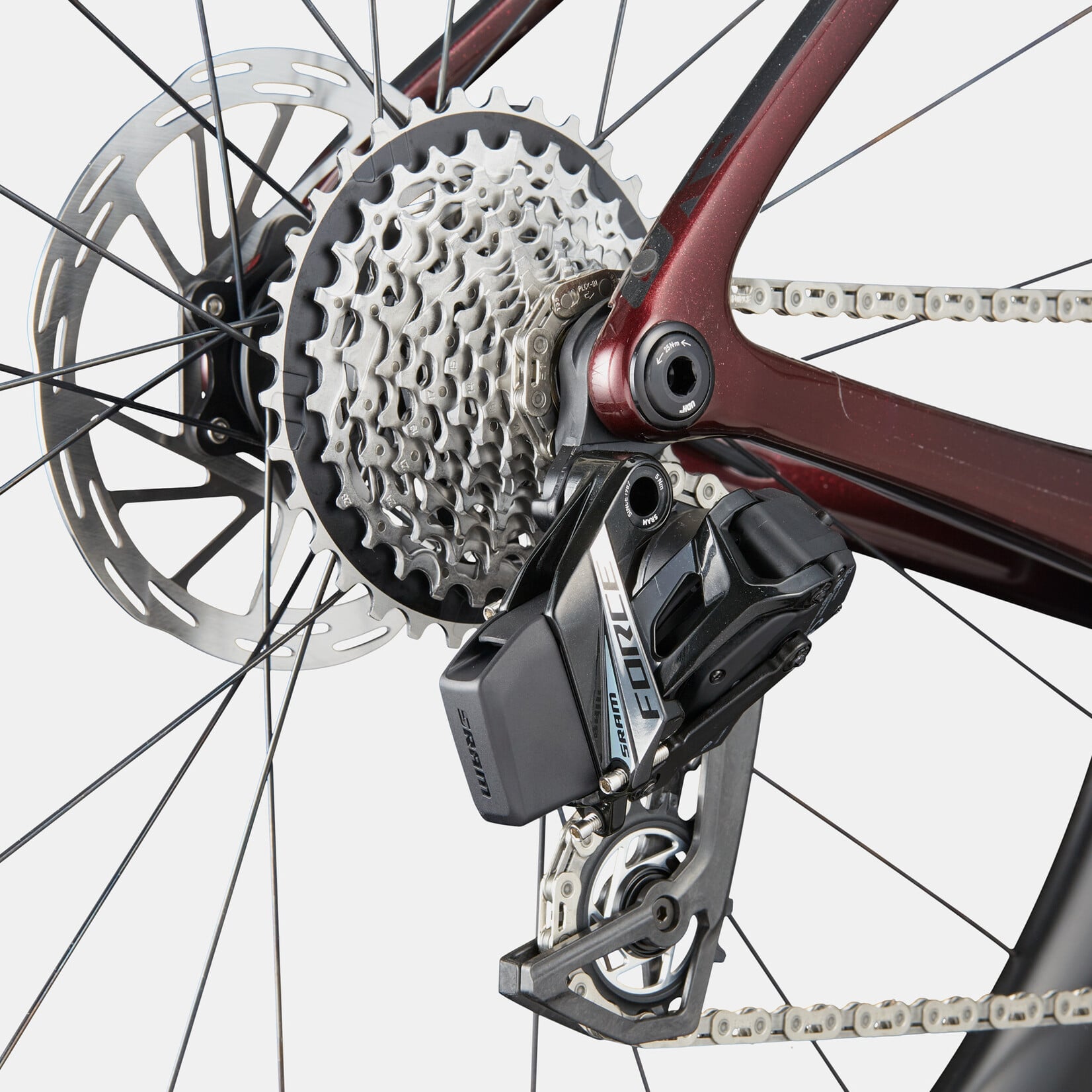

Rear Derailleur:	SRAM Force AXS, 12-speed

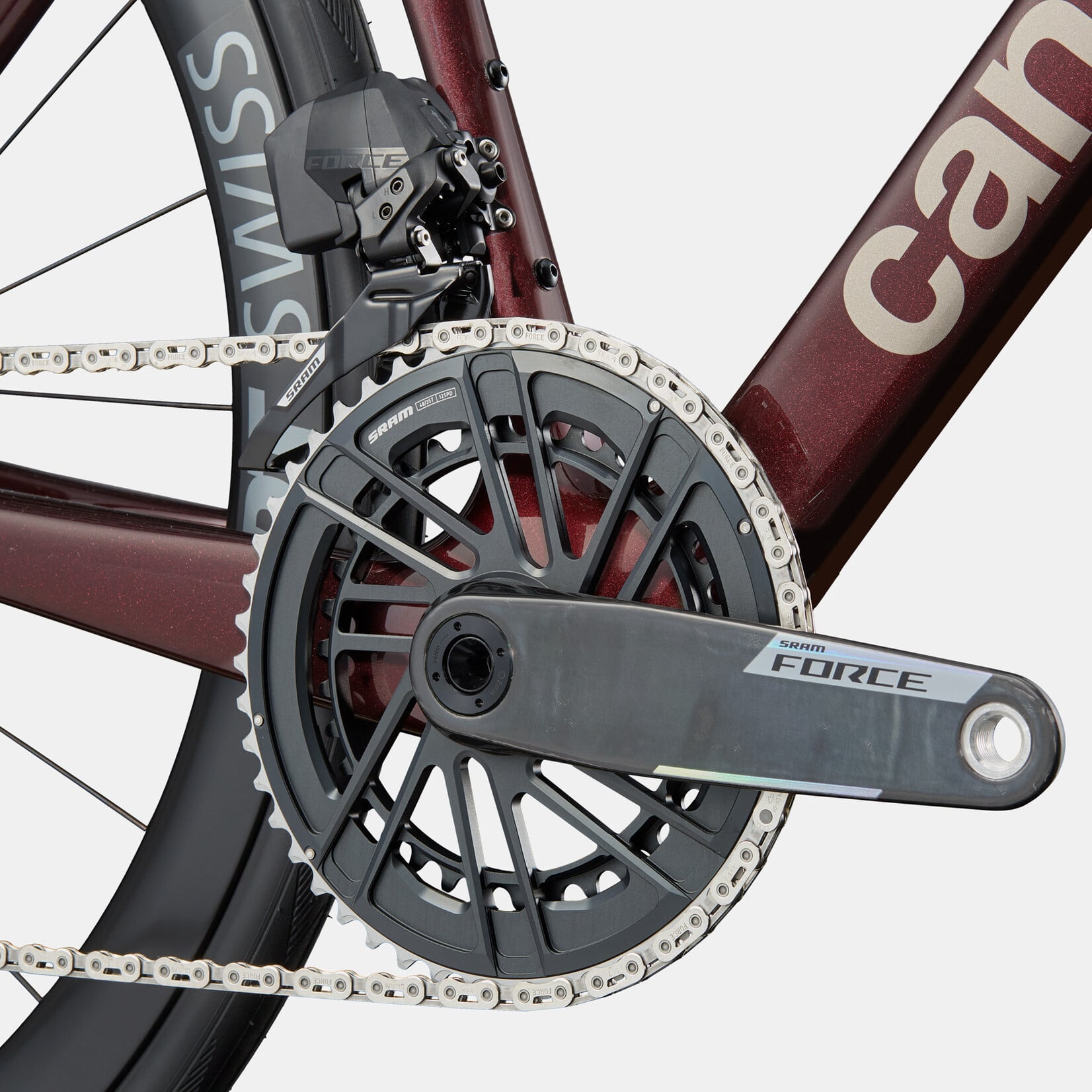

Crankset:	SRAM Force AXS, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
Pedals:	N/A
Bottom Bracket:	SRAM DUB BSA
Cassette:	SRAM Force XG-1270, 10-33, 12-speed
Chain:	SRAM Force, 12-speed
Front Brake:	SRAM Force AXS hydraulic disc
Front Brake Rotor:	160mm PaceLine centerlock rotor
Rear Brake:	SRAM Force AXS hydraulic disc
Rear Brake Rotor:	160mm PaceLine centerlock rotor

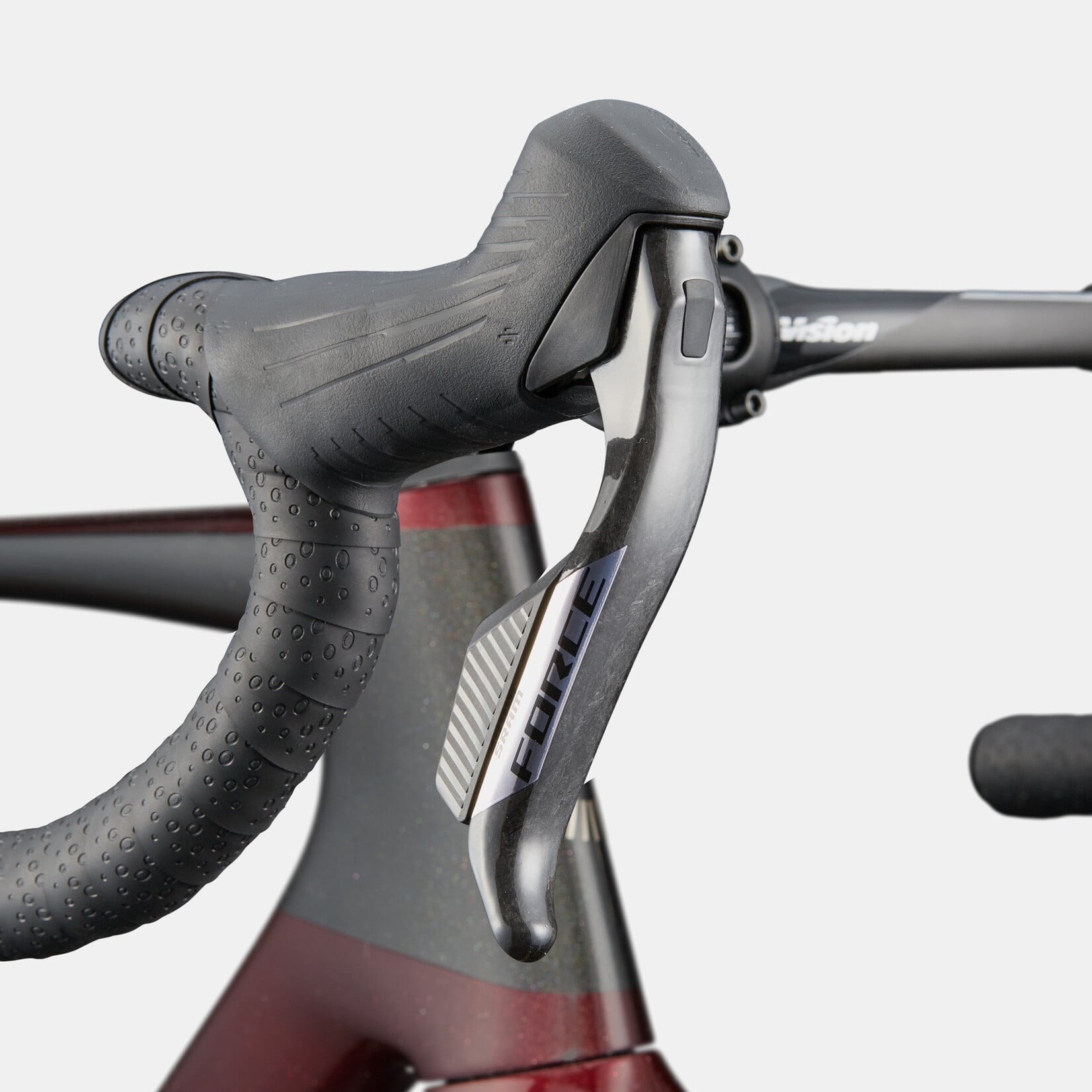

Brake Levers:	SRAM Force AXS hydraulic disc
Front Hub:	DT Swiss 370, 12x100mm centerlock
Front Hub Skewer:	Thru-Axle
Rear Hub:	DT Swiss 370 LN Ratchet System, 12x142mm centerlock
Rear Hub Skewer:	Thru-Axle
Rims:	DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready
Front Tire:	Schwalbe One TLR, 700x28c, tubeless ready
Rear Tire:	Schwalbe One TLR, 700x28c, tubeless ready
Handlebar:	Vision Trimax Carbon Aero: 380mm (44-56), 400mm (58-61)
Grips/ Bar Tape:	Cannondale Bar Tape, 3.5mm

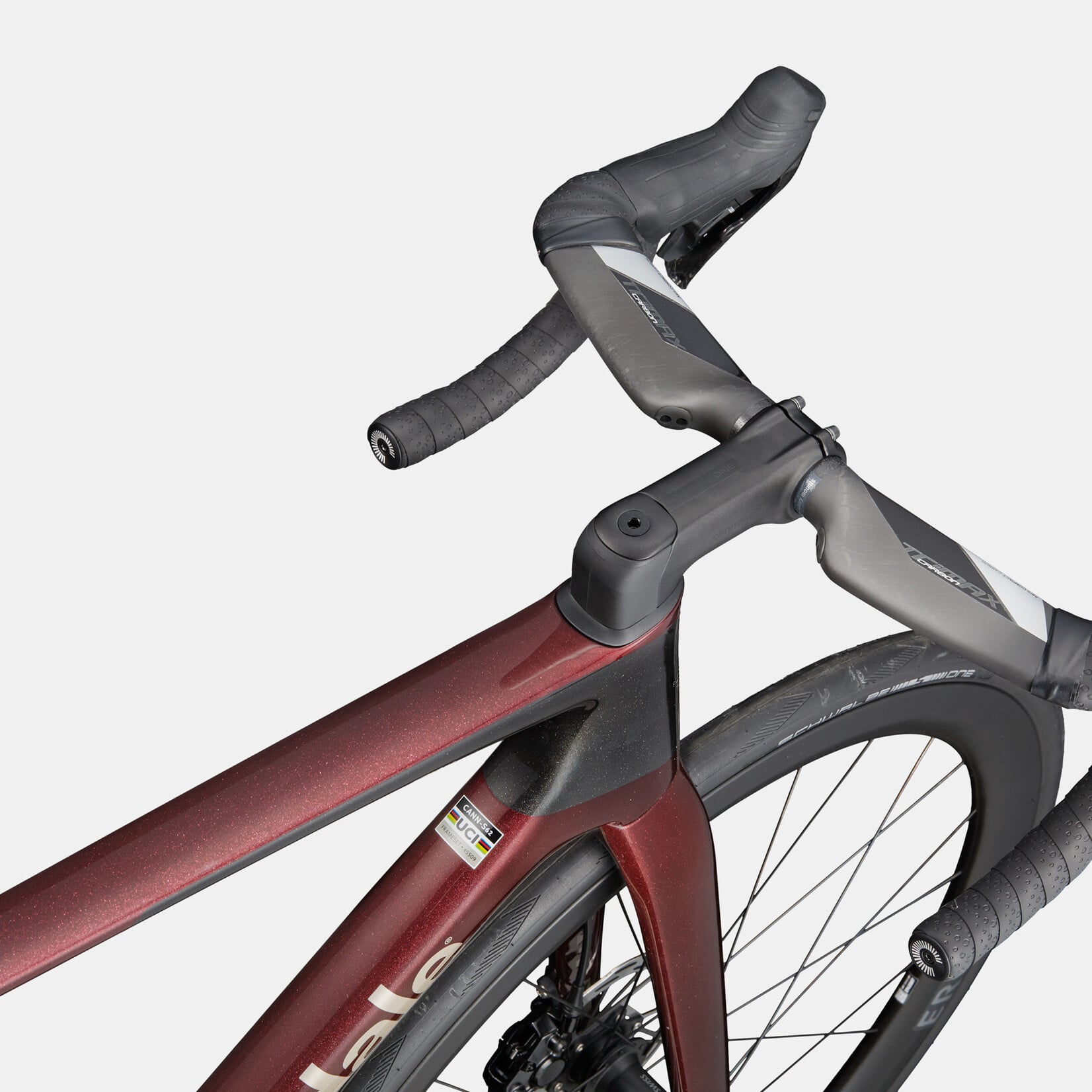

Stem:	Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
Headset:	Integrated, 1-1/8" - 1-1/4"
Saddle:	Fizik Vento Antares R5, S-Alloy rails, 140mm
Seatpost:	Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
Extras:	Tubeless valves, SRAM AXS charger, Conceal Stem accessory /computer mount (Garmin/Wahoo)
