| Weight: |
Medium/Large - 10.41kg / 22.96lbs (with TLR sealant, no tubes) |
| Frame: |
300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle |

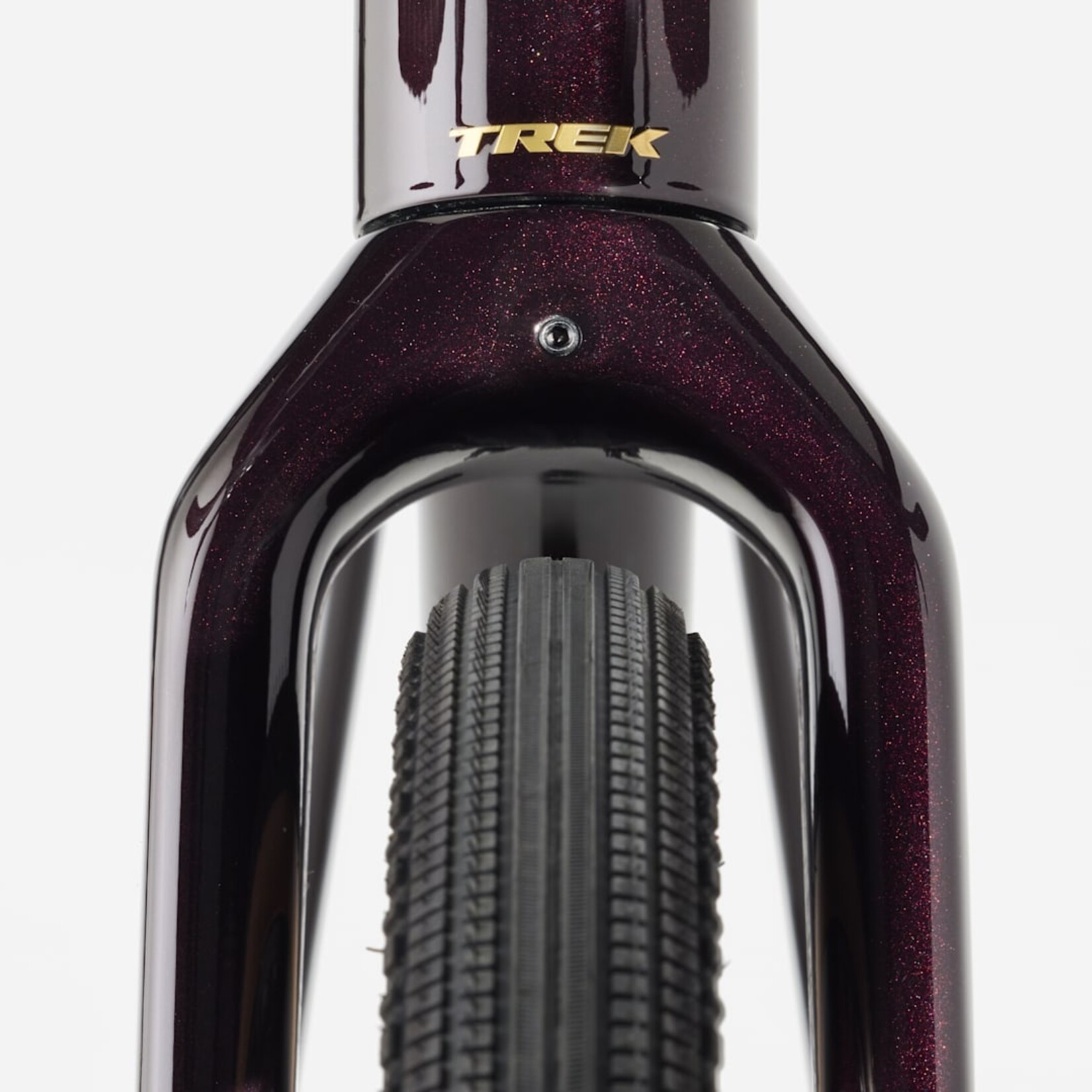

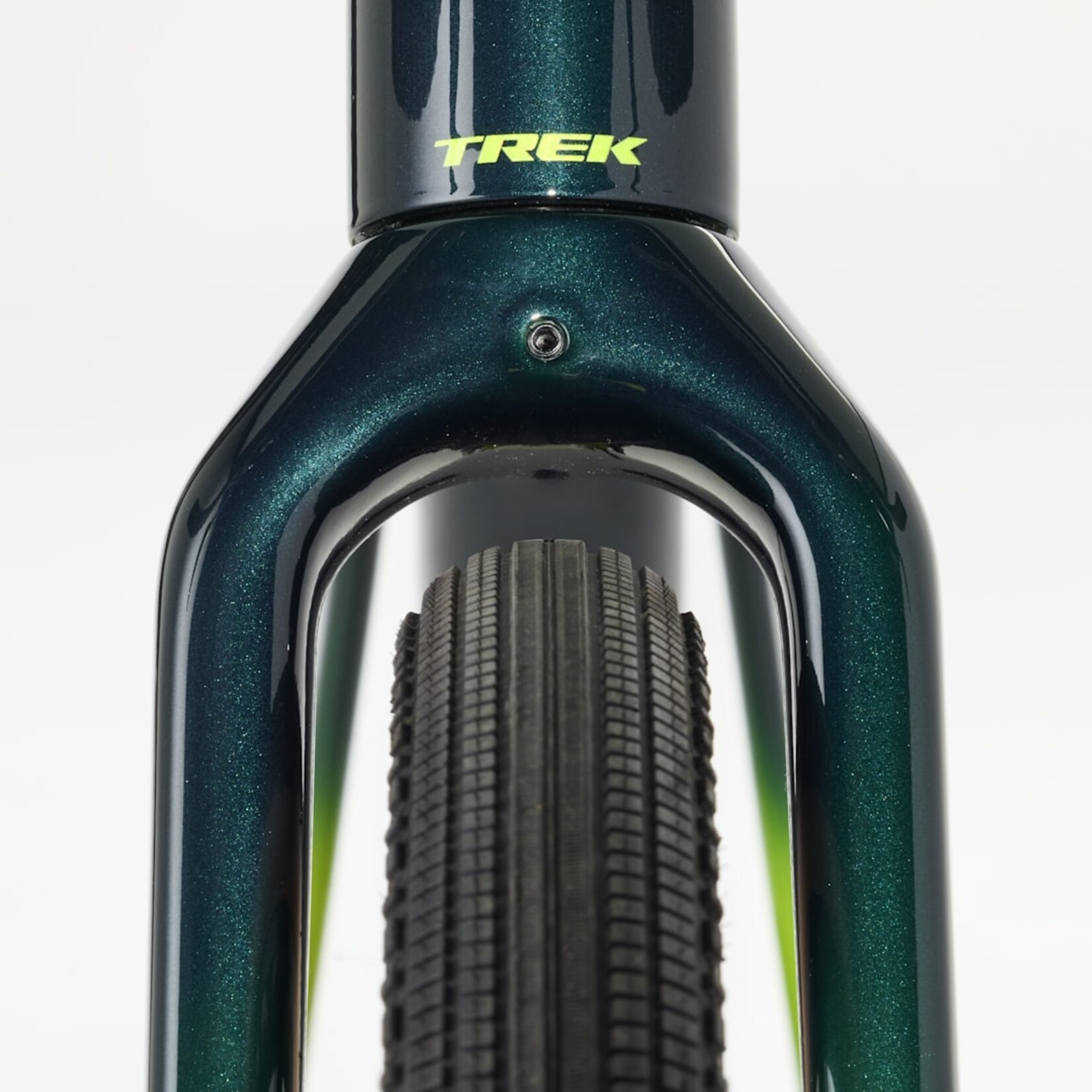

| Fork: |
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Shock: |
N/A |
| Front Shifter: |
N/A |
| Front Derailleur: |
N/A |
| Rear Shifter: |
Shimano CUES 10 Speed Right STU303010R |
| Rear Derailleur: |
Shimano CUES U6000 GS |

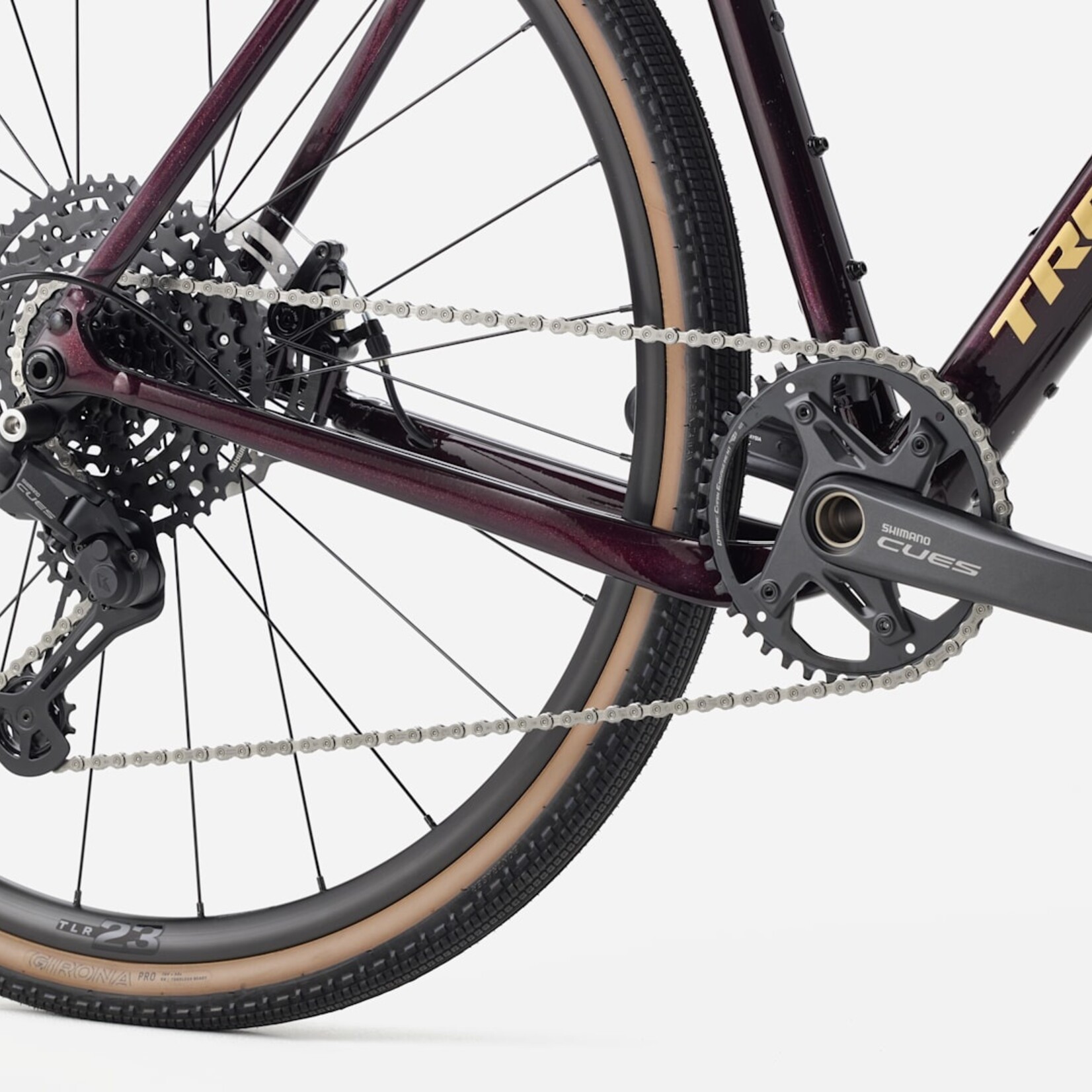

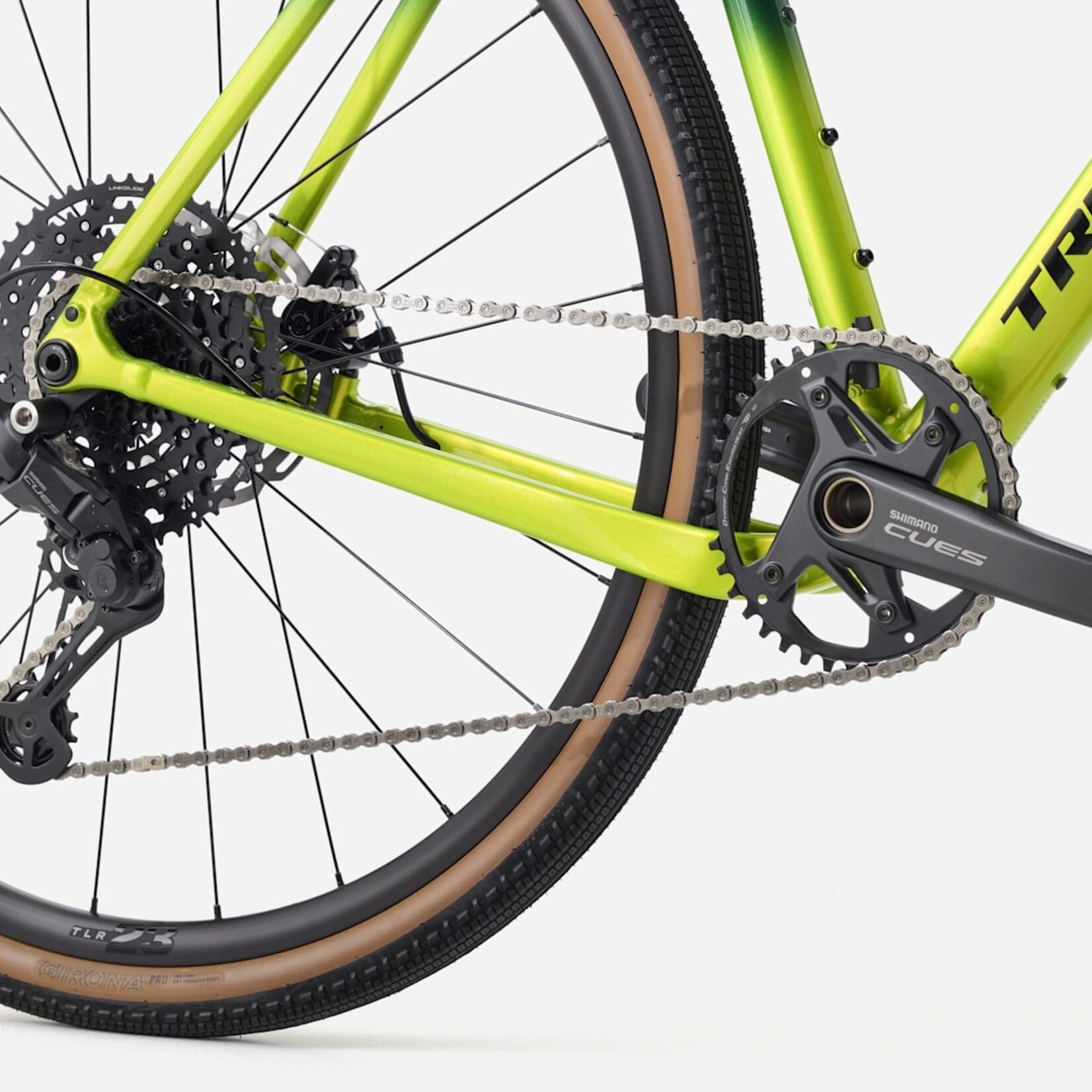

| Crankset: |
Shimano CUES FCU60301 , 40T ring, X-Small & Small: 165mm length, Medium & Medium/Large: 170mm, Large & X-Large: 172.5mm |
| Pedals: |
N/A |
| Bottom Bracket: |
Praxis, T47 threaded, internal bearing |
| Cassette: |
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain: |
Shimano LG500 |
| Front Brake: |
Tektro C550 mechanical disc brake, dual piston, flat mount |
| Front Brake Rotor: |
Tektro, centerlock, 160mm |
| Rear Brake: |
Tektro C550 mechanical disc brake, dual piston, flat mount |
| Rear Brake Rotor: |
Tektro, centerlock, 160mm |
| Brake Levers: |
Shimano CUES U3030 |
| Front Hub: |
Bontrager alloy, sealed bearing, centerlock disc |
| Front Hub Skewer: |
100x12mm thru axle, Bontrager Switch chamfered thru axle |
| Rear Hub: |
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub |
| Rear Hub Skewer: |
142x12mm thru axle, Bontrager Switch chamfered thru axle, removable lever |
| Rims: |
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve |
| Front Tire: |
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Rear Tire: |
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |

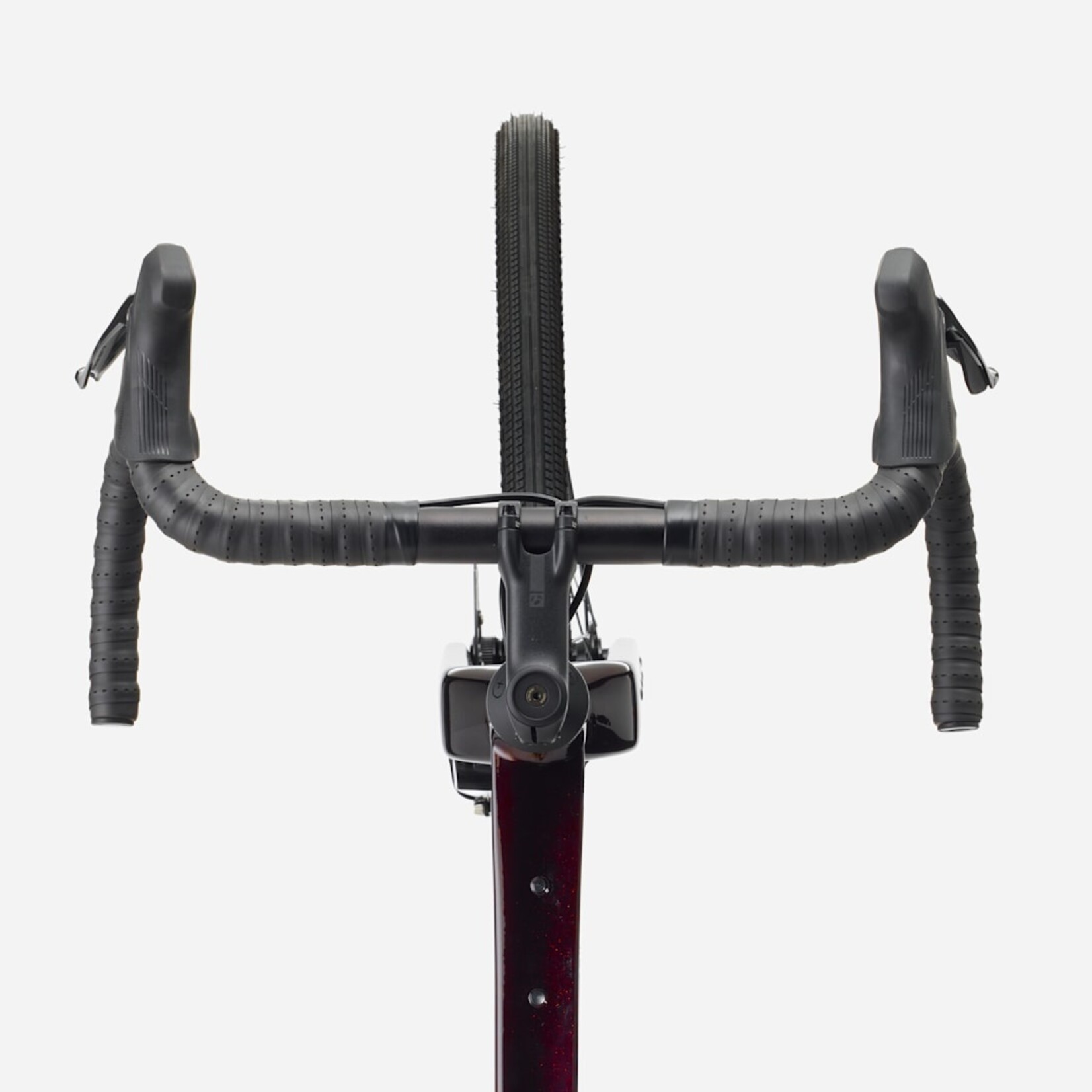

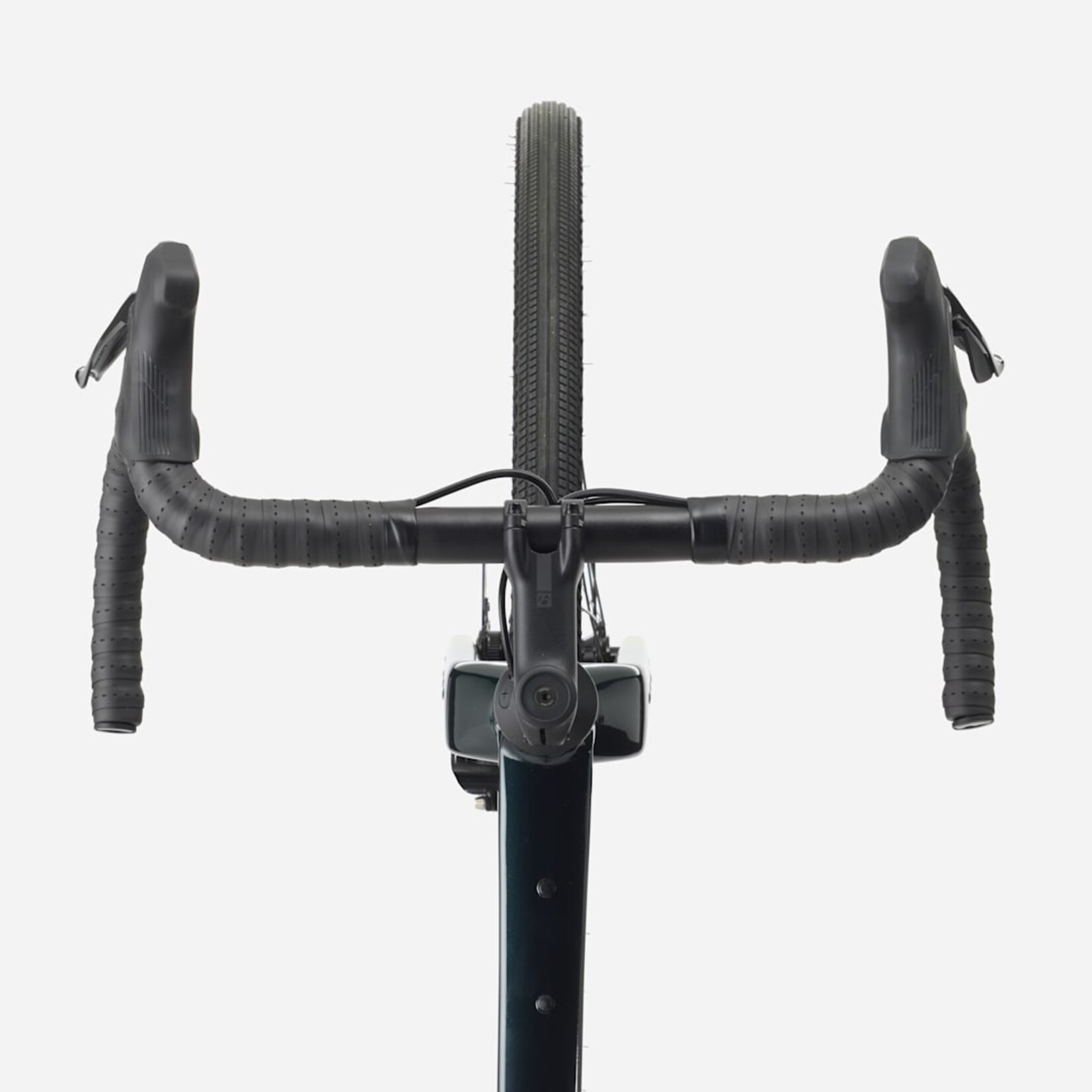

| Handlebar: |
Bontrager Elite Gravel, alloy, Small: 40cm width, Medium: 42cm, Large: 44cm, X-Large: 46cm, |
| Grips/ Bar Tape: |
Bontrager Supertack Perf tape |
| Stem: |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, X-Small: 70mm length, Small: 80mm, Medium/Large: 90cm, X-Large: 100cm |
| Headset: |
Integrated cartridge type |
| Saddle: |
Verse Short Comp, steel rails, 145mm width |
| Seatpost: |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| Extras: |
N/A |
