| Weight: |
ML - 10.40 kg / 22.93 lbs (with TLR sealant, no tubes) |
| Frame: |
300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle |

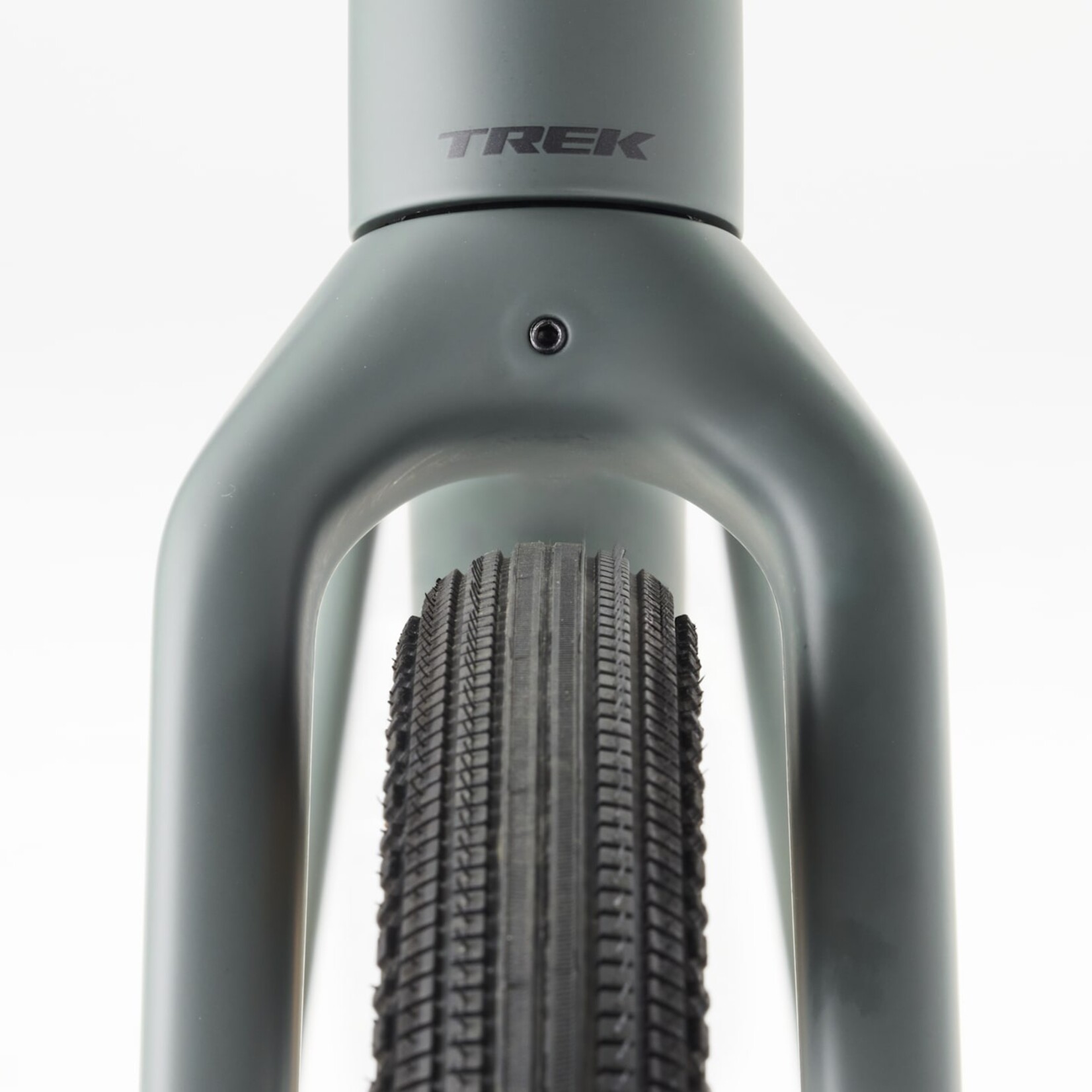

| Fork: |
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Shock: |
N/A |
| Front Shifter: |
N/A |
| Front Derailleur: |
N/A |
| Rear Shifter: |
Shimano CUES U6030, 11 speed |
| Rear Derailleur: |
Shimano CUES U8000 GS |

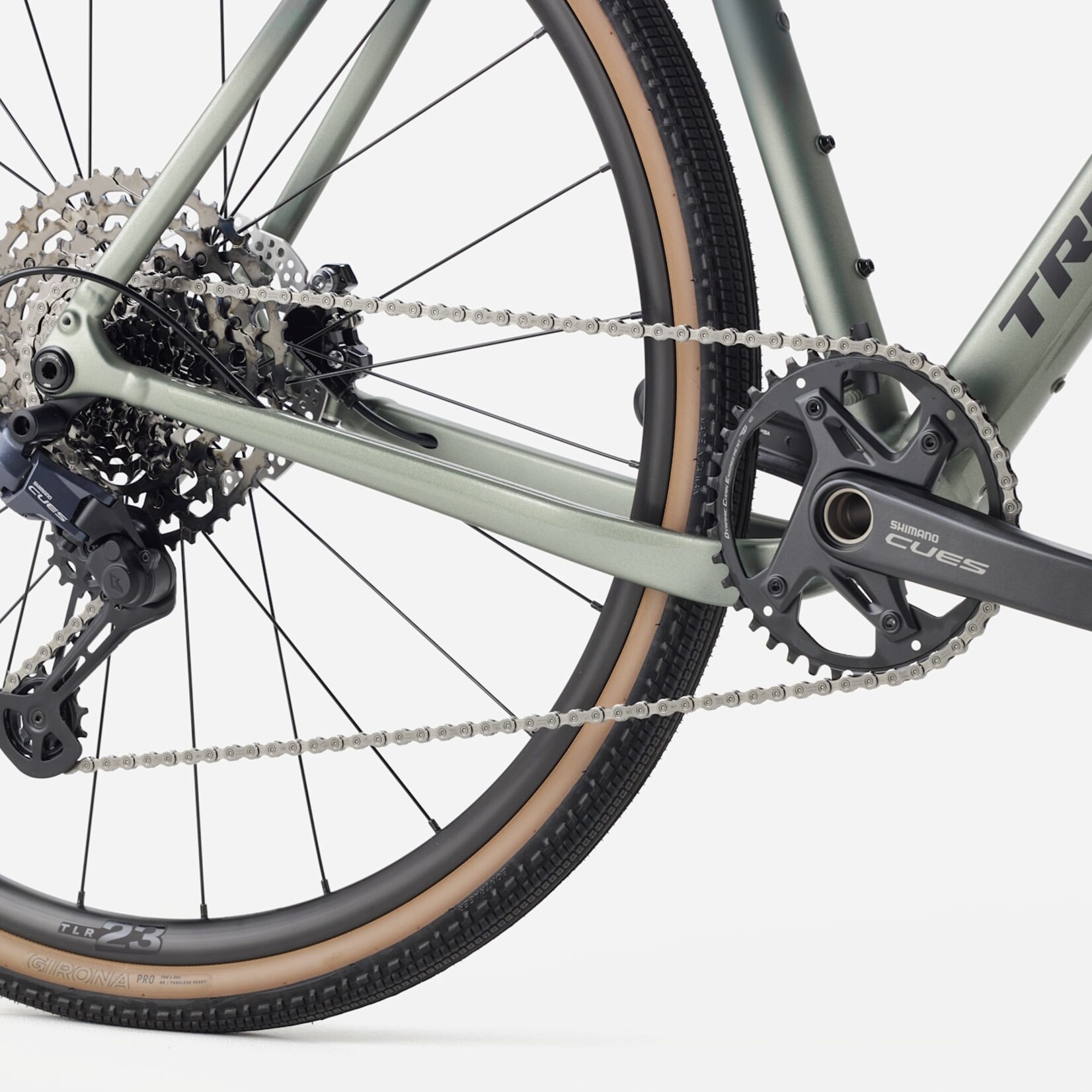

| Crankset: |
Shimano CUES FCU60301 , 40T ring, S/XS: 165mm, M/ML: 170mm, L/XL: 172.5mm |
| Pedals: |
N/A |
| Bottom Bracket: |
Praxis, T47 threaded, internal bearing |
| Cassette: |
Shimano CUES LG700, LINKGLIDE, 11-50, 11 speed |
| Chain: |
Shimano LG500 |
| Front Brake: |
Shimano CUES hydraulic disc, flat mount |
| Front Brake Rotor: |
Shimano RT54, 160mm, centerlock |
| Rear Brake: |
Shimano CUES hydraulic disc, flat mount |
| Rear Brake Rotor: |
Shimano RT54, 160mm, centerlock |
| Brake Levers: |
Shimano CUES U6030 |
| Front Hub: |
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Front Hub Skewer: |
Bontrager Switch chamfered thru axle |
| Rear Hub: |
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Rear Hub Skewer: |
Bontrager Switch chamfered thru axle, removable lever |
| Rims: |
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve |
| Front Tire: |
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Rear Tire: |
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |

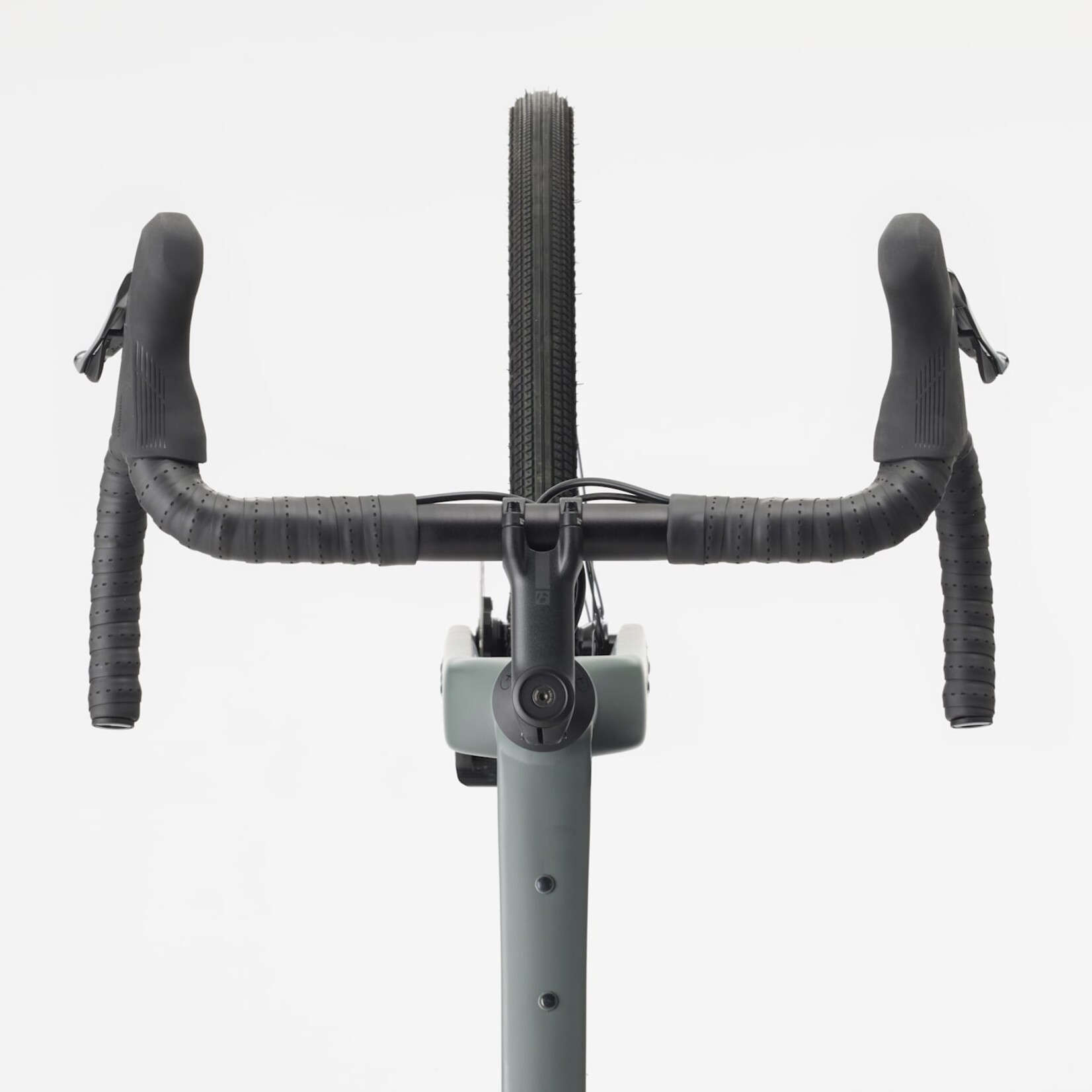

| Handlebar: |
Bontrager Elite Gravel, alloy, S/XS: 40cm, M/ML: 42cm, L: 44cm, XL: 46cm |
| Grips/ Bar Tape: |
Bontrager Supertack Perf tape |
| Stem: |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, XS: 70mm, S/M: 80mm, ML/L: 90mm, XL: 100mm |
| Headset: |
Integrated cartridge type |
| Saddle: |
Verse Short Comp, steel rails, 145mm width |
| Seatpost: |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| Extras: |
N/A |
