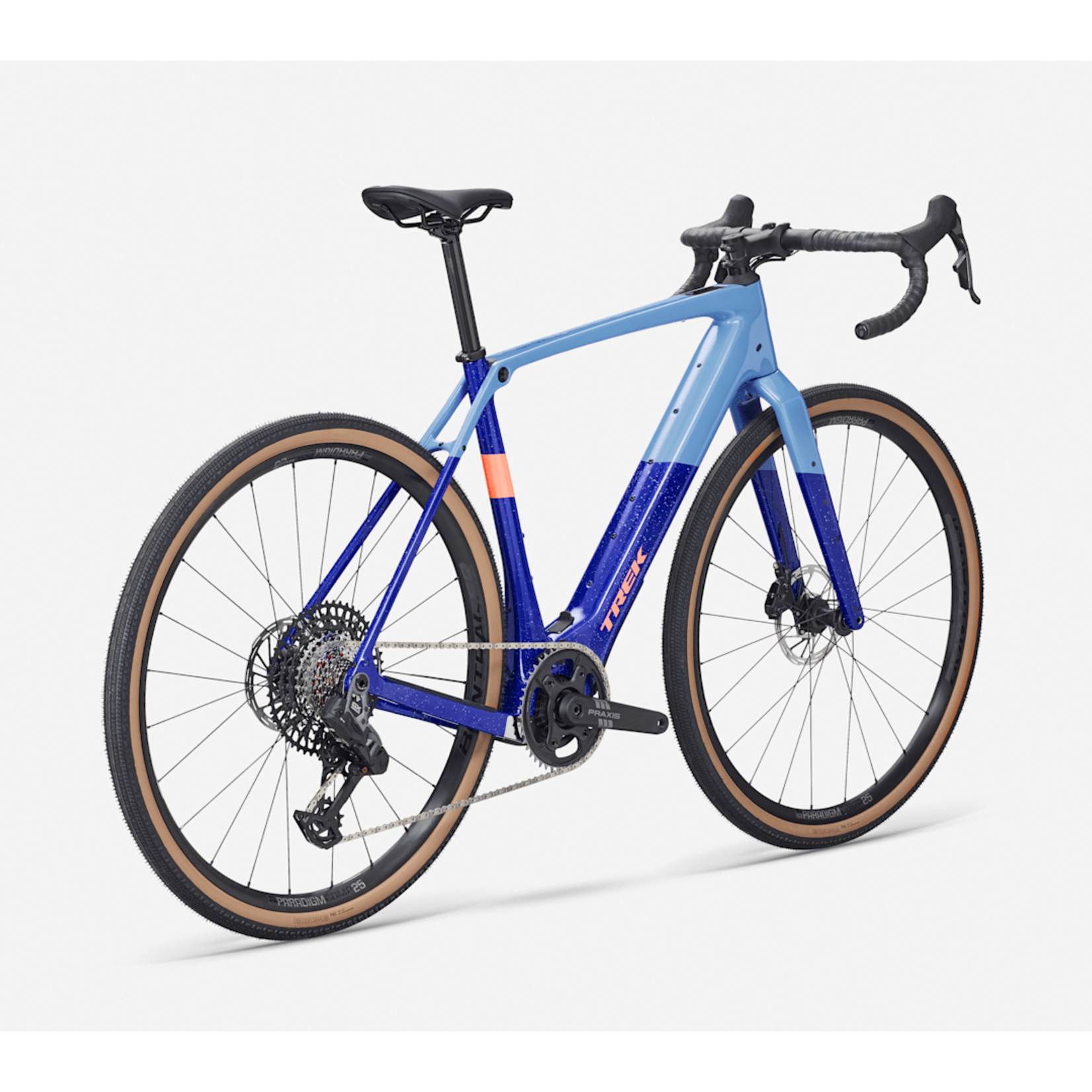

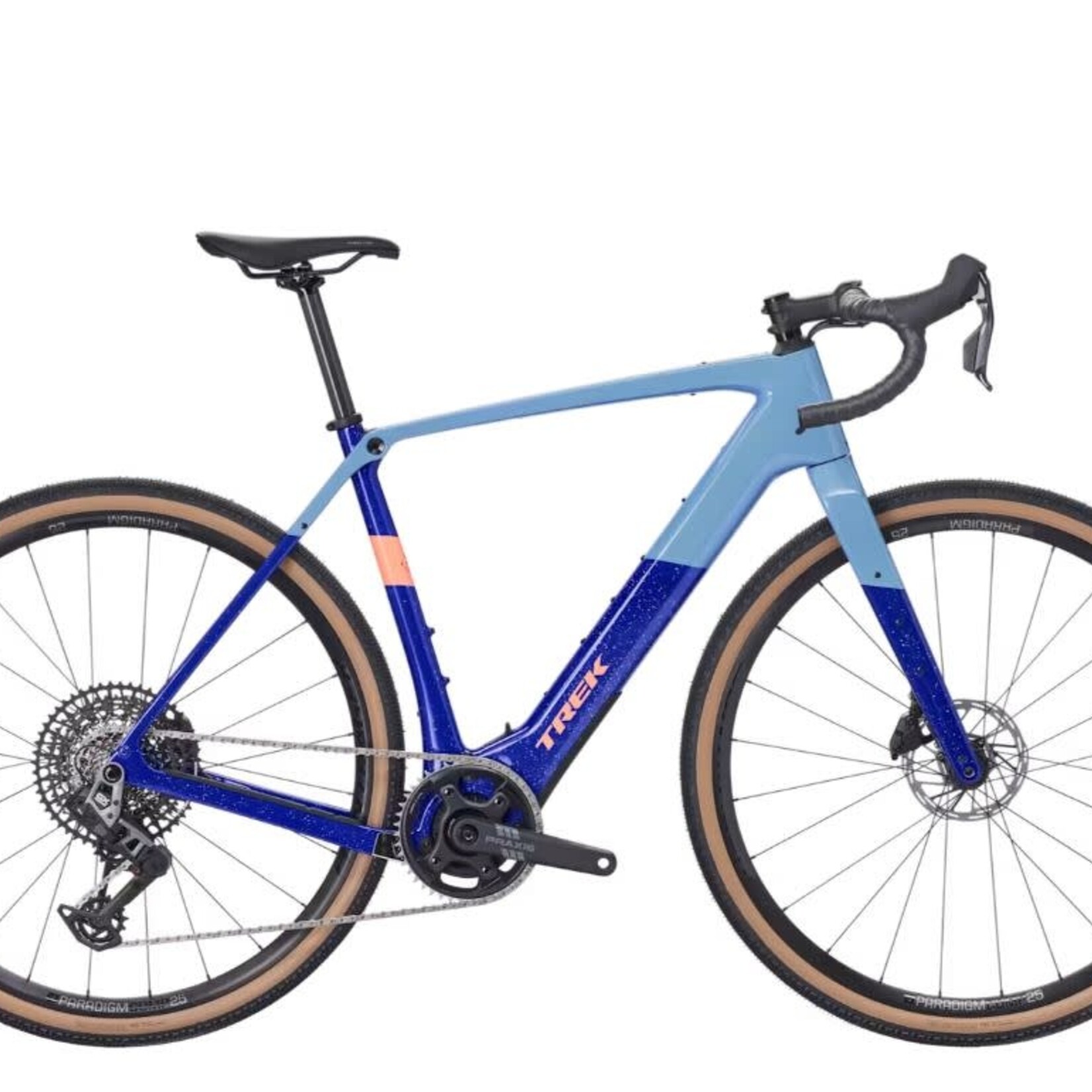

Trek Checkpoint SL 6 AXS

You have big gravel dreams, and know you'll need the most dialed, capable bike for these epic adventures. You also want the incredible speed, precision, and clean looks of SRAM's newest wireless electronic drivetrain.

A 500 Series OCLV Carbon frame with Rear IsoSpeed and carbon armor, a progressive geometry that's stable at speed and efficient when you're grinding up a climb, internal storage, hidden cables that won't interfere with bags, integrated frame bag mounts, and rack and fender mounts. Plus, a carbon fork, a 1x12 SRAM Rival eTap AXS wireless electronic drivetrain with a wide-range cassette, and Paradigm Comp 25 wheels. You can even run a dropper post to get low on long descents. Fits up to 45c tires.

A carbon gravel bike built for the longest days, roughest roads, and biggest adventures. It's light, fast, comfortable, and spec'd with high-end parts that perform even in the most rugged terrain, like an advanced wireless electronic drivetrain for lightning fast shifts (even under load) and less maintenance.

View more details at Trekbikes.com

Weight:	56 - 9.05 kg / 19.96 lbs
Frame:	500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, dropper post compatible, 142x12mm thru axle

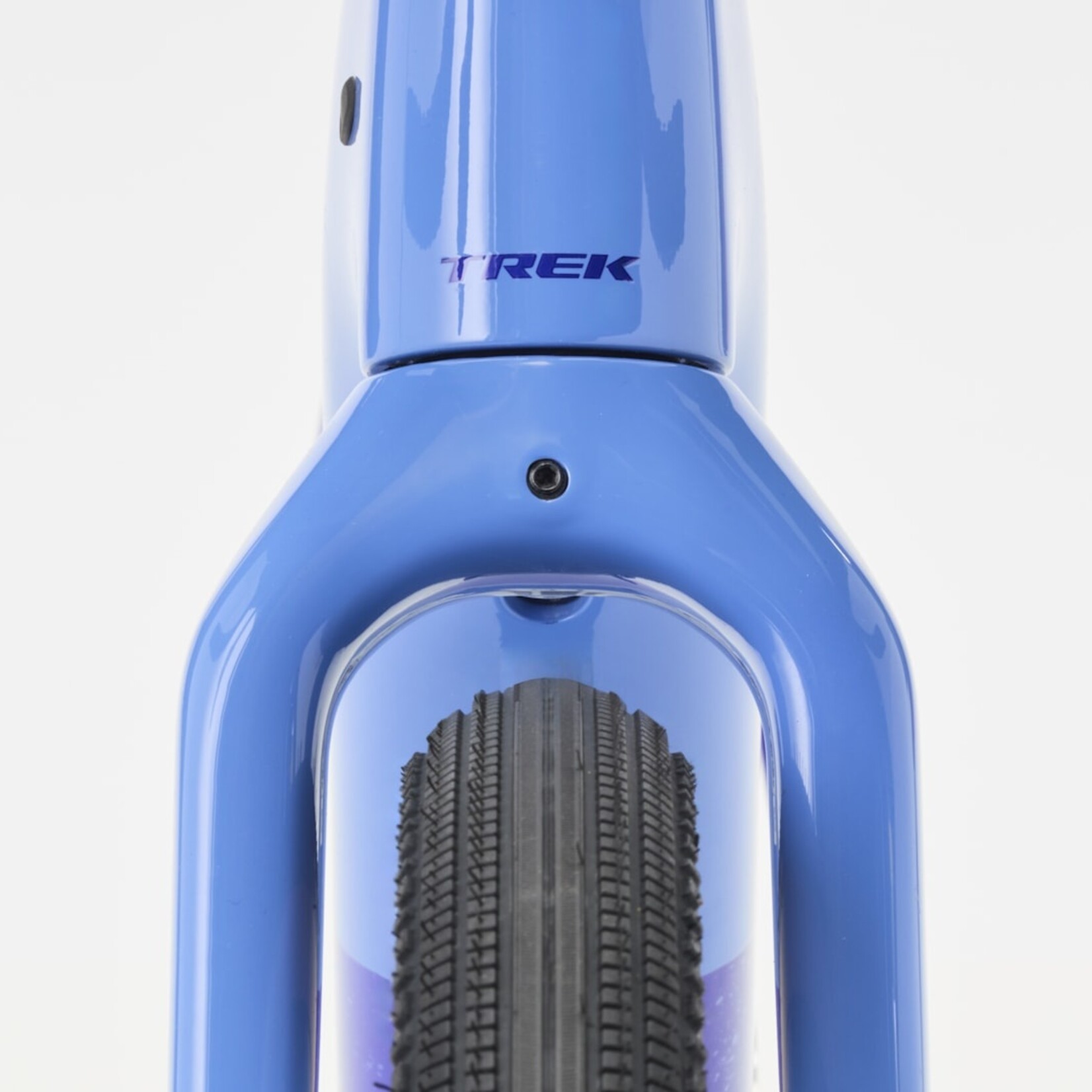

Fork:	Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Shock:	N/A
Front Shifter:	N/A
Front Derailleur:	N/A
Rear Shifter:	SRAM Rival eTap AXS, 12 speed
Rear Derailleur:	SRAM Rival XPLR eTap AXS, 44T max cog

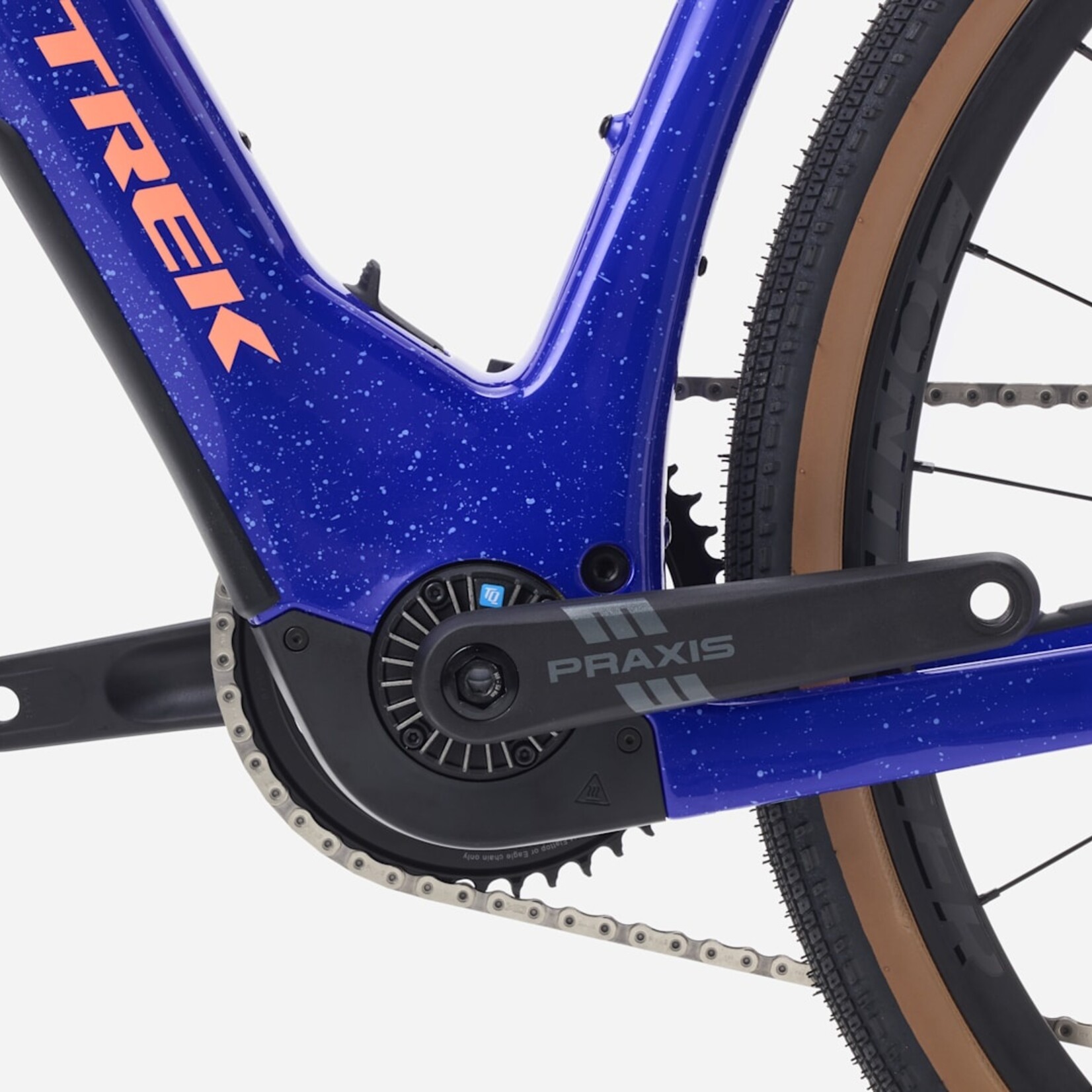

Crankset:	SRAM Rival, 40T, DUB Wide; 165 mm length (49cm), 170 mm length (52cm), 175 mm length (54 and 56cm), 172.5 mm length (58 and 61cm)
Pedals:	N/A
Bottom Bracket:	SRAM DUB, T47 threaded, internal bearing
Cassette:	SRAM XG-1251, 10-44, 12 speed
Chain:	SRAM Rival, 12 speed
Front Brake:	SRAM Rival hydraulic disc, flat mount
Front Brake Rotor:	SRAM Paceline, rounded, centerlock, 160mm
Rear Brake:	SRAM Rival hydraulic disc, flat mount
Rear Brake Rotor:	SRAM Paceline, rounded, centerlock, 160mm
Brake Levers:	SRAM Rival
Front Hub:	Rapid Drive 54 road hubs
Front Hub Skewer:	100x12 mm thru axle
Rear Hub:	Rapid Drive 54 road hubs
Rear Hub Skewer:	142x12 thru axle
Rims:	Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width
Front Tire:	Bontrager GR1 Team Issue, Tubeless Ready
Rear Tire:	Bontrager GR1 Team Issue, Tubeless Ready

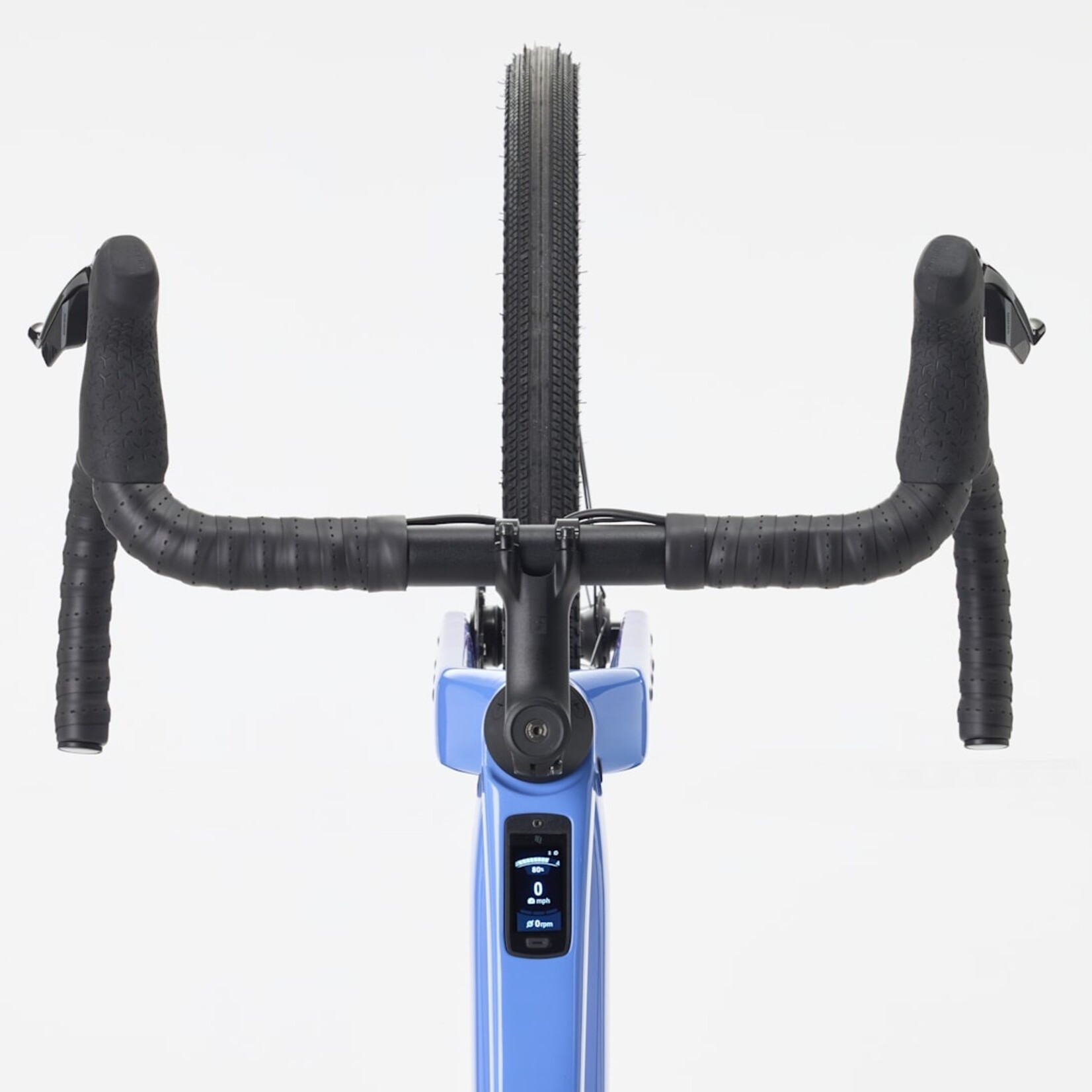

Handlebar:	Bontrager Elite Gravel, 38 cm width (49cm), 40 cm width (50cm), 42 cm width (54 and 56cm), 44 cm width (58 and 61cm)
Grips/ Bar Tape:	Bontrager Supertack Perf tape
Stem:	Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree: 70 mm length (48cm), 80 mm length (52 and 54cm), 90 mm length (56 and 58cm), 100 mm length (61cm)
Headset:	Integrated
Saddle:	Bontrager P3 Verse Comp, steel rails: 155 mm width (49 and 52cm), 145 mm width (54, 56, 58 and 61cm)
Seatpost:	Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Extras:
