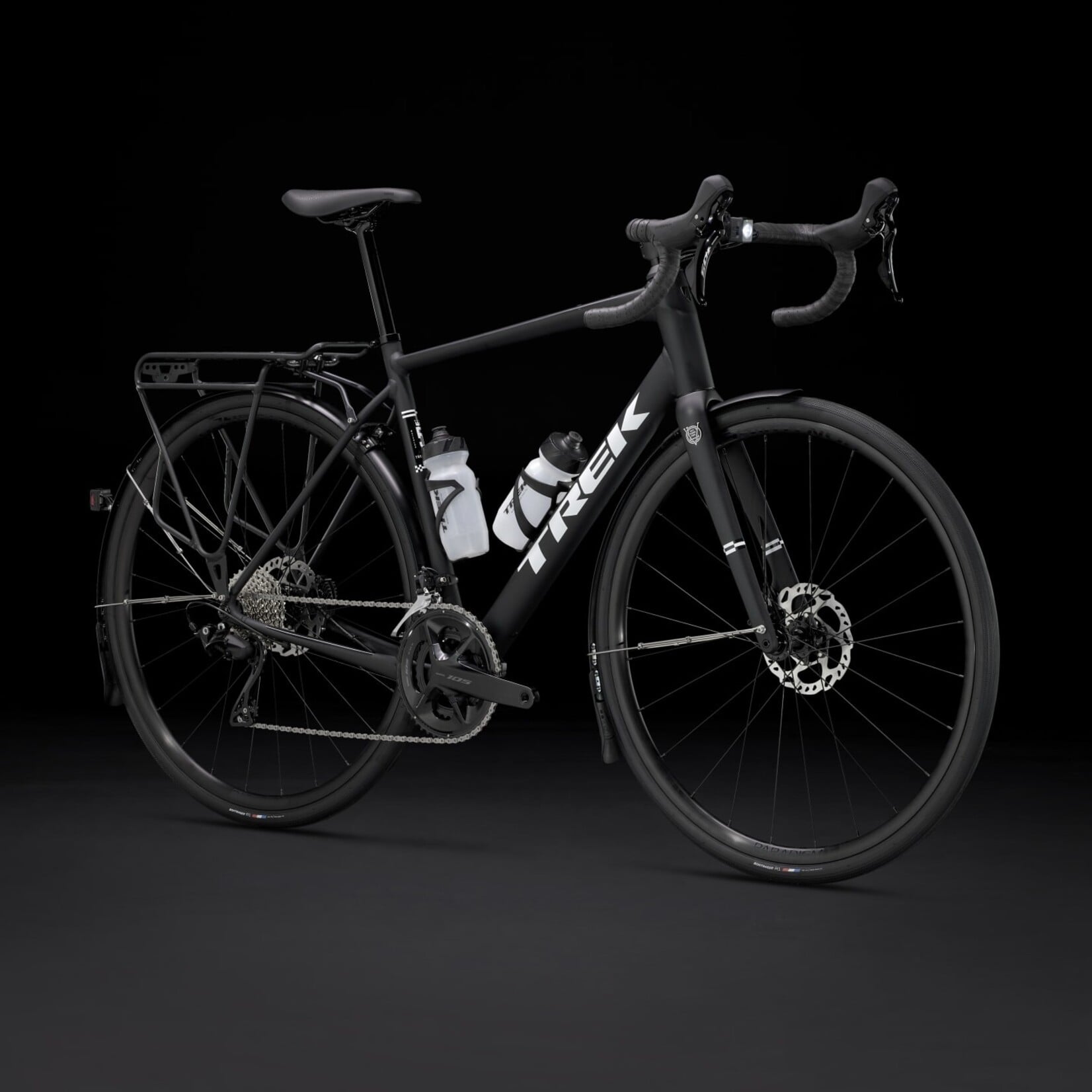

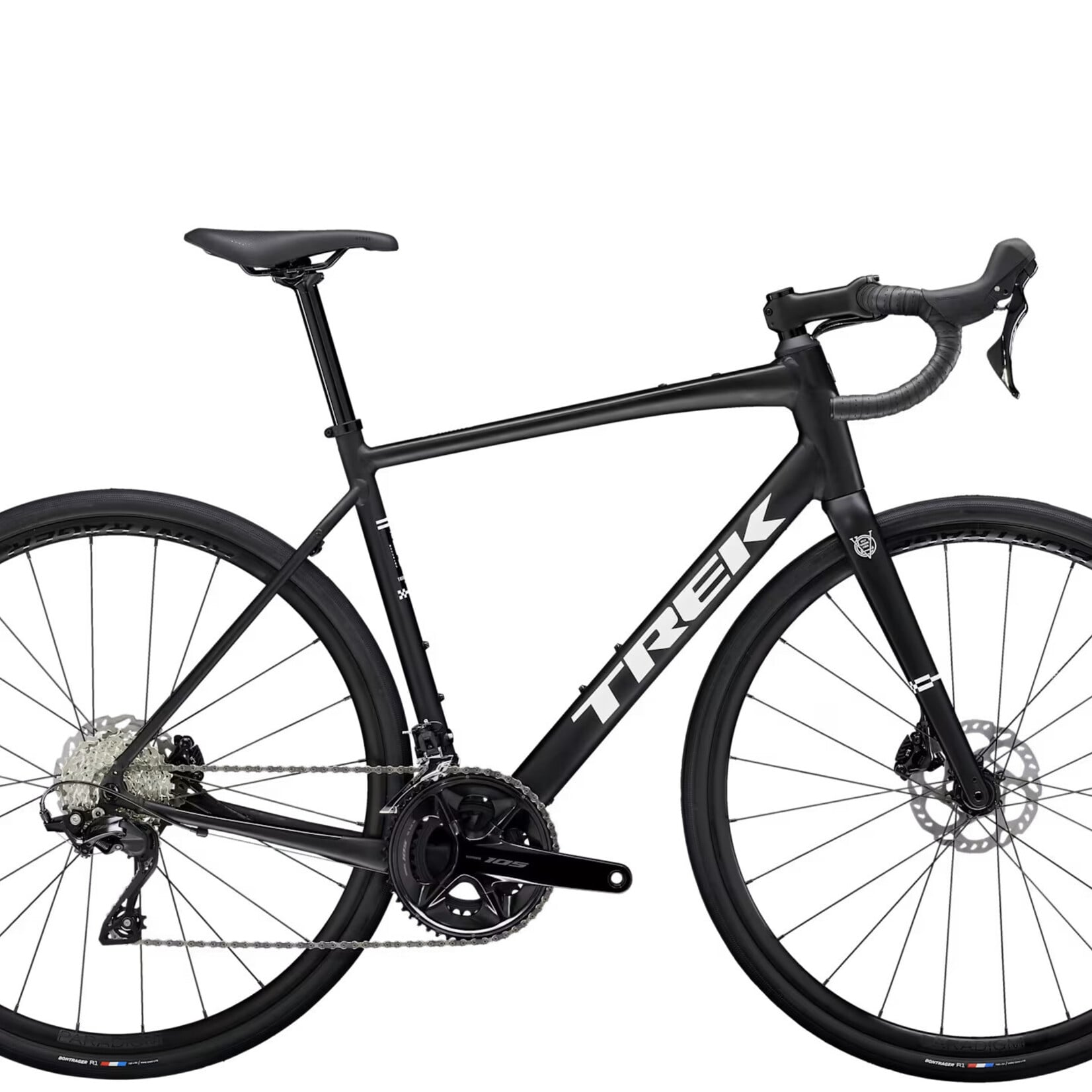

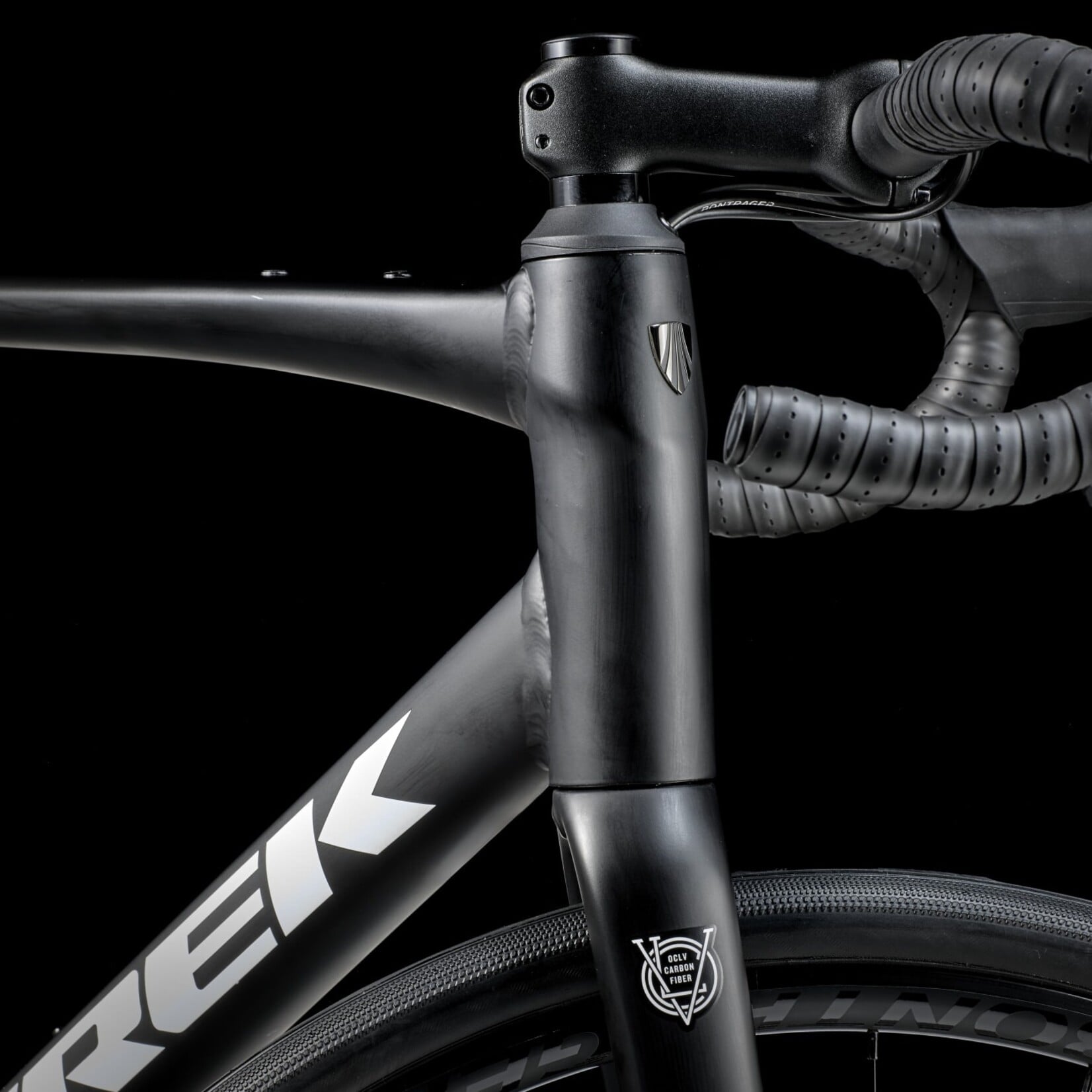

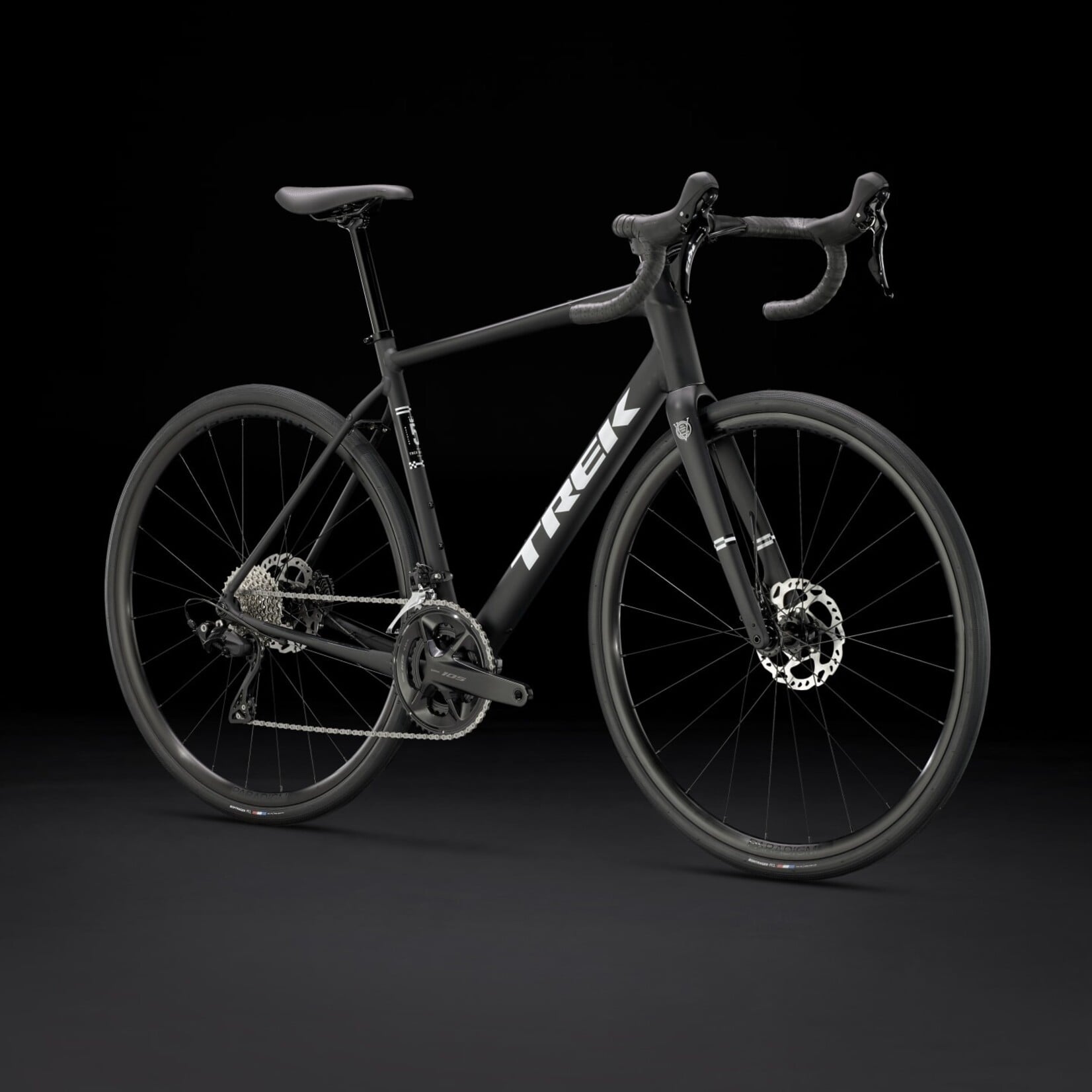

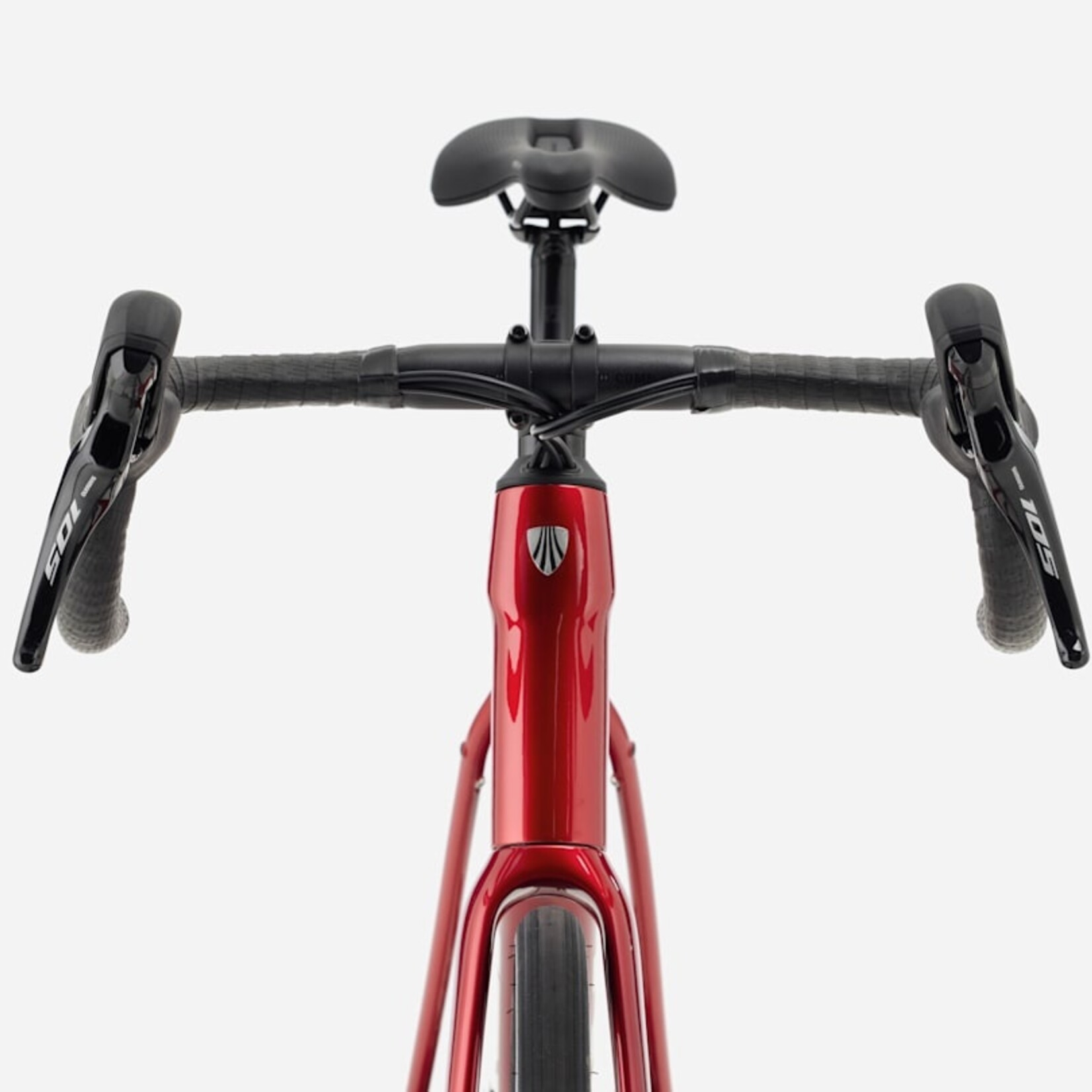

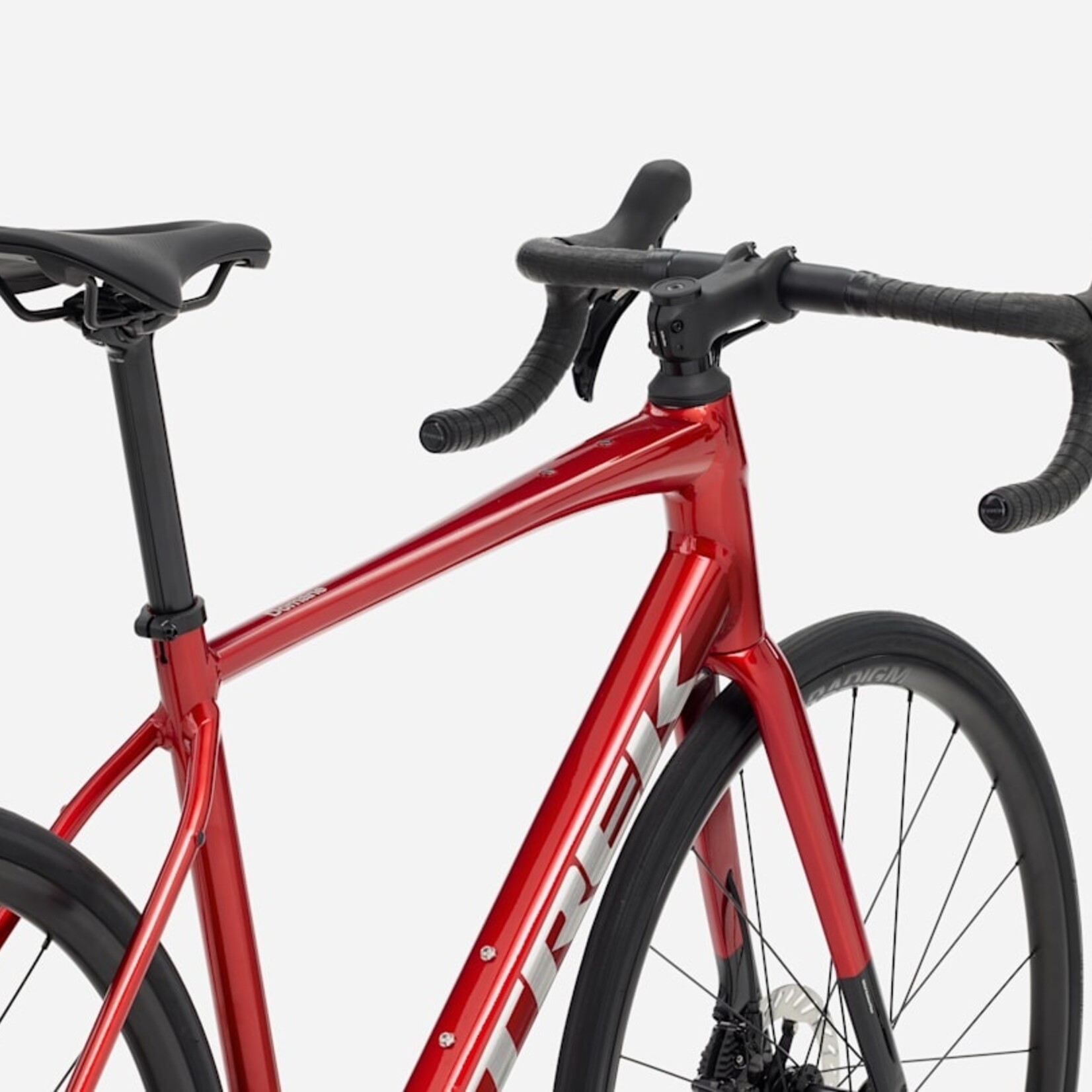

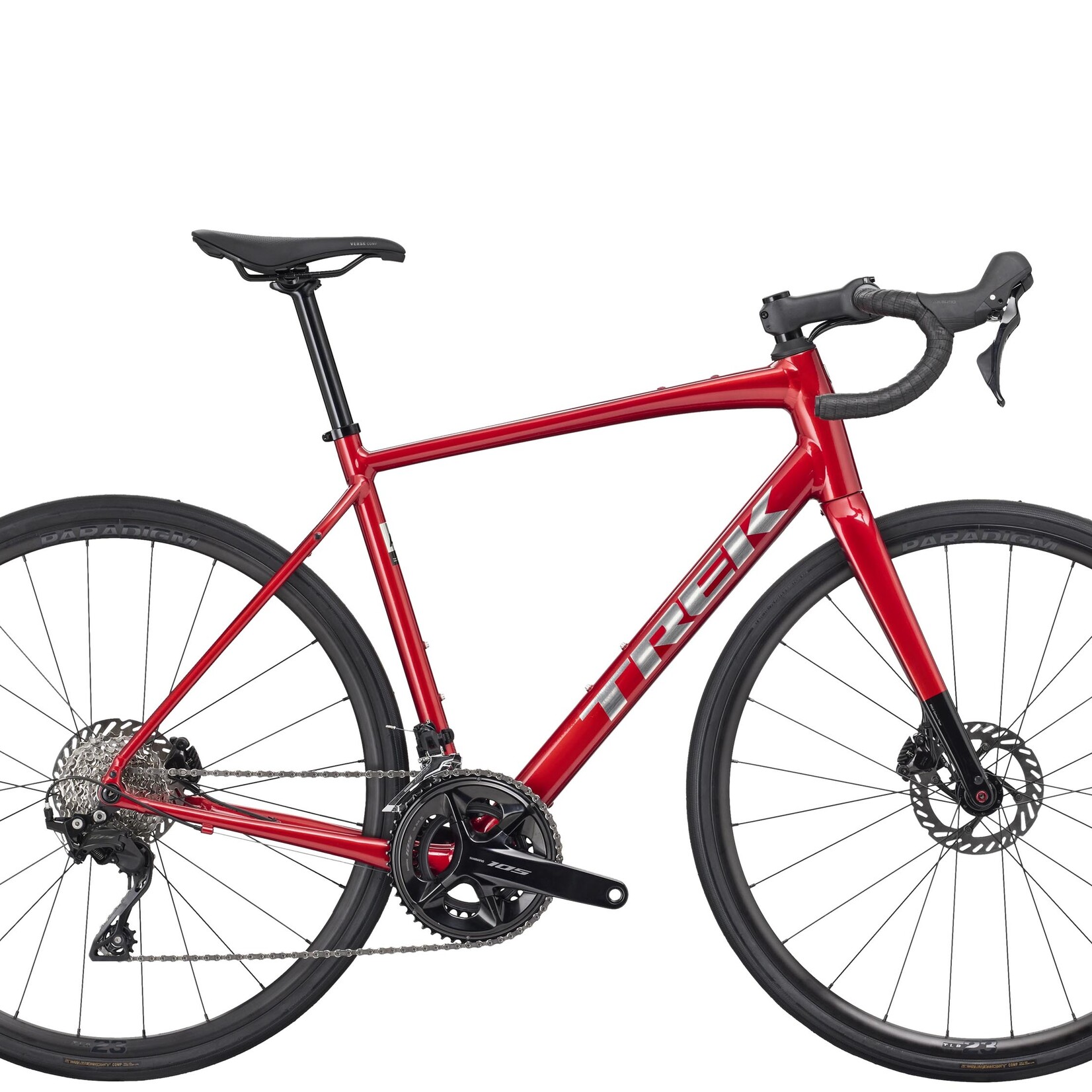

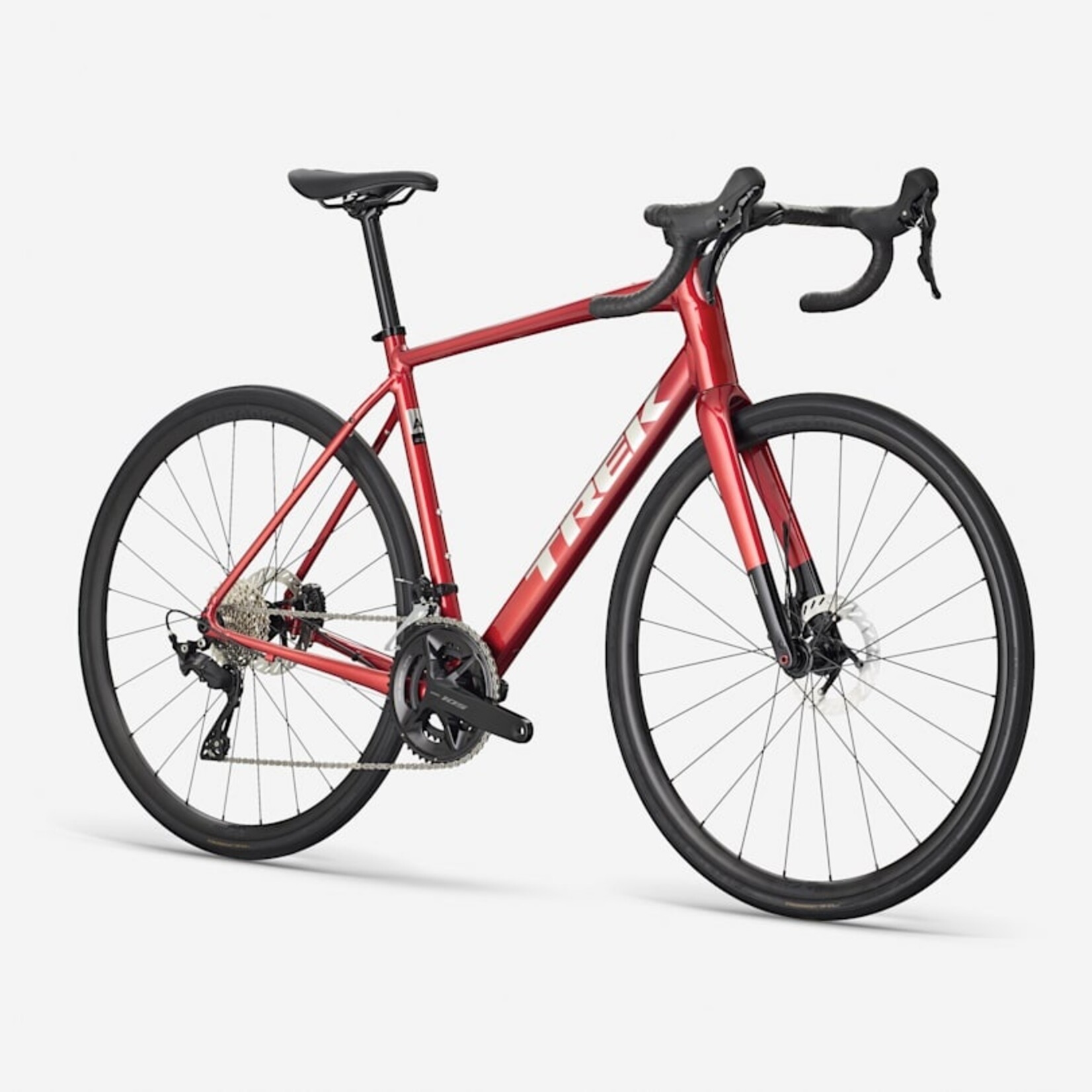

Trek Domane AL 5 Gen 4

With an Alpha Aluminum frame, clearance for larger tires, a 12-speed Shimano 105 drivetrain, top tube mounts, and an all-day road comfort geometry — Domane AL 5 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.

Weight:	56cm - 9.85kg/21.72lbs

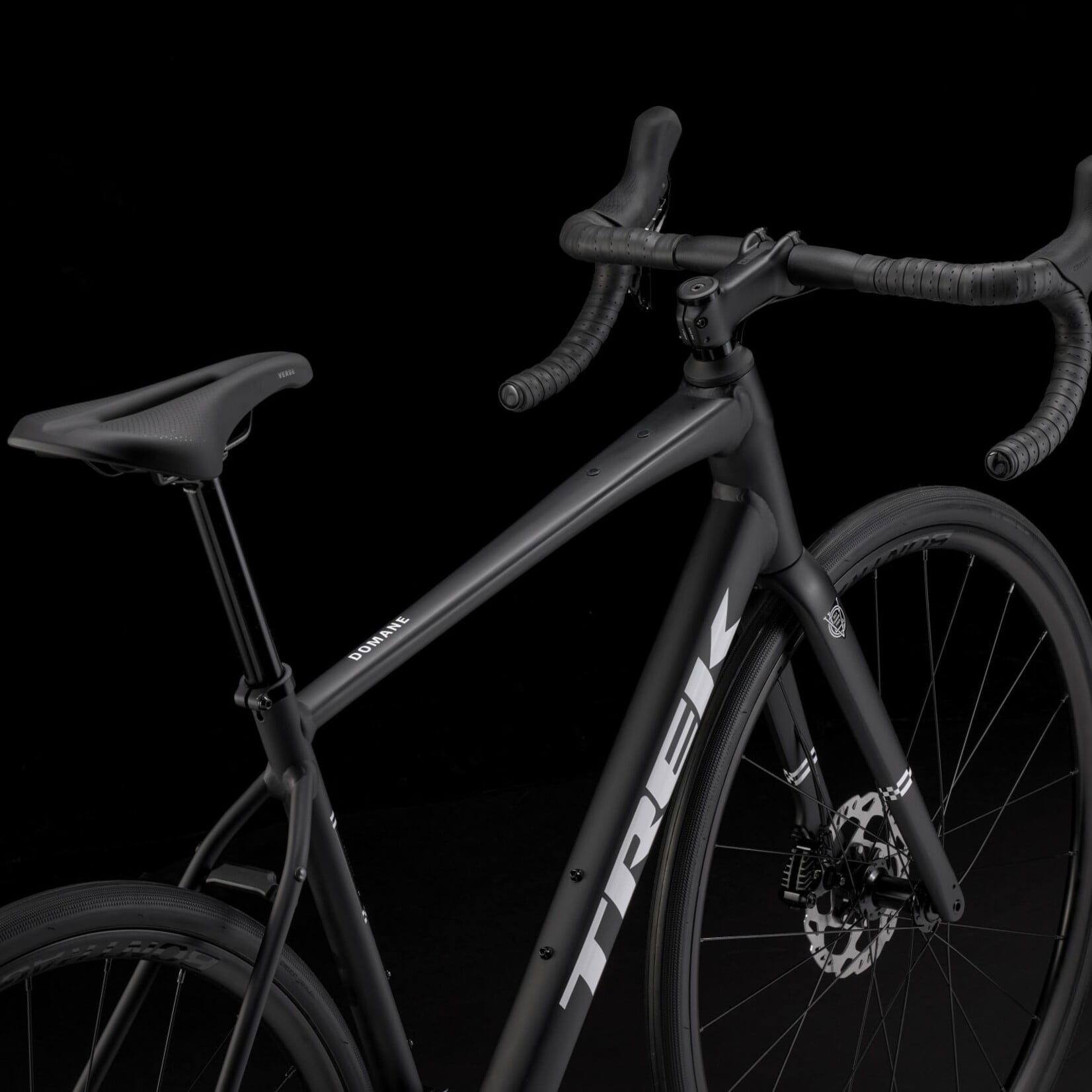

Frame:	100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

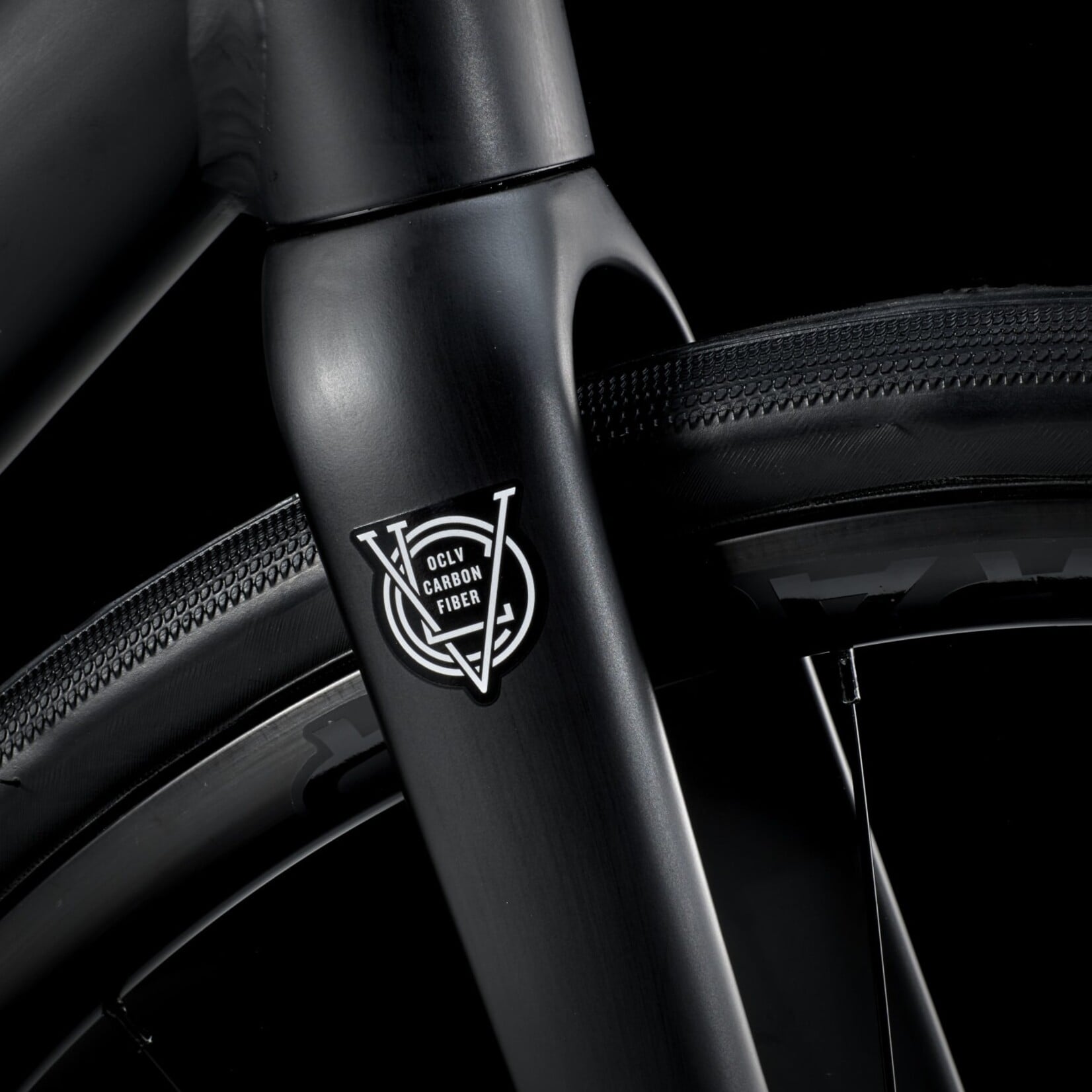

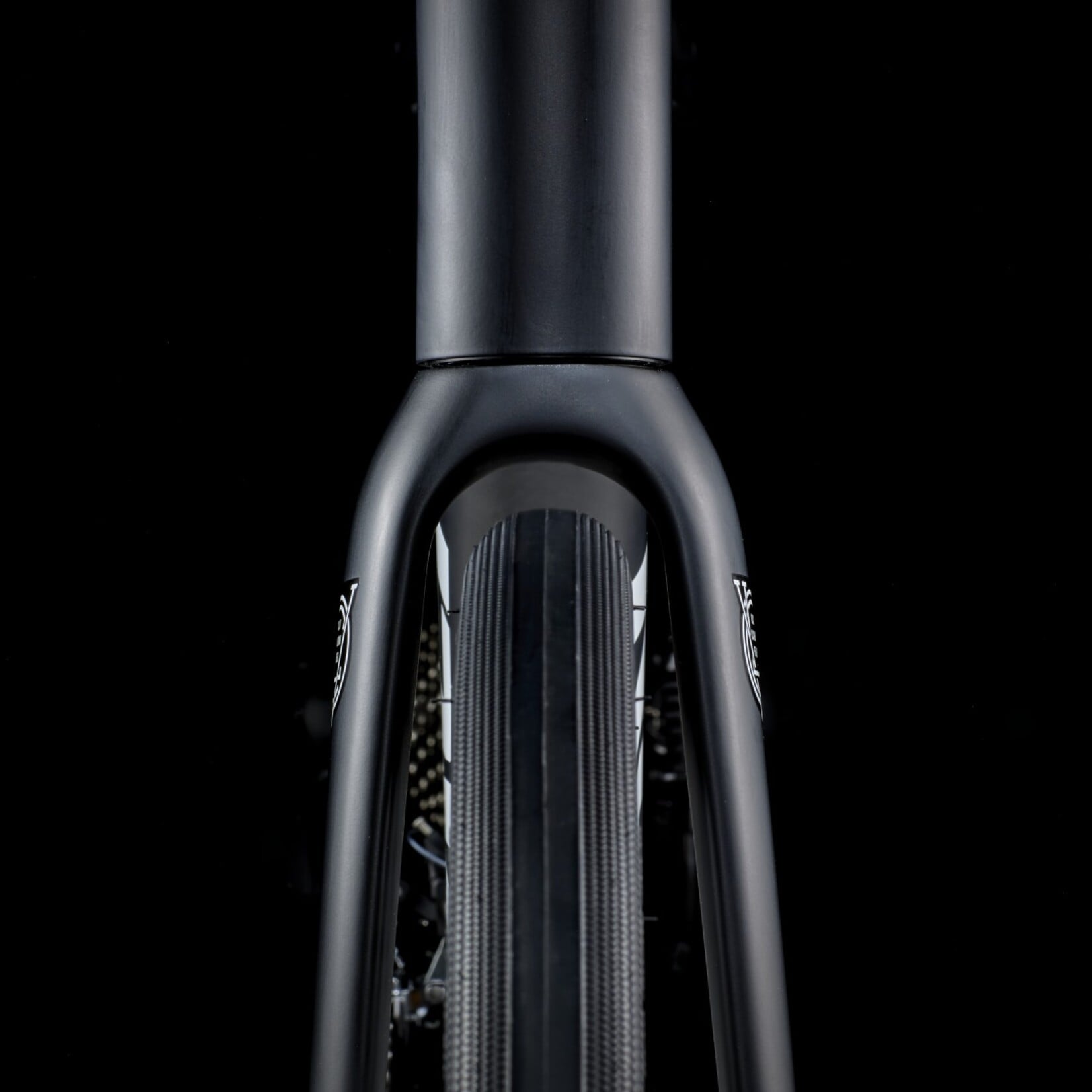

Fork:	Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Shock:	N/A
Front Shifter:	Shimano 105 R7120, 2 speed
Front Derailleur:	Shimano 105 R7100, 31.8mm clamp, down swing
Rear Shifter:	Shimano 105 R7120, 12 speed
Rear Derailleur:	Shimano 105 R7100, 36T max cog

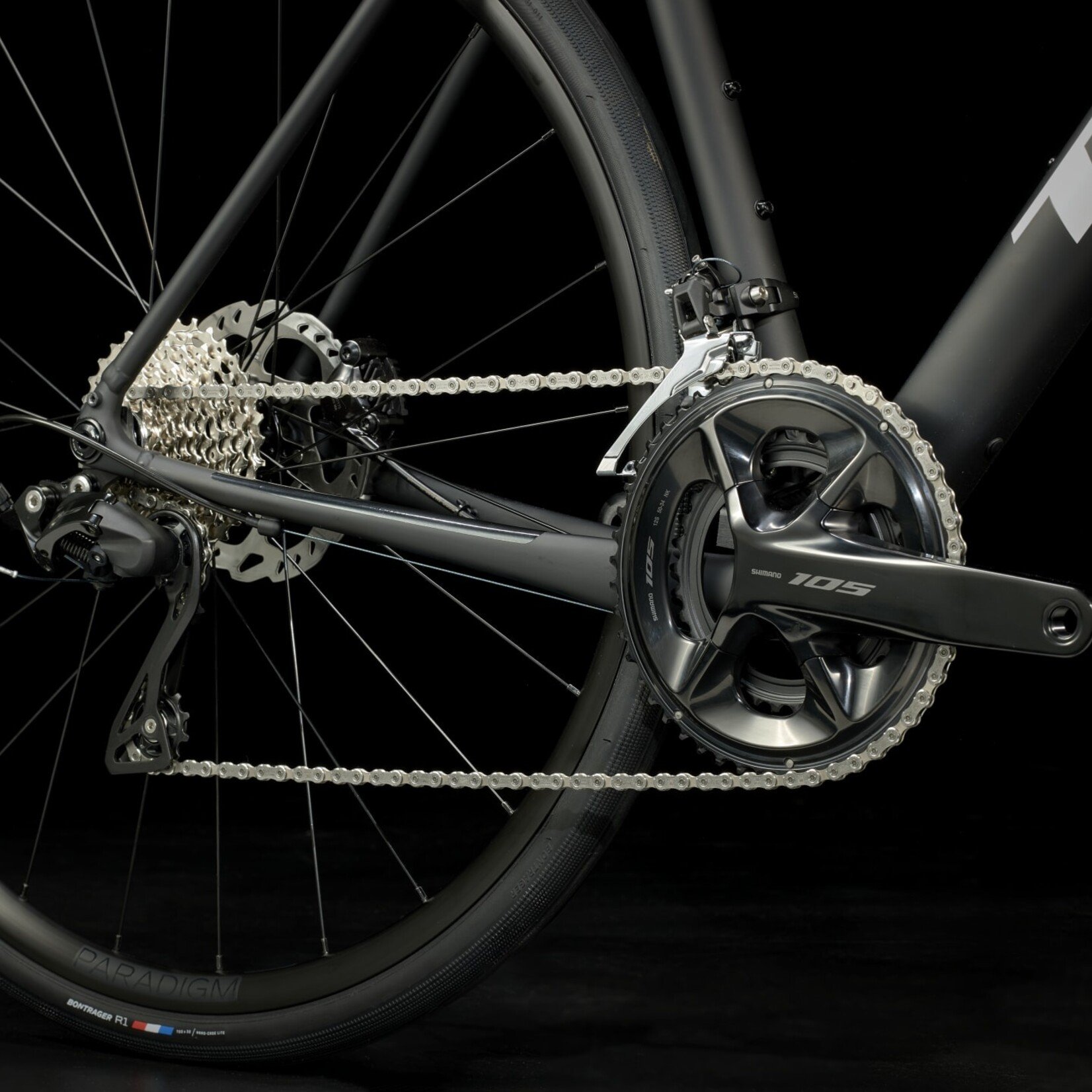

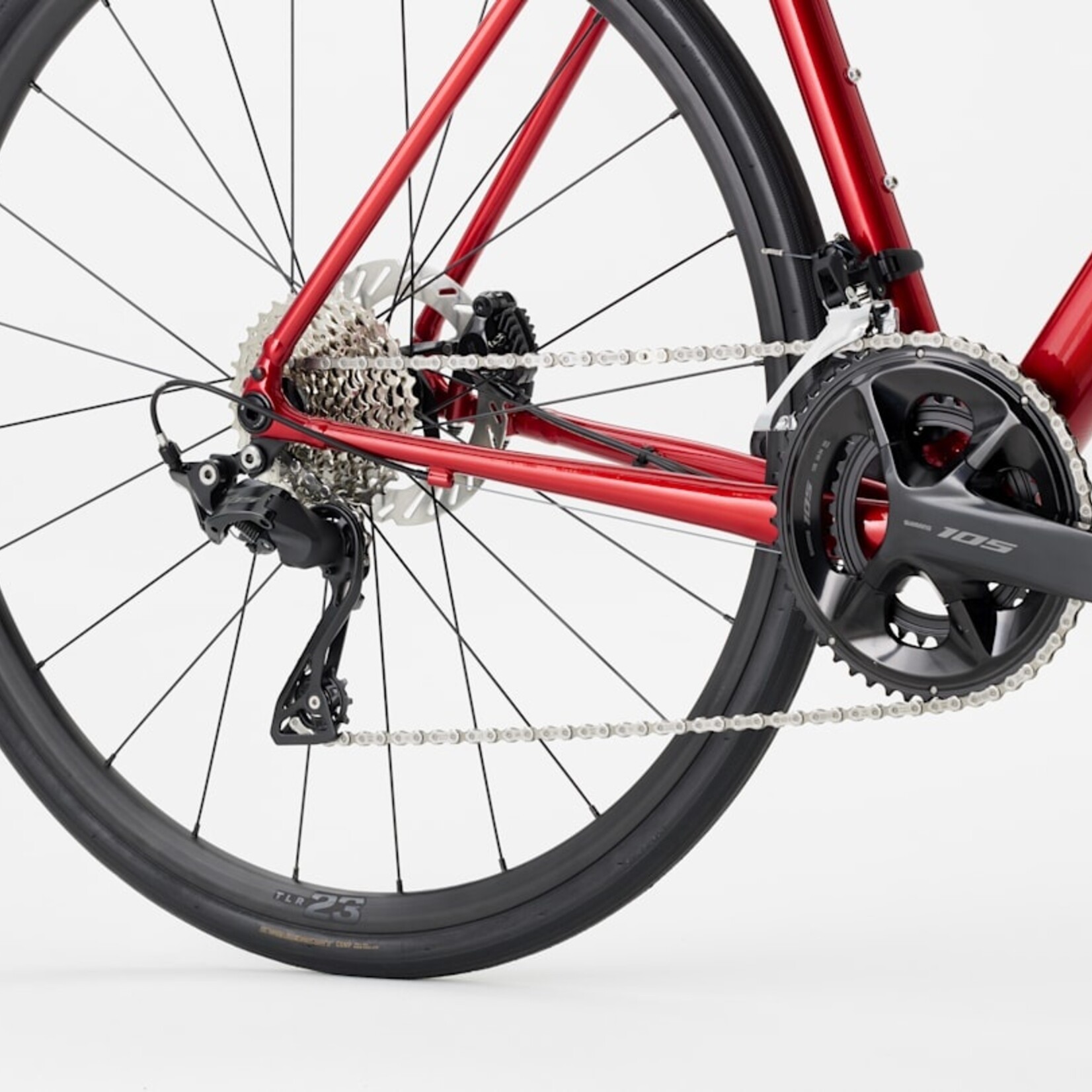

Crankset:	Shimano 105 R7100, 50/34, 172.5mm length
Pedals:	N/A
Bottom Bracket:	Shimano RS500, 68mm, threaded external
Cassette:	Shimano 105 7101, 11-34, 12 speed
Chain:	Shimano SLX M7100, 12 speed

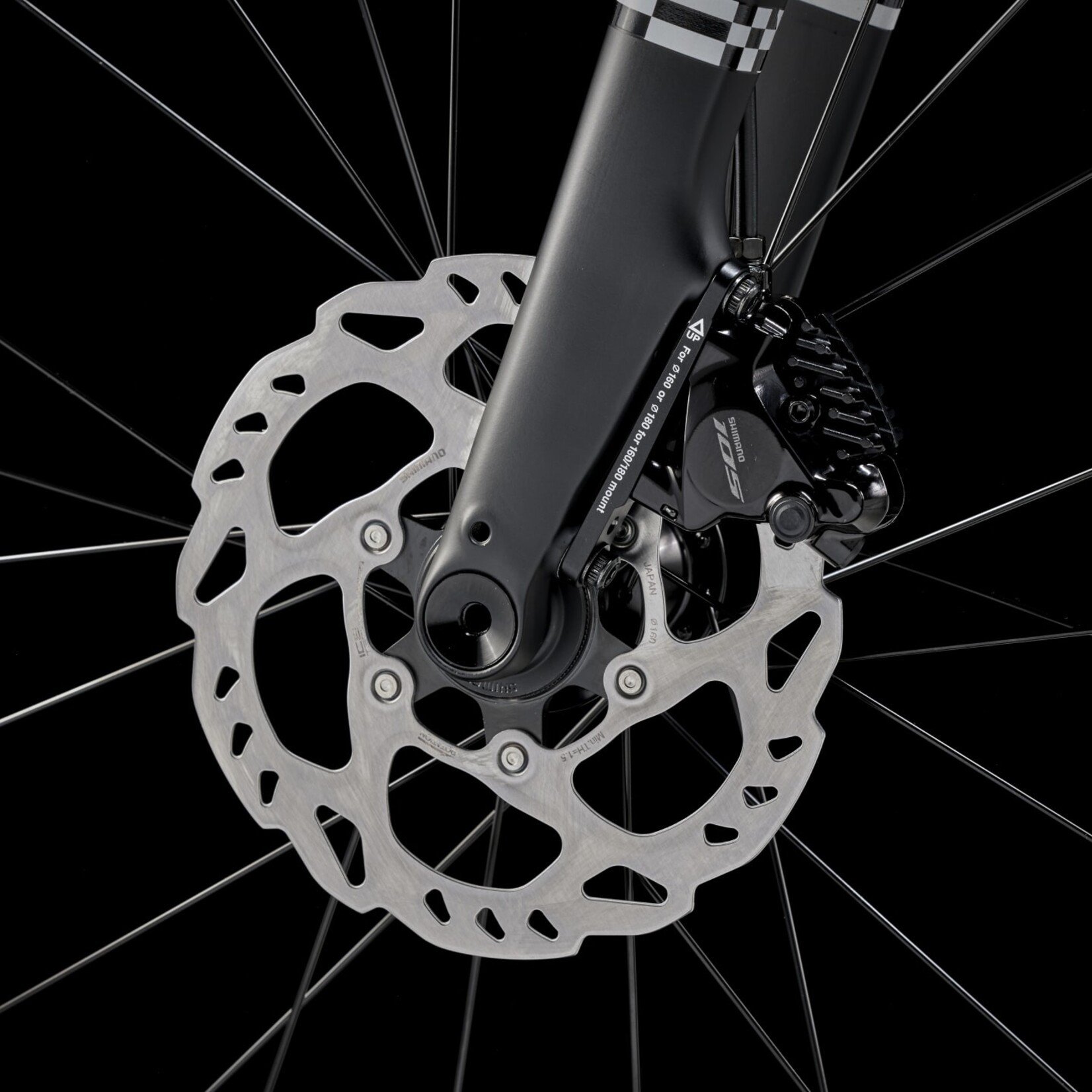

Front Brake:	Shimano 105 hydraulic disc, flat mount
Front Brake Rotor:	Shimano RT70, centerlock, 160mm
Rear Brake:	Shimano 105 hydraulic disc, flat mount
Rear Brake Rotor:	Shimano RT70, centerlock, 160mm
Brake Levers:	Shimano 105 hydraulic disc, flat mount
Front Hub:	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Front Hub Skewer:	Bontrager Switch Lever Pro Front Thru Axle, 119.5mm
Rear Hub:	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Rear Hub Skewer:	Bontrager Switch Lever Pro Rear Axle, 166mm
Rims:	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Front Tire:	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Rear Tire:	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm

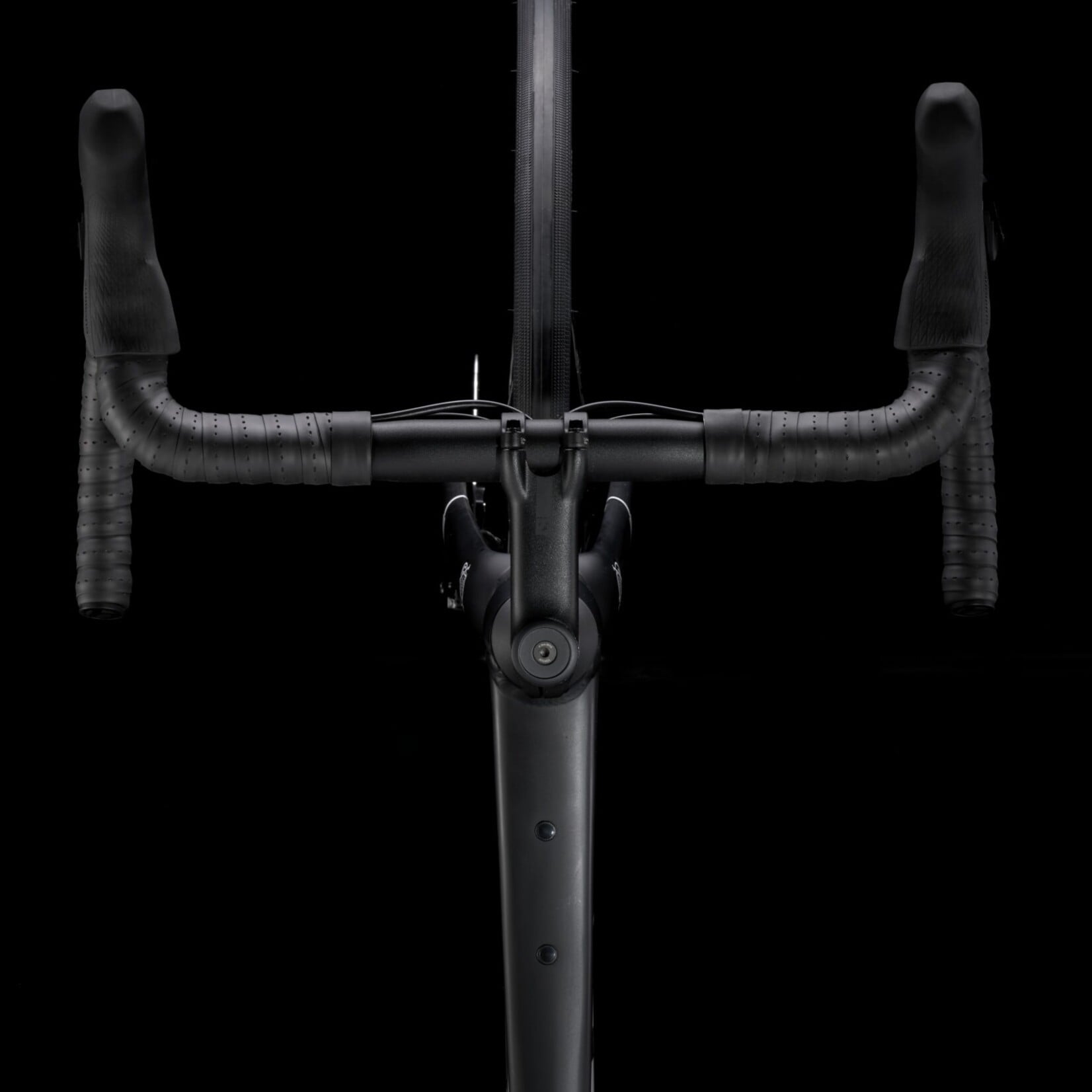

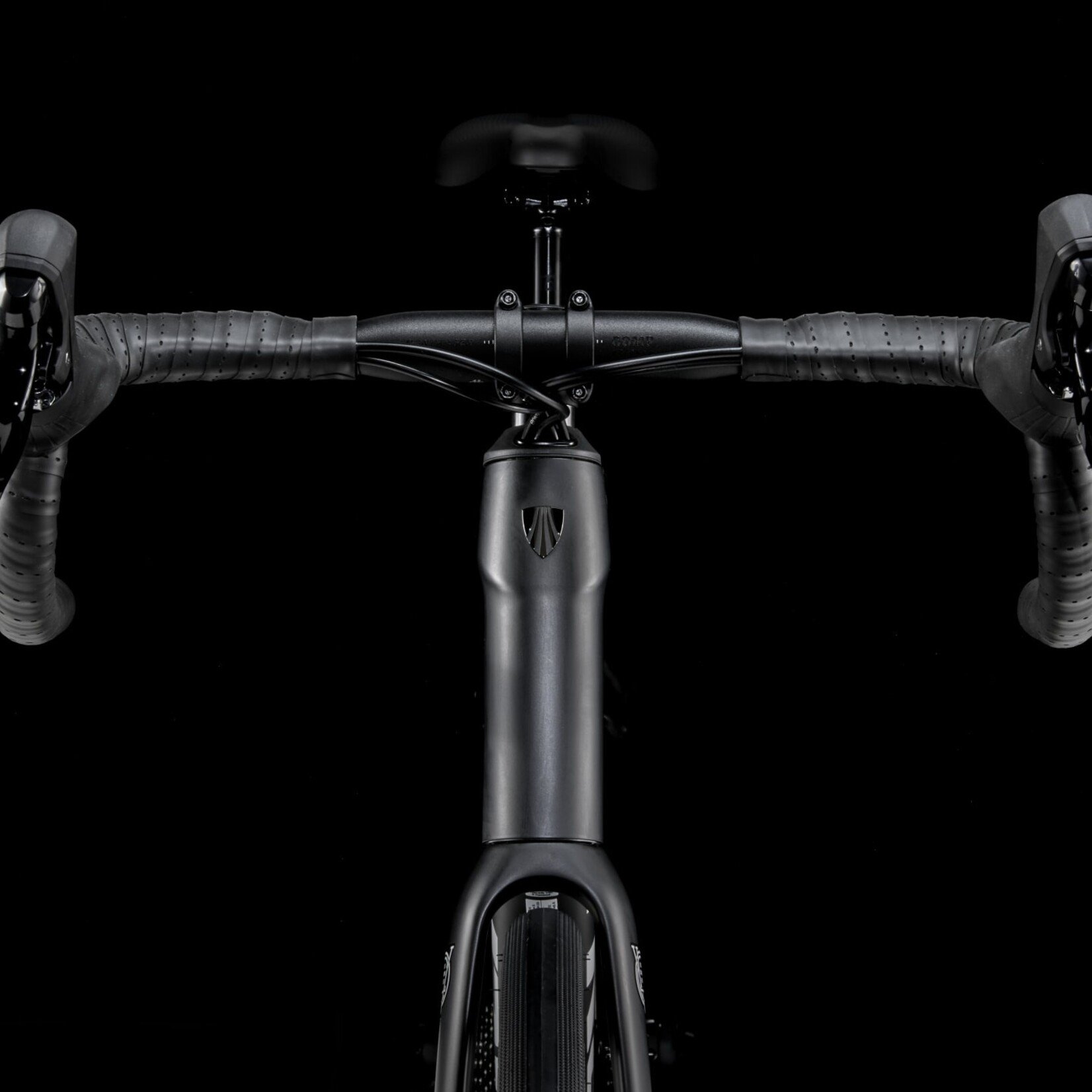

Handlebar:	Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Grips/ Bar Tape:	Trek EcoTack
Stem:	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Headset:	tapered carbon steerer
Saddle:	Verse Short, steel rails, 145mm width
Seatpost:	Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Extras:
