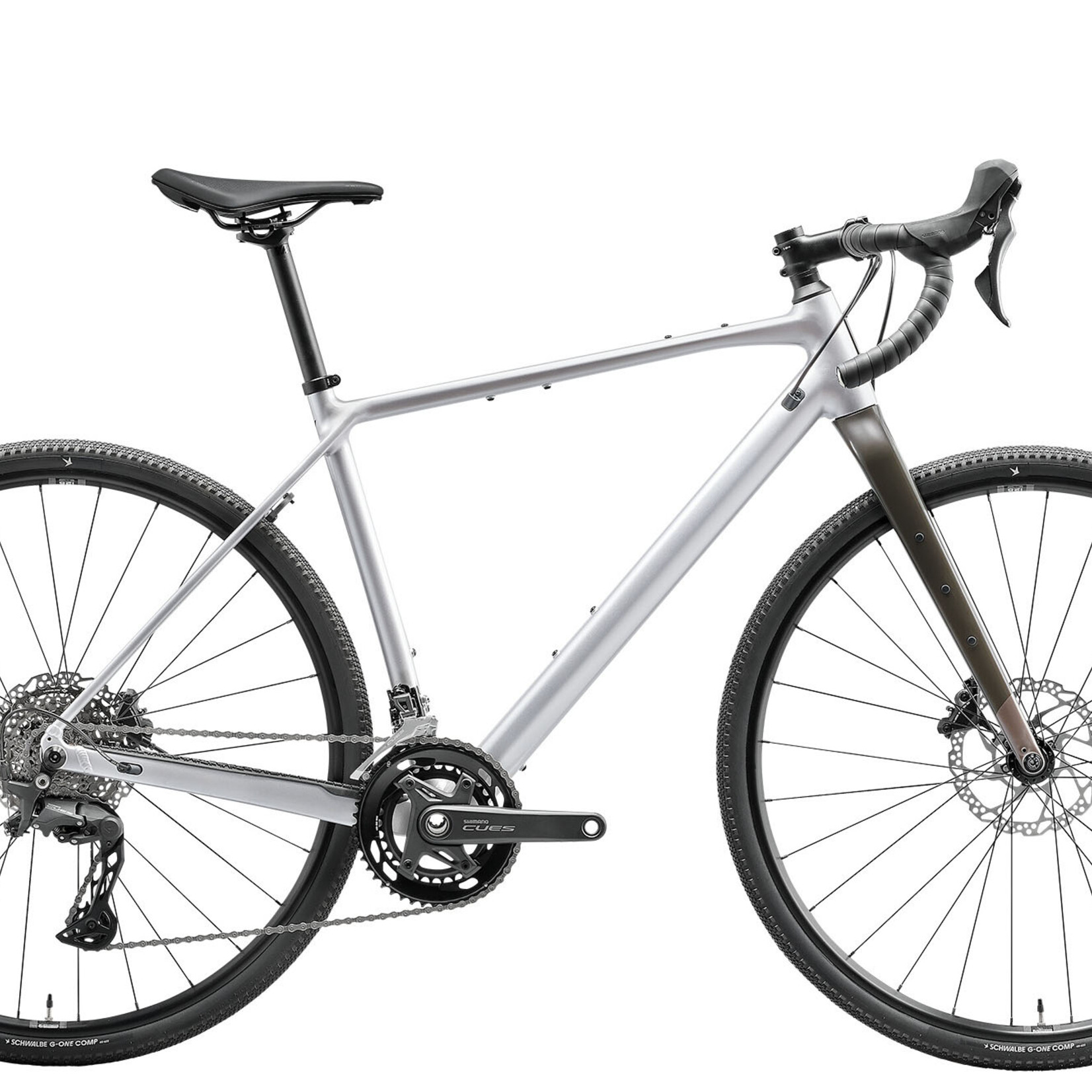

Introducing the all-new Search Alloy: Redesigned from the ground up to be lighter than ever, with optimized sizing and geometry.
Search A CUES features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

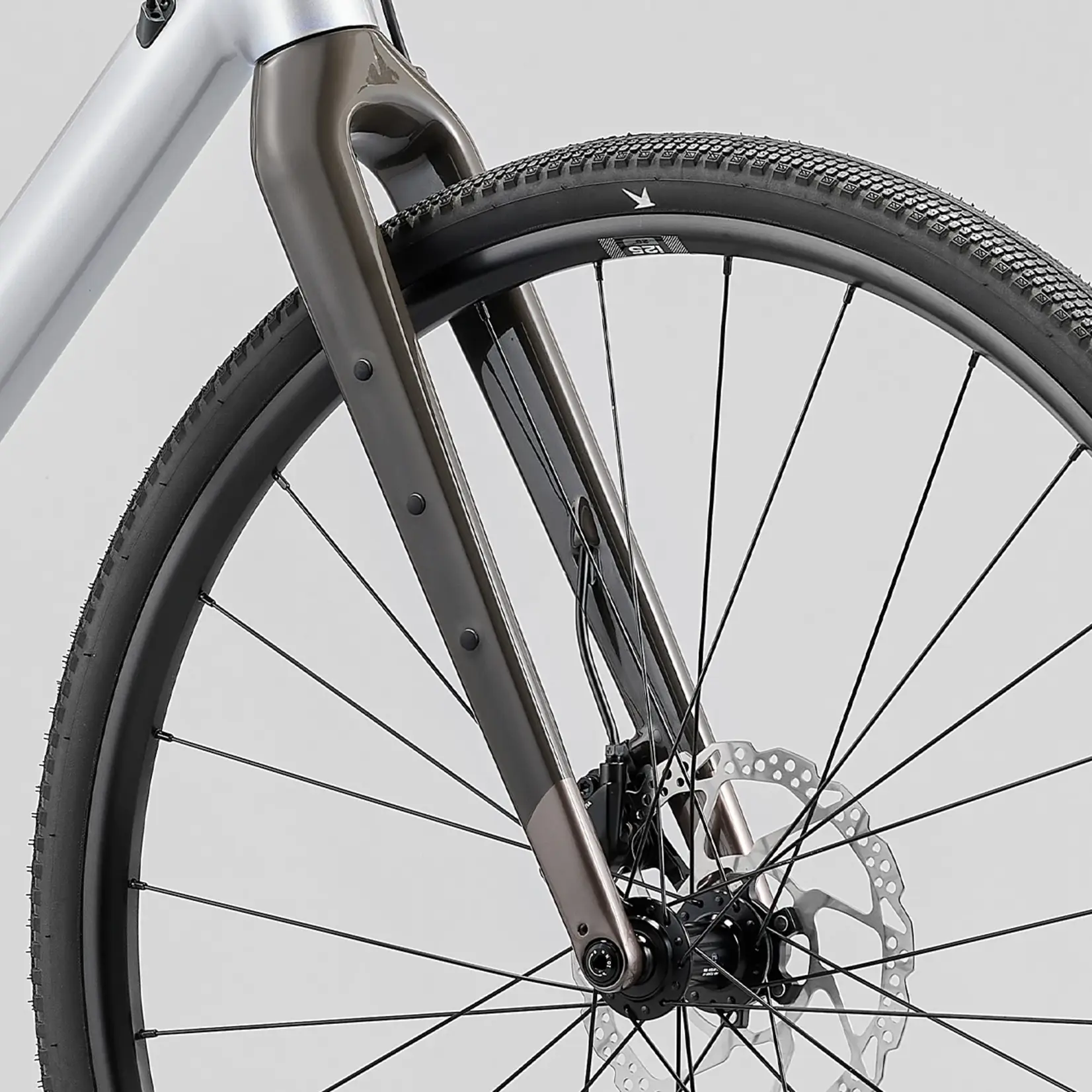

The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion.
Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.
| Weight: | Size 5: 11.65kg/ 25.7lbs |
|---|---|
| Frame: | Search Butted Aluminum w/Smooth Welds |
| Fork: | Search Carbon, 51mm Offset, 12x100mm TA |
| Shock: | N/A |
| Front Shifter: | Shimano CUES ST-U6030, 2sp |
| Front Derailleur: | Shimano CUES FD-U6030, Down Swing |
| Rear Shifter: | Shimano CUES ST-U6030, 10spd |
| Rear Derailleur: | Shimano CUES RD-U6020, Shadow, 10sp |
| Crankset: | Shimano CUES FC-U6030, 46-32T, 170mm |
| Pedals: | N/A |
| Bottom Bracket: | Shimano Cartridge Bearing, 68mm BSA |
| Cassette: | Shimano LG-400, 11-39T, 10sp |
| Chain: | KMC XGlide |
| Front Brake: | Shimano CUES BR-U6030, Resin Pads |
| Front Brake Rotor: | Shimano SM-RT54 - 160mm, C-lock |
| Rear Brake: | Shimano CUES BR-U6030, Resin Pads |
| Rear Brake Rotor: | Shimano SM-RT54 - 160mm, C-lock |
| Brake Levers: | Shimano CUES ST-U6030 |
| Front Hub: | Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock |
| Front Hub Skewer: | 12x100mm Thru Axle |
| Rear Hub: | Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H |
| Rear Hub Skewer: | 12x142mm |
| Rims: | WTB ST i25 2.0, 28h, 25mm ID |
| Front Tire: | Schwalbe G-One Comp, K-Guard Recyclable, 700x40c |
| Rear Tire: | Schwalbe G-One Comp, K-Guard Recyclable, 700x40c |
| Handlebar: | Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree |
| Grips/ Bar Tape: | Griptacular Shockproof Tape 3mm |
| Stem: | Norco SL Alloy 70mm Length, 31.8mm Clamp |
| Headset: | FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
| Saddle: | Selle Royale SRX Gravel, 148mm |
| Seatpost: | Norco Alloy, 27.2mm, 12Deg Offset, 300mm length |
| Extras: | Front Fender |
