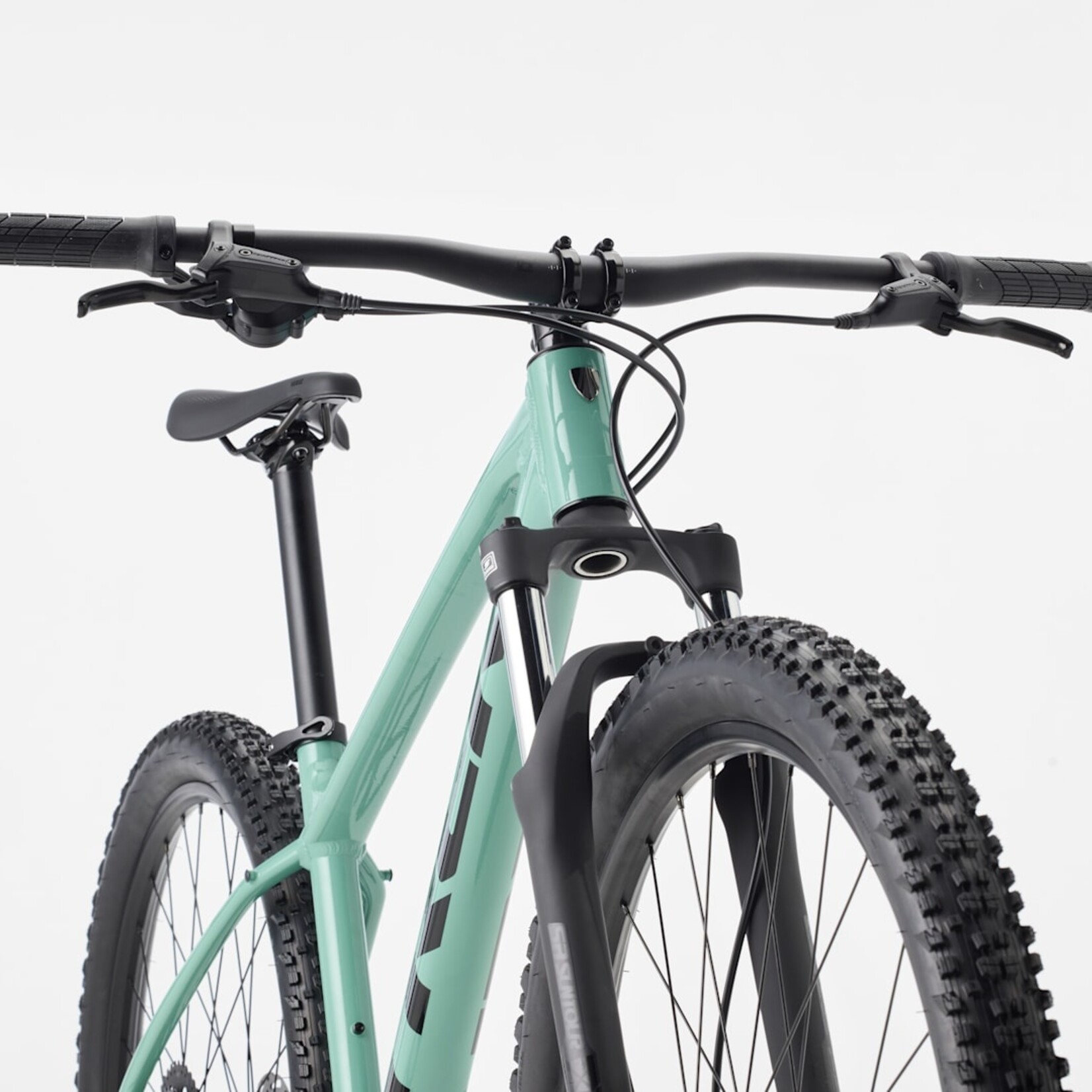

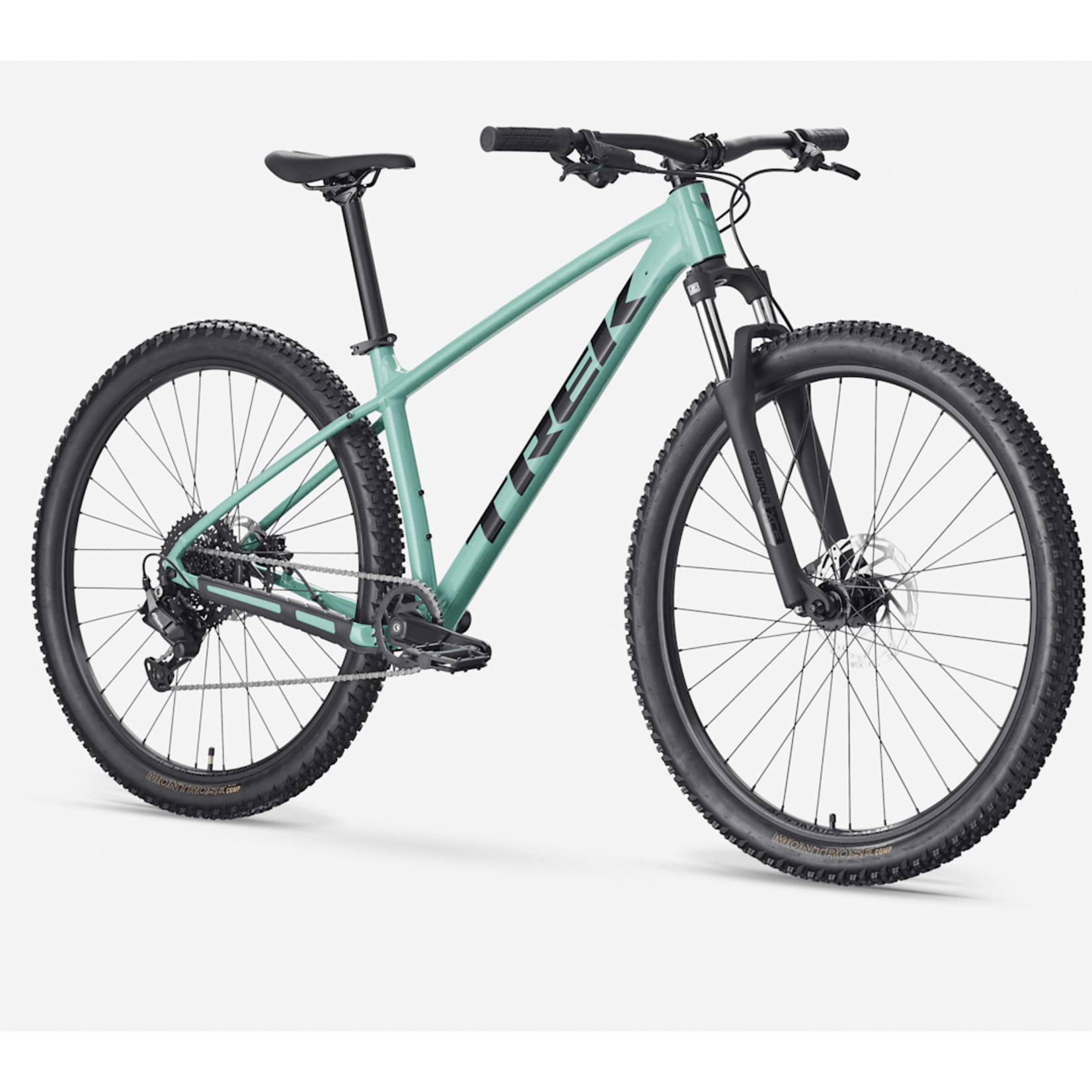

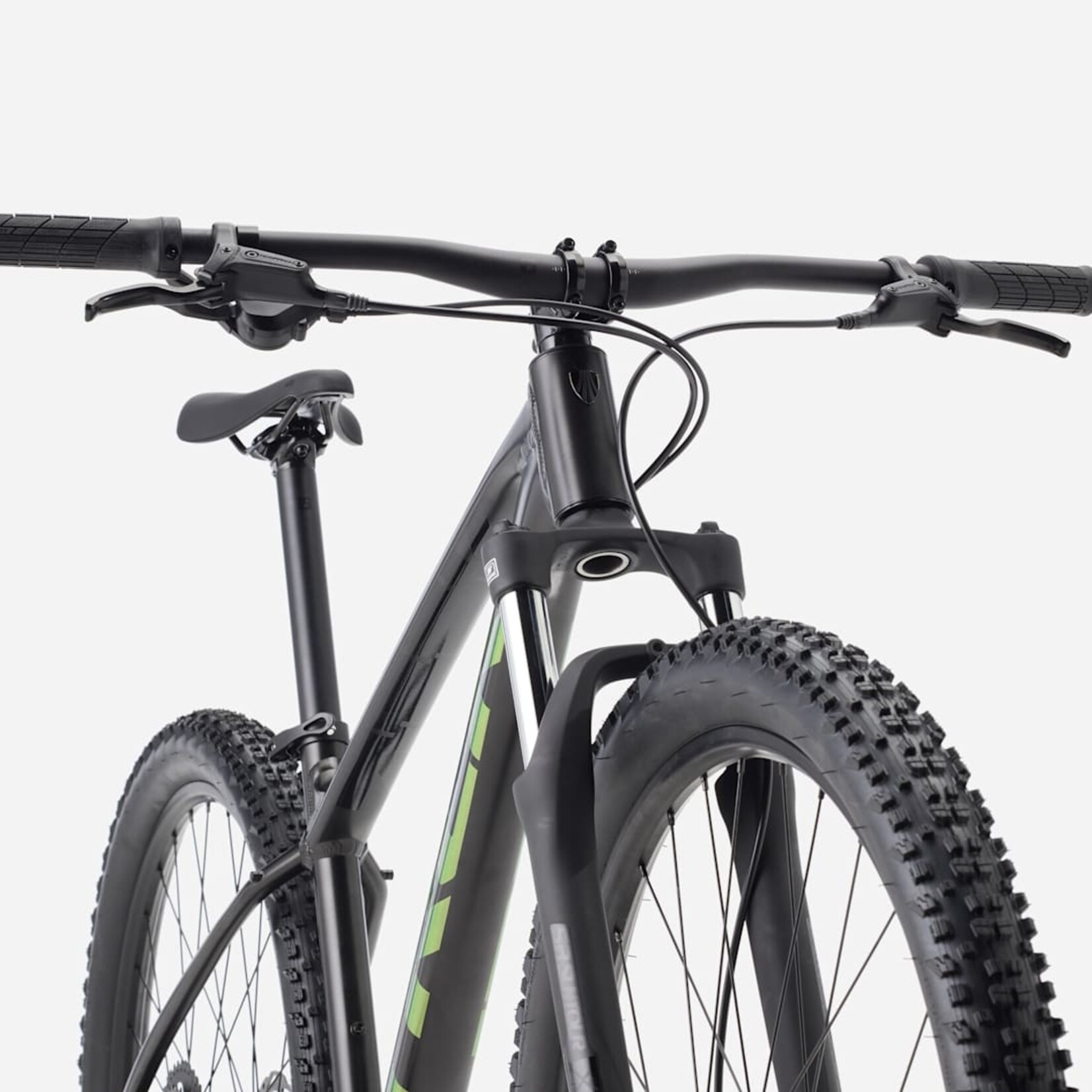

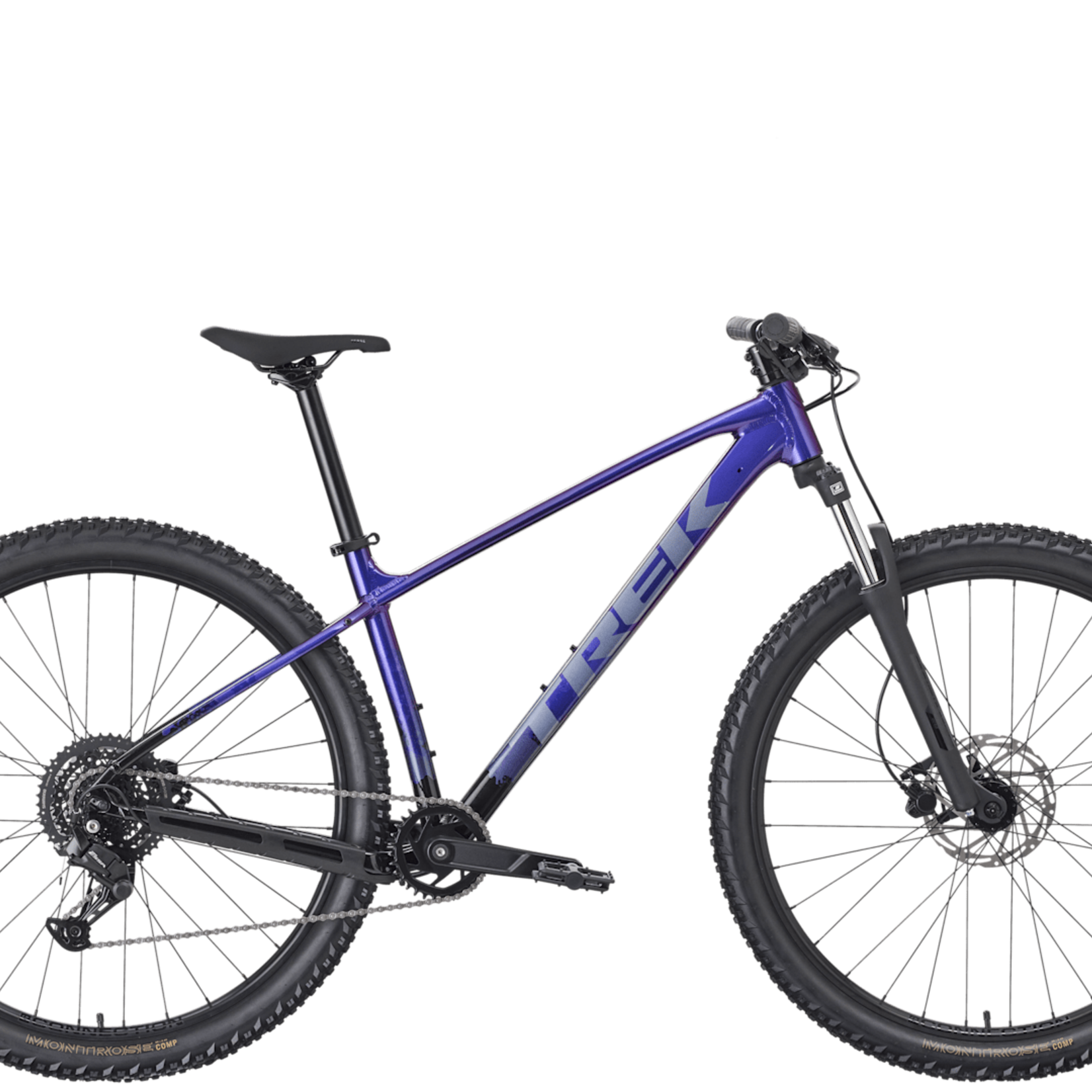

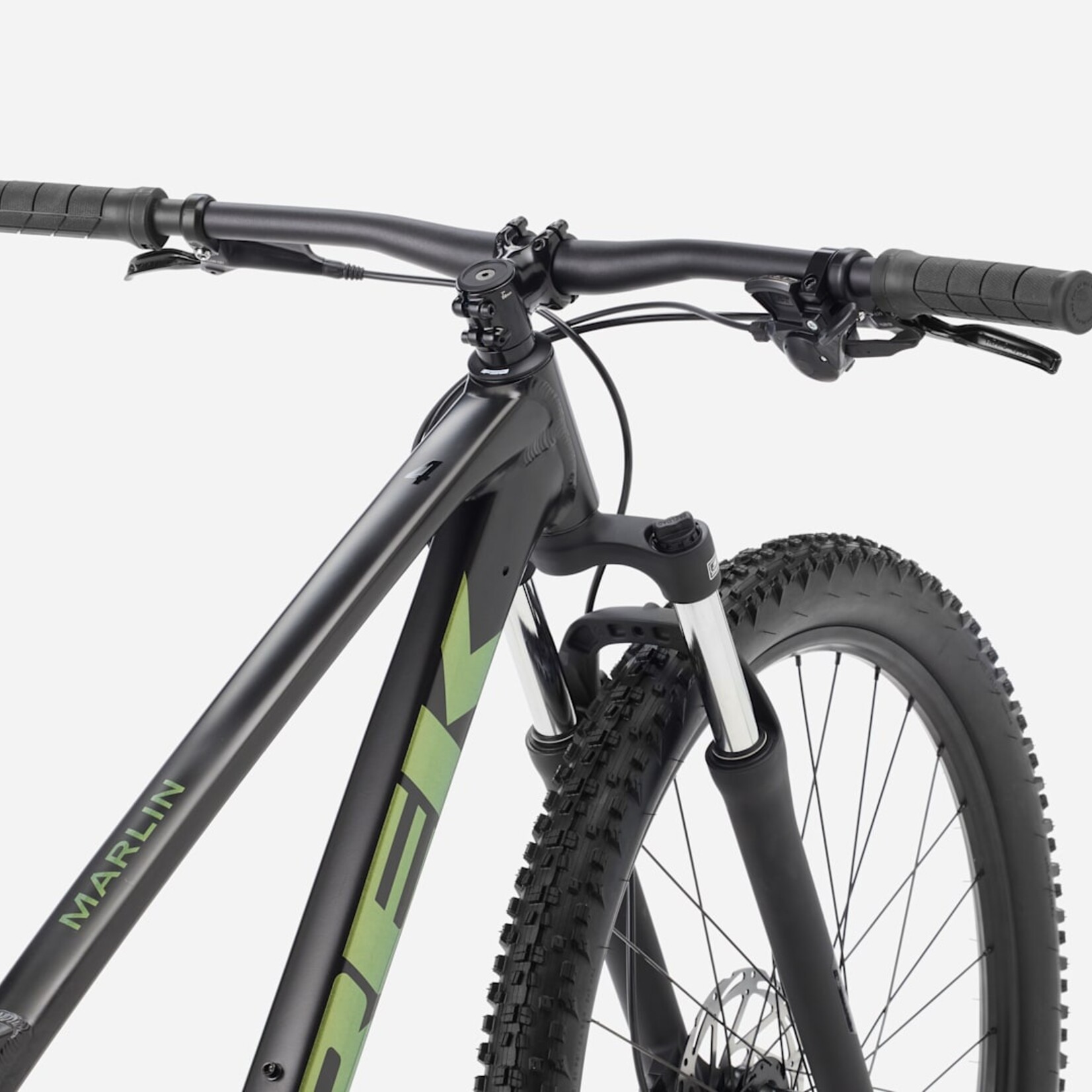

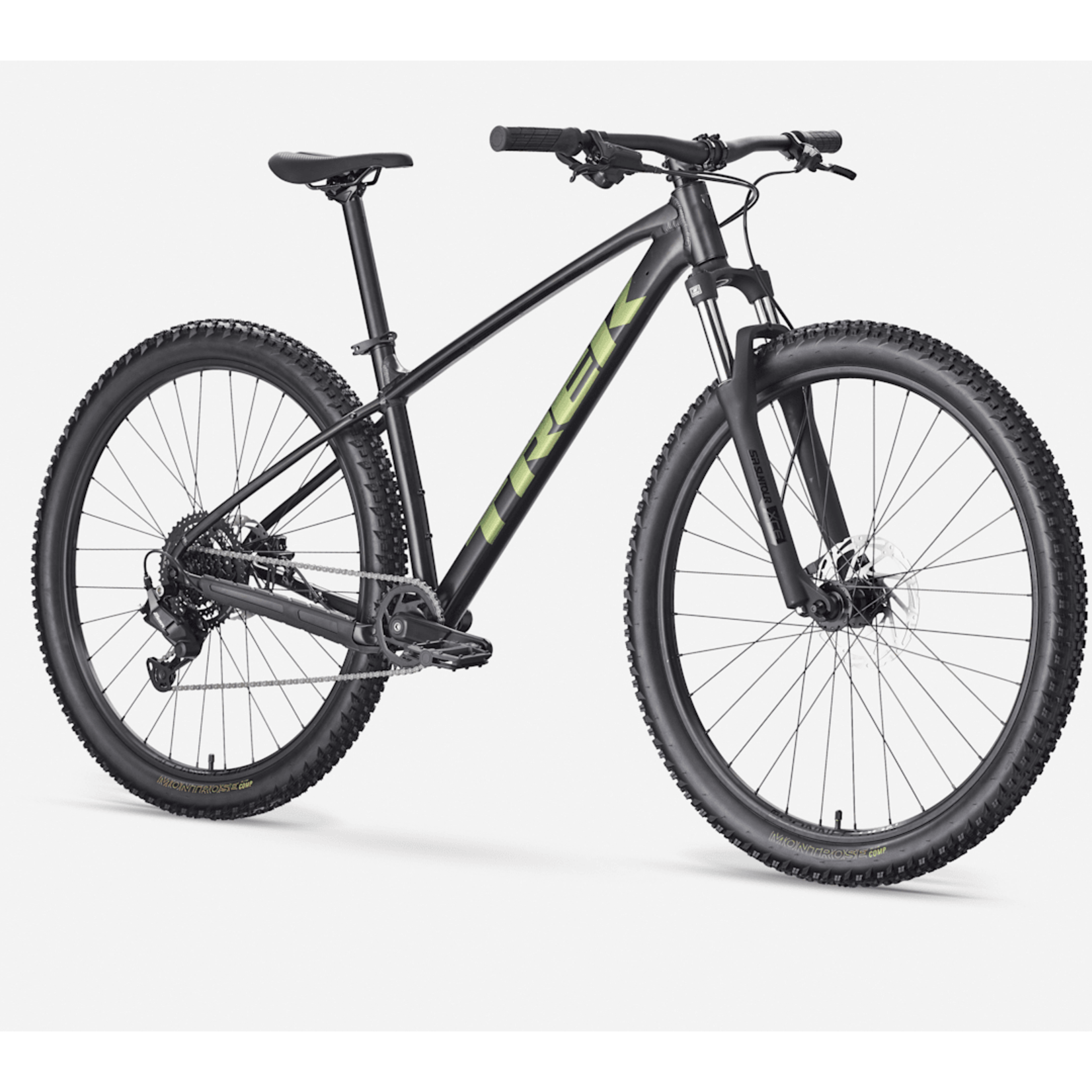

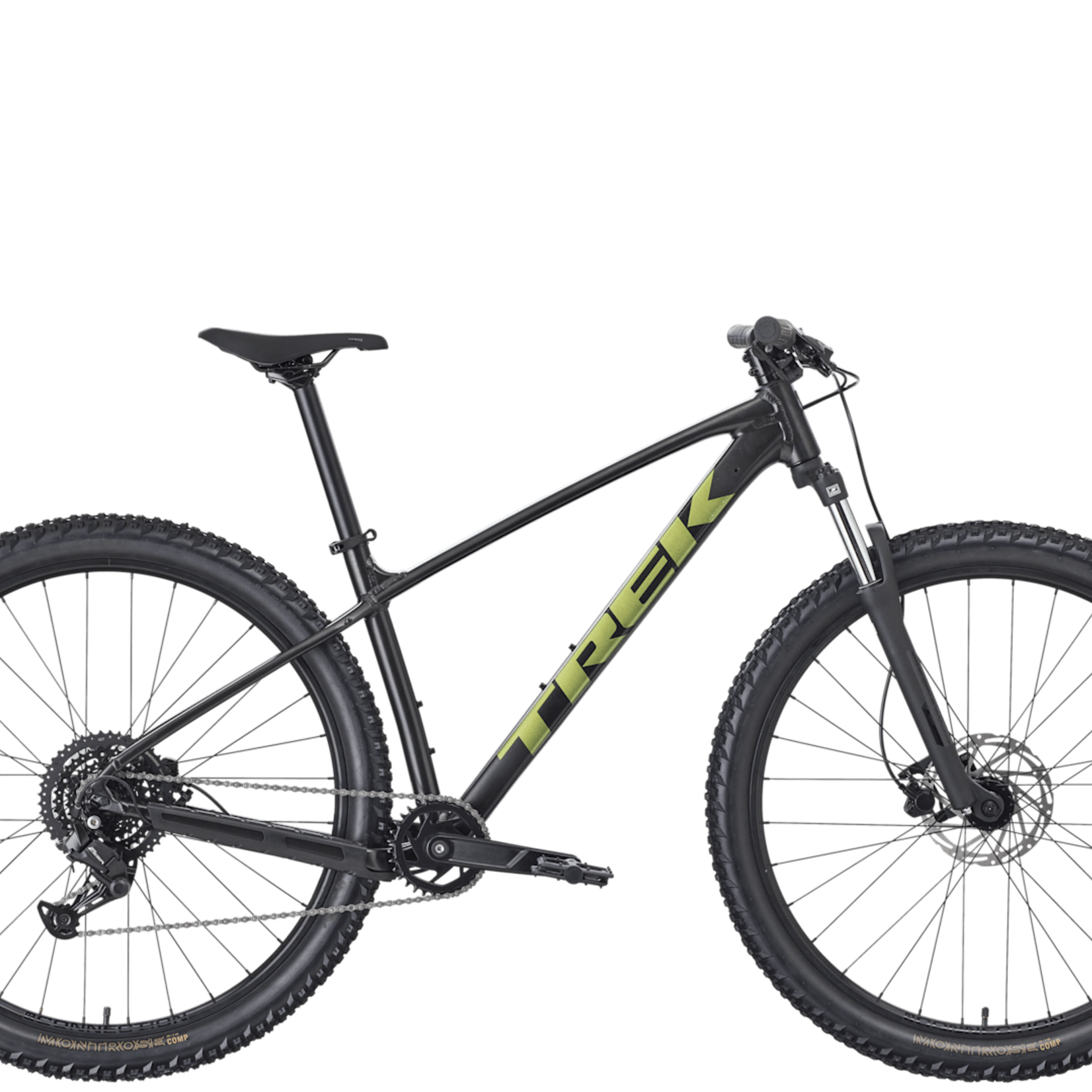

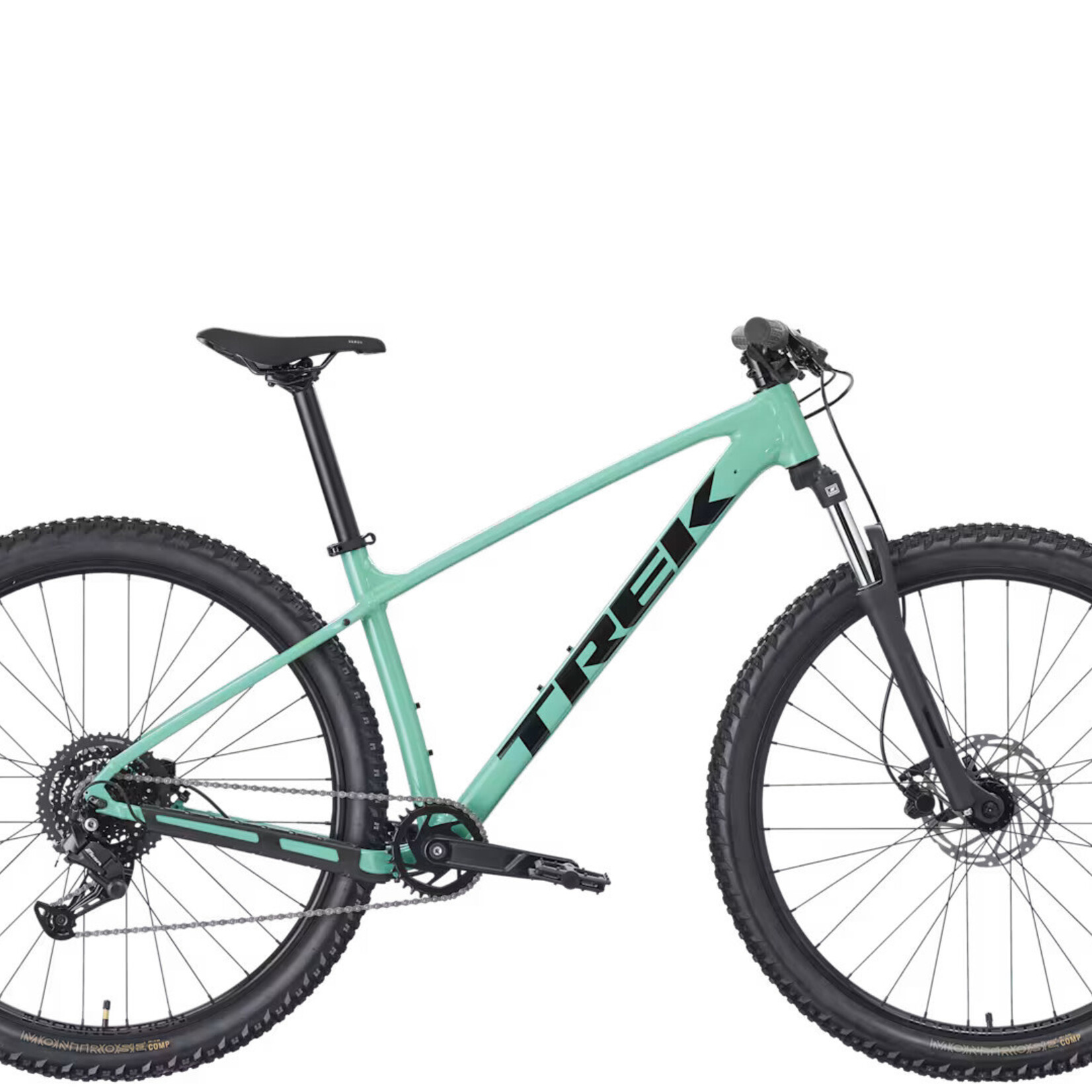

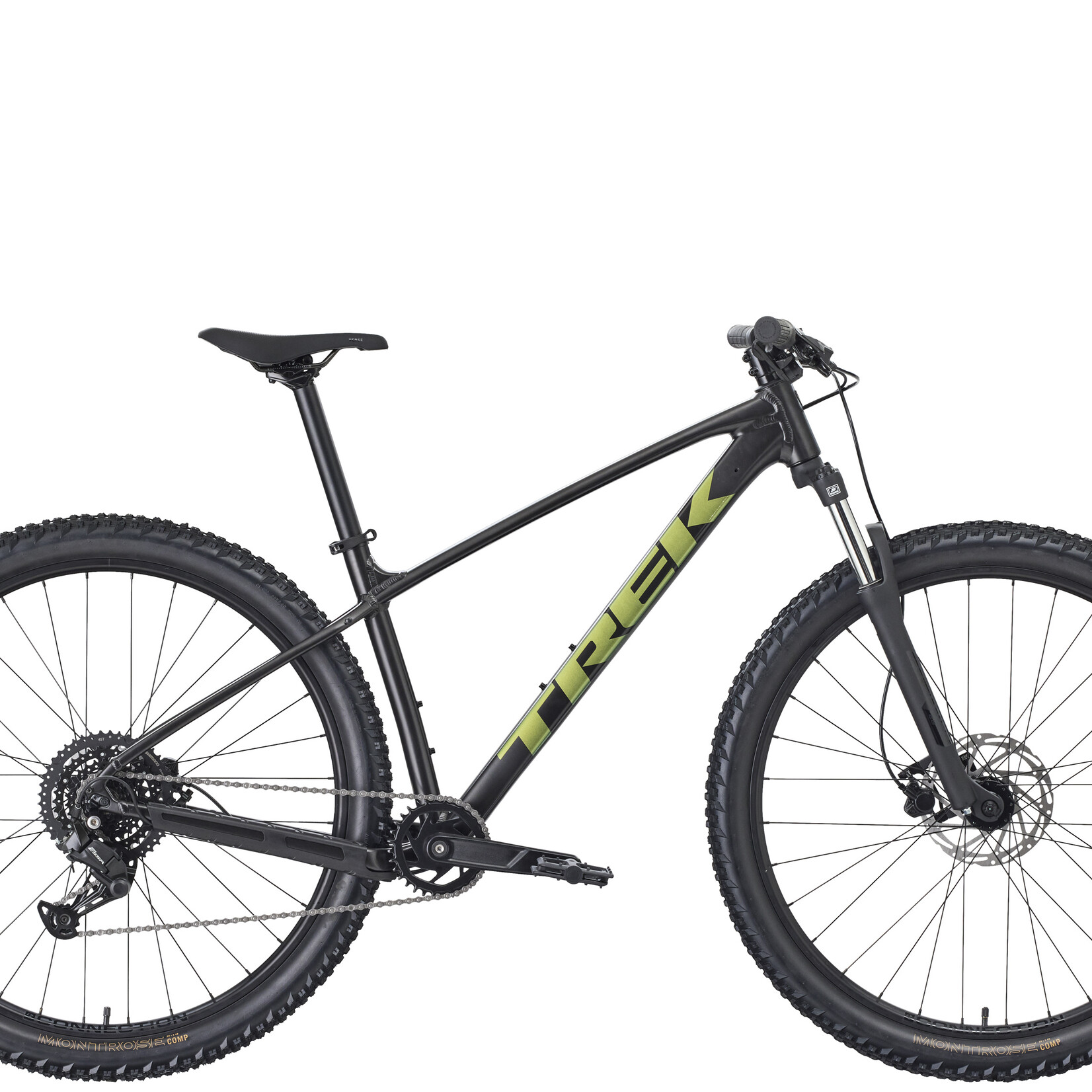

Trek Marlin 4 Gen 3

Weight:	Medium - 14.90 kg/32.85 lbs
Frame:	Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Fork:	SR Suntour XCE 28, coil spring, preload, 100mm QR, 100mm travel
Shock:	N/A
Front Shifter:	N/A
Front Derailleur:	N/A
Rear Shifter:	Shimano M315, 8 speed
Rear Derailleur:	Shimano ESSA U2000

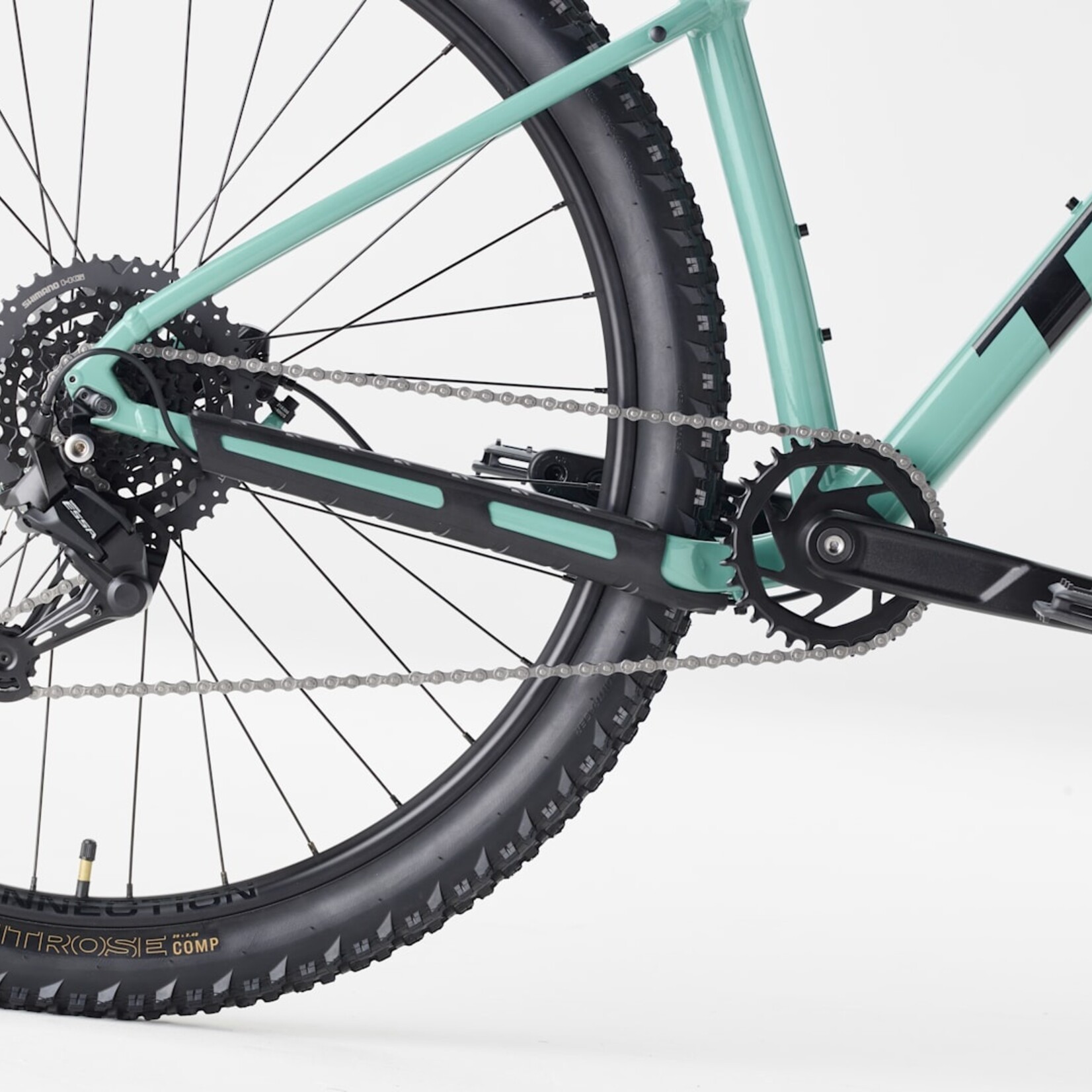

Crankset:	ProWheel alloy, 32T narrow-wide steel ring
Pedals:	nylon platform
Bottom Bracket:	Threaded cartridge
Cassette:	Shimano HG300, 11-45, 8 speed
Chain:	KMC Z8.3, 8 speed
Front Brake:	Tektro HD-M275 hydraulic disc
Front Brake Rotor:	Tektro, 6-bolt, 160mm
Rear Brake:	Tektro HD-M275 hydraulic disc
Rear Brake Rotor:	Tektro, 6-bolt, 160mm
Brake Levers:	Tektro HD-M275
Front Hub:	Formula DC-20, alloy, 6-bolt
Front Hub Skewer:	5x100 mm QR
Rear Hub:	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub
Rear Hub Skewer:	135x5 mm QR
Rims:	Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Front Tire:	Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4'' (27.5" Small & X-Small) (26" 2X-Small)
Rear Tire:	Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4'' (27.5" Small & X-Small) (26" 2X-Small)
Handlebar:	Bontrager alloy, 31.8mm, 15mm rise, 750mm width, Small: 720mm, X-Small & 2X-Small 690mm
Grips/ Bar Tape:	Trek Line Comp, nylon lock-on
Stem:	Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length, Large- Medium: 50mm, Small - 2X-Small: 35mm
Headset:	Semi-integrated, 1-1/8''
Saddle:	Bontrager Verse Short, stainless steel rails
Seatpost:	Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length, X-Small - Medium: 330mm, Medium/Large - X-Large: 400mm
Extras:
