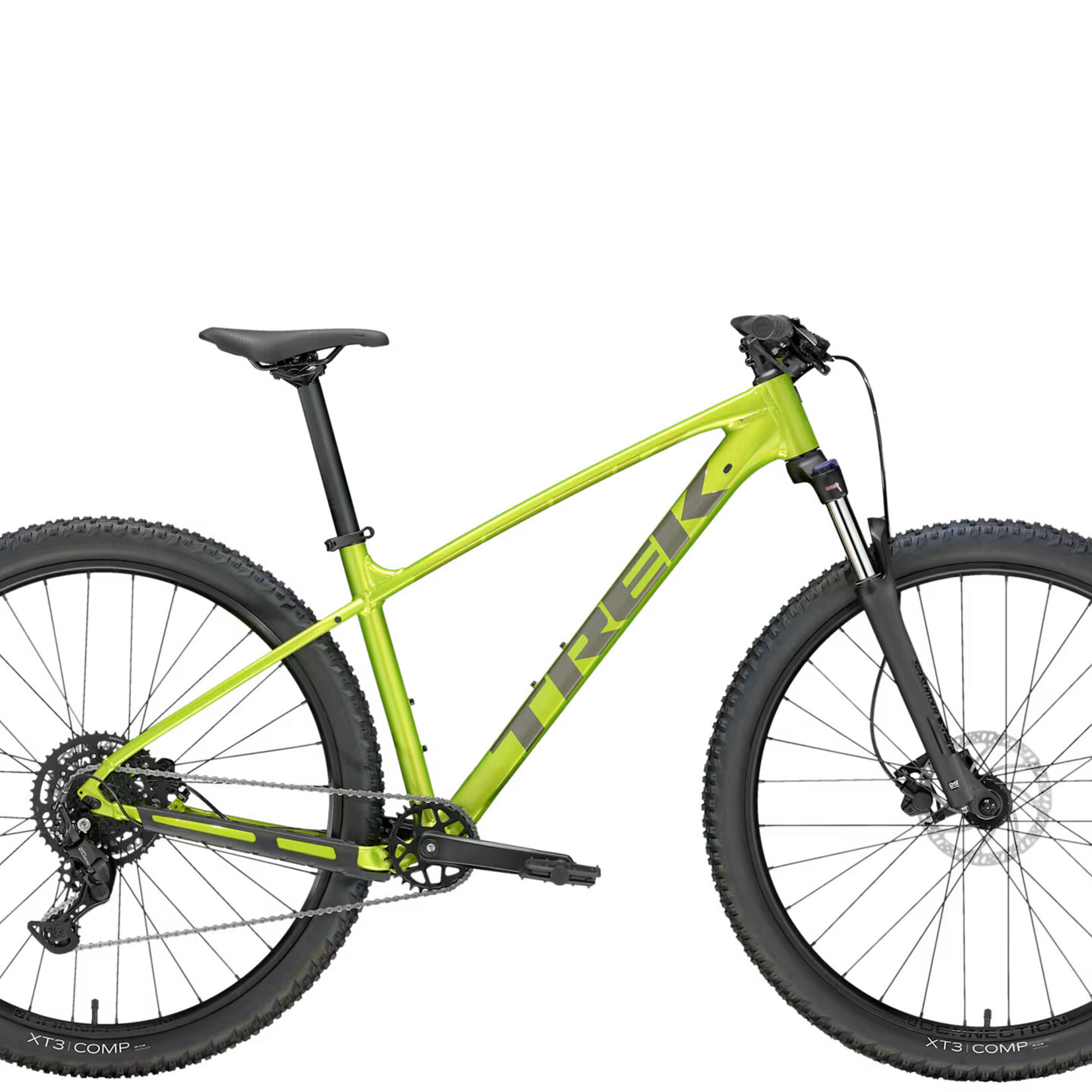

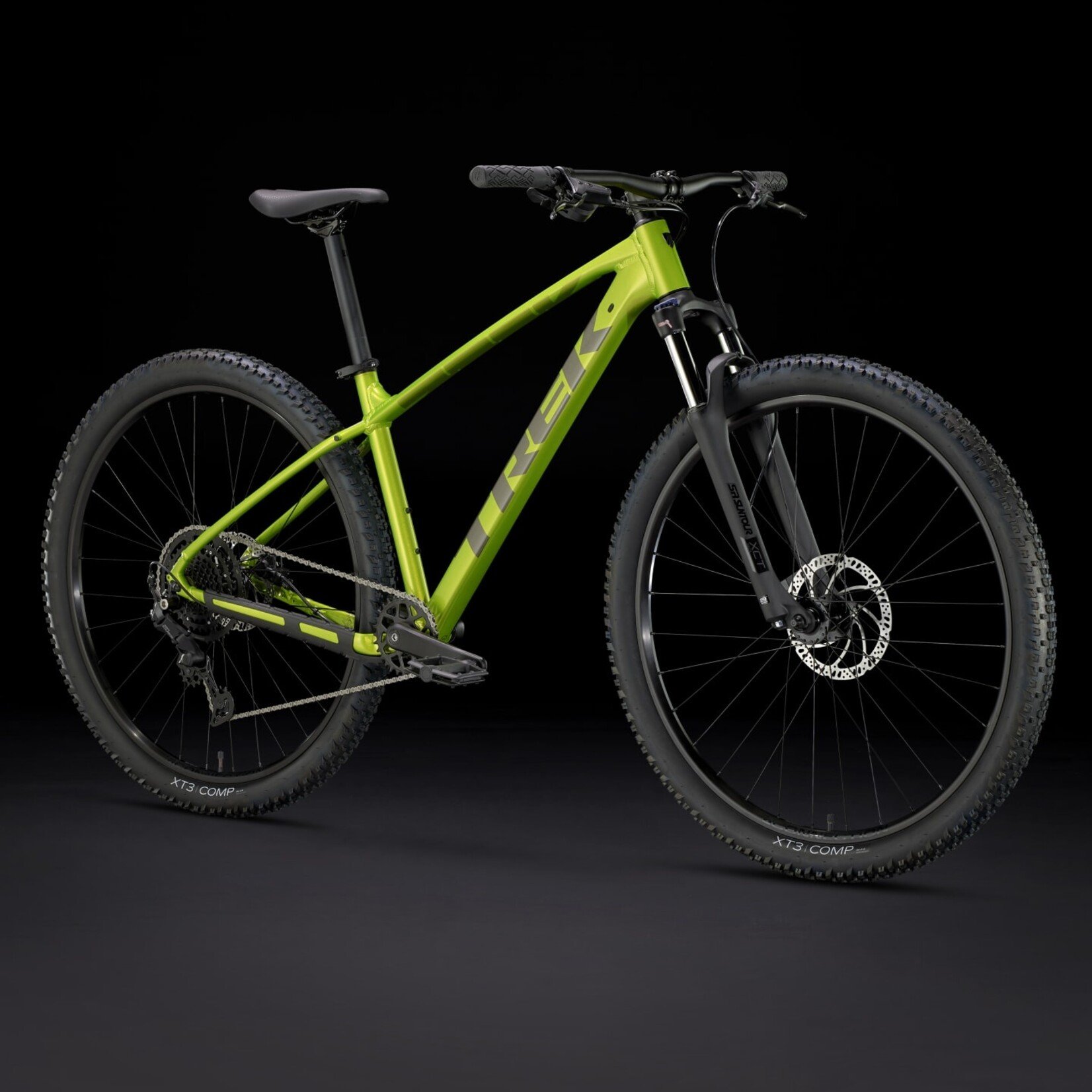

Trek Marlin 5 Gen 3 2025

It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

View more details at Trekbikes.com

Weight:	Medium - 15.10kg/33.29lbs (with tubes)

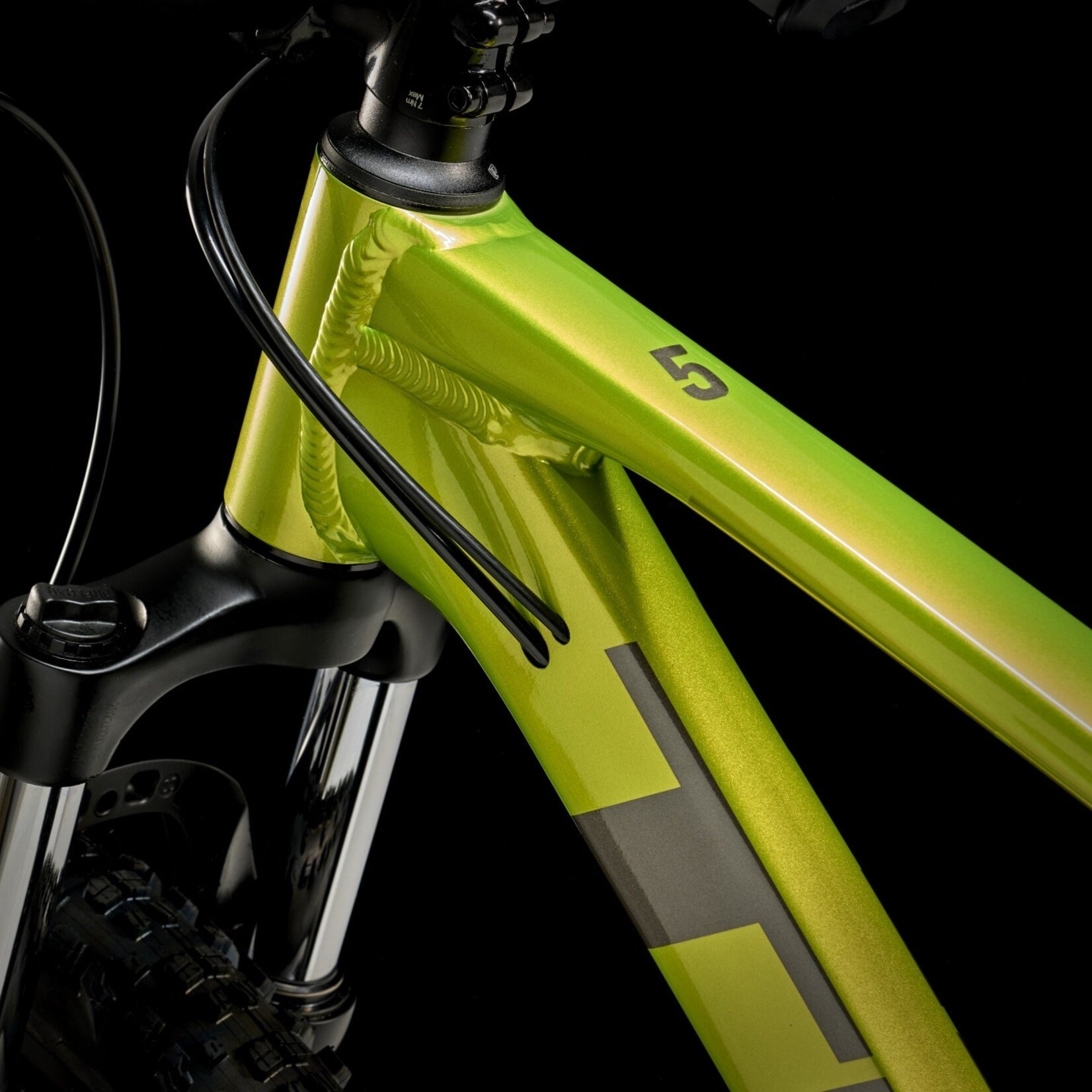

Frame:	Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

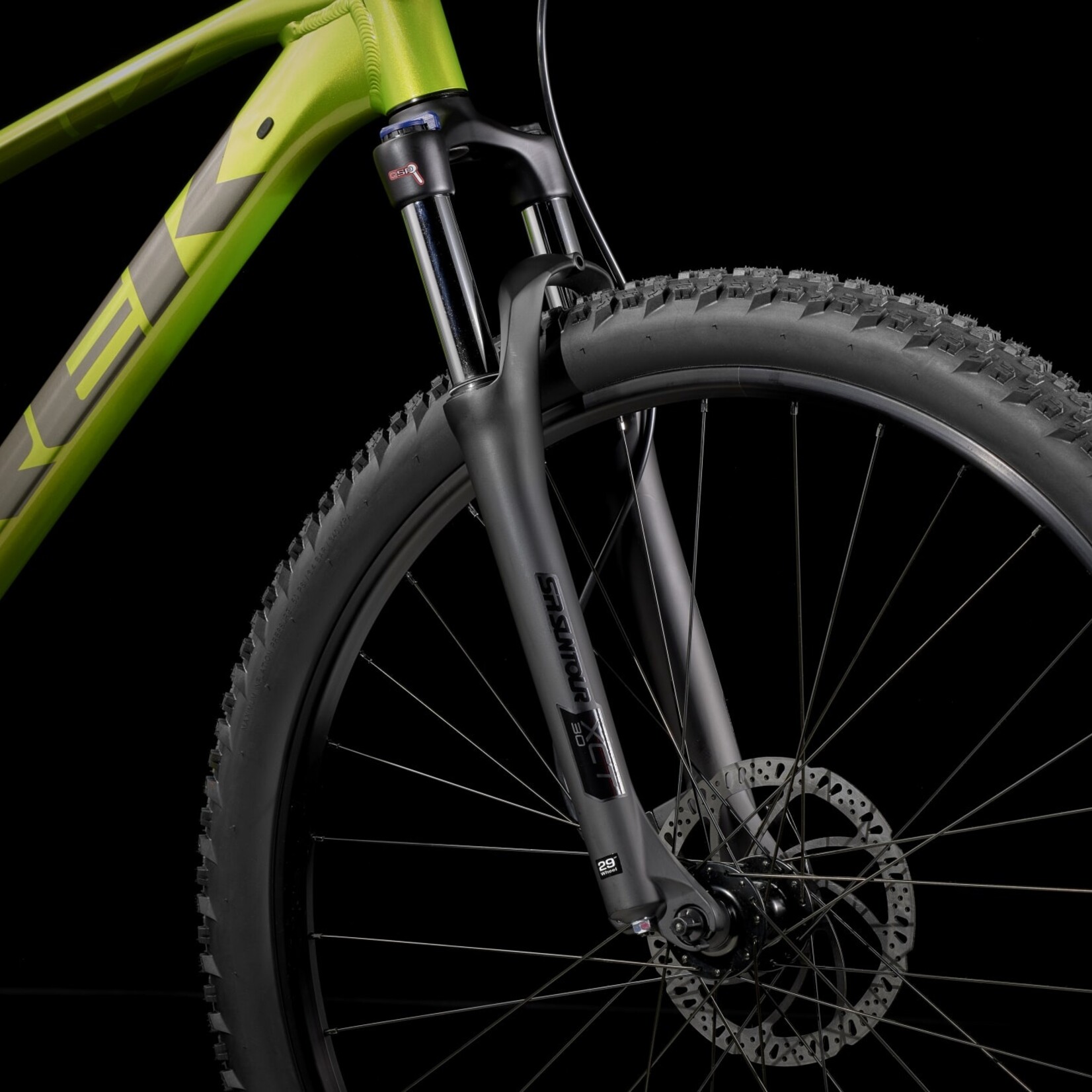

Fork:	SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Shock:	N/A
Front Shifter:	N/A
Front Derailleur:	N/A
Rear Shifter:	Shimano U4000, 9 speed

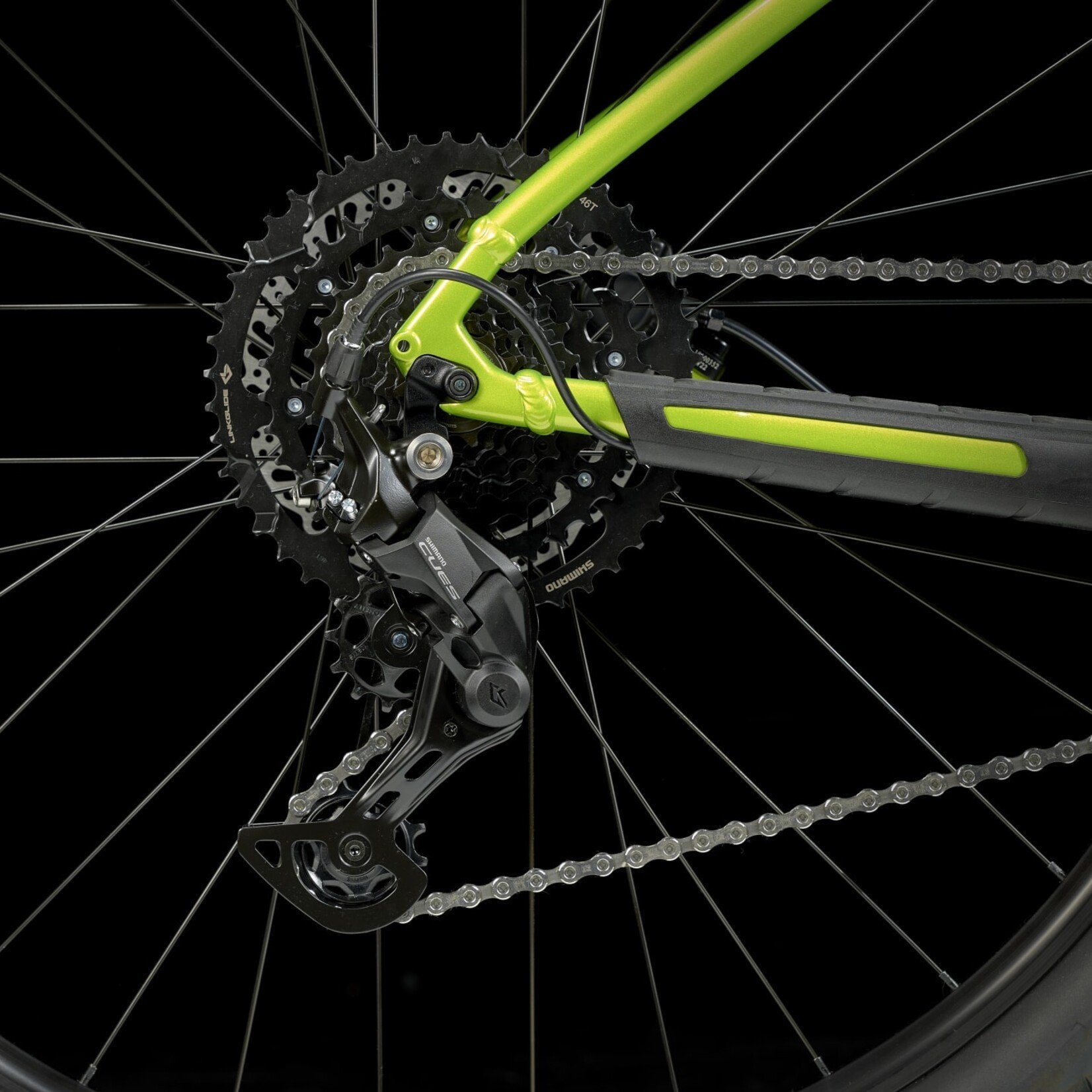

Rear Derailleur:	Shimano CUES U4000

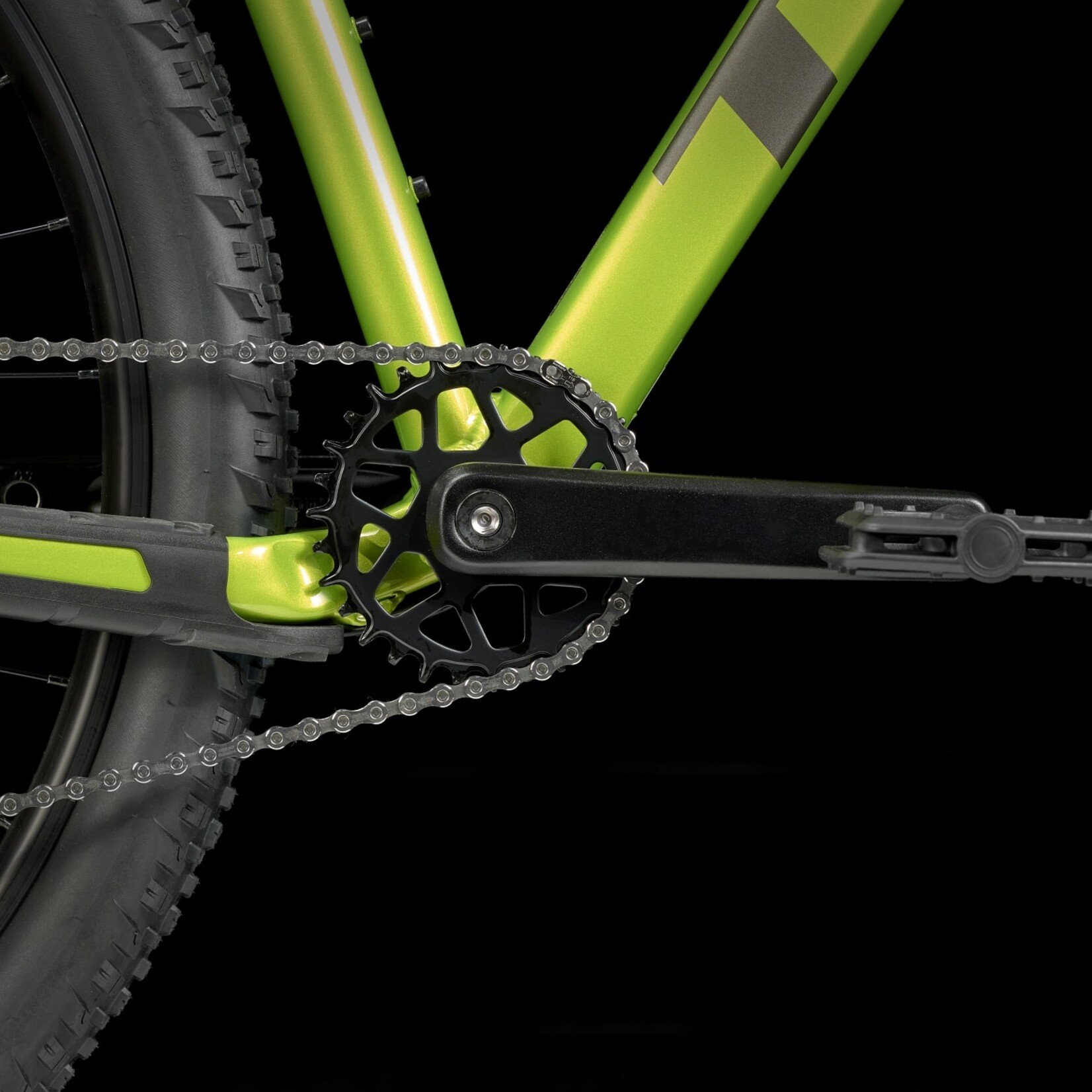

Crankset:	Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
Pedals:	VP-536 nylon platform
Bottom Bracket:	VP BC73, 73mm, threaded cartridge
Cassette:	Shimano LINKGLIDE LG300, 11-46, 9 speed

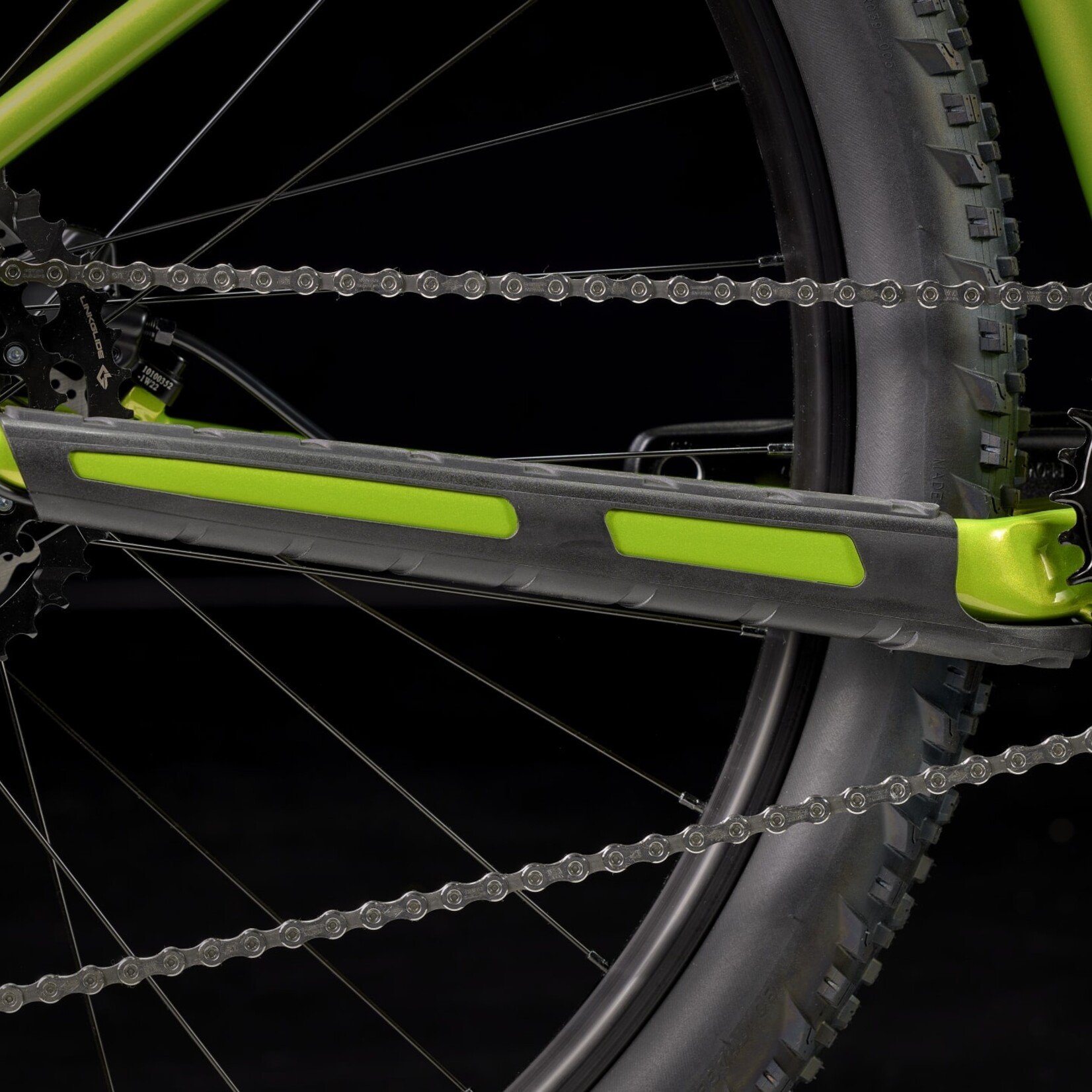

Chain:	Shimano LG500
Front Brake:	Tektro HD-M276 hydraulic disc, short reach
Front Brake Rotor:	Tektro, 6-bolt, 160mm
Rear Brake:	Tektro HD-M276 hydraulic disc, short reach
Rear Brake Rotor:	Tektro, 6-bolt, 160mm
Brake Levers:	Tektro HD-M276 hydraulic disc, short reach
Front Hub:	Formula DC-20, alloy, 6-bolt, 100x5mm
Front Hub Skewer:	Formula QR-22 External Cam Skewer 132x5mm
Rear Hub:	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Rear Hub Skewer:	Trek Thru-Skew, 173x5mm

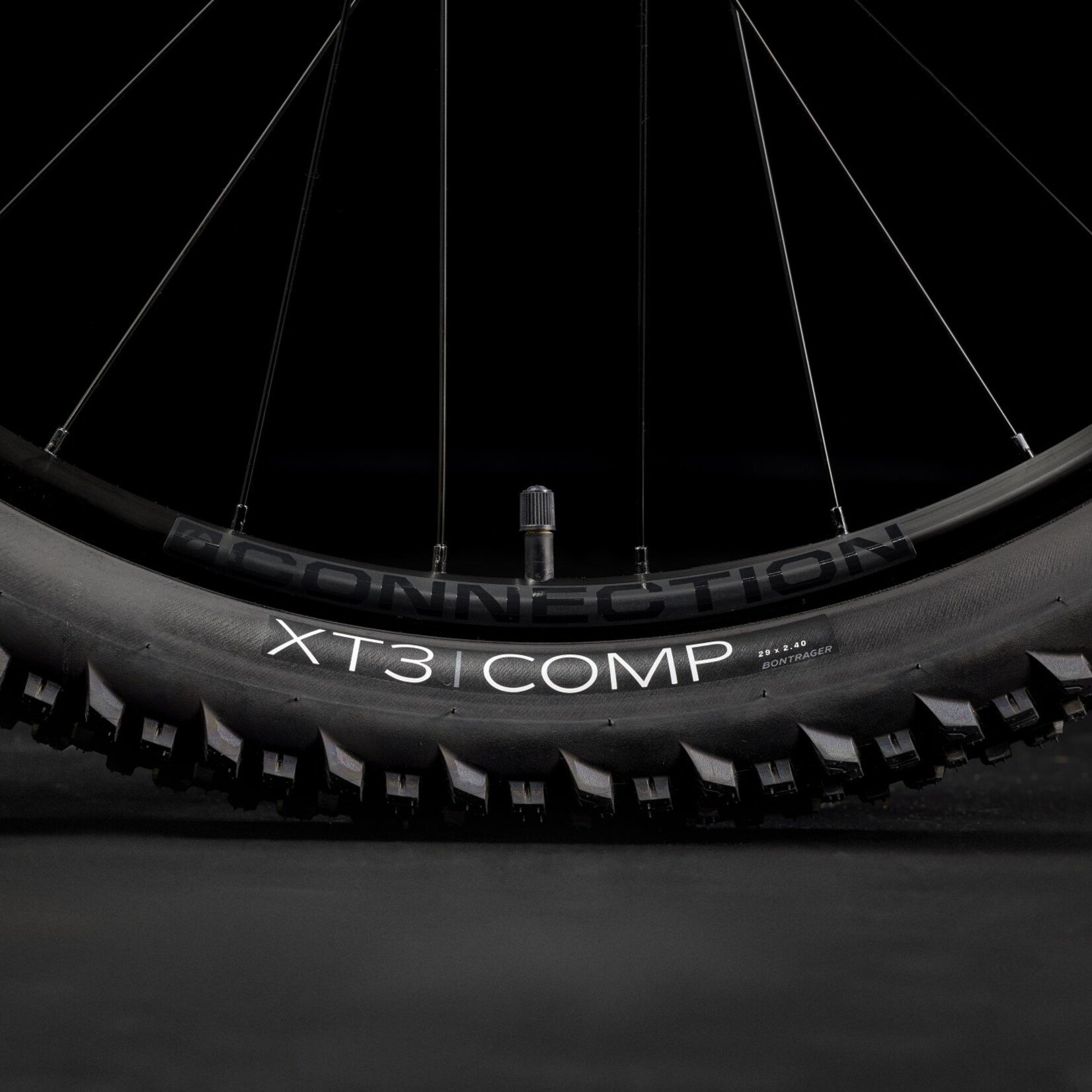

Rims:	Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Front Tire:	Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''
Rear Tire:	Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''
Handlebar:	Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Grips/ Bar Tape:	Bontrager XR Trail Comp, nylon lock-on
Stem:	Bontrager Comp, 31.8mm, 7 degree, 35mm length
Headset:	Semi-integrated, 1-1/8"
Saddle:	Bontrager Arvada
Seatpost:	Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Extras:
