Go long, go short, go fast. This is WorldTour performance for real world rides.

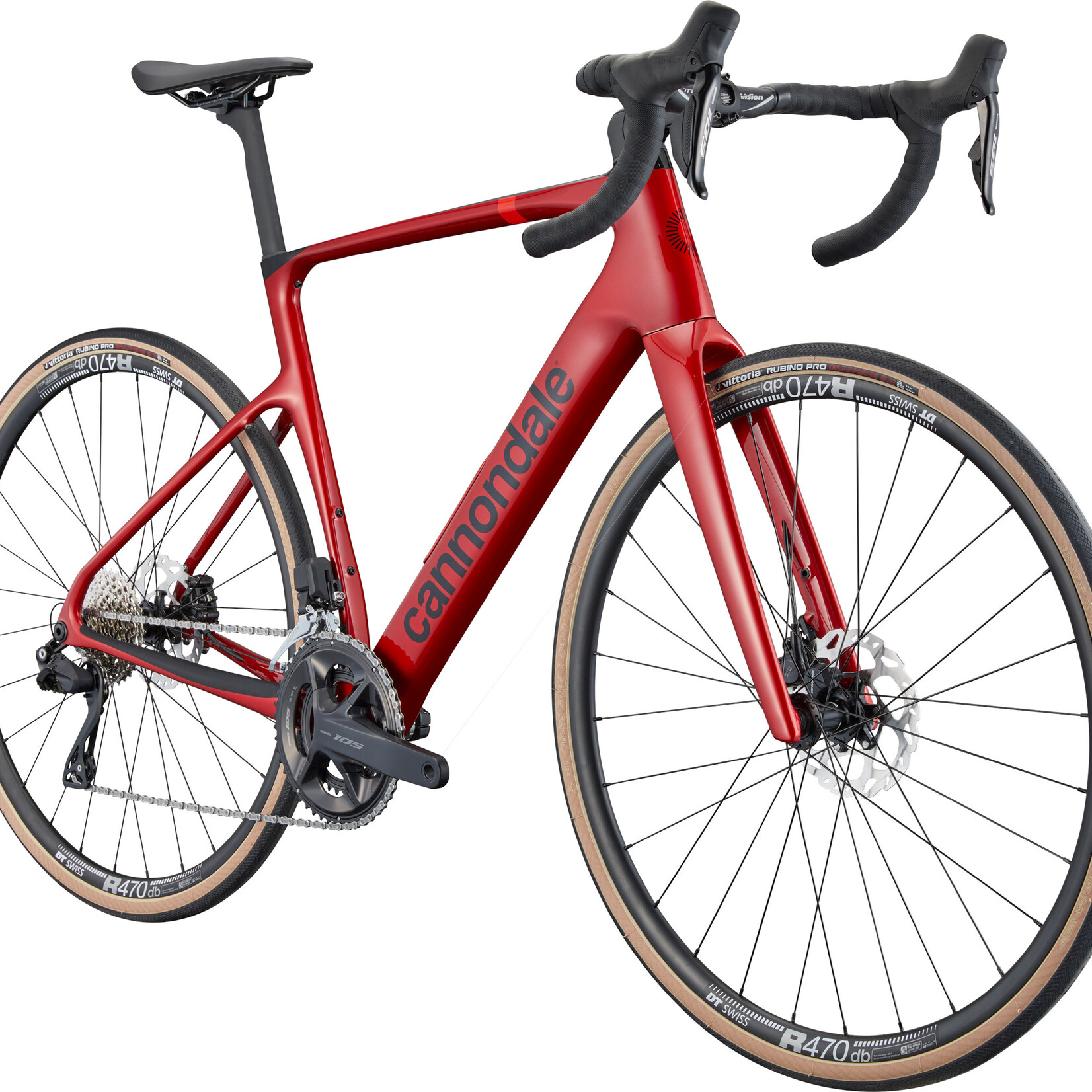

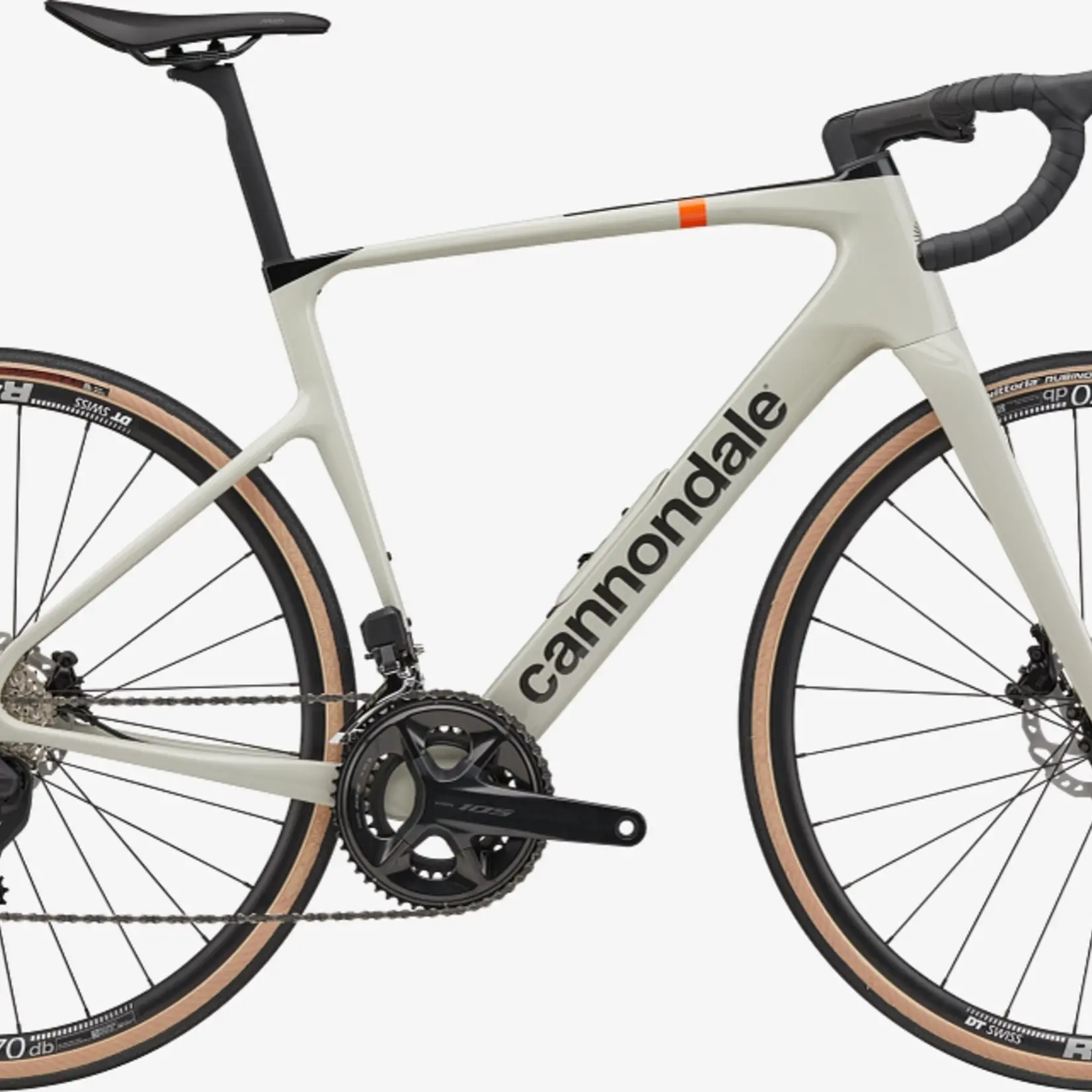

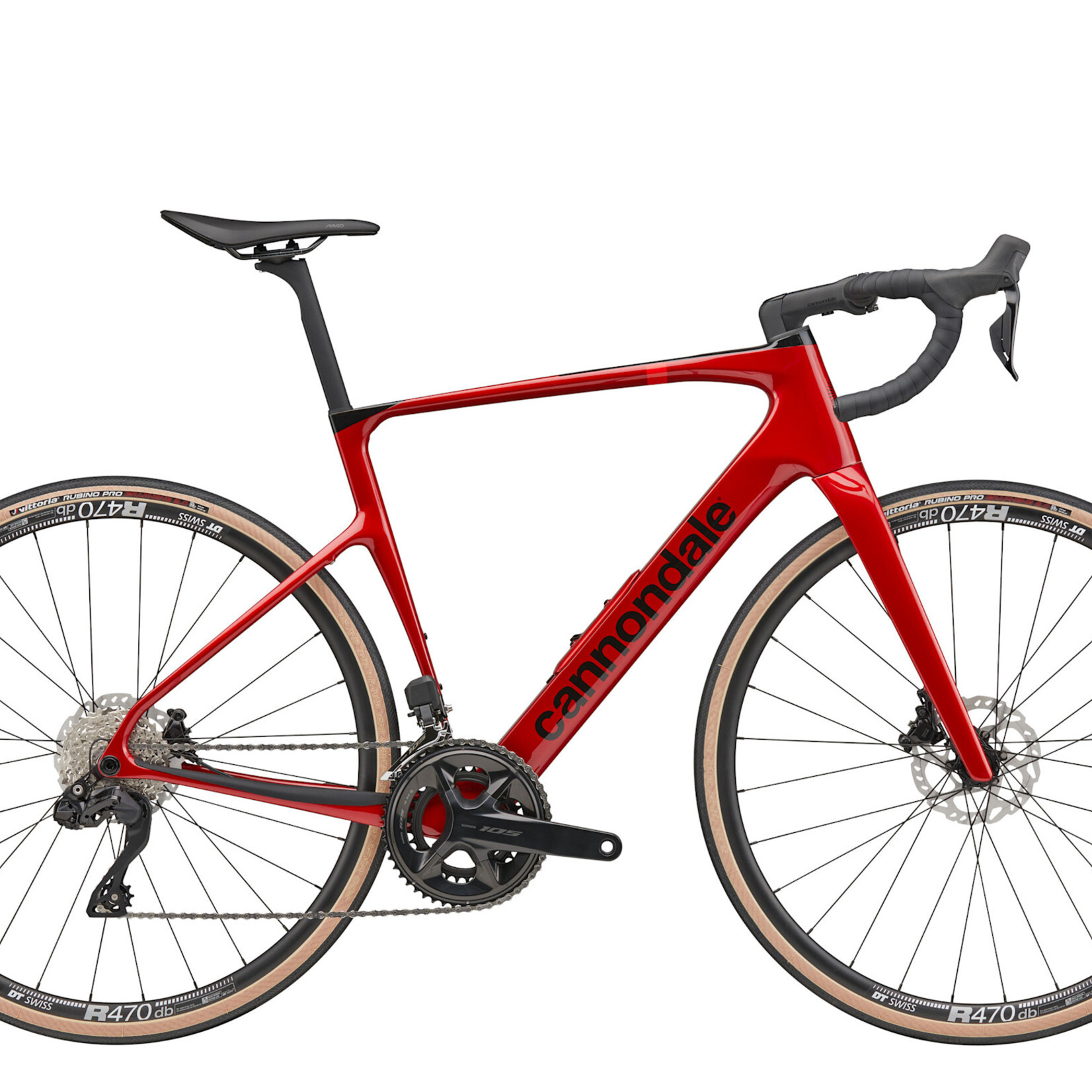

Wireless brains meet all-road brawn. Synapse Carbon 4 runs Shimano 105 Di2 for a shifting experience that feels straight off the pro tour, minus the bank loan. The frame delivers that signature Synapse ride—quietly fast, endlessly composed—and plays nice with wide tires, fenders, and long days. Call it the sweet spot between Sunday speed and weekday practicality.
Comfortable high-performance road riding, long distance missions, fast group rides
| Weight: | 19.7lbs - 54cm |
|---|---|

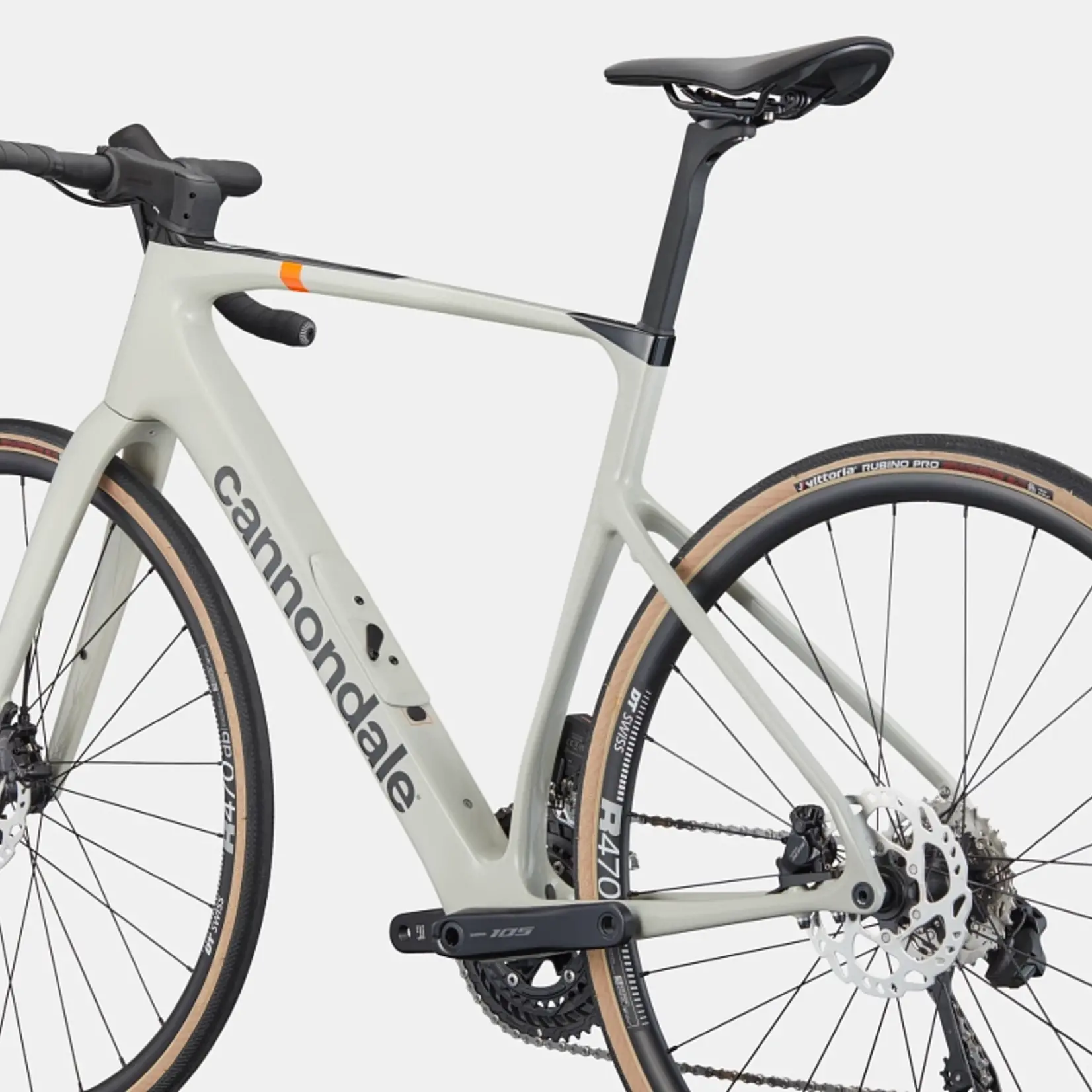

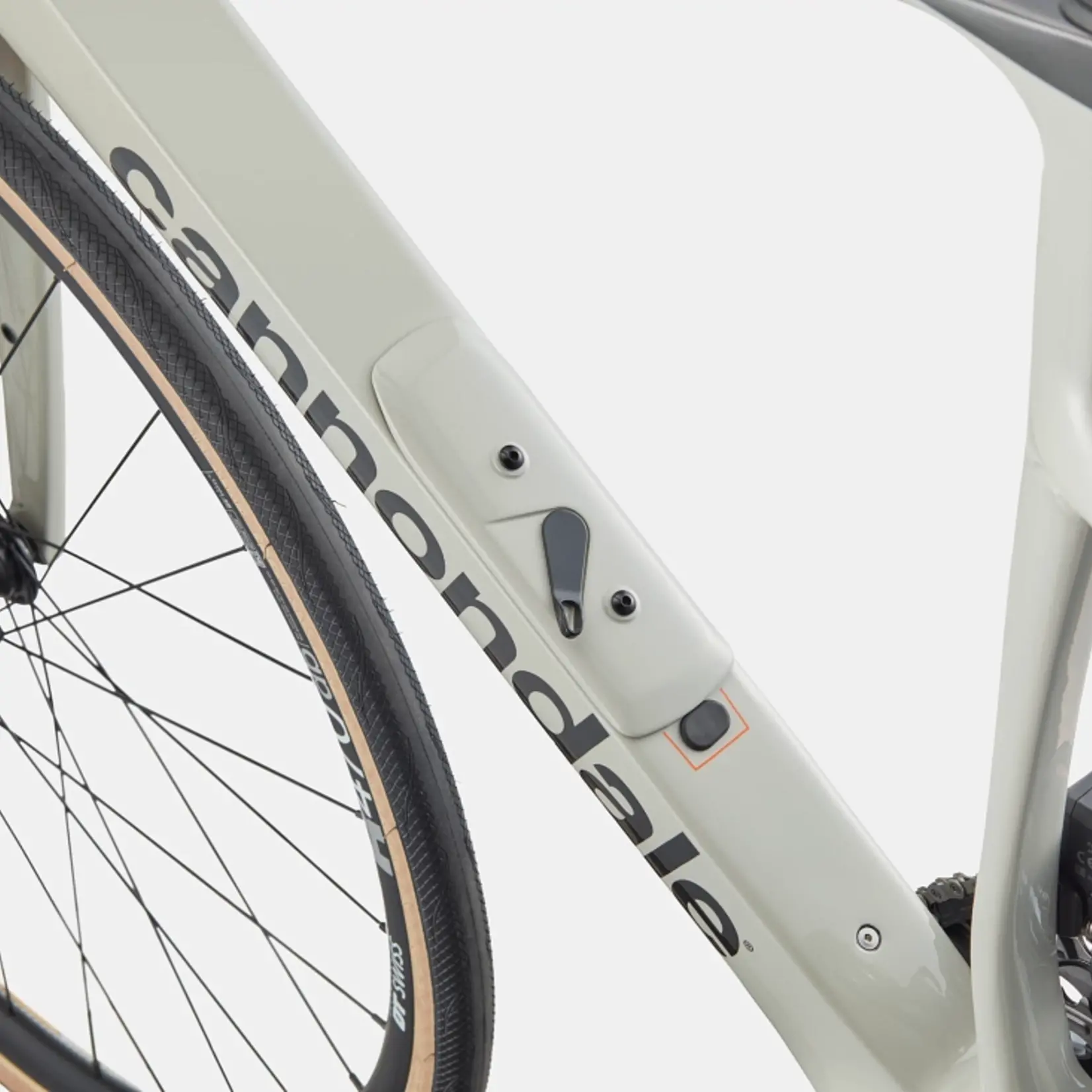

| Frame: | Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts |
| Fork: | Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts |
| Shock: | N/A |
| Front Shifter: | Shimano 105 Di2 R7170 |
| Front Derailleur: | Shimano 105 Di2 7150, braze-on |
| Rear Shifter: | Shimano 105 Di2 R7170, wireless, 12-speed |

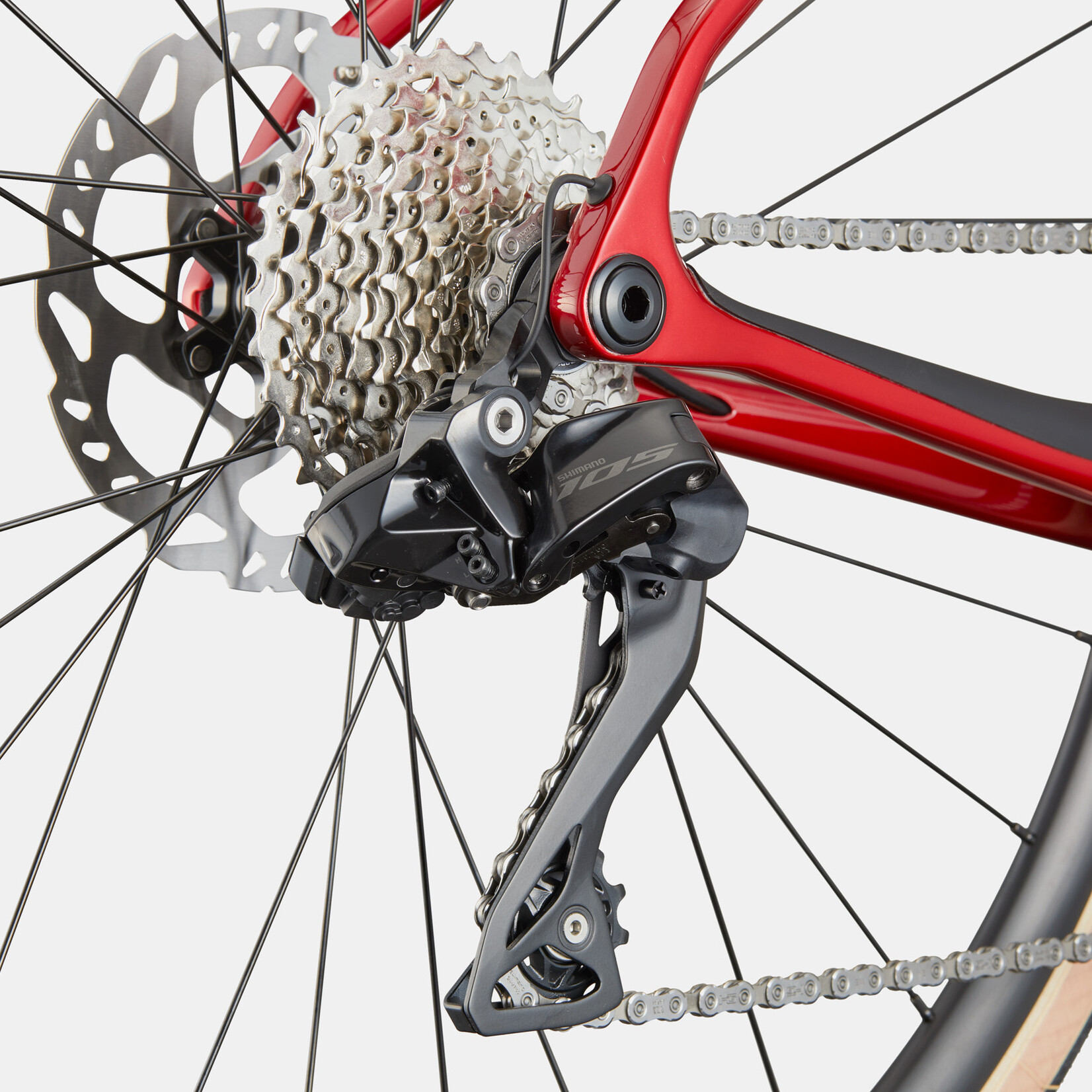

| Rear Derailleur: | Shimano 105 Di2 7150 |

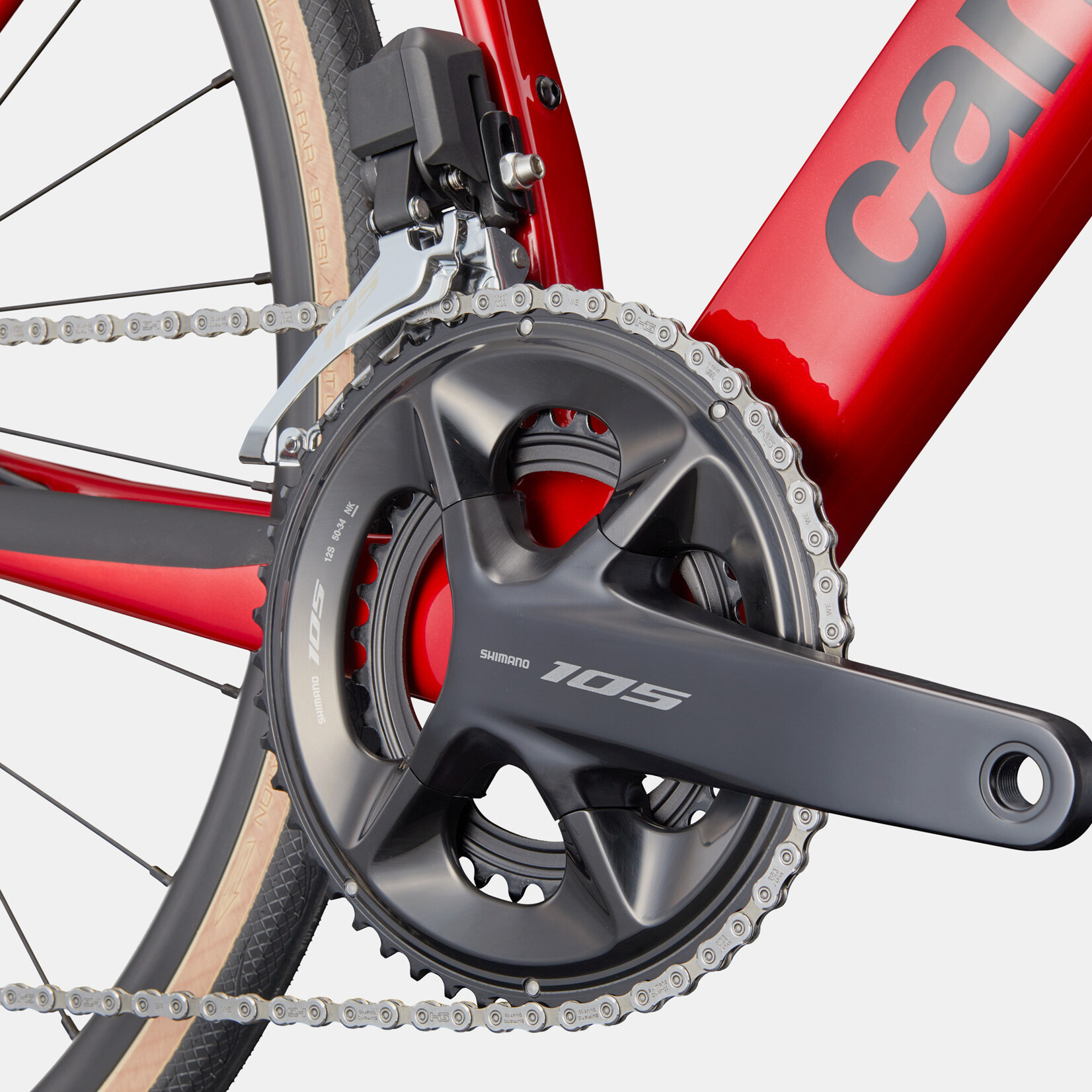

| Crankset: | Shimano 105 7100, BSA, 50/34 |
| Pedals: | N/A |
| Bottom Bracket: | Shimano BSA 68 |
| Cassette: | Shimano 105 7100, 11-34, 12-speed |
| Chain: | Shimano 105 7100, 12-speed |
| Front Brake: | Shimano 105 7170 hydraulic disc |
| Front Brake Rotor: | 160mm RT70 rotor |
| Rear Brake: | Shimano 105 7170 hydraulic disc |
| Rear Brake Rotor: | 160mm RT70 rotor |
| Brake Levers: | Shimano 105 7170 |
| Front Hub: | Shimano RS470, centerlock |
| Front Hub Skewer: | 12x100mm |
| Rear Hub: | Shimano RS470, centerlock |
| Rear Hub Skewer: | 12x142mm |
| Rims: | DT Swiss E550, 28h, tubeless ready |
| Front Tire: | Vittoria Rubino Pro IV, 700x32c |
| Rear Tire: | Vittoria Rubino Pro IV, 700x32c |

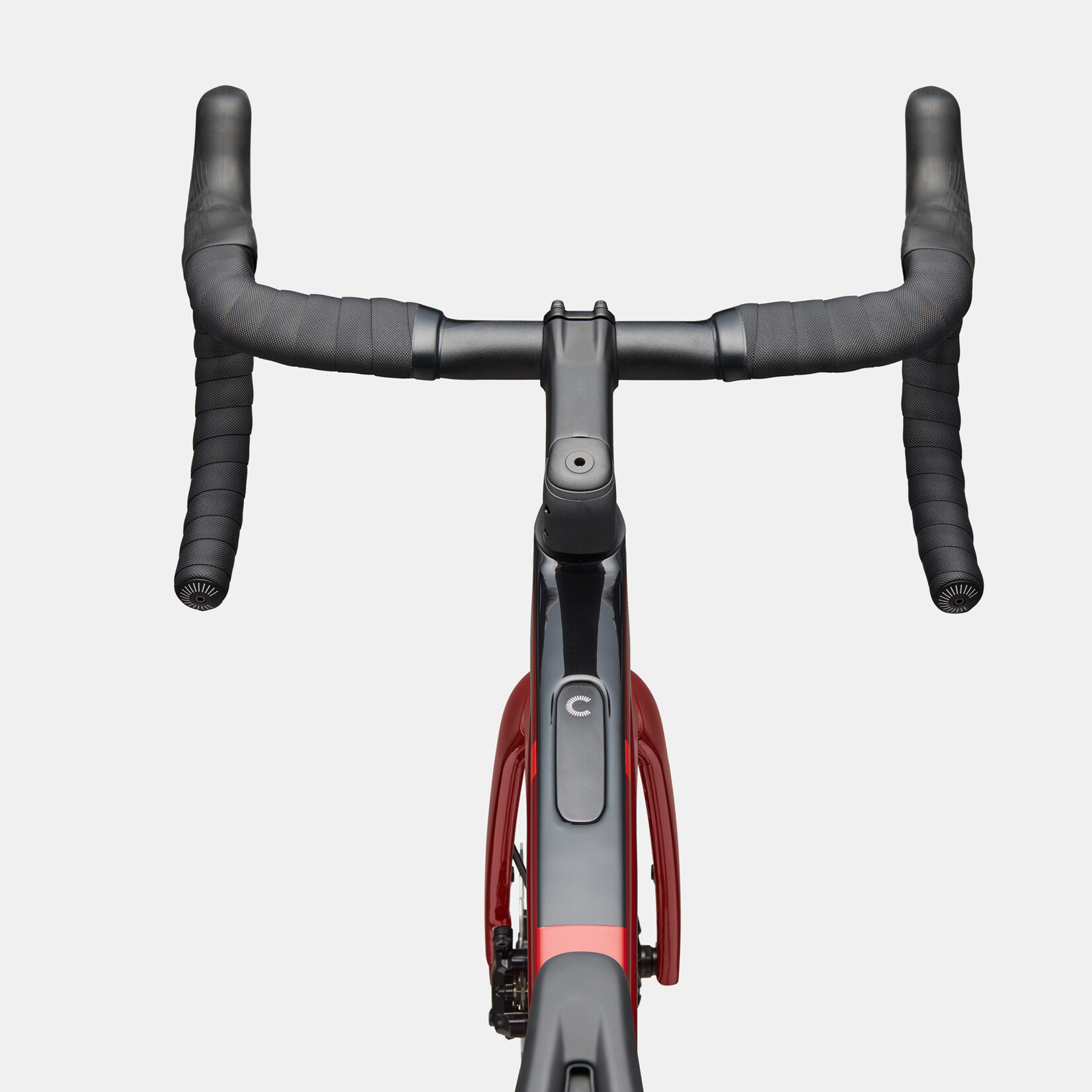

| Handlebar: | Vision Trimax Aero Alloy |
| Grips/ Bar Tape: | Cannondale Bar Tape, 3.5mm |
| Stem: | Cannondale C1 Conceal, Alloy, 31.8, -6° |
| Headset: | Integrated, 1-1/8" - 1-1/2" |
| Saddle: | Fizik Vento Argo X5, 140mm |
| Seatpost: | Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (44-48cm), 20mm offset (51-61cm) |
| Extras: | Large StashBag downtube storage bag |
